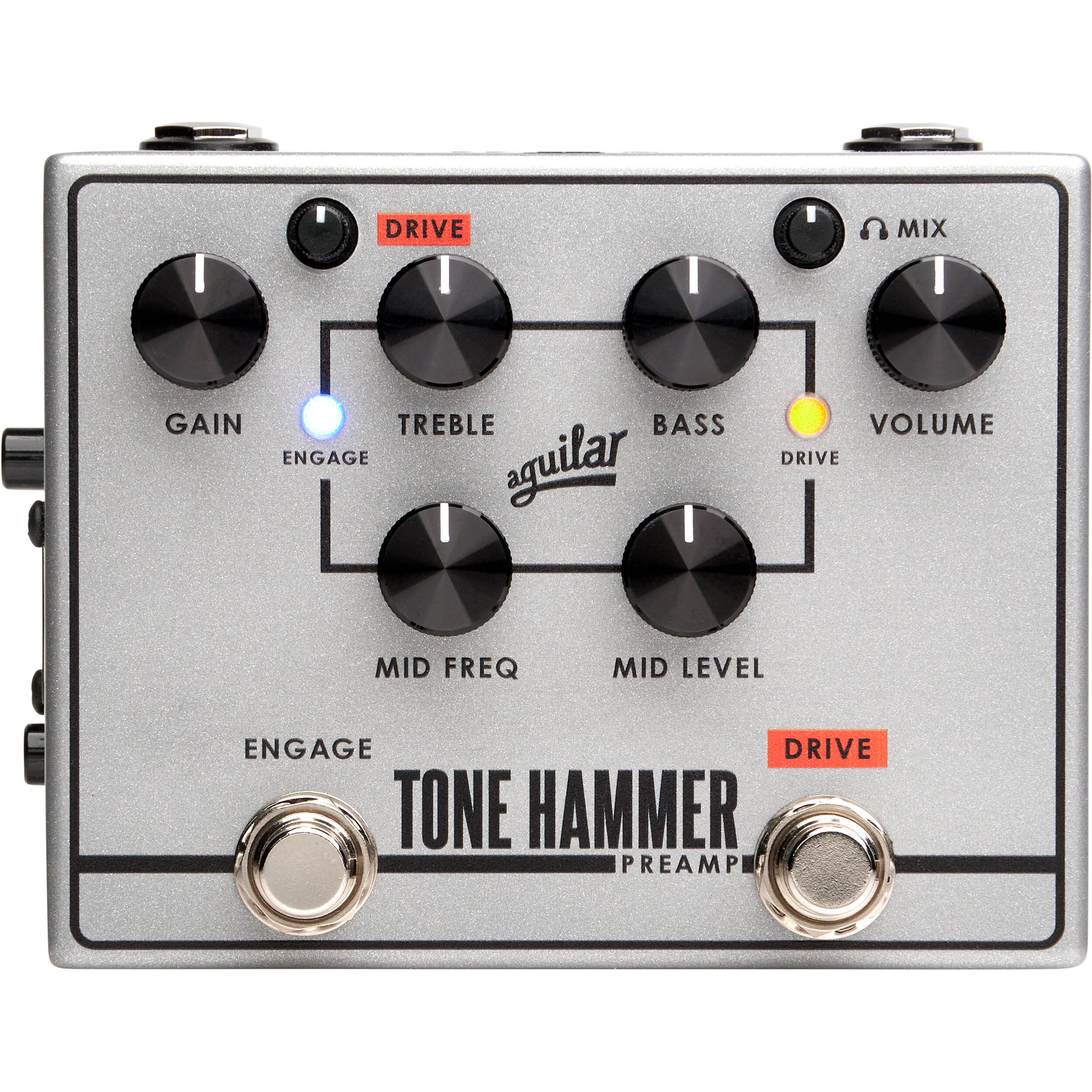

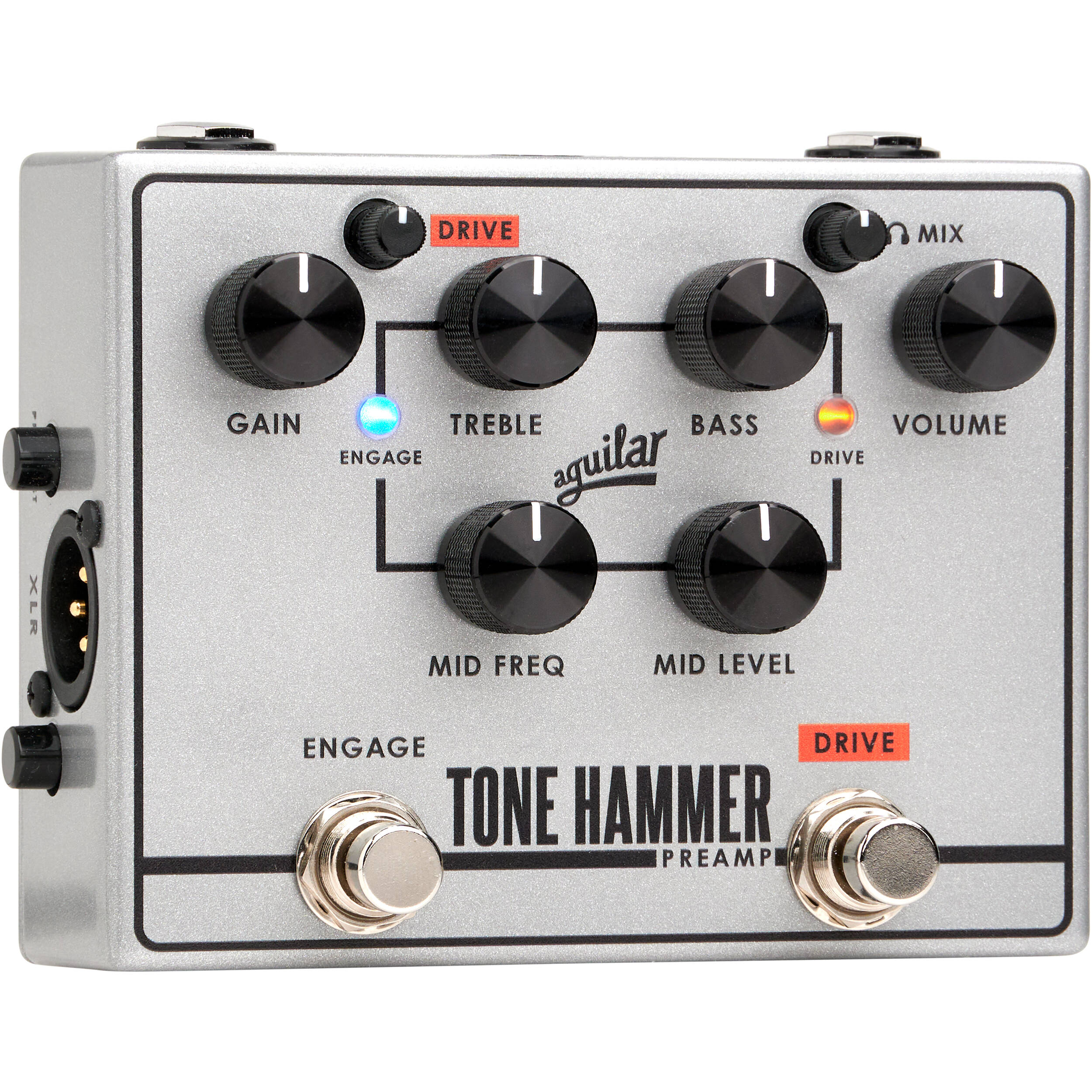

aguilar Tone Hammer V2 Preamp / Direct Box Pedal
aguilar V2 Preamp Overview
Derived from the coveted Tone Hammer amplifiers, the Tone Hammer Preamp V2 from Aguilar is the second edition of this versatile bass preamp pedal, offering a redesigned chassis that's more pedalboard friendly. Sporting a new Drive channel with dedicated level and footswitch control, plus an aux in and headphone out, this pedal is a vital tool for studio or stage.

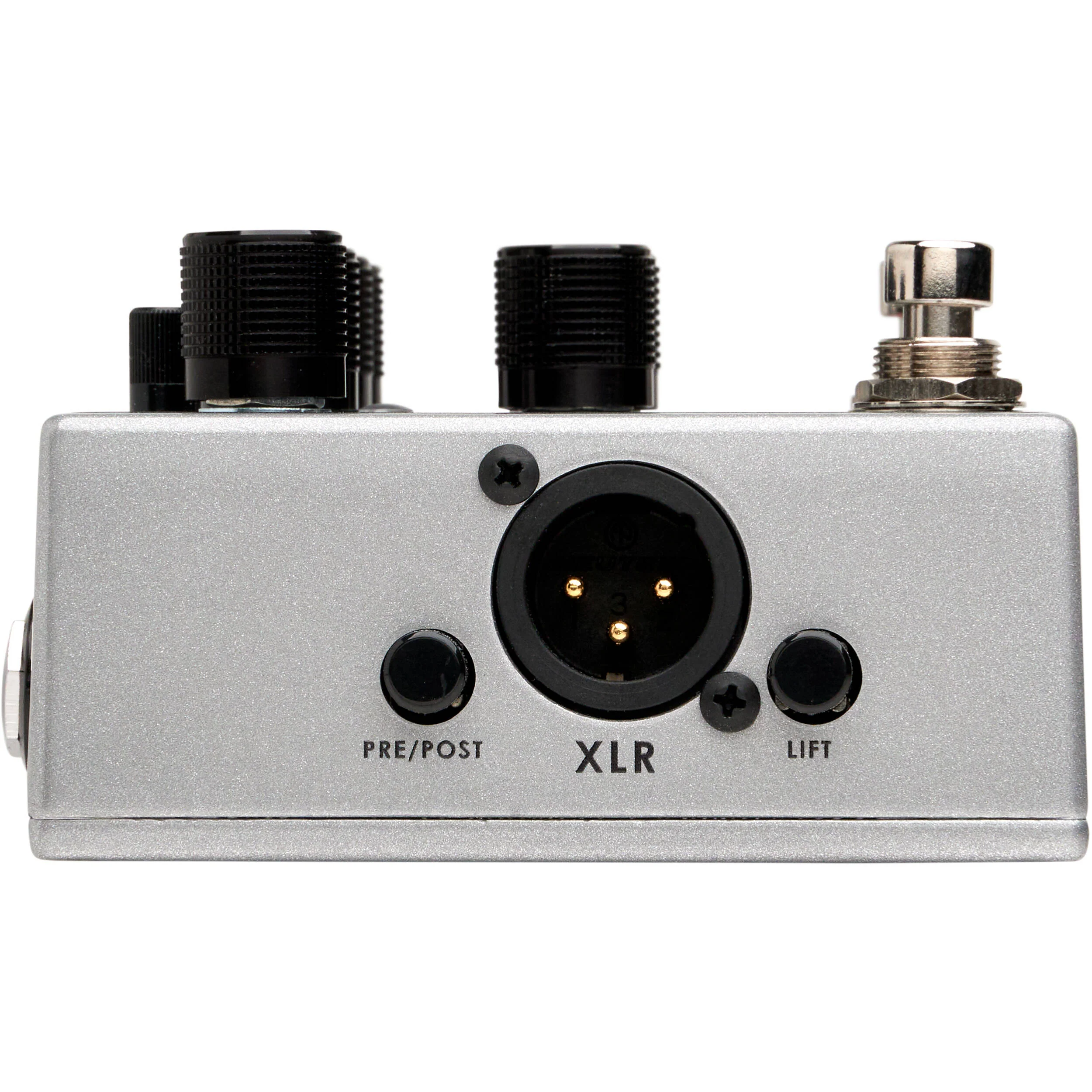

Like the original Tone Hammer preamp pedal, the V2 features 3-band EQ control with fully sweepable mids between 180 Hz and 1 kHz. You get a balanced XLR 3-pin DI output with switchable Pre or Post DI switching and a ground-lift switch for eliminating hum. AGS technology is still present, allowing the player to kick in an additional gain structure to go from modern tones to vintage, tubelike saturation with the stomp of a button. The headphone output also includes a dedicated mix level control for adjusting the balance of bass signal and aux input. And the Tone Hammer preamp pedal is still shipped with a durable steel chassis for surviving years of abuse.
- Bass +/-18 dB at 40 Hz
- Mid +/-17 dB at 180 Hz to 1 kHz
- Treble +/-18 dB at 4 kHz
Items Included
- aguilar Tone Hammer V2 Preamp / Direct Box Pedal
- Limited 3-Year Manufacturer Warranty
Additional Resources
aguilar V2 Preamp Specs
| Audio Circuit Type |
Analog (Solid-State)
|
| Controls |
6 x Rotary Knob (Gain, Volume, Treble, Bass, Mid Freq, Mid Level)
2 x Low-Profile Rotary Knob (Drive, Mix) 2 x Push Button (Pre/Post, Lift) 2 x Footswitch (On/Bypass, Drive) |

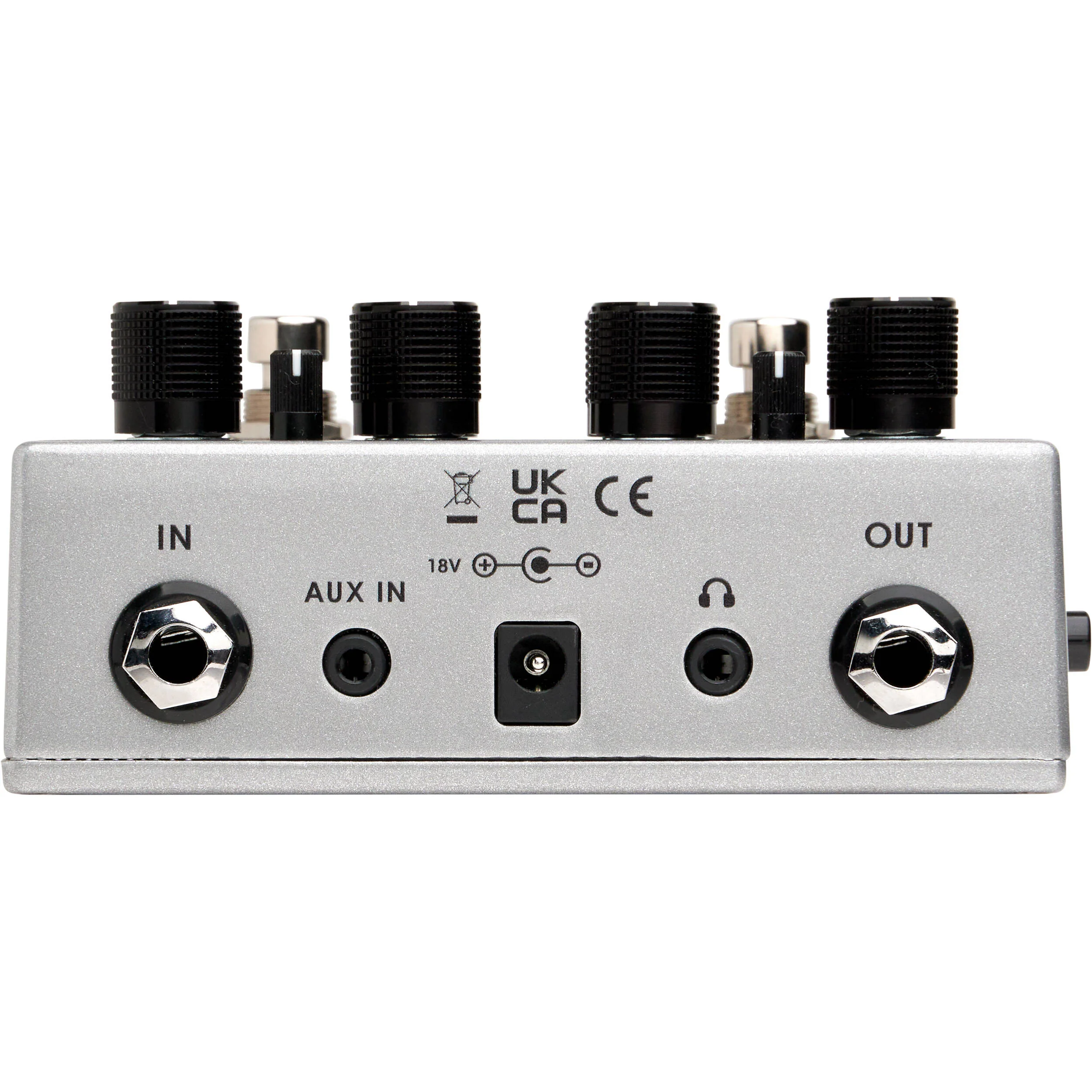

| Audio I/O |
1x 1/4" TS Hi-Z/Instrument Input
1x 1/8" / 3.5 mm TRS Aux Input 1x XLR 3-Pin Line Output 1x 1/4" TS Line Output 1x 1/8" / 3.5 mm TRS Headphone Output |
| Power Source |
AC Adapter with Power Brick (Not Included), Battery (Not Included)
|
| Battery Type |
2x 9 V
|
| DC Input Power |
18 VDC
|
| Operating Current |
7 mA
|
| Color |
Silver
|
| Material of Construction |
Steel
|
| Dimensions |
17.15 x 10.8 x 8.26" / 43.56 x 27.4 x 20.98Ā cm
|
| Package Weight |
1.05 lb
|
| Box Dimensions (LxWxH) |
7.4 x 4.3 x 3.2"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
