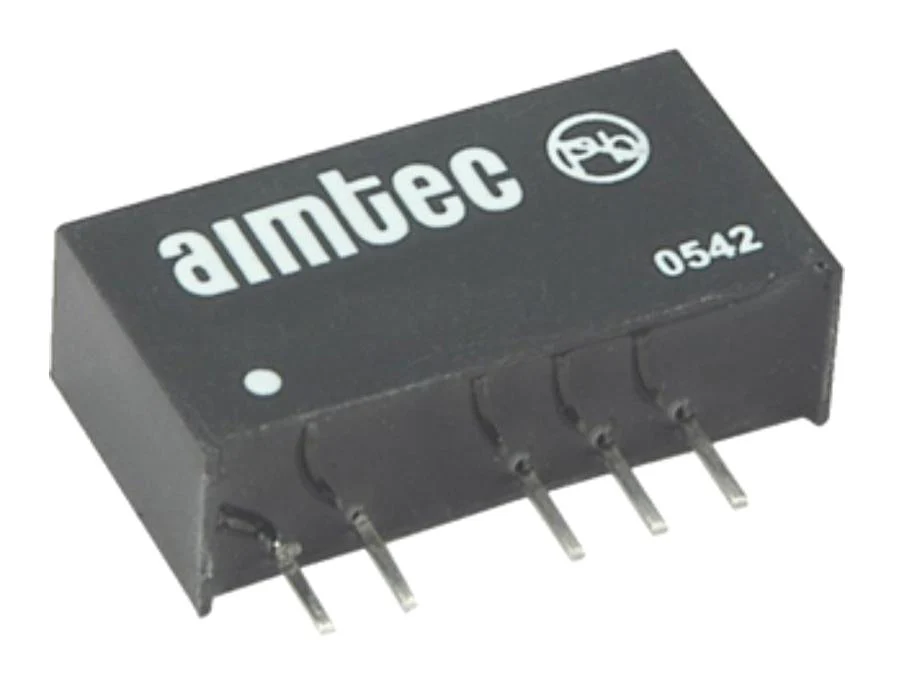

AIMTEC AM1D-2415DH30Z Isolated Through Hole DC/DC Converter, ITE, 1 W, 2 Output, 15 V, 33 mA
AIMTEC AM1D-2415DH30Z Isolated Through Hole DC/DC Converter, ITE, 1 W, 2 Output, 15 V, 33 mA
AM1D-2415DH30Z is an AM1D-Z series 1W DC/DC converter. It includes short circuit protection. Approved by cULus, EN/UL 60950-1, 62368-1.
- Input voltage range from 21.6 to 26.4V, output voltage is Ā±15V
- Maximum output current is Ā±33mA, isolation is 3000VDC
- Efficiency is 80%
- Low profile plastic package, 7 pin SIP package
- Pin compatible with multiple manufacturers
- Typical switching frequency is 80KHz(100% load, variable)
- Non-conductive black plastic UL 94 V-0 case material
- Operating a range from -40Ā°C to +85Ā°C, full load without derating
- Dimensions (L x W x H) is 19.50 x 6.00 x 10.00mm
Product details
| Power Supply Applications: ITE |
| Input Ratio: - |
| Output Power Max: 1W |
| No. of Outputs: 2 Output |
| Output Voltage - Output 1: 15V |
| Output Current - Output 1: 33mA |
| Output Voltage - Output 2: -15V |
| Output Current - Output 2: -33mA |
| Output Regulation: - |
| Isolation Voltage: 3kV |
| DC / DC Converter Type: SIP |
| Input Voltage DC Nom: 24V |
| DC / DC Converter Output Type: Fixed |
| Width: 6mm |
| Height: 10mm |
| Depth: 19.5mm |
| Input Voltage DC Min: 21.6V |
| Input Voltage DC Max: 26.4V |
| Product Range: AM1D-Z Series |
Other details
| Brand | AIMTEC |
| Part Number | AM1D-2415DH30Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
