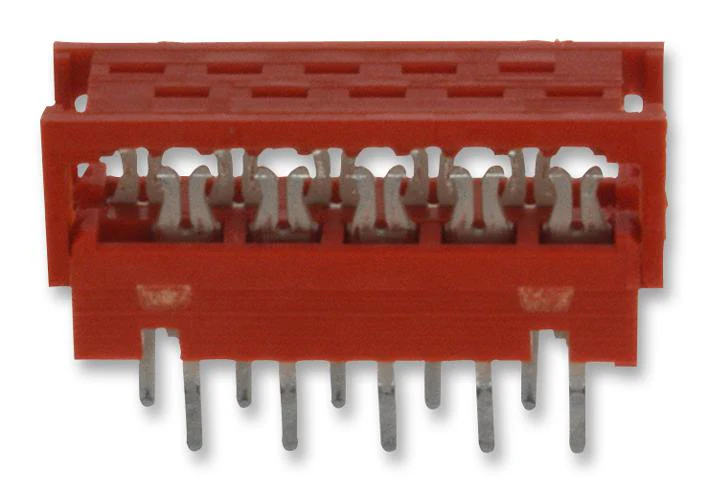

AMP - TE Connectivity 1-215570-0 1-215570-0 IDC Connector 28 AWG Board In 1.27 mm 2 Row 10 Contacts
AMP - TE Connectivity 1-215570-0 1-215570-0 IDC Connector 28 AWG Board In 1.27 mm 2 Row 10 Contacts
The Micro-MaTch series miniature Micro-MaTch Connector provides a proven reliable connection. Its unique contact-spring system helps prevent fretting corrosion by absorbing movements between male and female contacts. A contact concept that inspires. The Micro-MaTch contact concept is essentially different from other systems available. By its design, the traditional failure mode in tinplated connections, fretting corrosion, is prevented. The separation of the two basic functions of the contact system (contact force generation and wire termination), enables the optimization of both functions and leads to relatively simple contact shapes.
- Tin-plated contact design
- One of the smallest systems available at 1.27mm
- Guaranteed minimum contact force of 2N
- Fretting corrosion proof thanks to additional positioning spring member
- Fully plated contacts - No bare edges and no migration of corrosion products
- Contacts fully protected by polyester housings, except for side-entry female board connector
- Full range of application tooling from hand tool to fully automated equipment
Industrial, Aerospace, Defence, Military, Audio
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 1-215570-0 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| Application Note EN | |
| Drawing EN | |
| 3D Product Image EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$2.18
AMP - TE Connectivity 1-215570-0 1-215570-0 IDC Connector 28 AWG Board In 1.27 mm 2 Row 10 Contactsā
$2.18
AMP - TE Connectivity 1-215570-0 1-215570-0 IDC Connector 28 AWG Board In 1.27 mm 2 Row 10 Contacts
The Micro-MaTch series miniature Micro-MaTch Connector provides a proven reliable connection. Its unique contact-spring system helps prevent fretting corrosion by absorbing movements between male and female contacts. A contact concept that inspires. The Micro-MaTch contact concept is essentially different from other systems available. By its design, the traditional failure mode in tinplated connections, fretting corrosion, is prevented. The separation of the two basic functions of the contact system (contact force generation and wire termination), enables the optimization of both functions and leads to relatively simple contact shapes.
- Tin-plated contact design
- One of the smallest systems available at 1.27mm
- Guaranteed minimum contact force of 2N
- Fretting corrosion proof thanks to additional positioning spring member
- Fully plated contacts - No bare edges and no migration of corrosion products
- Contacts fully protected by polyester housings, except for side-entry female board connector
- Full range of application tooling from hand tool to fully automated equipment
Industrial, Aerospace, Defence, Military, Audio
Other details
| Brand | AMP - TE CONNECTIVITY |
| Part Number | 1-215570-0 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN | |
| Manufacturer Catalogue EN | |
| Application Note EN | |
| Drawing EN | |
| 3D Product Image EN | |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
