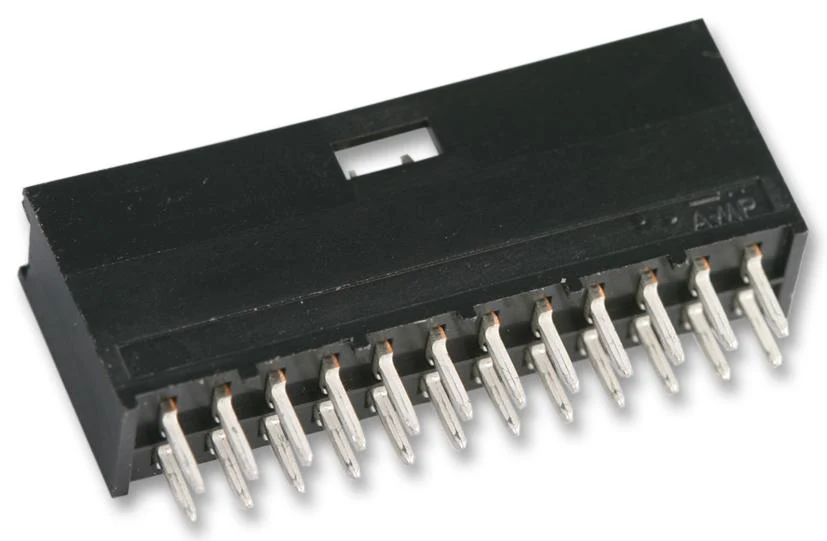

AMP - TE Connectivity 280509-2 280509-2 Pin Header Shrouded Wire-to-Board 2.54 mm 2 Rows 18 Contacts Through Hole Straight

The TE Connectivity AMPMODU Mod II shrouded headers provide a comprehensive solution for popular connection standard. Shrouded headers feature gold or tin plating with straight or right angle orientation. These headers will mate with both PCB and cable mount receptacles.

• Comprehensive single and double row connector system
• Current rating 3A max per contact
• Pitch size is 2.54mm
• Operating temperature range -40°C to 80°C
• Contact resistance of 15mohm
• Insulation resistance of 5000Mohm
• Tin and gold plated contacts available
• Features 0.63mm posts with mating receptacles

Applications

Industrial

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	AMP - TE CONNECTIVITY
Part Number	280509-2
Quantity	Each
3D Product Image EN
Drawing EN
Manufacturer Product Page EN
Product Change Notice EN
