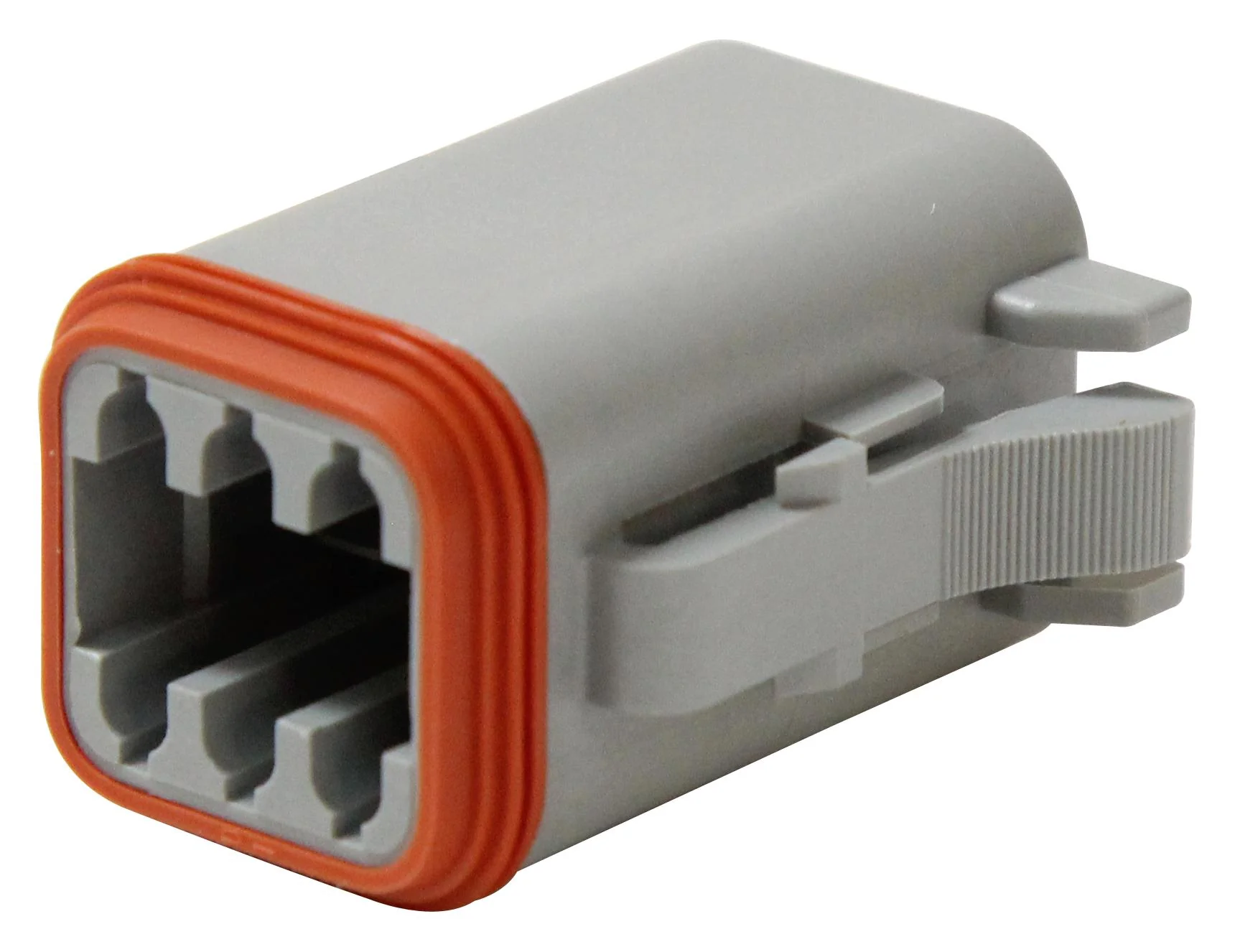

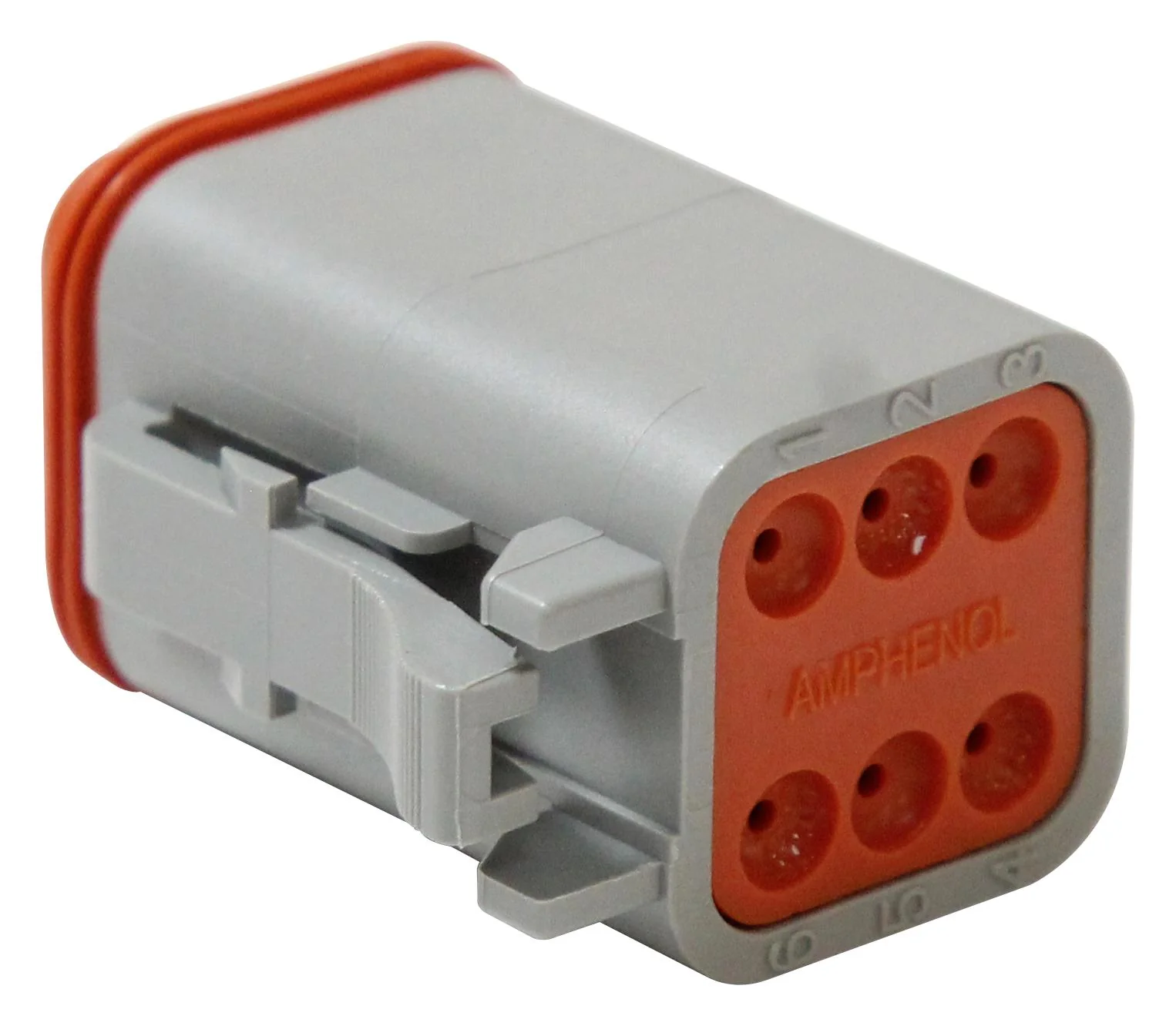

Amphenol SINE/TUCHEL AT06-6S AT06-6S Automotive Connector Housing AT Plug 6 Ways Series Socket Contacts Thermoplastic Body

The AT06-6S is a 6-way Plug with socket-type contacts. The AT series connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Connector housing is manufactured with a thermoplastic material that is not only durable, but has excellent UV resistance, dielectric/mechanical properties. The sealing system is comprised of a front and rear silicone, multi-sealing perimeter against environmental ingress. Contacts are derived from quality copper alloy to ensure an electrically-reliable connection.

• 14 to 20AWG Wire size
• 13A Current rating
• 1000MR at 25°C Minimum insulation resistance
• IP67 (moisture resistance) Protection rating
• 100 Mating cycles

Applications

Logistics, Medical, Aerospace, Defence, Military, Alternative Energy, Agriculture

Other details

Brand	AMPHENOL SINE/TUCHEL
Part Number	AT06-6S
Quantity	Each
Drawing EN
CAD Multiple Formats EN
Enhanced Product Overview EN
Manufacturer Catalogue EN
