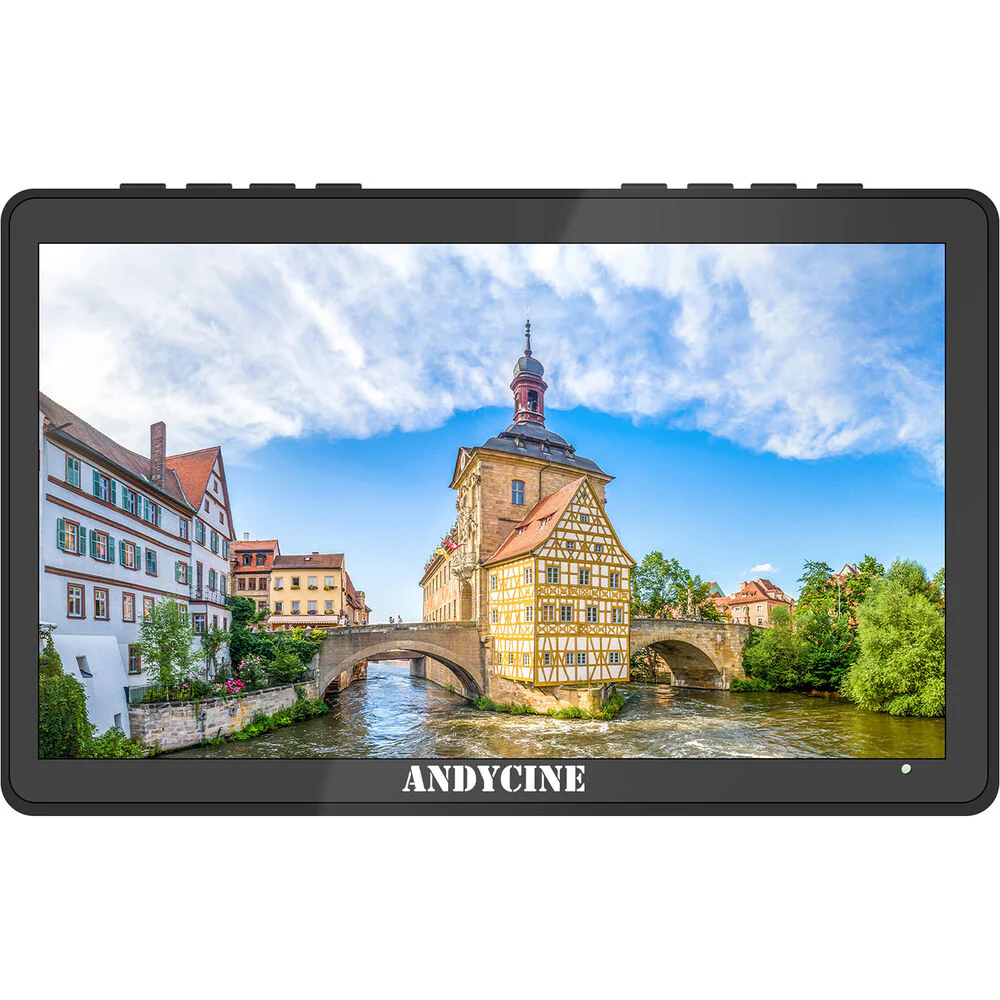

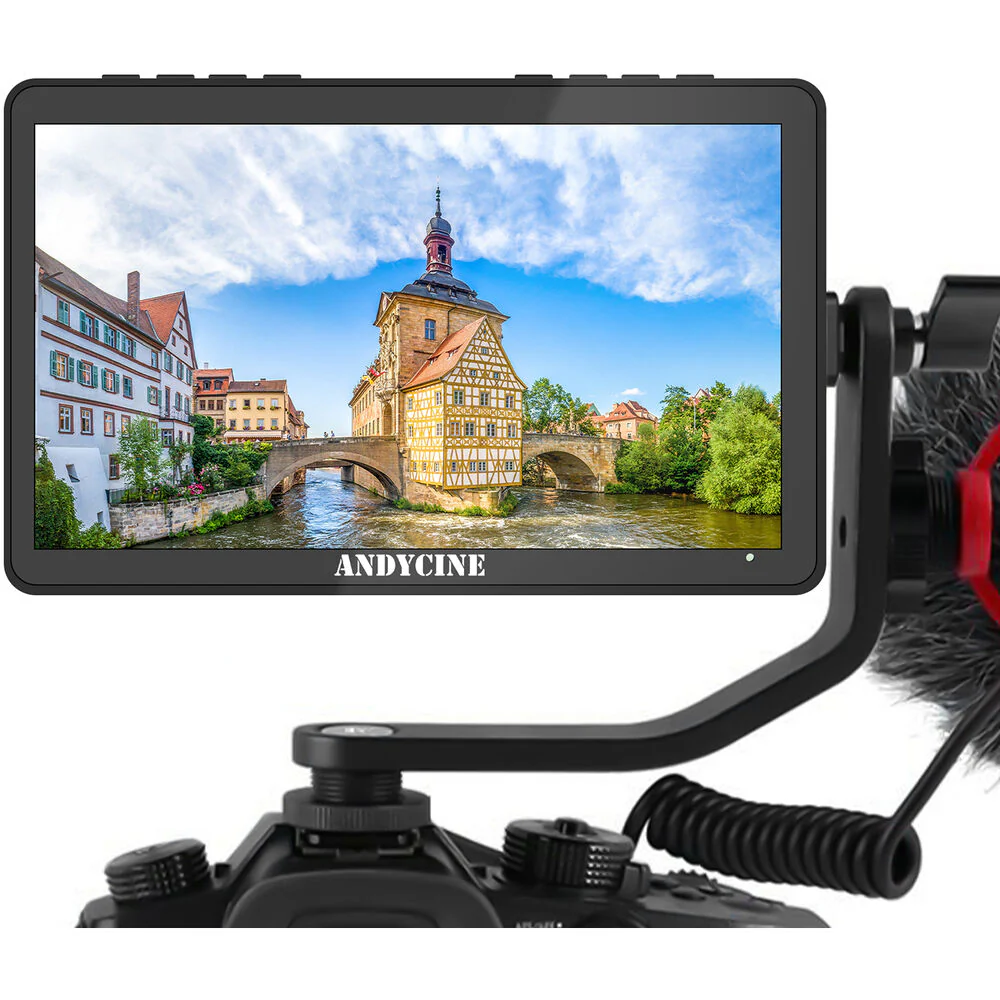

ANDYCINE A6 Max 6" Touchscreen HDMI On-Camera Monitor
ANDYCINE A6 MAX Overview
- 1Description
- 2Vivid Touchscreen
- 3Power Options
- 4Focus and Exposure Tools
- 5Connections
- 6Tilt Arm Mounting
- 7Sunshade
- 8Imaging Tools
Easily view your frame using the A6 Max 6" Touchscreen HDMI On-Camera Monitor from ANDYCINE. Ideal for mirrorless cameras, DSLRs, and small camcorders, this 1920 x 1080 resolution monitor enables you to accurately view the footage being captured and to check footage, exposure, and other parameters. Equipped with a single HDMI input and a USB-C port, the A6 will support video resolutions up to DCI 4K.
The included tilt arm and a 160°-wide viewing angle enable you to easily position the A6 at the optimal angle. Power this compact, slim monitor using the integrated battery plate and a separately available L-Series type F970 battery, the USB-C port, or a separately available 12 VDC power source. In addition to the tilt arm, a sunshade, and a micro-HDMI cable are included with the A6 Max 6" monitor.

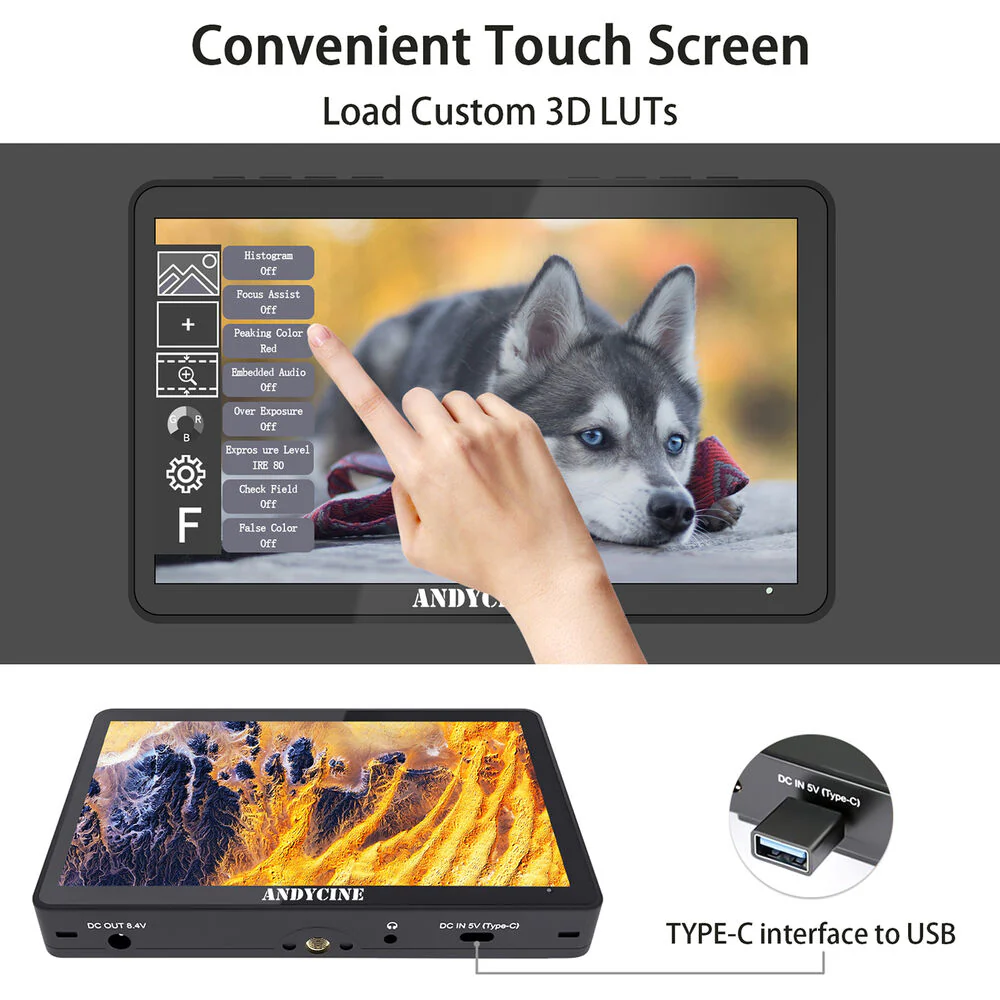

Vivid Touchscreen
The A6 Max features a vivid 6" touchscreen with two-finger touch and pinch control.

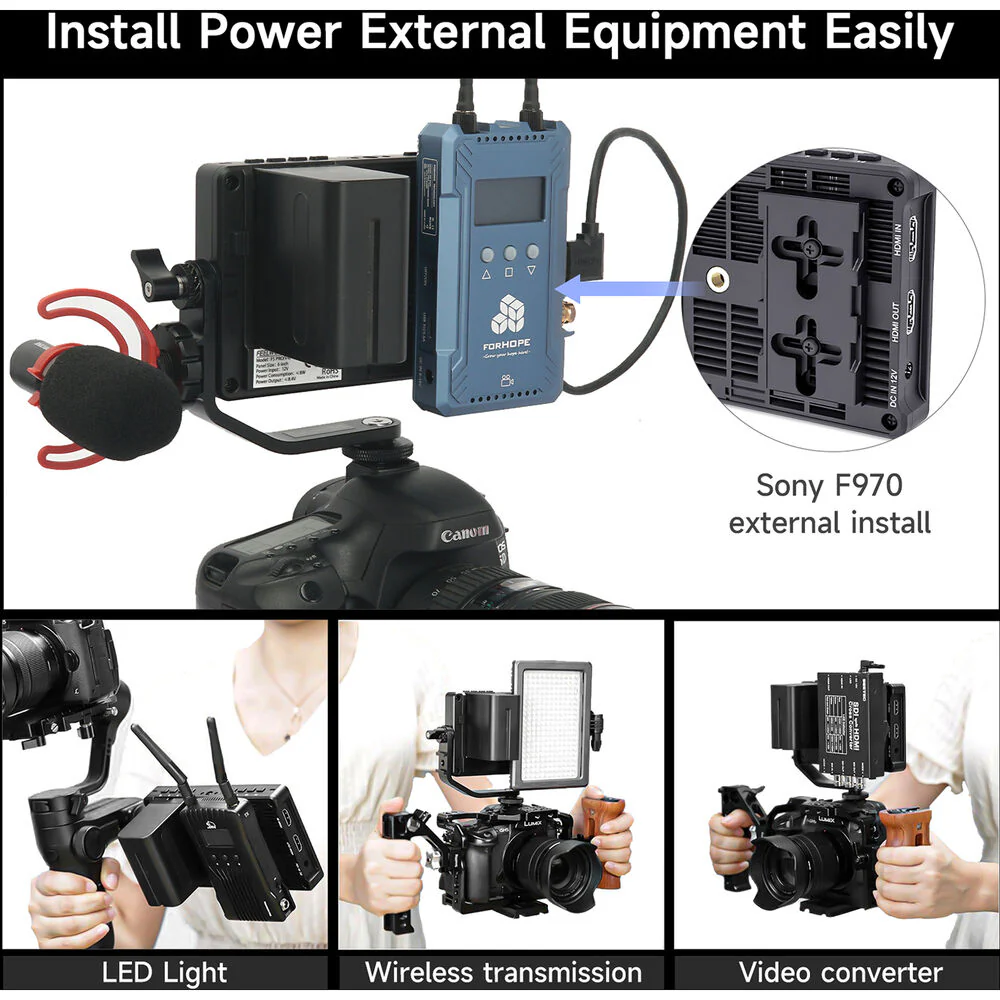

Power Options
- This monitor can be powered using a separately available Sony L-series type NP-F970 battery.
- Can also be powered via the USB-C port and a separately available 5V/2A USB power supply.

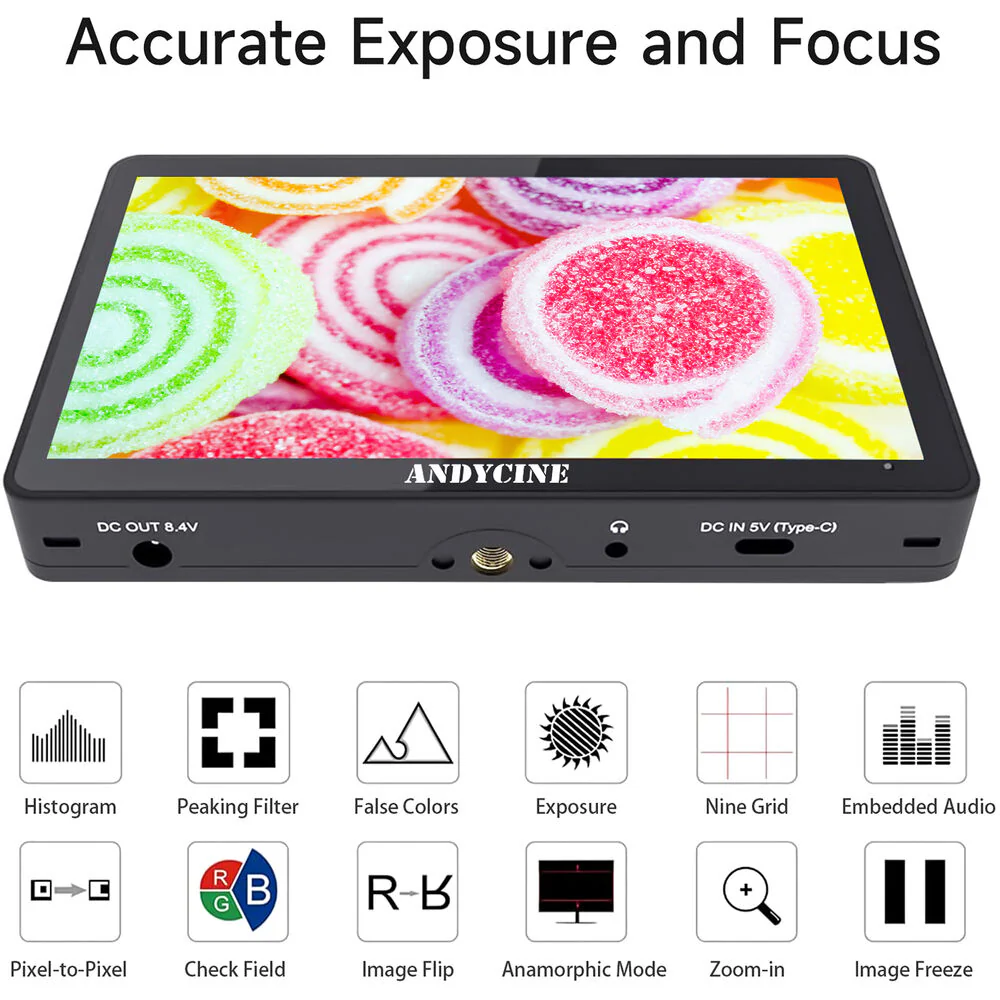

Focus and Exposure Tools
Tools include focus peaking indicators (red, green, and blue) and false color tools for properly setting your exposure.
Connections
The monitor interface includes a 4K HDMI input and HDMI output, a USB-C port, and a 3.5mm stereo audio jack for headphone monitoring.
Tilt Arm Mounting
Mounts onto your camera using the included 360° tilt arm and your camera's shoe mount or 1/4"-20 thread.
Sunshade
The included sunshade effectively shields the monitor when shooting in bright sunlight.
Imaging Tools
- Brightness histogram
- Peaking focus assist (red, green, blue)
- False colors, zebra exposure, nine-grid zoom
- Camera mode (DSLR scaling)
- Zoom (4x, 9x, 16x)
- Anamorphic mode (1.3x, 2.0x, 2.0x magnification)
- Pixel-to-pixel, center marker
- Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker color (red, green, blue, white, black)
- Check field (red/green/blue/mono)
- Image flip (H, V, H/V), image freeze
- Zoom-all (0 to 500 adjustable)
- Up/down and left/right zoom (0 to 500 adjustable)
- Color temperature adjustment
UPC: 719209242608
In the Box
- ANDYCINE A6 Max 6" Touchscreen HDMI On-Camera Monitor
- Micro-HDMI Cable
- Tilt Arm
- Sunshade
- USB-C to USB-A Adapter
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Vivid Touchscreen
- Power Options
- Focus and Exposure Tools
- Connections
- Tilt Arm Mounting
- Sunshade
- Imaging Tools
ANDYCINE A6 MAX Specs
Key Specs
| Display Size |
6.0" / 15.2 cm
|
| Resolution |
1920 x 1080
|
| Touchscreen |
Yes
|
| HDR Compatibility |
No
|
| Video I/O |
1 x HDMI 1.4 Input
1 x HDMI 1.4 Output |
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI
DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i |
| Battery Type |
1 x L-Series
|
| Power Consumption |
8 W (Maximum)
|
| Mounting |
4 x 1/4"-20 Female
|
Display
| Panel Type |
IPS-Type LCD
|
| Display Size |
6.0" / 15.2 cm
|
| Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 160° (80/80)
Vertical: 160° (80/80) |
| Touchscreen |
Yes
|
| Maximum Brightness |
450 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Dot Pitch |
69.00 x 69.00 µm
|
| HDR Compatibility |
No
|
| Pixels Per Inch (ppi) |
367 ppi
|
| Real-Time LUT Monitoring |
SDR
|
| Image Controls |
Anamorphic De-Squeeze, Color Temperature Selection, False Color, Focus Assist, Histogram, Image Flip, Overscan, Underscan, Zebra
|
Inputs / Outputs
| Video I/O |
1 x HDMI 1.4 Input
1 x HDMI 1.4 Output |
| HDCP Support |
Yes
|
| Audio I/O |
1 x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1 x USB-C (5 VDC) Input
1 x Barrel (12 VDC) Input 1 x Barrel (8.4 VDC) Output |
| Other I/O |
1 x USB-C (Firmware), (LUT Upload) [Shared with USB-C Power Connector]
|
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
*As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
Format Support
| Video Format |
HDMI
DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i |
| Gamma Curve |
Rec709
|
Power
| DC Input Power |
7 to 24 VDC
|
| Battery Type |
1 x L-Series
|
| Power Consumption |
8 W (Maximum)
|
| Mounting |
4 x 1/4"-20 Female
|
Environmental
| Operating Temperature |
12 to 82°F / -20 to 50°C
|
| Storage Temperature |
-22 to 140°F / -30 to 60°C
|
General
| Material of Construction |
Plastic
|
| Dimensions |
5.8 x 3.7 x 0.86" / 148 x 93 x 21.75 mm
|
| Weight |
8.6 oz / 245 g
|
Packaging Info
| Package Weight |
1.535 lb
|
| Box Dimensions (LxWxH) |
7.5 x 5.7 x 4.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
