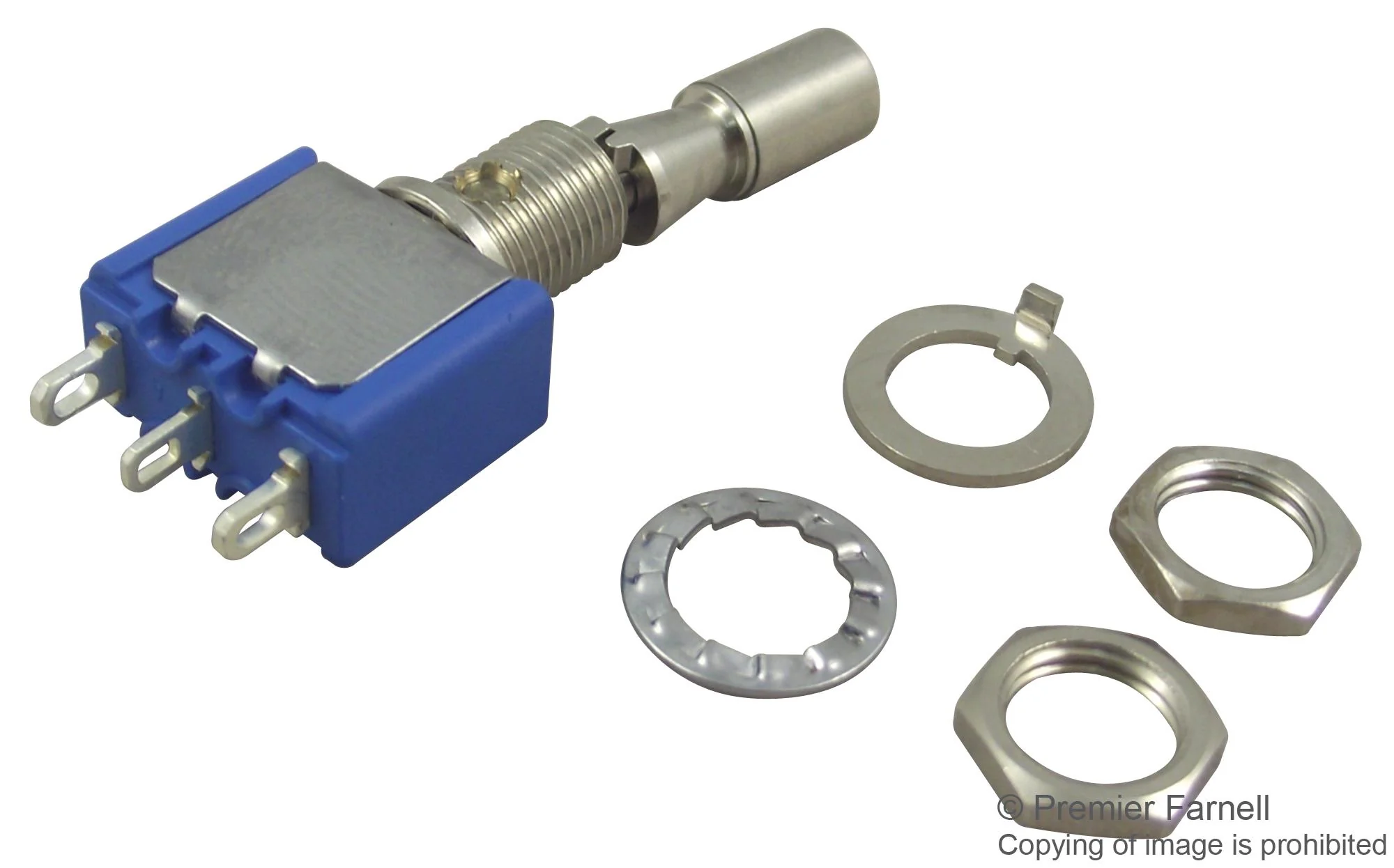

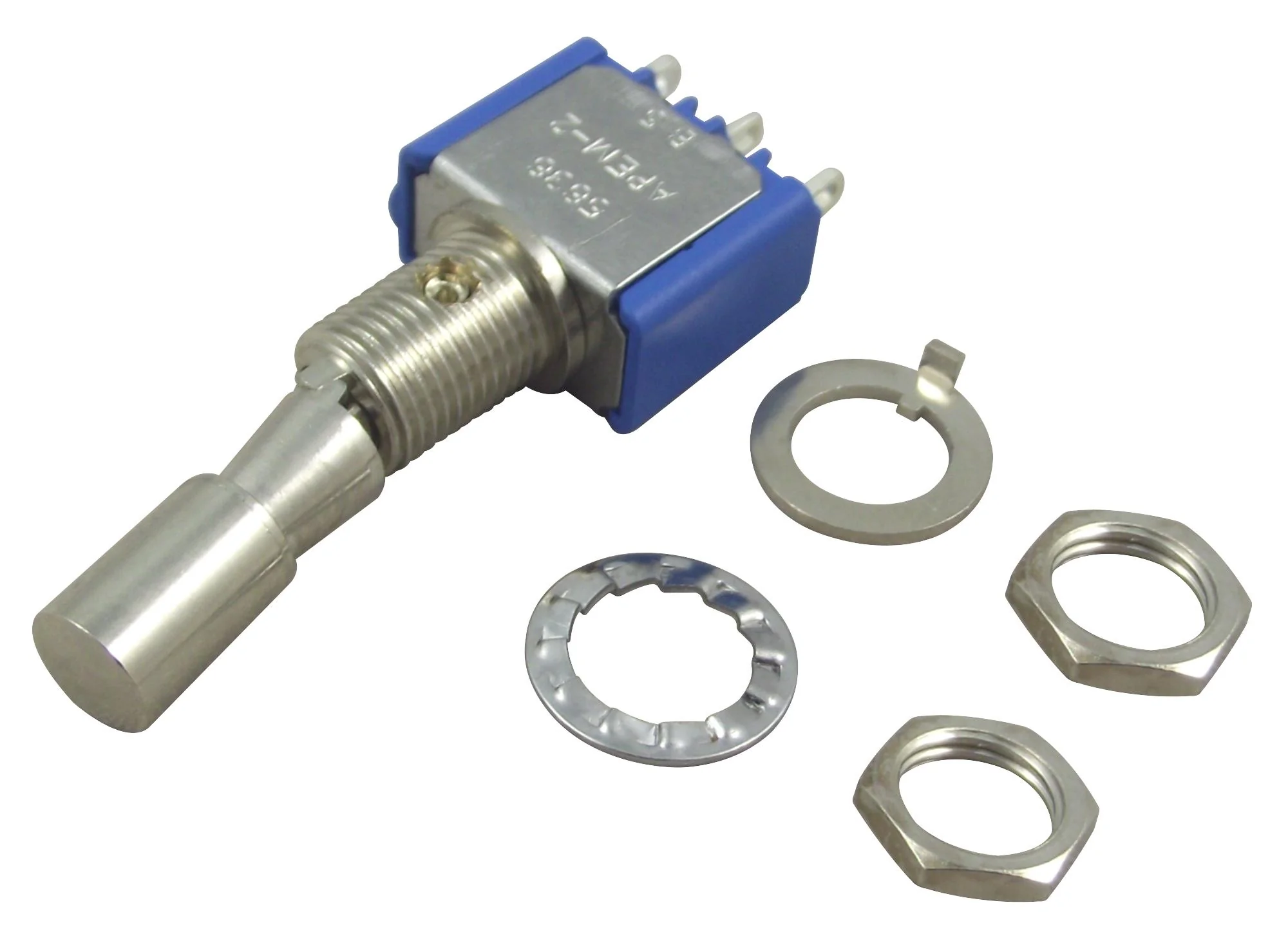

Apem 5636A2V 5636A2V Toggle Switch On-On Spdt Non Illuminated Panel Mount 4 A

The 5636A2V is a single-pole double-throw miniature Toggle Switch with solder lug terminals, threaded bushing versions for panel mounting and plain bushing versions for PCB, On-On switch operation, stainless steel housing, diallylphthalate (DAP) or high temperature plastic material (UL94-V0) case, nickel-plated brass actuator, silver contact, UL94HB polyamide paddles, vinyl lever caps and nickel-plated brass bushing.

• Epoxy terminal seal
• 10mR Initial contact resistance
• 1000MR at 500VDC Minimum insulation resistance
• 50000 Cycles electrical life at full load
• -40 to +85°C Operating temperature range

Applications

Audio, Automotive, Communications & Networking, Agriculture

Other details

Brand	APEM
Part Number	5636A2V
Quantity	Each
Technical Data Sheet EN
