API AUDIO 3124V 4-Channel Microphone Preamp
HomeStore

API AUDIO 3124V 4-Channel Microphone Preamp

API AUDIO 3124V 4-Channel Microphone Preamp

API AUDIO 3124V Overview

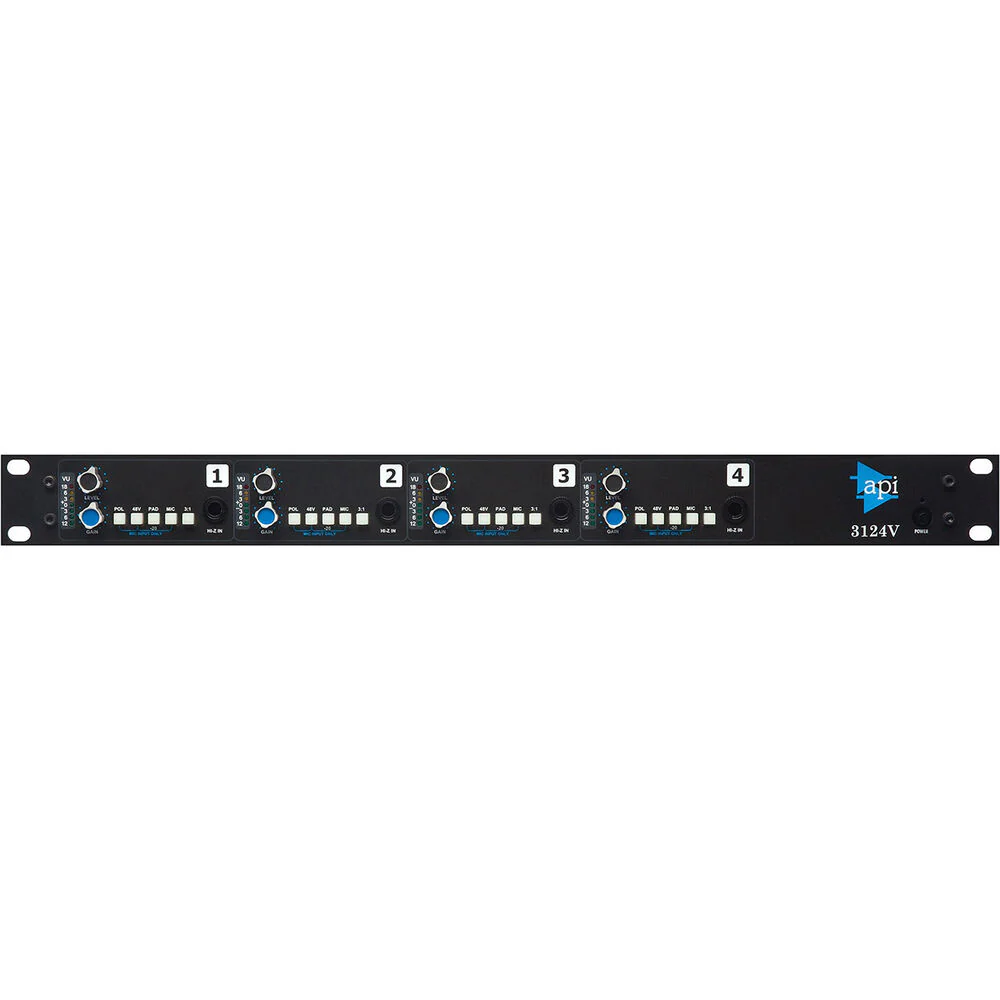

Ideal as a front-end mic pre in studios and mobile recording setups, the API Audio 3124V is a 4-channel mic pre with variable output control. Offering up to 65 dB of clean mic gain, front-panel Hi-Z inputs, and LED VU meters on each channel, the 3124V is an optimal start for any signal.

The 3124MV features pristine API circuitry, including the AP2516 input transformer, 2520 op-amps, and a custom output transformer. Each input channel sports level and gain controls, as well as buttons for polarity inversion, 48V phantom power, a -20 dB pad, mic/line input selection, and the 3:1 transformer tap function, which reduces the gain ratio from 1:3 to 1:1. Rear-panel connections include balanced XLR inputs and outputs per channel. Finally, the unit sports a universal internal power supply with manual switching, supporting international power standards.

Classic API Mic Pres
Like the API 3124+, the 3124V is a high-quality, compact, 4-channel mic preamp. It is equipped with the AP2516 input transformer and the proprietary output transformer found in all API mic pres and throughout the API product line.
Plenty of Headroom
The 3124V provides up to 65 dB of gain. The Hi-Z front panel input goes directly to the op-amp, allowing a low-level input such as a guitar or bass to be amplified without a matching transformer or direct box. This Hi-Z input can accept input levels as high as +20 dBu, making it perfect for keyboards and other high-level devices.

Items Included

  • API AUDIO 3124V 4-Channel Microphone Preamp
  • Limited 5-Year Manufacturer Warranty

Additional Resources

    API AUDIO 3124V Specs

    General
    Input Impedance
    Mic: 1.5 Kilohms>br> Hi-Z: 470 Kilohms
    Output Impedance
    <75 Ohms
    Frequency Response
    10 Hz to 20 kHz
    EIN
    -129 dB
    Noise
    -91 dBm
    THD
    0.09% (Max)
    Inputs/Outputs
    Audio I/O
    4x XLR 3-Pin Mic Input
    4x 1/4" TS Hi-Z/Instrument Input
    4x XLR 3-Pin Line Output (Transformer Balanced)
    Power
    Power Source
    AC Input
    AC Input Power
    Changing Voltage Requires Manual Switching
    115 to 230 VAC, 50 / 60 Hz
    Power Consumption
    19.2 W
    Physical
    Mounting
    Front: 4x Standard Rack Screw
    Color
    Black
    Material of Construction
    Metal
    Dimensions
    19 x 11 x 1.75" / 48.3 x 27.9 x 4.45 cm
    Weight
    10.38 lb / 4.71 kg
    Packaging Info
    Package Weight
    14.365 lb
    Box Dimensions (LxWxH)
    23 x 16 x 6.5"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $1,687.35

    Original: $5,624.50

    -70%
    API AUDIO 3124V 4-Channel Microphone Preamp—

    $5,624.50

    $1,687.35

    More Images

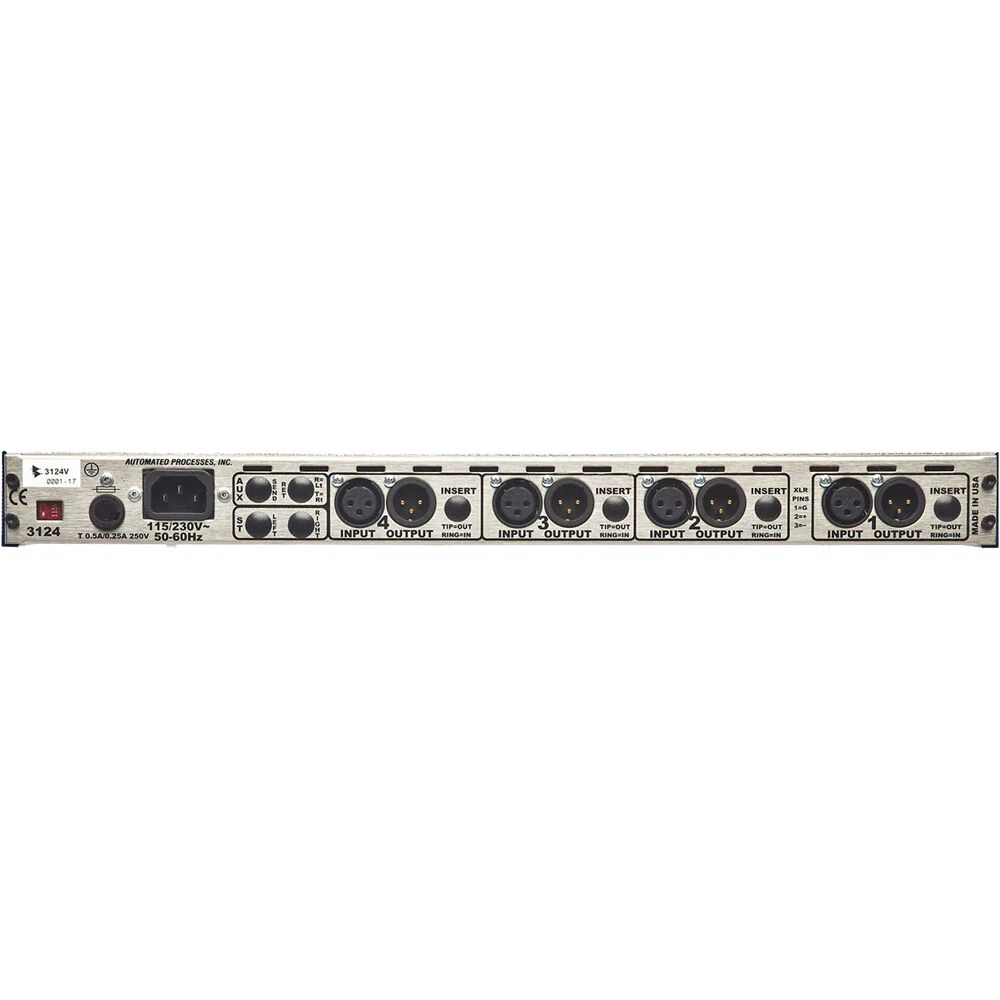

    API AUDIO 3124V 4-Channel Microphone Preamp - Image 2
