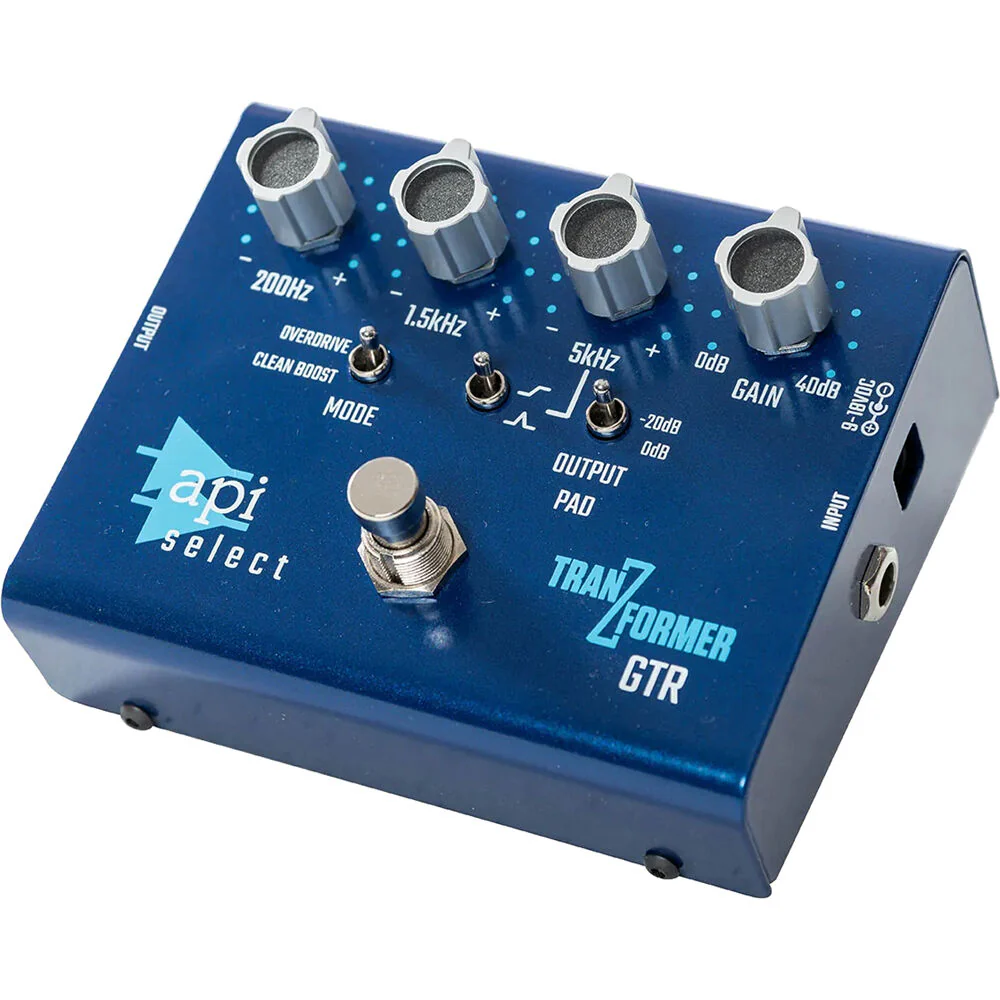

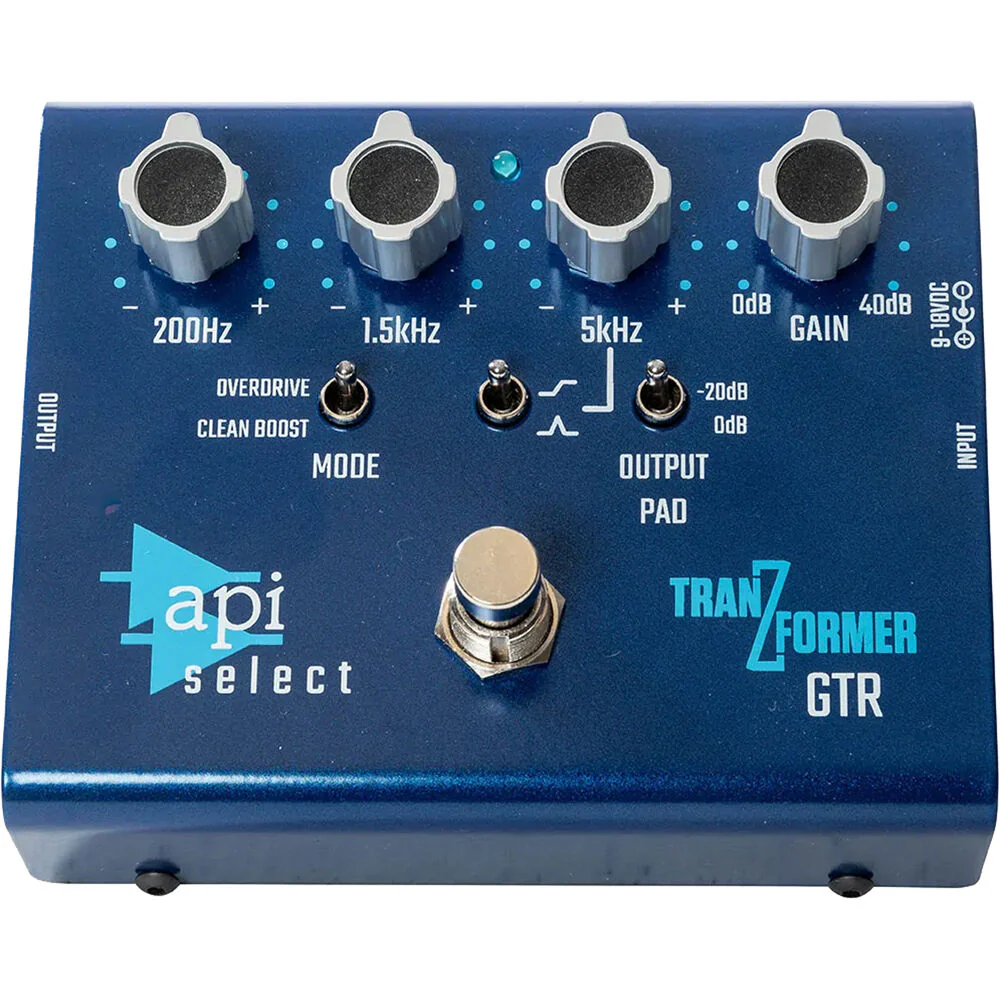

API AUDIO TranZformer GTR EQ and Boost Pedal
API AUDIO TRNZFR Overview
Placing API Audio's legendary EQ circuitry into a guitar-friendly pedal chassis, the TranZformer GTR is an EQ and boost pedal sporting 3-band EQ with ?15 dB of gain per band and up to 40 dB of clean boost. With a switchable drive circuit, you can flip between a clean boost and op-amp-powered overdrive circuit with absolute ease.
Switches are included on the TranZformer GTR for selecting a -20 dB output pad and for switching between peak or shelving functions for the high-frequency band. The bands on tap include 200 Hz, 1.5 kHz, and 5 kHz, with the mid and low frequencies being shelving types. The footswitch engages a buffered bypass, which is ideal for maintaining signal integrity during long cable runs or complex pedalboard configurations.
Items Included
- API AUDIO TranZformer GTR EQ and Boost Pedal
- Limited 5-Year Manufacturer Warranty
Not Included
-
Power SuppliesEssential
Additional Resources
API AUDIO TRNZFR Specs
| Audio Circuit Type |
Analog (Solid-State)
|
| Input Impedance |
1 Megohm
|
| Output Impedance |
<1 Kilohm
|
| Gain Control |
0 to +40 dB
|
| Maximum Output Level |
9 VDC: +15 dBu
18 VDC: +22 dBu |
| Frequency Response |
20 Hz to 20 kHz
|
| Controls |
4 x Rotary Knob (EQ Frequency, Gain)
3 x 2-Way Switch (Boost Mode, High-Frequency Peak/Shelf, Output Pad) 1 x Footswitch (On/Bypass) |
| Audio I/O |
1x 1/4" TS Hi-Z/Instrument Input
1x 1/4" TS Hi-Z/Instrument Output |
| Power Source |
AC Adapter with Power Brick (Not Included)
|
| DC Input Power |
9 to 18 VDC at 100 mA
|
| Color |
Blue
|
| Material of Construction |
Metal
|
| Dimensions |
4.6 x 3.8 x 3" / 11.7 x 9.7 x 7.6Ā cm
|
| Weight |
1.5Ā lb / 0.7Ā kg
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Original: $530.84
-70%$530.84
$159.25More Images
