ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard
HomeStore

ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard

ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard

ASUS PRIME H810M-A-CSM Overview

Designed to provide businesses with stable and reliable performance, the ASUS PRIME H810M-A-CSM Motherboard may be outfitted to power productivity and content creation. With support for Intel Core Ultra series 2 desktop processors with the LGA 1851 socket, this M-ATX motherboard delivers smooth performance for demanding applications and AI workloads.

Install an M.2 PCIe 4.0 x4 SSD alongside one PCIe 4.0 x2 and four SATA III drives, providing you with plenty of space to store your applications and multimedia files. The two DDR5 DIMM slots support up to 96GB of 6400 MT/s memory. You can install a powerful graphics card into the available PCIe 4.0 x16 slot while reserving the PCIe 4.0 x1 slot for other compatible expansions.

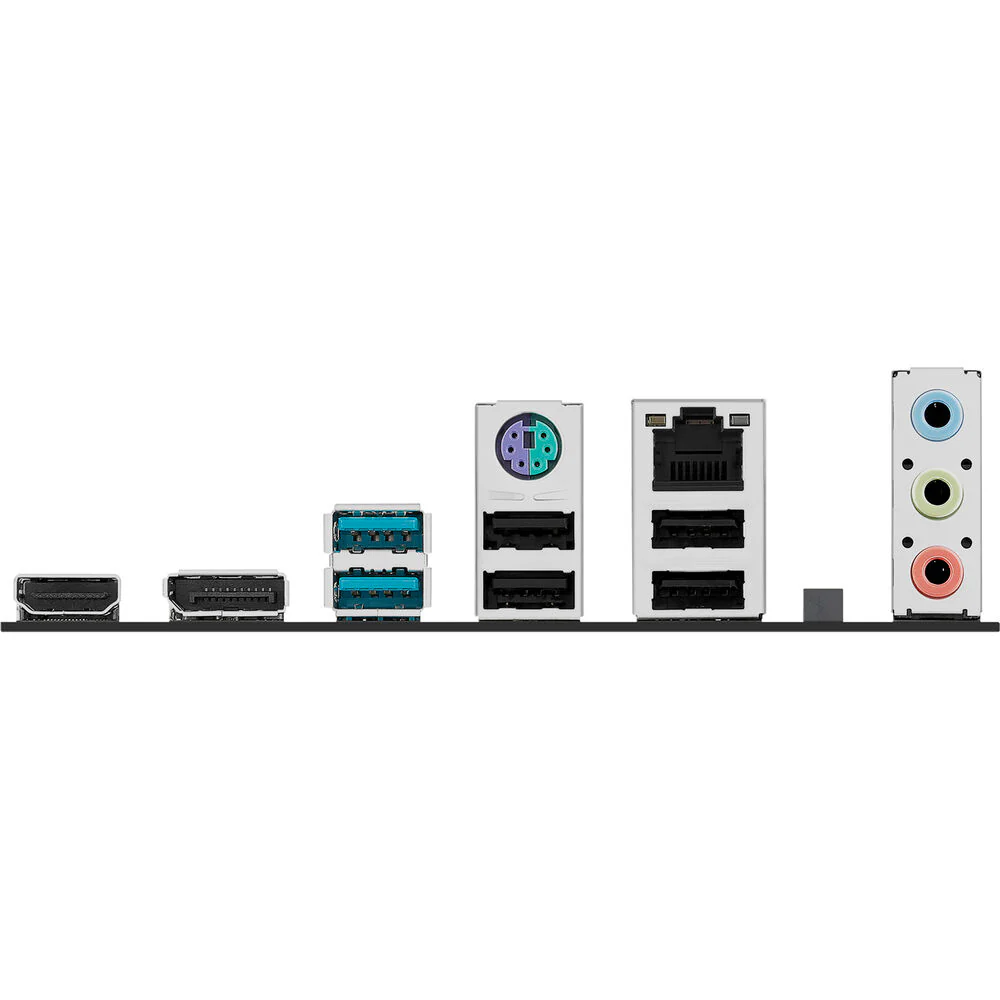

The rear panel features two 10 Gb/s USB-A ports alongside four USB-A 2.0 ports that may be used for keyboards, mice, and other peripherals. A Gigabit Ethernet port allows you to connect to compatible network devices for smooth video streaming and fast file transfers. The HDMI and 2.1 and DisplayPort 1.4 ports may be used with CPUs with integrated graphics. Windows 10 or later is required to take advantage of all this motherboard's features.

Performance
AI Ready
Designed for the future of AI computing, this motherboard is equipped with the power and connectivity needed for demanding AI applications.
Enhanced Power Solution
Equipped with 6+1+1+1 discrete MOS power stages with durable chokes, this motherboard delivers stable power throughout the system for overclocked components.
AEMP II
ASUS Enhanced Memory Profile III (AEMP II) is an advanced firmware feature that empowers users to achieve cutting-edge overclocked memory performance.
Comprehensive Cooling
A VRM heatsink works with the smart fan headers to efficiently dissipate heat for optimal performance.
Realtek 7.1 Surround Sound
The Realtek codec delivers high-quality 24-Bit / 192 kHz audio with shielded ports, premium capacitors, and dedicated PCB layers.
DIY Friendly
Q Technologies
ASUS Q-Dashboard, Q-DIMM, Q-LED Core, and Q-slot features help to simplify installation.
Personalization
ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
ASUS GlideX
Using this app enables smooth screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, across multiple platforms.
Aura Sync
Enhance your immersion with RGB lighting effects, including modes that adapt to the on-screen action. Then synchronize them with Aura Sync compatible peripherals such as keyboards, mice, and monitors.
Addressable Gen 2 RGB headers
The three addressable Gen 2 headers automatically optimize lighting effects for the number of LEDs present on compatible ARGB gear.
UPC: 197105844629

Items Included

  • ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard
  • 2 x SATA III Cable

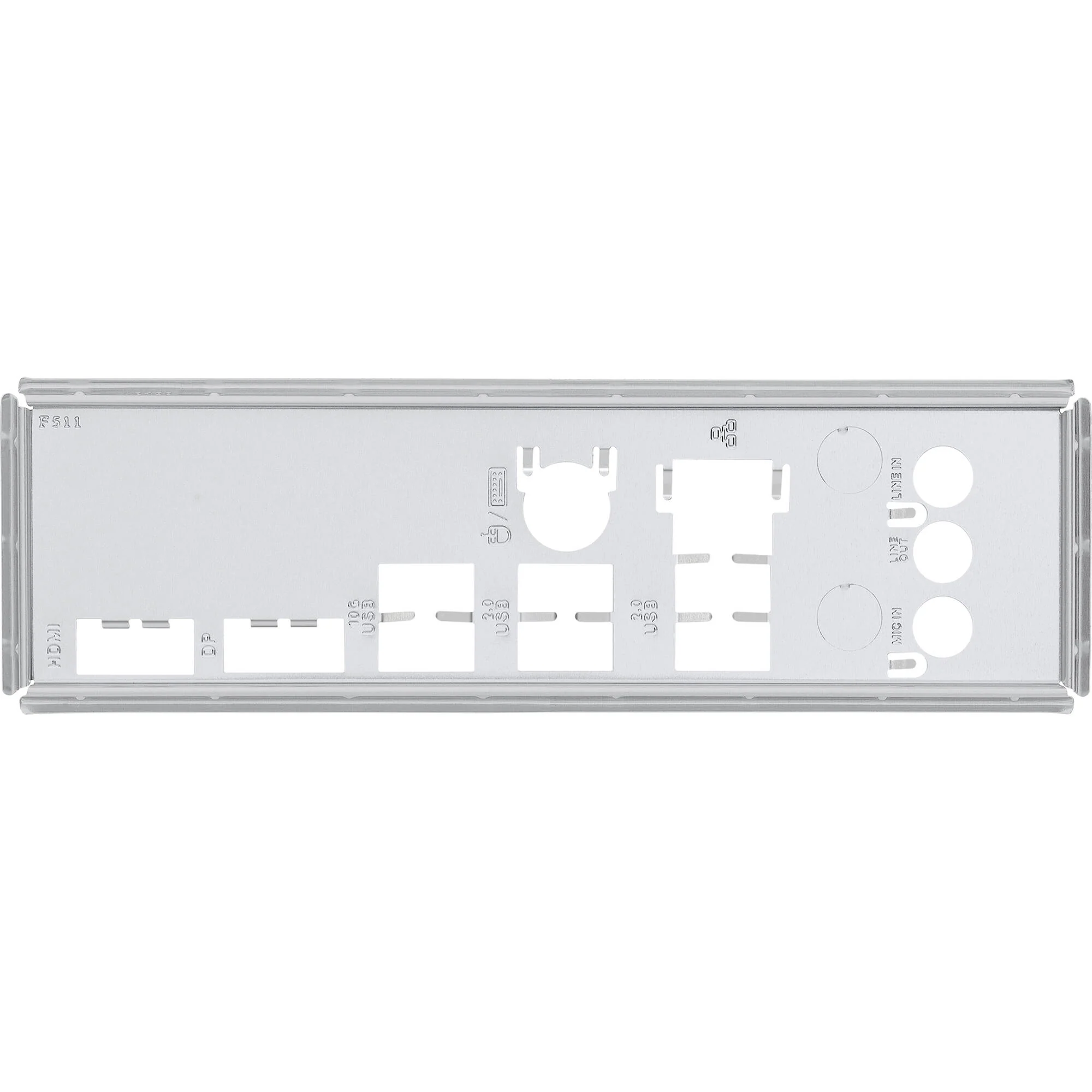

  • I/O Shield
  • Screw Package for M.2 SSD
  • Limited 3-Year Manufacturer Warranty

Additional Resources

No additional resources available

ASUS PRIME H810M-A-CSM Specs

Key Specs
Chipset
Intel H810
CPU Socket
LGA 1851
Memory Slots
2x 288-Pin
Memory Support
DDR5 6400 MT/s
Storage Slots
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x2)
Expansion Slots
1x PCIe 4.0 x16
1x PCIe 4.0 x1
Wi-Fi
No
Form Factor
Micro-ATX
CPU
Chipset
Intel H810
CPU Socket
LGA 1851
Back Panel I/O
USB
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 2.0)
Thunderbolt
No
Display
1x HDMI 2.1
1x DisplayPort 1.4
Audio
3x 1/8" / 3.5 mm
Ethernet / Controller
1x Realtek Gigabit
PS/2
1x Combo
Wi-Fi Antenna
2x Connector
Buttons
BIOS Flashback
Memory
Memory Slots
2x 288-Pin
Memory Support
DDR5 6400 MT/s
Maximum Capacity
96 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC Unbuffered
Storage Expansion
SATA
4x SATA III
Storage Slots
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x2)
Optane Memory Support
No
RAID Support
No
Internal I/O
Expansion Slots
1x PCIe 4.0 x16
1x PCIe 4.0 x1
USB
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling
1x 4-Pin CPU
2x 4-Pin System
Power Connectors
1x 24-Pin Mainboard
1x 8-Pin CPU
Security
TPM Header
LED Header
3x RGB
Audio
1x Speaker
1x S/PDIF
Diagnostics
Clear CMOS
Legacy
1x Serial
BIOS
ROM
2x 128 Mb
Front Panel I/O
Front Panel I/O
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1
Audio
Audio Codec
Realtek (7.1-Channel)
DAC
No
Wireless
Wi-Fi
No
Bluetooth
No
Module Support
1 E Key M.2
Software
OS Compatibility
Windows 10 or Later
Physical
Form Factor
Micro-ATX
Dimensions
9.6 x 8.75" / 24.4 x 22.23 cm
Packaging Info
Package Weight
2.015 lb
Box Dimensions (LxWxH)
11.8 x 10.7 x 2"

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$72.24

Original: $240.81

-70%
ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard—

$240.81

$72.24

More Images

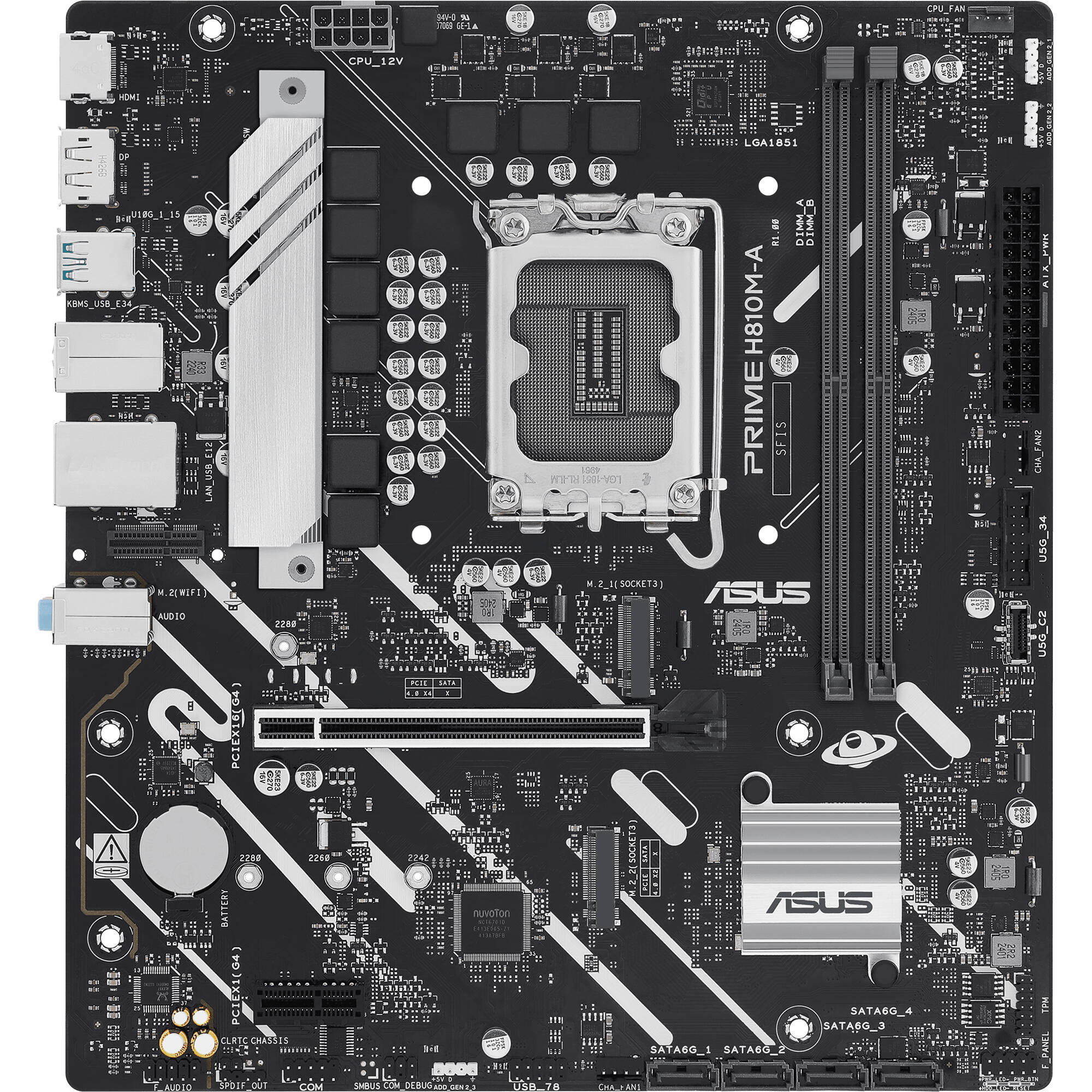

ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard - Image 2

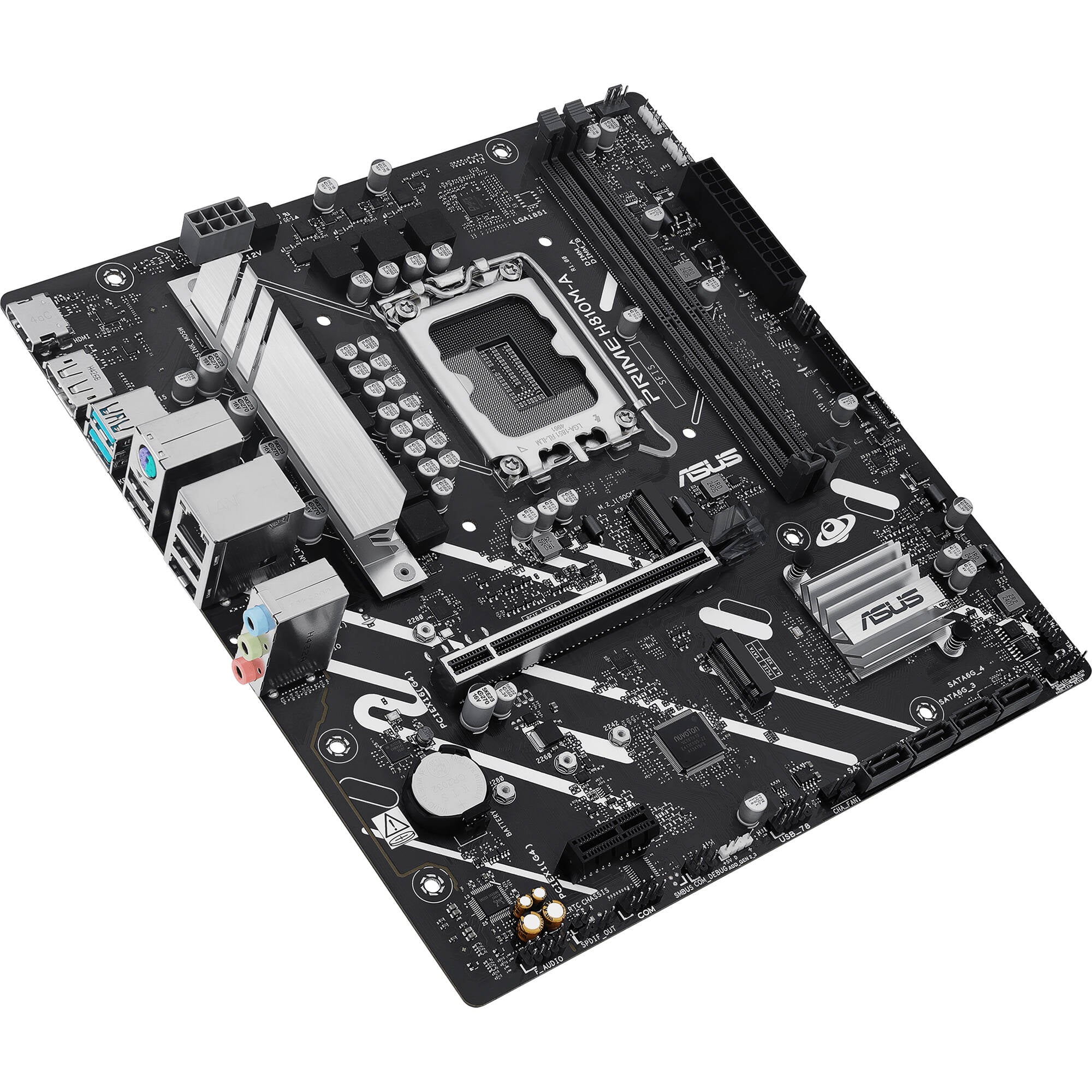

ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard - Image 3
ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard - Image 4
ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard - Image 5

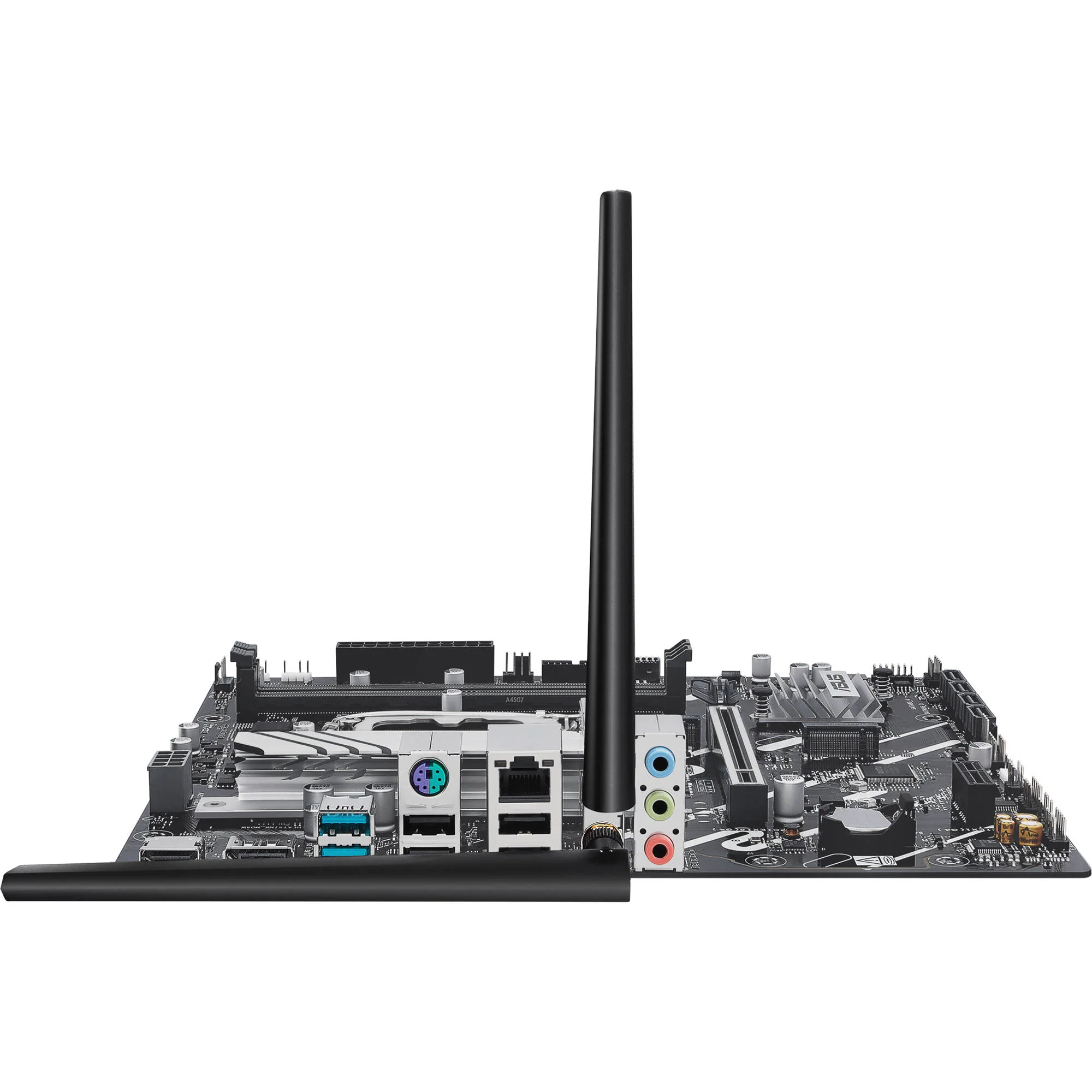

ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard - Image 6

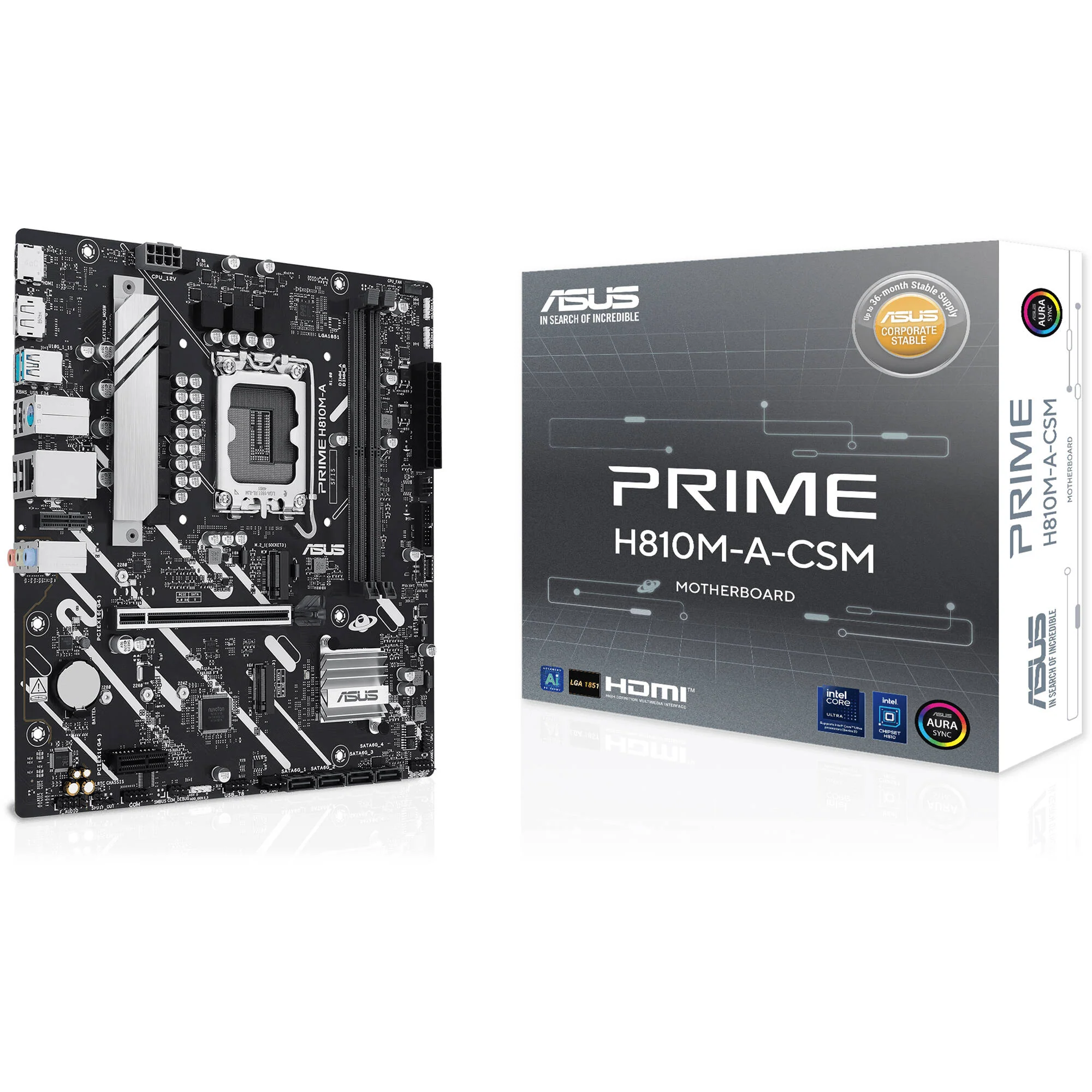

ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard - Image 7

ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard

ASUS PRIME H810M-A-CSM Overview

Designed to provide businesses with stable and reliable performance, the ASUS PRIME H810M-A-CSM Motherboard may be outfitted to power productivity and content creation. With support for Intel Core Ultra series 2 desktop processors with the LGA 1851 socket, this M-ATX motherboard delivers smooth performance for demanding applications and AI workloads.

Install an M.2 PCIe 4.0 x4 SSD alongside one PCIe 4.0 x2 and four SATA III drives, providing you with plenty of space to store your applications and multimedia files. The two DDR5 DIMM slots support up to 96GB of 6400 MT/s memory. You can install a powerful graphics card into the available PCIe 4.0 x16 slot while reserving the PCIe 4.0 x1 slot for other compatible expansions.

The rear panel features two 10 Gb/s USB-A ports alongside four USB-A 2.0 ports that may be used for keyboards, mice, and other peripherals. A Gigabit Ethernet port allows you to connect to compatible network devices for smooth video streaming and fast file transfers. The HDMI and 2.1 and DisplayPort 1.4 ports may be used with CPUs with integrated graphics. Windows 10 or later is required to take advantage of all this motherboard's features.

Performance
AI Ready
Designed for the future of AI computing, this motherboard is equipped with the power and connectivity needed for demanding AI applications.
Enhanced Power Solution
Equipped with 6+1+1+1 discrete MOS power stages with durable chokes, this motherboard delivers stable power throughout the system for overclocked components.
AEMP II
ASUS Enhanced Memory Profile III (AEMP II) is an advanced firmware feature that empowers users to achieve cutting-edge overclocked memory performance.
Comprehensive Cooling
A VRM heatsink works with the smart fan headers to efficiently dissipate heat for optimal performance.
Realtek 7.1 Surround Sound
The Realtek codec delivers high-quality 24-Bit / 192 kHz audio with shielded ports, premium capacitors, and dedicated PCB layers.
DIY Friendly
Q Technologies
ASUS Q-Dashboard, Q-DIMM, Q-LED Core, and Q-slot features help to simplify installation.
Personalization
ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
ASUS GlideX
Using this app enables smooth screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, across multiple platforms.
Aura Sync
Enhance your immersion with RGB lighting effects, including modes that adapt to the on-screen action. Then synchronize them with Aura Sync compatible peripherals such as keyboards, mice, and monitors.
Addressable Gen 2 RGB headers
The three addressable Gen 2 headers automatically optimize lighting effects for the number of LEDs present on compatible ARGB gear.
UPC: 197105844629

Items Included

  • ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard
  • 2 x SATA III Cable
  • I/O Shield
  • Screw Package for M.2 SSD
  • Limited 3-Year Manufacturer Warranty

Additional Resources

No additional resources available

ASUS PRIME H810M-A-CSM Specs

Key Specs
Chipset
Intel H810
CPU Socket
LGA 1851
Memory Slots
2x 288-Pin
Memory Support
DDR5 6400 MT/s
Storage Slots
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x2)
Expansion Slots
1x PCIe 4.0 x16
1x PCIe 4.0 x1
Wi-Fi
No
Form Factor
Micro-ATX
CPU
Chipset
Intel H810
CPU Socket
LGA 1851
Back Panel I/O
USB
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 2.0)
Thunderbolt
No
Display
1x HDMI 2.1
1x DisplayPort 1.4
Audio
3x 1/8" / 3.5 mm
Ethernet / Controller
1x Realtek Gigabit
PS/2
1x Combo
Wi-Fi Antenna
2x Connector
Buttons
BIOS Flashback
Memory
Memory Slots
2x 288-Pin
Memory Support
DDR5 6400 MT/s
Maximum Capacity
96 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC Unbuffered
Storage Expansion
SATA
4x SATA III
Storage Slots
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x2)
Optane Memory Support
No
RAID Support
No
Internal I/O
Expansion Slots
1x PCIe 4.0 x16
1x PCIe 4.0 x1
USB
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling
1x 4-Pin CPU
2x 4-Pin System
Power Connectors
1x 24-Pin Mainboard
1x 8-Pin CPU
Security
TPM Header
LED Header
3x RGB
Audio
1x Speaker
1x S/PDIF
Diagnostics
Clear CMOS
Legacy
1x Serial
BIOS
ROM
2x 128 Mb
Front Panel I/O
Front Panel I/O
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1
Audio
Audio Codec
Realtek (7.1-Channel)
DAC
No
Wireless
Wi-Fi
No
Bluetooth
No
Module Support
1 E Key M.2
Software
OS Compatibility
Windows 10 or Later
Physical
Form Factor
Micro-ATX
Dimensions
9.6 x 8.75" / 24.4 x 22.23 cm
Packaging Info
Package Weight
2.015 lb
Box Dimensions (LxWxH)
11.8 x 10.7 x 2"

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

Product Information

Shipping & Returns

Description

ASUS PRIME H810M-A-CSM Overview

Designed to provide businesses with stable and reliable performance, the ASUS PRIME H810M-A-CSM Motherboard may be outfitted to power productivity and content creation. With support for Intel Core Ultra series 2 desktop processors with the LGA 1851 socket, this M-ATX motherboard delivers smooth performance for demanding applications and AI workloads.

Install an M.2 PCIe 4.0 x4 SSD alongside one PCIe 4.0 x2 and four SATA III drives, providing you with plenty of space to store your applications and multimedia files. The two DDR5 DIMM slots support up to 96GB of 6400 MT/s memory. You can install a powerful graphics card into the available PCIe 4.0 x16 slot while reserving the PCIe 4.0 x1 slot for other compatible expansions.

The rear panel features two 10 Gb/s USB-A ports alongside four USB-A 2.0 ports that may be used for keyboards, mice, and other peripherals. A Gigabit Ethernet port allows you to connect to compatible network devices for smooth video streaming and fast file transfers. The HDMI and 2.1 and DisplayPort 1.4 ports may be used with CPUs with integrated graphics. Windows 10 or later is required to take advantage of all this motherboard's features.

Performance
AI Ready
Designed for the future of AI computing, this motherboard is equipped with the power and connectivity needed for demanding AI applications.
Enhanced Power Solution
Equipped with 6+1+1+1 discrete MOS power stages with durable chokes, this motherboard delivers stable power throughout the system for overclocked components.
AEMP II
ASUS Enhanced Memory Profile III (AEMP II) is an advanced firmware feature that empowers users to achieve cutting-edge overclocked memory performance.
Comprehensive Cooling
A VRM heatsink works with the smart fan headers to efficiently dissipate heat for optimal performance.
Realtek 7.1 Surround Sound
The Realtek codec delivers high-quality 24-Bit / 192 kHz audio with shielded ports, premium capacitors, and dedicated PCB layers.
DIY Friendly
Q Technologies
ASUS Q-Dashboard, Q-DIMM, Q-LED Core, and Q-slot features help to simplify installation.
Personalization
ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
ASUS GlideX
Using this app enables smooth screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, across multiple platforms.
Aura Sync
Enhance your immersion with RGB lighting effects, including modes that adapt to the on-screen action. Then synchronize them with Aura Sync compatible peripherals such as keyboards, mice, and monitors.
Addressable Gen 2 RGB headers
The three addressable Gen 2 headers automatically optimize lighting effects for the number of LEDs present on compatible ARGB gear.
UPC: 197105844629

Items Included

  • ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard
  • 2 x SATA III Cable
  • I/O Shield
  • Screw Package for M.2 SSD
  • Limited 3-Year Manufacturer Warranty

Additional Resources

No additional resources available

ASUS PRIME H810M-A-CSM Specs

Key Specs
Chipset
Intel H810
CPU Socket
LGA 1851
Memory Slots
2x 288-Pin
Memory Support
DDR5 6400 MT/s
Storage Slots
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x2)
Expansion Slots
1x PCIe 4.0 x16
1x PCIe 4.0 x1
Wi-Fi
No
Form Factor
Micro-ATX
CPU
Chipset
Intel H810
CPU Socket
LGA 1851
Back Panel I/O
USB
2x USB-A (USB 3.1/3.2 Gen 2)
4x USB-A (USB 2.0)
Thunderbolt
No
Display
1x HDMI 2.1
1x DisplayPort 1.4
Audio
3x 1/8" / 3.5 mm
Ethernet / Controller
1x Realtek Gigabit
PS/2
1x Combo
Wi-Fi Antenna
2x Connector
Buttons
BIOS Flashback
Memory
Memory Slots
2x 288-Pin
Memory Support
DDR5 6400 MT/s
Maximum Capacity
96 GB
Channel Architecture
Dual Channel
ECC Support
Non-ECC Unbuffered
Storage Expansion
SATA
4x SATA III
Storage Slots
1x M.2 (M Key) 2280 (PCIe 4.0 x4)
1x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x2)
Optane Memory Support
No
RAID Support
No
Internal I/O
Expansion Slots
1x PCIe 4.0 x16
1x PCIe 4.0 x1
USB
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
1x USB 2.0 Header (Supports 2 USB-A Port)
Air Cooling
1x 4-Pin CPU
2x 4-Pin System
Power Connectors
1x 24-Pin Mainboard
1x 8-Pin CPU
Security
TPM Header
LED Header
3x RGB
Audio
1x Speaker
1x S/PDIF
Diagnostics
Clear CMOS
Legacy
1x Serial
BIOS
ROM
2x 128 Mb
Front Panel I/O
Front Panel I/O
AAFP, USB 2.0, USB 3.0 / 3.1/3.2 Gen 1
Audio
Audio Codec
Realtek (7.1-Channel)
DAC
No
Wireless
Wi-Fi
No
Bluetooth
No
Module Support
1 E Key M.2
Software
OS Compatibility
Windows 10 or Later
Physical
Form Factor
Micro-ATX
Dimensions
9.6 x 8.75" / 24.4 x 22.23 cm
Packaging Info
Package Weight
2.015 lb
Box Dimensions (LxWxH)
11.8 x 10.7 x 2"

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

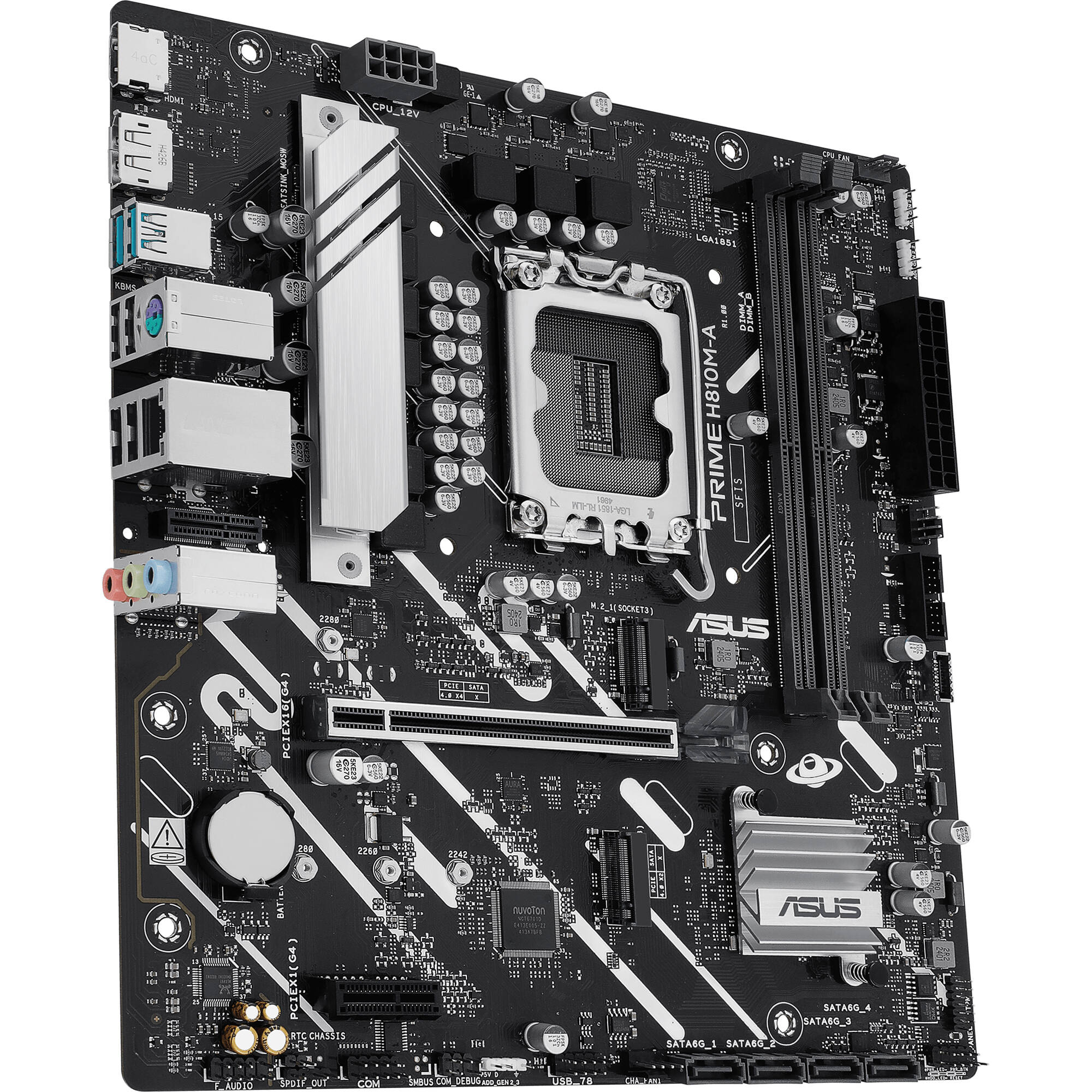

ASUS PRIME H810M-A-CSM LGA 1851 M-ATX Motherboard | Tanotis
