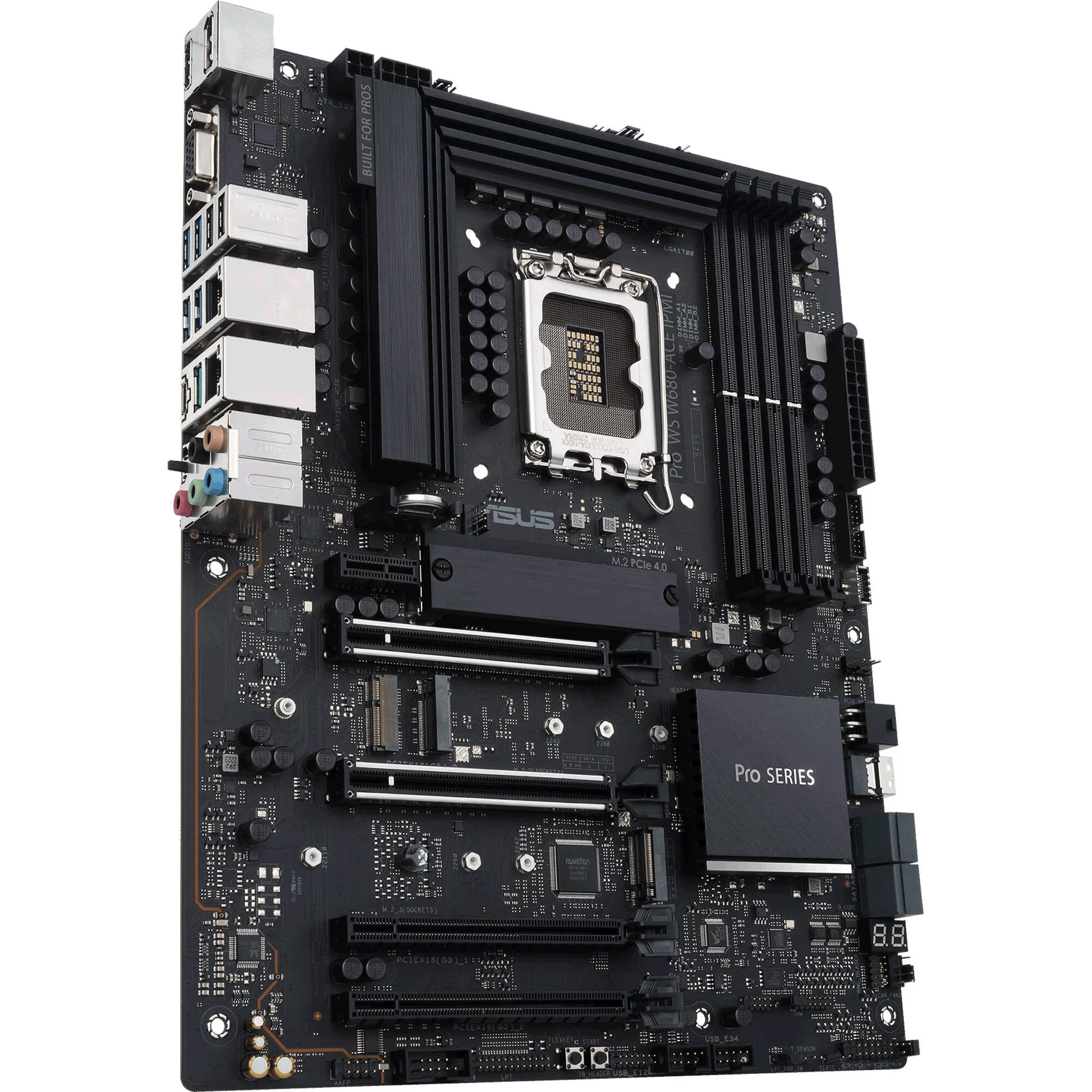

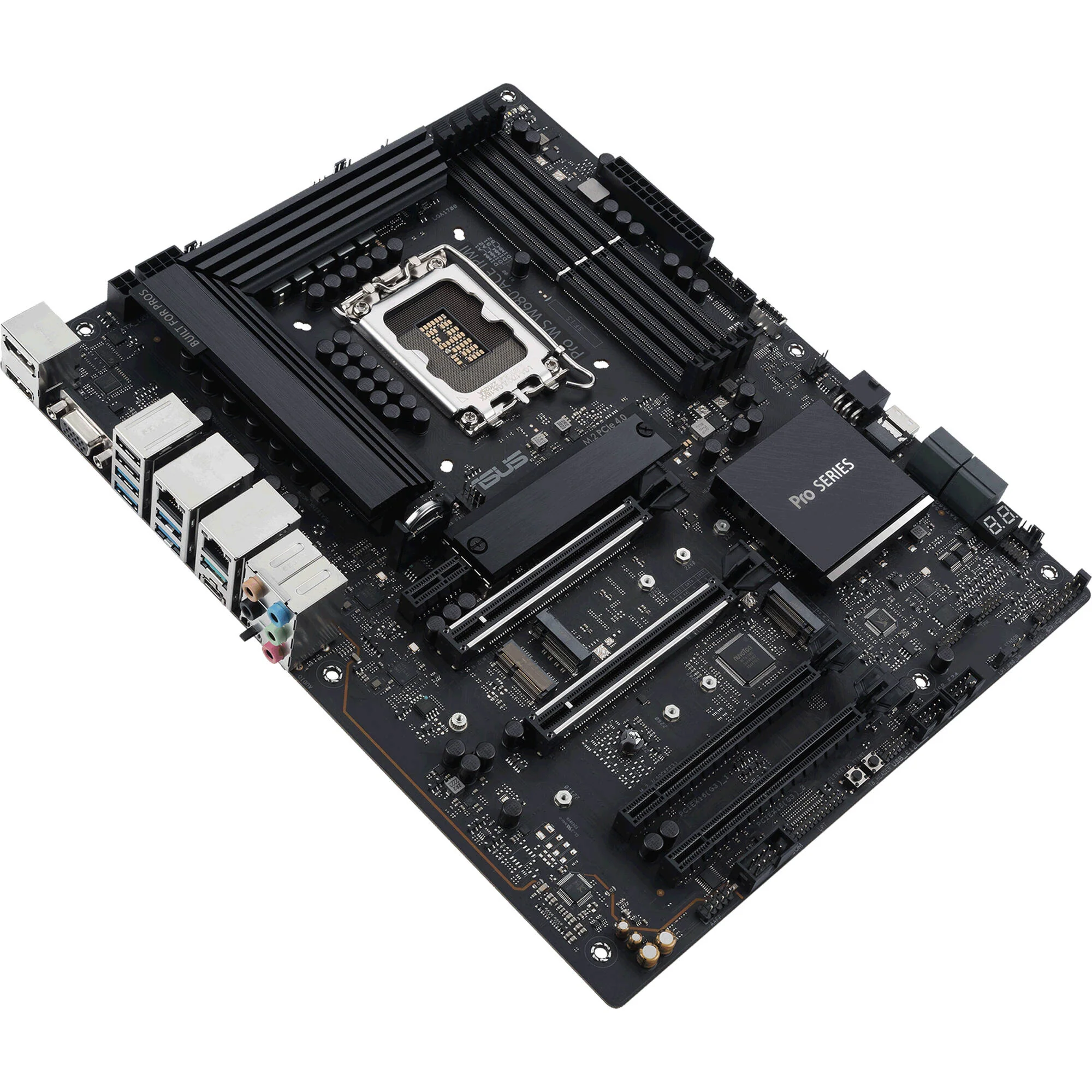

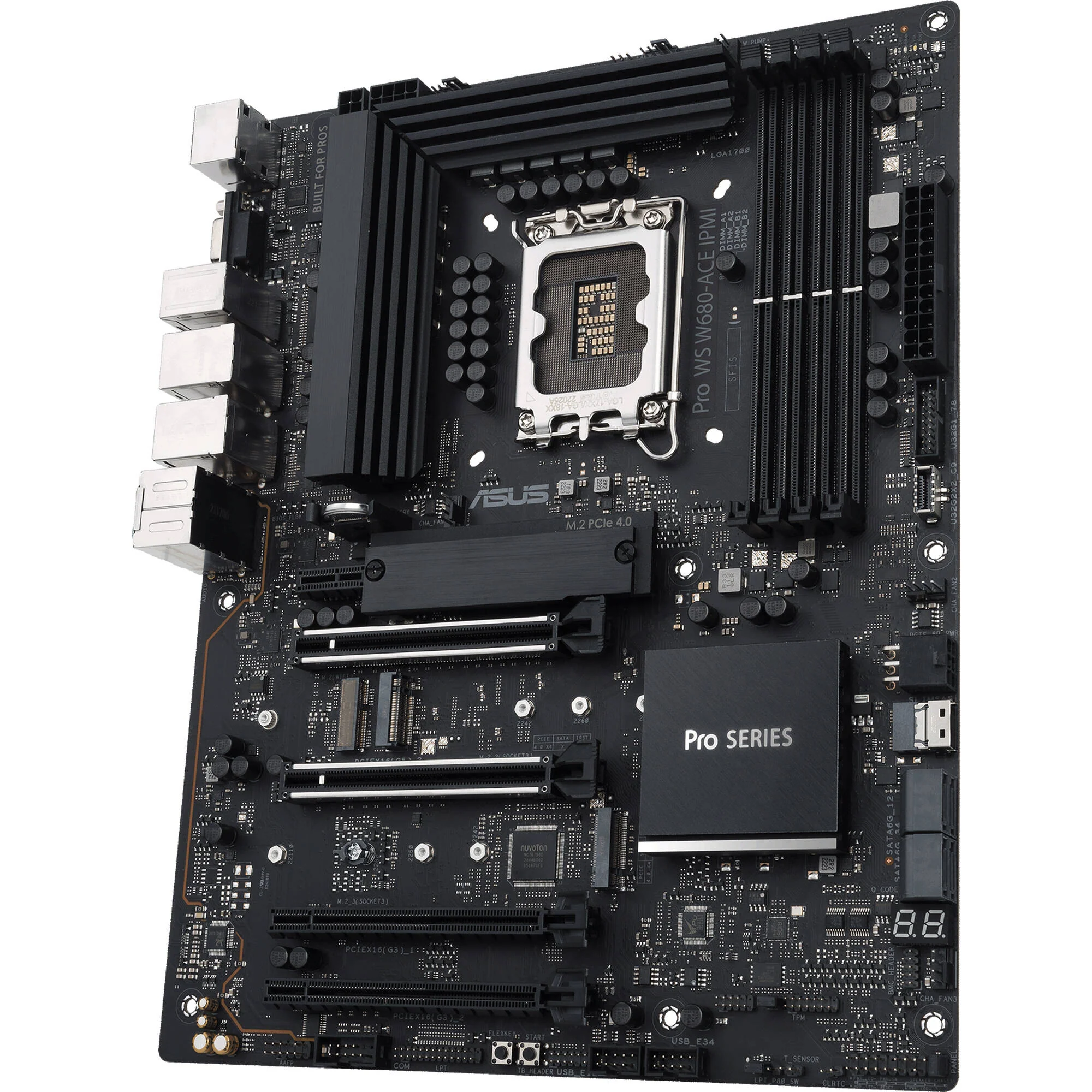

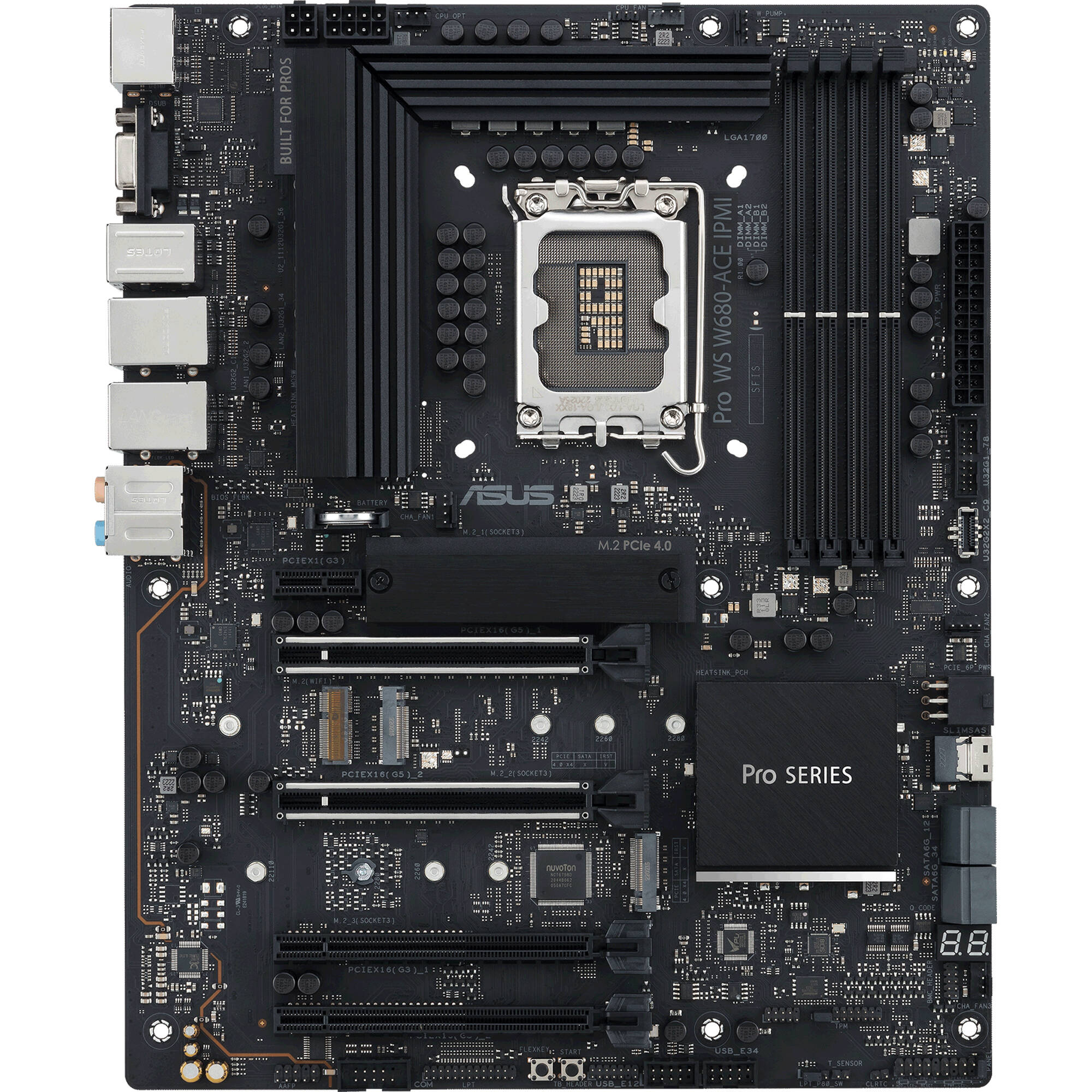

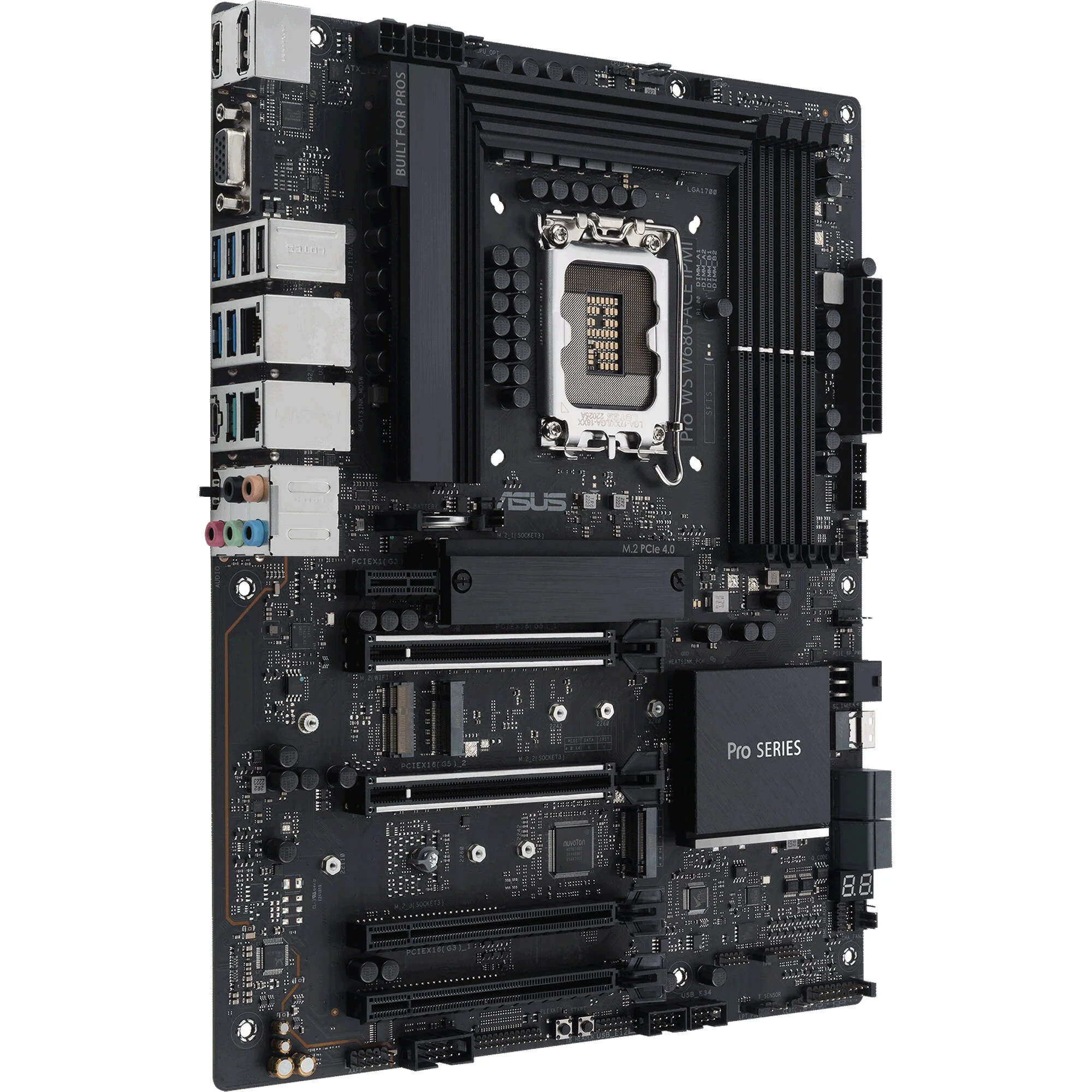

ASUS Pro WS W680-ACE IPMI LGA 1700 ATX Motherboard
ASUS Pro WS W680-ACE IPMI Overview
- 1Description
- 2Workstation Level Performance
- 3ECC Memory Support
- 4Control Center Express
- 5SafeSlot and SafeDIMM
- 6Expansive Design
- 7Thermal Solution
Streamline your productivity and enhance your editing capabilities with the robust power of the ASUS Pro WS W680-ACE IPMI LGA 1700 ATX Motherboard. Offering a wide range of connectivity options and multiple interfaces, this motherboard provides you with a solid foundation for your production.
At the heart of the Pro WS motherboard is Intel's LGA 1700 socket, allowing you to add a variety of 12th and 13th gen Core processors. Four DDR5 RAM slots allow you to install up to 128GB of memory to enhance multitasking and render speeds. Four SATA III, three M.2 PCIe SSD, and one SlimSAS slot interface can support a wide range of storage drives that allow quicker data transfer speeds. Between back-panel connections and internal headers, you get USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2 support, designed for low-powered devices such as keyboards and mice as well as resource-demanding devices like audio interfaces, external storage arrays, and more. Dual 2.5 Gigabit Ethernet ports are available for teaming functionality, giving you enhanced transfer speeds for quicker video uploading to shared NAS folders, cloud storage platforms, and more.
Workstation Level Performance
ASUS Pro WS W680-ACE is designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity, and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. The Pro WS W680-ACE includes centralized management software, providing an efficient and cost-effective option for IT administrators.
ECC Memory Support
Designed for creative professionals who require outstanding performance, reliability and enhanced security, ASUS Pro WS W680-ACE motherboard is powered by Intel's 13th and 12th Gen processors for always-on usage scenarios and supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability.
Control Center Express
The ASUS Control Center Express is an intuitive and secure software designed to simplify IT operations and improve workload productivity by providing comprehensive control of all the systems in your organization. Plus, ASUS Control Center Express is compatible with over 100 ASUS motherboards to give you more upgrade flexibility and less compatibility issues across your organization.
SafeSlot and SafeDIMM
PCIe 5.0 is 2x faster than PCIe 4.0, and it is combined with SafeSlot to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on select ASUS motherboards, empowering you to insert your modules with speed, accuracy, and confidence.
Expansive Design
Two PCIe 5.0 x16 slots provide flexible system configurability and expandability. With support for NVIDIA Quadro graphics cards for enhanced performance in modelling, simulation, and rendering applications, you can streamline your workload with ease.
Thermal Solution
VRM, PCH, and M.2 heatsinks all offer enhanced thermal capabilities designed for their respective MOSFET, chipset, and storage areas. Each section is designed to withstand heavy loads, especially during prolonged rendering and file exporting sessions.
UPC: 197105005938
In the Box
- ASUS Pro WS W680-ACE IPMI LGA 1700 ATX Motherboard
- 2 x SATA Cables
- Q-Connector
- M.2 Rubber Package
- 2 x Screw Packages for M.2
- Screw Package for M.2 Key-E
- I/O Shield

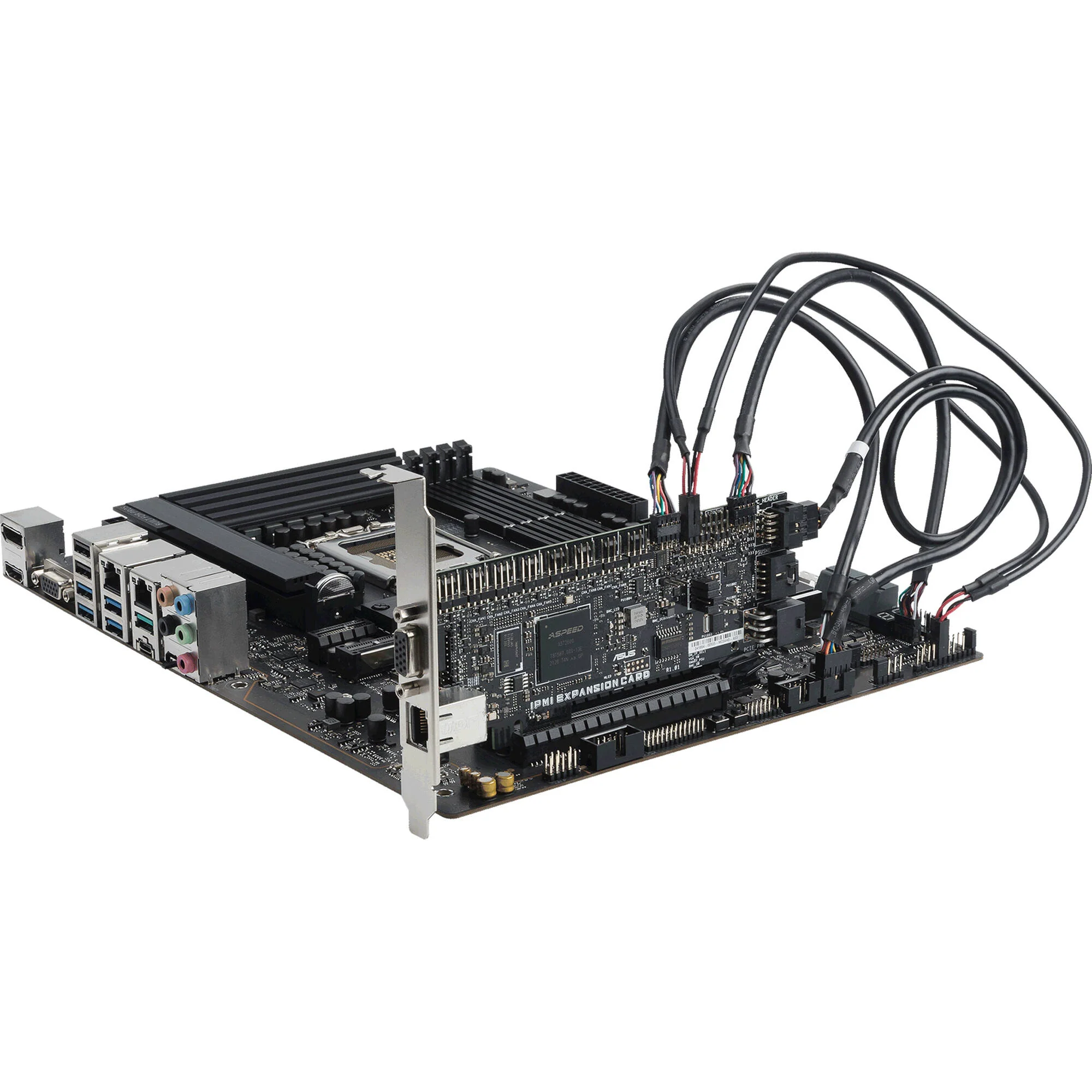

- IPMI Expansion Card
- BMC Cable
- Power On/Off Cable
- Reset Cable
- USB 2.0 Cable
- ACC Express Activation Key Card
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- Workstation Level Performance
- ECC Memory Support
- Control Center Express
- SafeSlot and SafeDIMM
- Expansive Design
- Thermal Solution
ASUS Pro WS W680-ACE IPMI Specs
CPU
| Chipset | Intel W680 |
| CPU Socket | LGA 1700 |

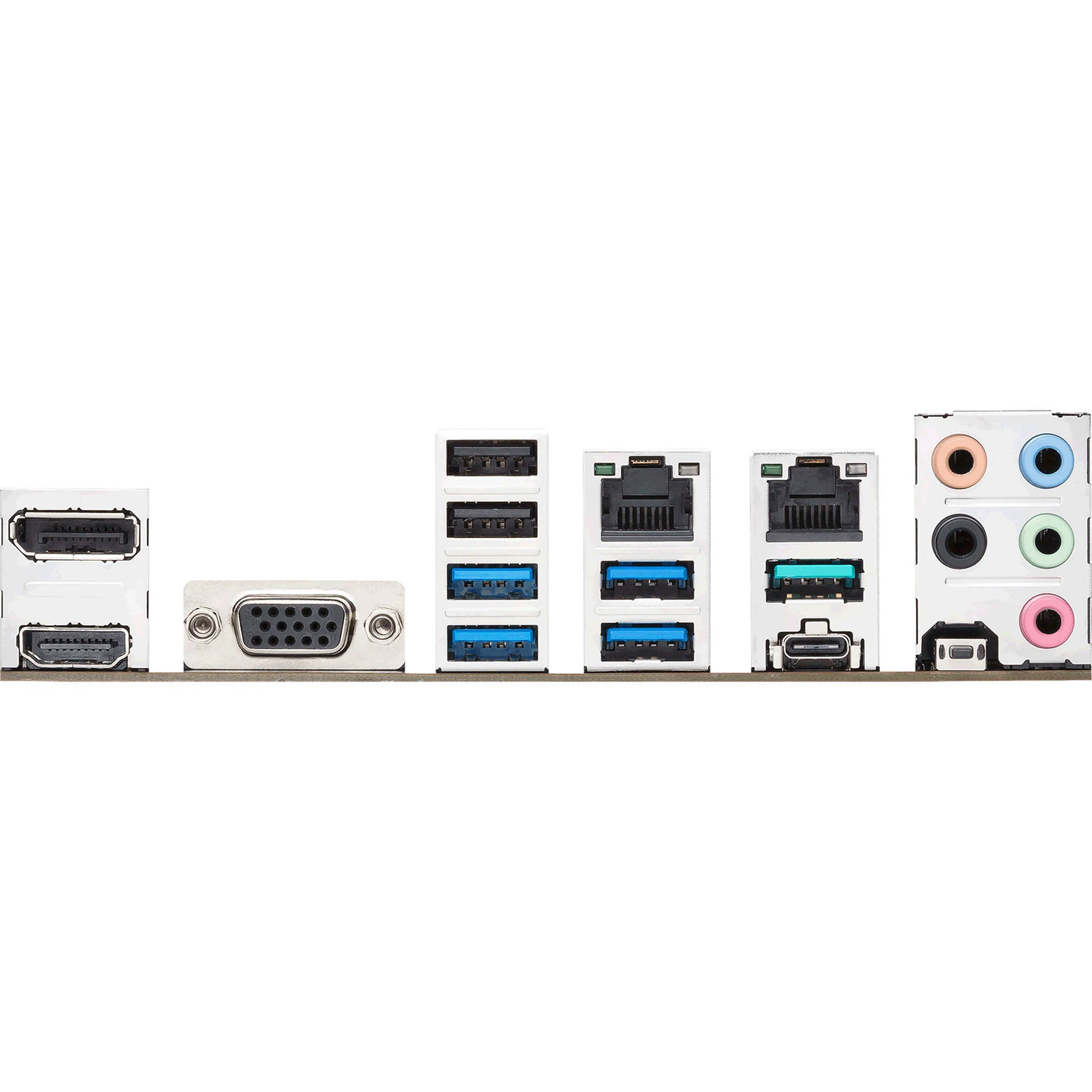

Back Panel I/O
| USB | 1 x USB-C (USB 3.1/3.2 Gen 2) 1 x USB-A (USB 3.1/3.2 Gen 2) 4 x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2 x USB-A (USB 2.0) |
| Thunderbolt | None |
| Display | 1 x DisplayPort 1 x HDMI 1 x VGA |
| Audio | 5 x 1/8" / 3.5 mm |
| Ethernet / Controller | 2 x Intel 2.5Gigabit |
| Buttons | BIOS Flashback |
Memory
| Memory Slots | 4 x 288-Pin |
| Memory Support | DDR5 MHz |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC, ECC Unbuffered |
Storage Expansion
| SATA | 4 x SATA III |
| M.2 | 2 x M Key 2242, 2260, 2280 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) |
| RAID Support | RAID 0, 1, 5, 10 (SATA) RAID 0, 1, 5, 10 (M.2) |
Internal I/O
| Expansion Slots | 2 x PCIe 5.0 x16 2 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x1 |
| USB | 1 x 3.2 Gen 2x2 Header (Supports 1 USB-C Port) 1 x 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2 x 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling | 2 x 4-Pin CPU 3 x 4-Pin System 1 x Thermal Sensor |
| Liquid Cooling | 1 x 4-Pin Pump |
| Power Connectors | 1 x 24-Pin Mainboard 1 x 8-Pin ATX 1 x 4-Pin ATX 1 x 6-Pin ATX |
| Security | TPM Header |
| Diagnostics | Clear CMOS, Start |
| Add-On | 1 x Thunderbolt Header |
| Legacy | 1 x Serial |
BIOS
| ROM | 256 Mb |
Front Panel I/O
| Front Panel I/O | AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2x2 |
Audio
| Audio Codec | Realtek (7.1-Channel) |
Wireless
| Bluetooth | None |
| Module Support | 1 E Key M.2 |
Software
| OS Compatibility | Windows 10 to 11 *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
Physical
| Form Factor | ATX |
| Dimensions | 9.6 x 12" / 24.4 x 30.5 cm |
Packaging Info
| Package Weight | 4.245 lb |
| Box Dimensions (LxWxH) | 13.9 x 10.8 x 3.1" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
