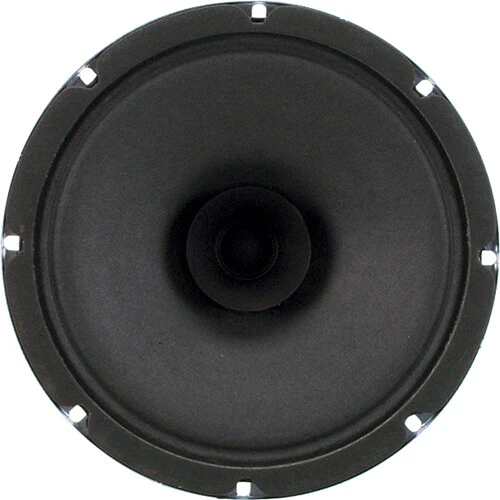

AtlasIED SD72 8" Preassembled Speaker Package with Transformer

AtlasIED SD72 8" Preassembled Speaker Package with Transformer

AtlasIED TSD72 Overview

Designed for most paging or background applications, the AtlasIED SD72 is an 8" dual-cone speaker with similar qualities to the preceding C-Series speakers. The SD72 features a 10 oz ceramic magnet and includes a curvilinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation.

The SD72 offers a frequency range of 45 Hz to 19 kHz with a sensitivity of 97 dB and a dispersion angle of 105° The factory installed 25/70V line matching transformer provides tap selections ranging from .25 to 5W. It mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements.

Quality Response and Performance
This high-performance speaker is a dual-cone, 25W 8" loudspeaker treated for low harmonic distortion with a wide-dispersion angle for excellent sound coverage.
Individually Packaged
For stocking and ordering convenience, all speakers are individually packaged.
UPC: 612079179947

Items Included

  • AtlasIED SD72 8" Preassembled Speaker Package with Transformer
  • Mounting Screws
  • Limited 5-Year Manufacturer Warranty

Additional Resources

    AtlasIED TSD72 Specs

    Key Specs
    Active/Passive
    Passive
    Number of Included Speakers
    1
    Speaker Configuration
    Full-Range
    Power Handling
    25 W Peak
    Constant Voltage / Transformer Taps
    25 V / 70 V
    0.25 / 0.5 / 1 / 2 / 5 W
    Impedance
    8 Ohms
    Full-Range Driver
    1x 8" / 203.2 mm Paper Cone
    Color
    Black
    Speaker
    Active/Passive
    Passive
    Number of Included Speakers
    1
    Speaker Configuration
    Full-Range
    Power Handling
    25 W Peak
    Constant Voltage / Transformer Taps
    25 V / 70 V
    0.25 / 0.5 / 1 / 2 / 5 W
    Impedance
    8 Ohms
    Transformer Wattage
    5 W
    Drivers
    Full-Range Driver
    1x 8" / 203.2 mm Paper Cone
    Full-Range Voice Coil
    1" / 25 mm
    Magnet
    Ceramic, 10 oz / 283 g
    Performance
    Frequency Response
    55 Hz to 8 kHz
    Sensitivity
    97 dB
    Coverage Angle
    105° (Conical)
    Transformer Insertion Loss
    1.5 dB
    Physical
    Certifications
    UL
    Color
    Black
    Dimensions
    8.1 x 2.9" / 205 x 73 mm
    Packaging Info
    Package Weight
    2.6 lb
    Box Dimensions (LxWxH)
    8.4 x 8.3 x 3.1"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $27.72

    Original: $92.41

    -70%
    AtlasIED SD72 8" Preassembled Speaker Package with Transformer—

    $92.41

    $27.72

    More Images

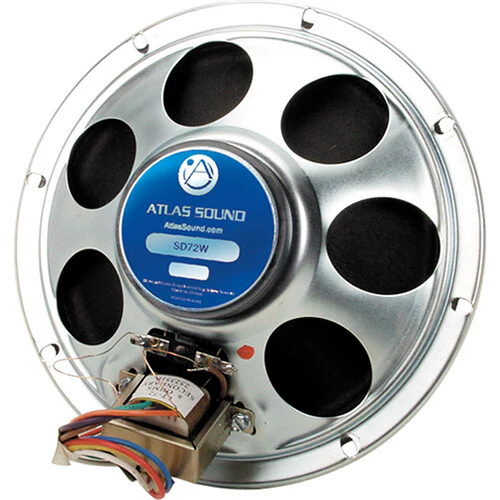

    AtlasIED SD72 8" Preassembled Speaker Package with Transformer - Image 2
