AV Costar ConteraIP Omni LX RS AV20576RS 20MP Outdoor Multi-Sensor Network Dome Camera
AV Costar Omni LX Overview

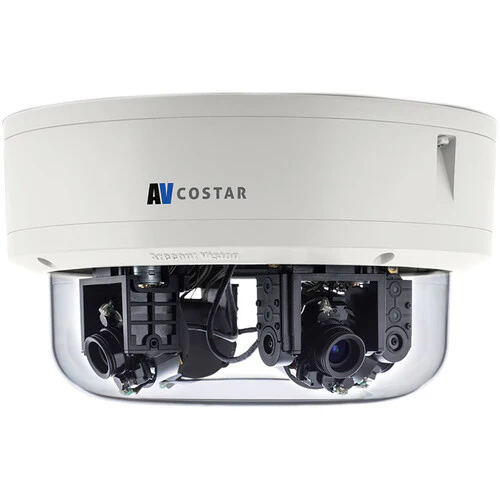

Monitor your surroundings with the ConteraIP Omni LX RS AV20576RS 20MP Outdoor Multi-Sensor Network Dome Camera from Arecont Vision. This multi-sensor camera uses four 1/2.8" 5MP progressive scan CMOS sensors to capture video at a combined resolution of 20MP at 30 fps. The camera is equipped with four 3.3-6.6mm motorized varifocal lenses that each deliver a 96 to 42? horizontal field of view. Two-way audio is possible thanks to an audio input (amplification required) and output. An onboard memory card slot accepts microSDXC cards up to 1TB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
Compliance with ONVIF profiles G, M, S, and T enables interoperability with a wide range of surveillance devices. This camera is housed in an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
Items Included
- AV Costar ConteraIP Omni LX RS AV20576RS 20MP Outdoor Multi-Sensor Network Dome Camera
- Power Cable
- Alarm Cable
- Limited 36-Month Manufacturer Warranty
Additional Resources
AV Costar Omni LX Specs
| Image Sensor |
1/2.8"-Type CMOS
|
| Focal Length |
3.3 to 6.6mm
|
| Field of View |
Horizontal: 96 to 42?
|
| Pan/Tilt |
No
|
| Power I/O |
1x Barrel
1x DC 1x RJ45 |
| Number of Lenses |
4
|
| Image Sensor |
1/2.8"-Type CMOS
|
| Sensor Resolution |
Effective: 5 Megapixel
|
| IR Cut Filter |
Yes Mechanical
|
| Day/Night |
True
|
| Minimum Illumination |
0.15 Lux (Color)
0.15 Lux (Black and White) |
| Focal Length |
3.3 to 6.6mm
|
| Max Optical Zoom |
2x
|
| Field of View |
Horizontal: 96 to 42?
|
| Maximum Aperture |
f/1.8
|
| Automatic Gain Control |
Yes
|
| Max IP Streaming |
via RJ45
2592 x 1944 up to 30.00 fps |
| Multi-View Streaming |
Yes: 3 Streams
|
| Camera Angle Adjustment |
Horizontal: 0 to 360?
Vertical: 0 to 135? |
| Pan/Tilt |
No
|
| Security |
HTTPS, IEEE 802.1X
|
| Supported Protocols |
DHCP, FTP, HTTP, IPv4/v6, NTP, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP, Zero Configuration, ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T
|
| Media/Memory Card Slot |
Single Slot: microSDXC Only [1 TB Maximum]
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
G.711
|
| External Storage Options |
NAS
|
| Analytics |
Motion Detection, Camera Sabotage/Tampering, Intrusion Detection, Virtual-Line Crossing Detection, Loitering
|
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
1 / 1
|
| Power I/O |
1x Barrel
1x DC 1x RJ45 |
| Power Consumption |
25.5
|
| Materials |
Aluminum, Plastic
|
| Environmental Resistance |
Dust/Water-Resistant (IP66)
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Operating Conditions |
-40 to 122?F / -40 to 50?C up to90% Humidity
|
| Storage Conditions |
-40 to 140?F / -40 to 60?C
|
| Mobile App Compatible |
No
|
| Dimensions (W x H x D) |
8.8 x 4.9" / 223.4 x 125.4 mm
|
| Weight |
5.2 lb / 2.36 kg (Body Only)
|
| Package Weight |
6.515 lb
|
| Box Dimensions (LxWxH) |
11.7 x 11.1 x 8.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
