AVMATRIX 4K HDMI to USB-C 3.1 Video Capture Device
AVMATRIX UC1218-4K Overview

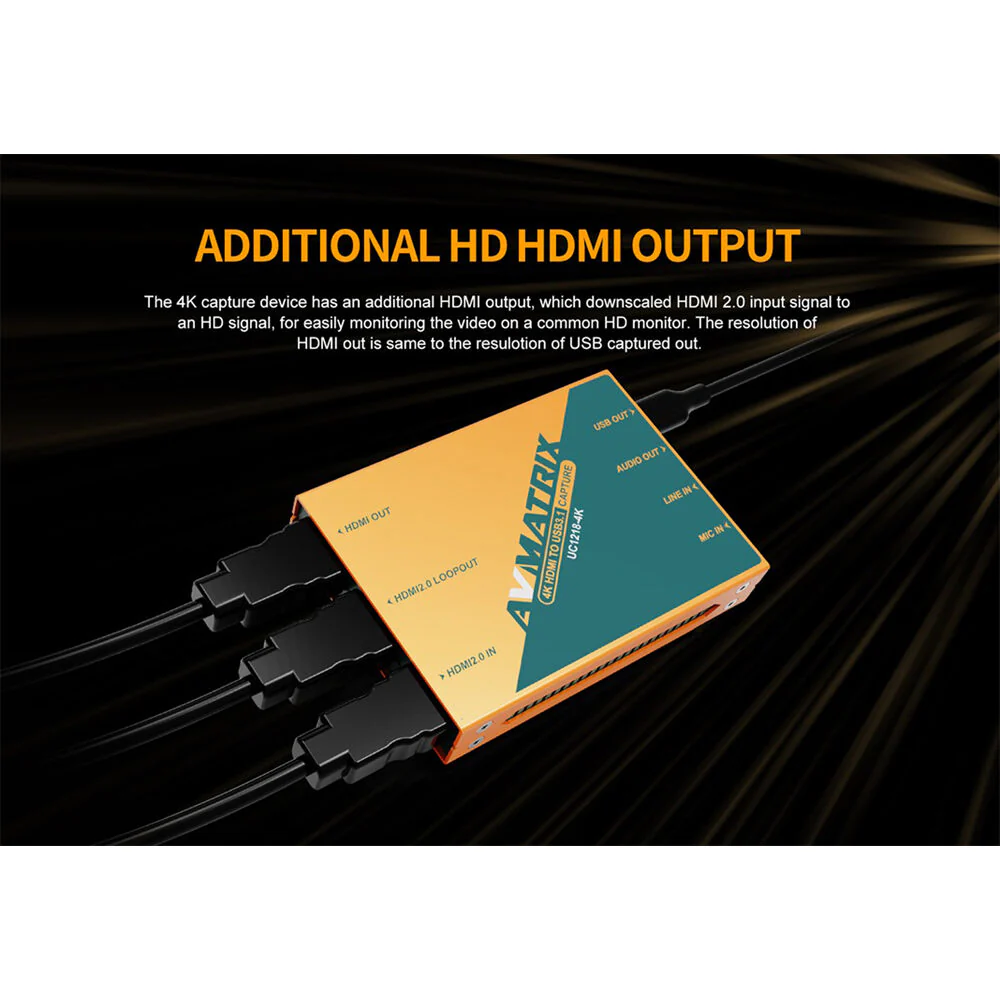

This 4K HDMI to USB-C 3.1 Gen 1 Video Capture Device from AVMATRIX delivers a UHD video signal to your PC for plug-and-play streaming. It features one HDMI 2.0 input and one HDMI 2.0 loop-through output as well as a standard HDMI output for effective monitoring. Extensive software support and convenient features making this device a instant solution for live video streams of all kinds.
Along with versatile and crystal-clear video streaming are external MIC and Line audio inputs to add an additional layer to broadcasts when paired your microphone or audio mixers. AVMATRIX has designed this device with a wide range of environments in mind. The ease of use makes it a great choice for an extensive list of broadcast applications, from professional gamers to corporate boardrooms.
- Operating System: Windows 7/8/10/11, Linux (Kernel version 2.6.38 or later), macOS (10.8 or later)
- Software: OBS Studio, Skype, Zoom, Microsoft Teams, Twitch, Google Meet, YouTube Live, QuickTime Player, PotPlayer FaceTime, Bilibili, and more
- SDK: Windows DirectShow and DirectSound
In the Box
- AVMATRIX 4K HDMI to USB-C 3.1 Video Capture Device
- USB-C to USB-A Cable
- Limited 3-Year Manufacturer Warranty
AVMATRIX UC1218-4K Specs
| Video Inputs |
1x HDMI (2.0)
|
| Audio Inputs |
1x 1/8" / 3.5 mm TRS Stereo Mic Female
1x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Line |
| Video Outputs |
1x USB-C (3.1)
1x HDMI 1x HDMI (2.0) (Loop Output) |
| Audio Outputs |
1x 1/8" / 3.5 mm TRS Stereo
|
| Expansion Slots |
No
|
| Input Video Format |
HDMI
UHD 4K at 60 fps 1440p at 144 fps 1080p at 240 fps |
| Input Audio Format |
LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
|
| Output Video Format |
HDMI / USB-C
1650 x 1050 1080p WXGA+ (1440 x 900) SXGA (1280 x 1024) 1280 x 960 WXGA (1280 x 800) 720p XGA (1024 x 768) SVGA (800 x 600) 720 x 576 VGA (640 x 480) 720 x 480 HDMI (Loop) UHD 4K at 60 fps 1440p at 144 fps 1080p at 240 fps |
| Output Audio Format |
LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit
|
| HDR Compatibility |
Not Specified by Manufacturer
|
| Wireless |
No
|
| OS Compatibility |
Windows 7 to 11
Linux 2.6.38 or Later macOS 10.8 or Later |
| Power Consumption |
4.5 W
|
| Operating Temperature |
-4 to 140Ā°F / -20 to 60Ā°C
|
| Storage Temperature |
-22 to 158Ā°F / -30 to 70Ā°C
|
| Operating Humidity |
20 to 90% ()
|
| Dimensions |
4.1 x 3 x 0.7" / 104 x 75.5 x 19Ā mm
|
| Weight |
10Ā oz / 284Ā g
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
