AVPro Edge AC-MAX-24 24x24 2-Channel Audio Matrix Switcher
AVPro Edge AC-MAX Overview
The AC-MAX-24 24x24 2-Channel Audio Matrix Switcher from AVPro Edge receives and transmits up to 24 audio input and output channels for distribution for home theatres, event spaces, and other professional-grade applications. The switcher is compatible with any amplifier and is easily controlled with AVPro Edge's comprehensive Web UI. Additionally, the AC-MAX-24 may interface with AEX-enabled encoders for accessing audio sources from great distances.
Advanced Audio Distribution Solution

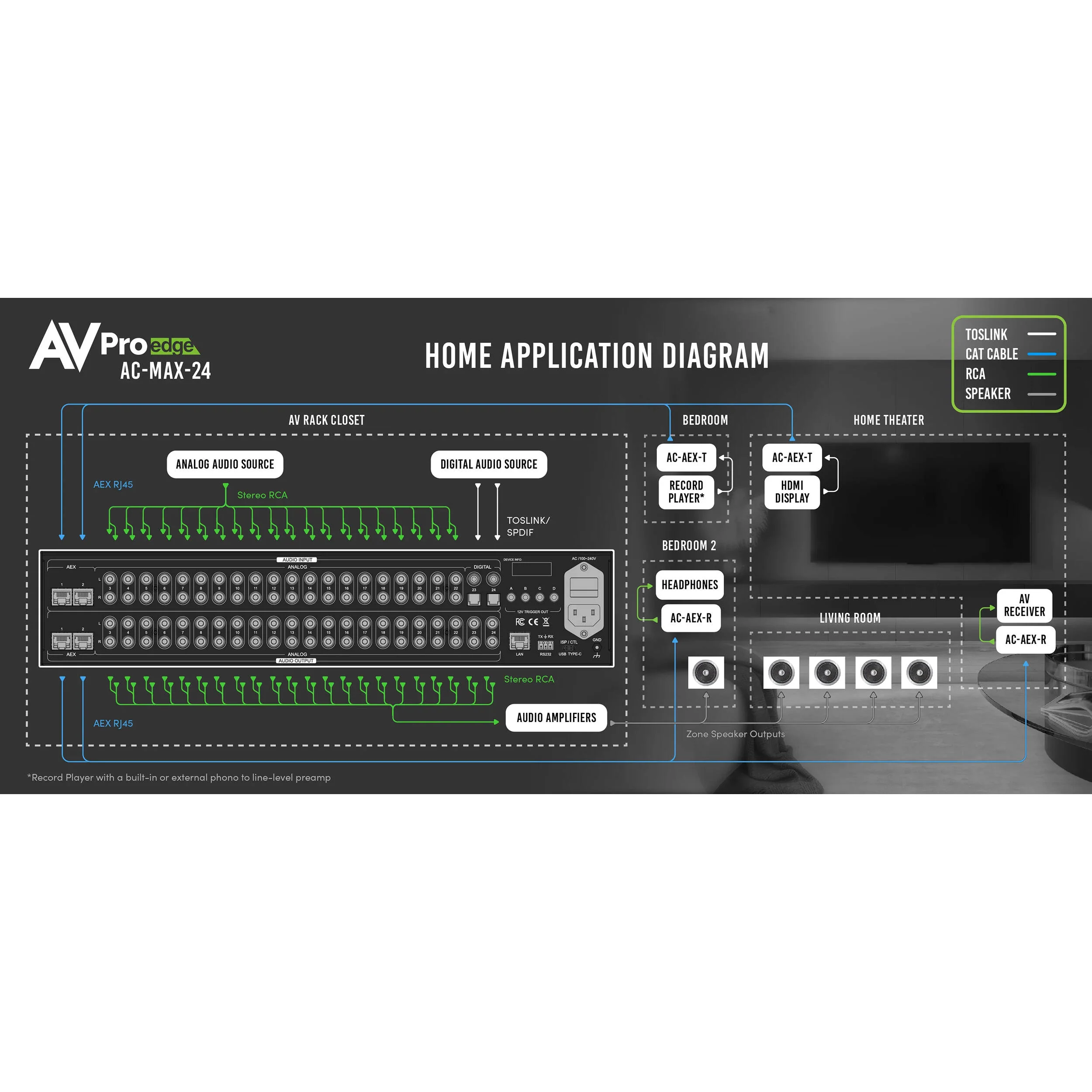

This audio matrix interface distributes low-latency signals over both analog and digital inputs and outputs. Nearly any preferred amplifier may be partnered with the device, allowing for applications in a huge variety of both residential and commercial settings. The rear panel features a range of input and output connections, including 20 RCA input and 22 RCA output ports as well as digital coaxial and optical options. Four 12V triggers are able to awaken amplifiers based on pre-programmed events. Additionally, the AC-MAX-24 contains two built-in AVPro Edge Audio Extender (AEX) input and output connections. The switcher will interface with AC-AEX receivers and transmitters for long-range audio encoding for devices at distances up to 425' (available separately).
Extensive Control Features
By utilizing either an RJ45 or RS232 connection, the AC-MAX-24 may be controlled via all major automation systems, such as C4, Crestron, or URC. Additionally, AVPro Edge has developed a comprehensive configuration GUI accessible by web browser. Simply use the LAN connection to tether the switcher to the same network as a PC with the Web UI, which is compatible with both Chrome and Edge browsers. Control parameters include equalization, customizable signal routing and independent channel volume, balance, and tone adjustment. The AC-MAX-24 comes in a clean and robust form factor to inconspicuously integrate into an audio distribution network, and is rack-mountable for seamless setup.
UPC: 810108230113
In the Box
- AVPro Edge AC-MAX-24 24x24 2-Channel Audio Matrix Switcher
- 2 x Rack Mounting Brackets (2 RU)
- 3-Pin Terminal Block Connector
- 4 x Mounting Feet with Screws
- Ground Wire
- AC Power Cord
- Limited 10-Year Manufacturer Warranty
AVPro Edge AC-MAX Specs
Processing
| Latency |
60 ms
|
Input
| Audio Inputs |
2x RJ45 Female Proprietary
20x 2RCA Female Stereo 2x TOSLINK Female |
| Input Audio Format |
Analog
LPCM (Linear Pulse-Code Modulation) |
Output
| Audio Outputs |
22x 2RCA Female Stereo
4x 1/8" / 3.5 mm Female |
| Output Audio Format |
Analog
LPCM (Linear Pulse-Code Modulation) |
Audio Performance
| Input Sensitivity |
0.8 Vrms
|
| Frequency Response |
20 kHz to 20 kHz
|
IP Encoding/Decoding
| Network I/O |
1x RJ45 Ethernet
|
| Transport Protocols |
DHCP
|
Hardware
| Wi-Fi |
No
|
| Bluetooth |
No
|
Power
| Power I/O |
1x IEC C14 (100 to 240 VAC) Input
|
| Power Consumption |
Device: 50 W
|
General
| Rack Form Factor |
2 RU
|
| Dimensions |
17.5 x 9.25 x 3.5" / 444.5 x 234.95 x 88.9Ā mm
|
| Weight |
8.7Ā lb / 3.9Ā kg
|
Packaging Info
| Package Weight |
11.78 lb
|
| Box Dimensions (LxWxH) |
23.4 x 14.7 x 6.8"
|
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
