AVPro Edge AC-MX-82 8x2 HDMI 4K Matrix/Auto Switcher (Rackmount)

AVPro Edge AC-MX-82 8x2 HDMI 4K Matrix/Auto Switcher (Rackmount)

AVPro Edge MX-82RM Overview

The rack-mountable AC-MX-82 8x2 HDMI 4K Matrix/Auto Switcher from AVPro Edge is a 4K matrix and auto-switch/AVR bypass unit with eight HDMI inputs and two HDMI outputs with HDR support. The unit features a bandwidth of up to 18 Gb/s and a resolution up to DCI 4K60. It supports Dolby Vision, HDR10+, HLG, and EDID management. The AC-MX-82 displays signals originating from Blu-ray, UHD Blu-ray, satellite receivers, game consoles, and PC sources on connected displays.

This switcher is suitable for bypassing AVRs and allows you to bypass uncompressed HDMI to the display, while running down-scaled video into a legacy AVR. The auto-switching feature allows you to feed a video signal into video conference coded and provides the option to output both auto-switches together or auto-switch only a single output.

4K up/down scaling technology is managed on each output. This allows you to upscale 1080p sources to 4K (with Image Enhancement), or downscale 4K sources to individual outputs that may not support 4K to 1080p. This switcher has dual-audio de-embedding, allowing you to extract 2-channel audio from the L/R port, and a digital optical TOSLINK output. The switcher supports IR, RS-232, and LAN control options.

4K up-scaling/down-scaling enables you to downscale 4K sources to 1080p
Extreme EDID management with 29 onboard EDIDs, including HDR EDIDs allows you to manage the input side of the switch by selecting a preloaded EDID
Dual-audio de-embedding allows you to extract two-channel PCM audio from the L/R ports
Note:
The analog port only supports 2CH PCM. For down-mixing, check out AC-ADM-AUHD or AC-ADM-COTO
Digital optical TOSLINK output supports 7-channel LPCM, Dolby Digital, Dolby Digital+, DTS, and DTS Master Audio
Extracted audio bound to output 1 or 2
Dolby Vision, HDR10+, and HLG support
Driver support for Crestron, C4, RTI, and ELAN
Designed for digital entertainment centers, HDTV retail, show sites, data centers, schools, conference, and training centers

In the Box

  • AVPro Edge AC-MX-82 8x2 HDMI 4K Matrix/Auto Switcher (Rackmount)
  • IR Remote Control
  • 3-Pin Terminal Connector
  • 2 x Mounting Ears
  • 12V Locking Power Supply
  • Limited 10-Year Manufacturer Warranty

    AVPro Edge MX-82RM Specs

    Processing
    Switching Type IR Remote, Pushbutton, Software
    Processing Resolution UHD 4K at 60
    Color Processing 10-Bit 4:4:4 YUV
    10-Bit 4:4:4 RGB
    10-Bit 4:2:2 YUV
    10-Bit 4:2:2 RGB
    10-Bit 4:2:0 YUV
    10-Bit 4:2:0 RGB
    12-Bit 4:4:4 YUV
    12-Bit 4:4:4 RGB
    12-Bit 4:2:2 YUV
    12-Bit 4:2:2 RGB
    12-Bit 4:2:0 YUV
    12-Bit 4:2:0 RGB
    Input
    Video Inputs 8 x HDMI (HDMI 2.0b)
    Input Video Format HDMI (10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV)
    DCI 4K at 60 fps
    Embedded Audio Input HDMI: 8-Channel
    Output
    Video Outputs 2 x HDMI (HDMI 2.0b)
    Output Video Format HDMI (10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV)
    UHD 4K at 60 fps
    Audio Outputs 1 x 2RCA Analog
    1 x TOSLINK S/PDIF
    Output Audio Format S/PDIF
    LPCM (Linear Pulse-Code Modulation)
    Embedded Audio Output HDMI
    Connectivity
    Other I/O 1 x RJ45 LAN
    1 x 1/8" / 3.5 mm IR
    1 x Block 3-Pin RS-232
    1 x Micro-USB Control
    HDCP Support Version 2.3
    HDR Compatibility HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma
    DTS Compatibility DTS, DTS-HD Master Audio, DTS:X
    Dolby Compatibility Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
    Hardware
    Wi-Fi None
    Bluetooth None
    Power
    Power I/O 1 x Barrel (12 VDC at 2 A) Output
    Power Consumption Power Supply: 100 to 240 VAC (12 W)
    Environmental
    Operating Temperature 23 to 125°F / -5 to 51°C
    Storage Temperature -4 to 140°F / -20 to 60°C
    Operating Humidity 5 to 90%
    General
    Rack Form Factor 1 RU
    Dimensions 11.06 x 4.37 x 1.32" / 28.09 x 11.1 x 3.35 cm
    Weight 1.8 lb / 0.8 kg

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $2,720.40
    AVPro Edge AC-MX-82 8x2 HDMI 4K Matrix/Auto Switcher (Rackmount)—
    $2,720.40

    More Images

    AVPro Edge AC-MX-82 8x2 HDMI 4K Matrix/Auto Switcher (Rackmount) - Image 2

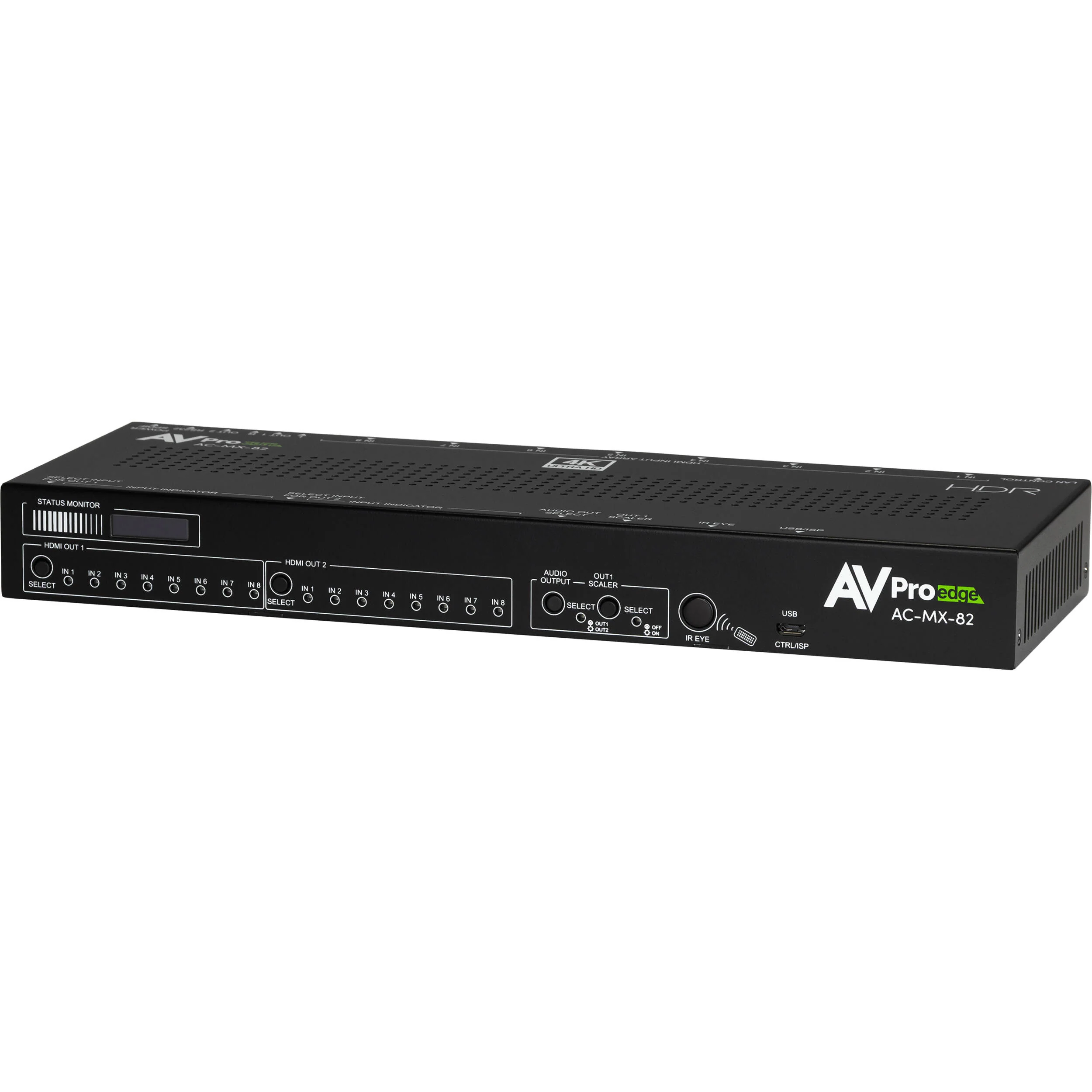

    AVPro Edge AC-MX-82 8x2 HDMI 4K Matrix/Auto Switcher (Rackmount) - Image 3

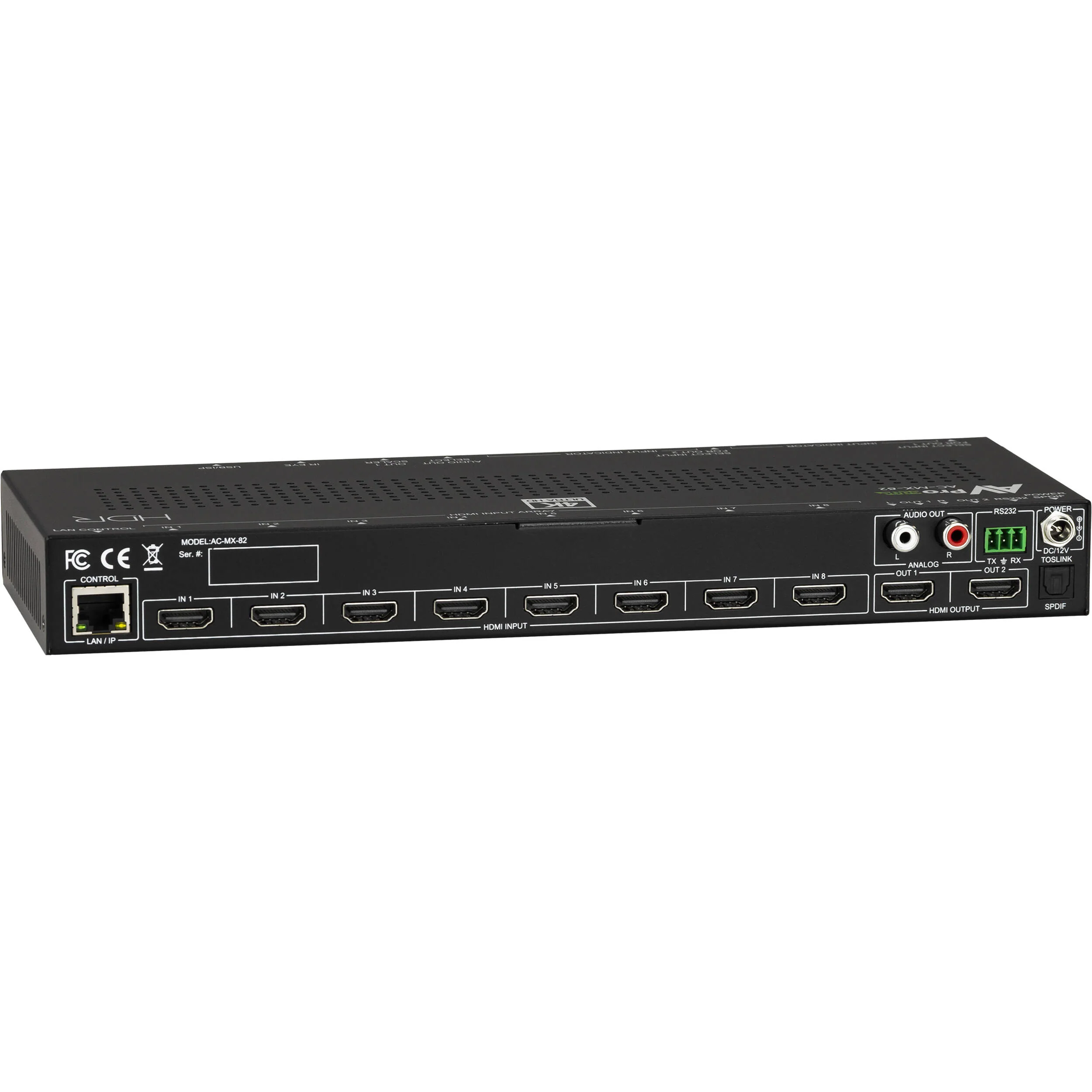

    AVPro Edge AC-MX-82 8x2 HDMI 4K Matrix/Auto Switcher (Rackmount) - Image 4

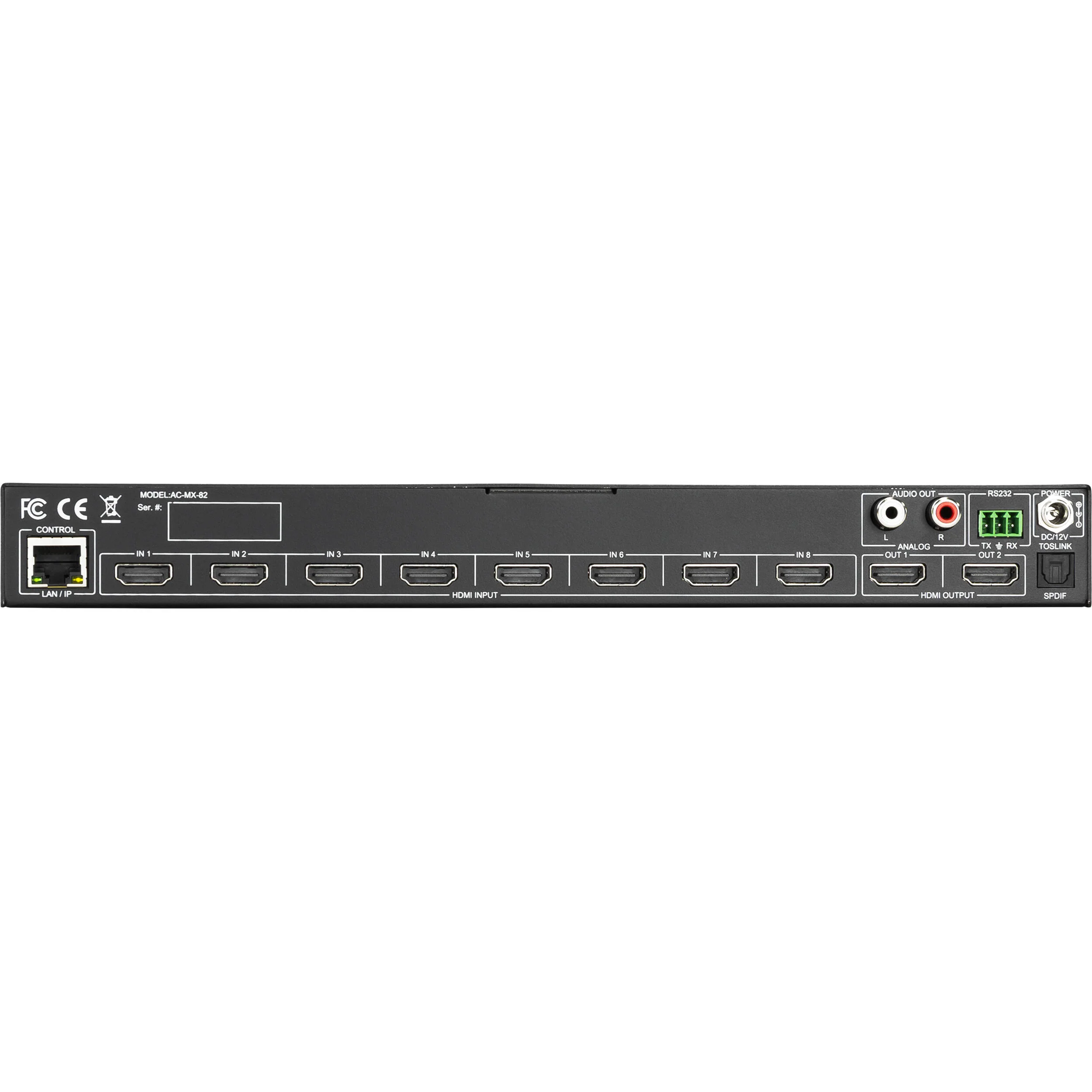

    AVPro Edge AC-MX-82 8x2 HDMI 4K Matrix/Auto Switcher (Rackmount) - Image 5

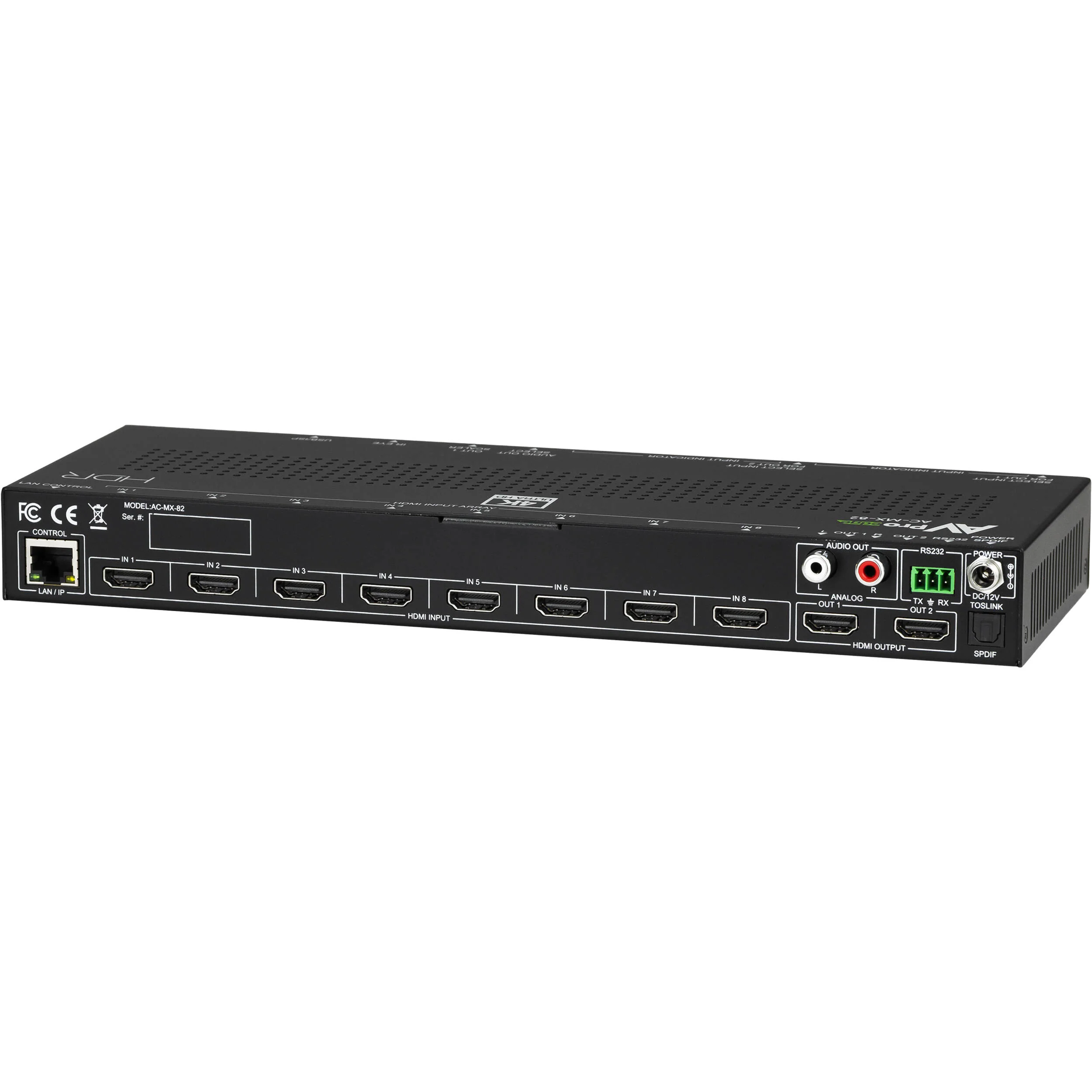

    AVPro Edge AC-MX-82 8x2 HDMI 4K Matrix/Auto Switcher (Rackmount) - Image 6
