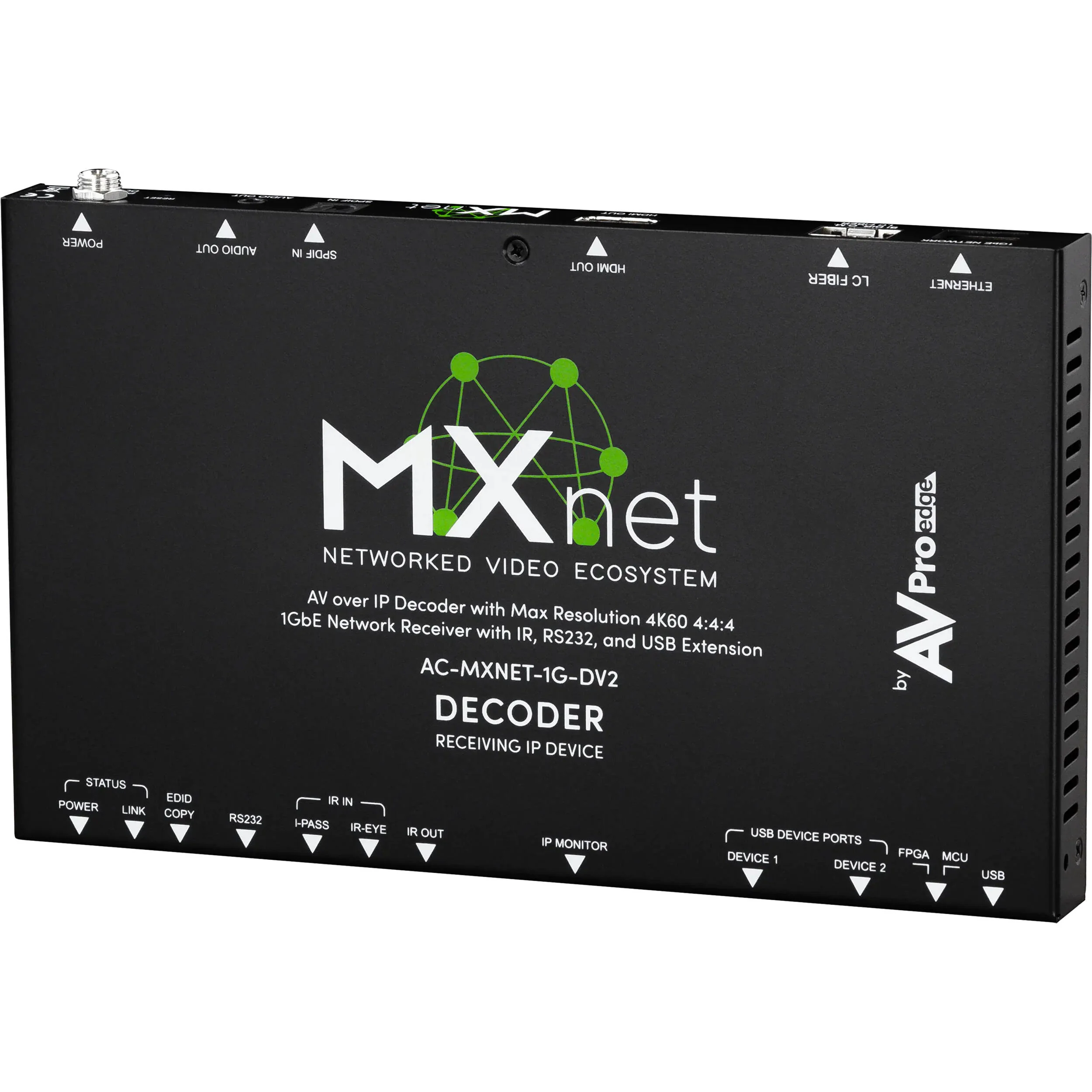

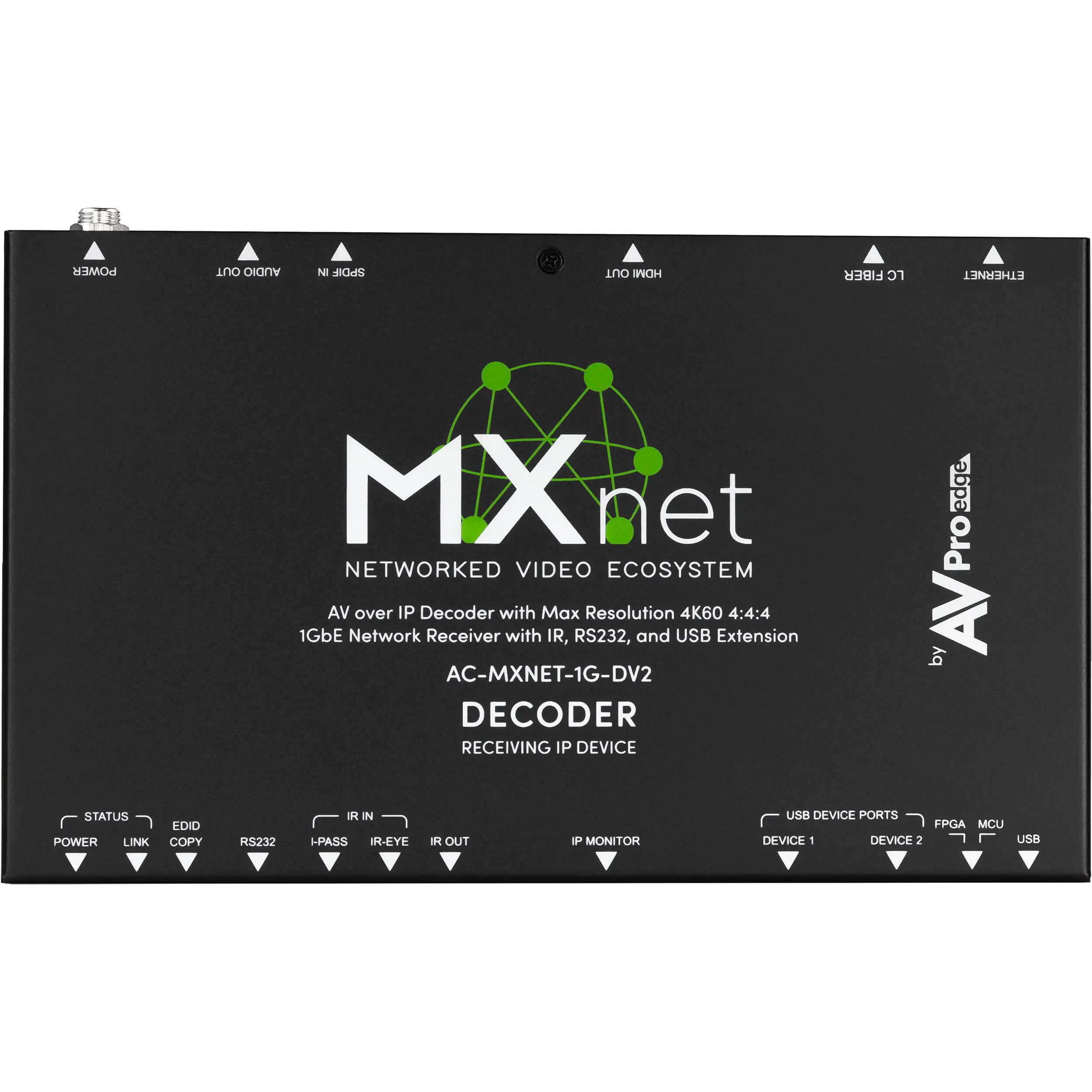

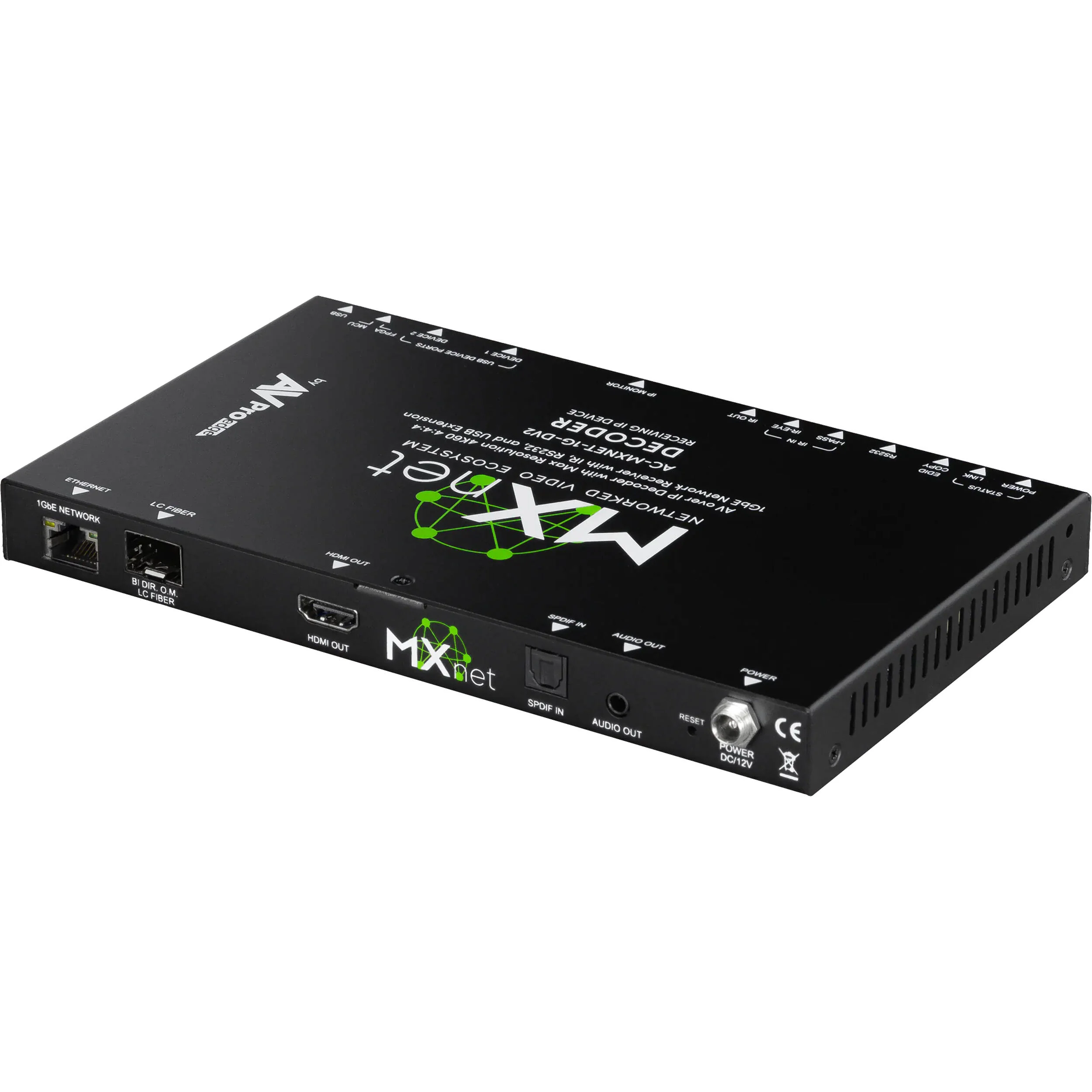

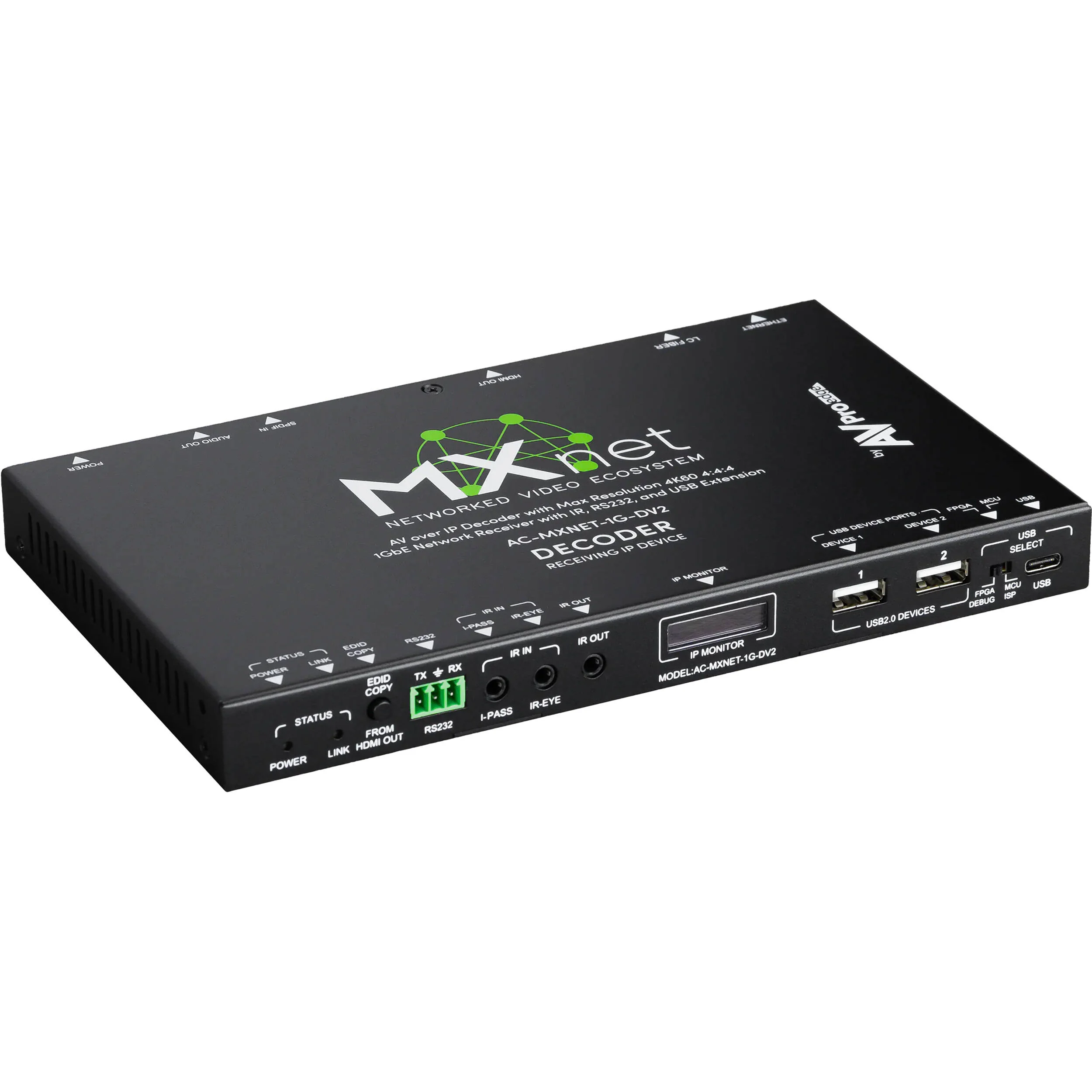

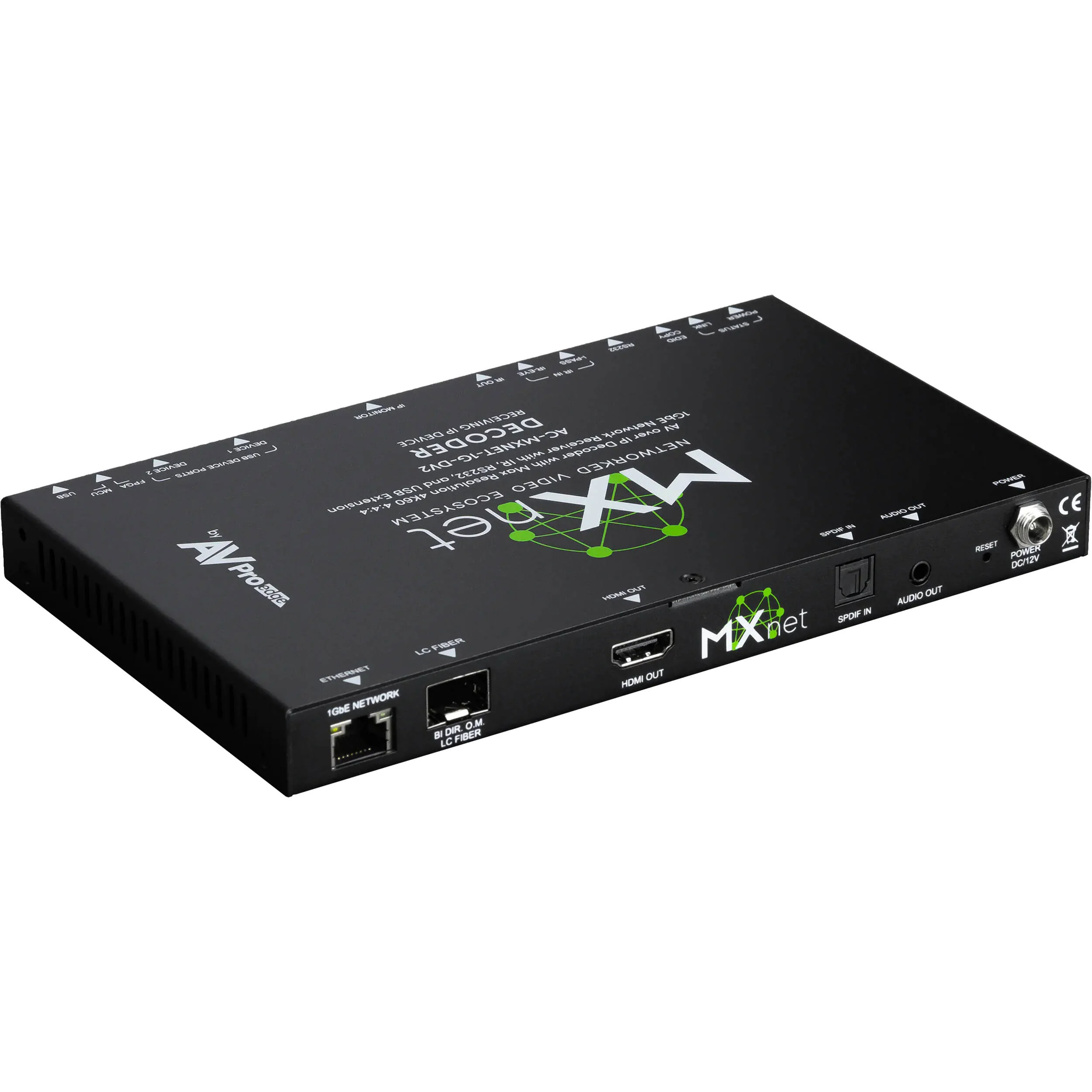

AVPro Edge MXNet 1G Evolution II Decoder
AVPro Edge AC-MXNET-1G-DV2 Overview
- 1Description
- 2AVPro Edge ASIC
- 3JPEG 2000
- 4Up to UHD 4K60 Support
- 5High-Bitrate Audio Support
- 6OLED Window
- 7NetGear Support
The MXNet 1G Evolution II Decoder from AVPro Edge receives and decodes video and audio signals at resolutions up to DCI 4K60 4:4:4, along with control, power, and HDR metadata. This decoder supports HDMI 2.0, HDR10, HLG, and Dolby Vision up to 30 Hz and is designed for use with an MXNet switch or a multicast capable L3 switch and Cat 6A cable or with SFP fiber for longer runs. It features a new AVPro Edge ASIC (application-specific integrated circuit) for enhanced video processing and support for audio formats like Dolby Atmos and DTS:X for IMAX Enhanced soundtracks.
Note:
The AC-MXNET-1G-DV2 may coexist alongside 1st-generation MXNet encoders and decoders within previously installed or pending systems; however, they are required to be used exclusively in EVO II transmitter-to-EVO II decoder(s) pairings only.
AVPro Edge ASIC
The AVPro Edge ASIC (application-specific integrated circuit) substantially improves the fidelity of the decoded image.
JPEG 2000
- The JPEG 2000 encoding used by MXNet components optimizes compression efficiency for applications with limited bandwidth. It provides both lossless or lossy compression and parsable code streams.
- Genlock support for syncing a video source to decoders comprising a video wall for a tear-free screen appearance.
Up to UHD 4K60 Support
- This Evolution II Decoder supports video resolutions up to DCI 4K60 4:4:4/4:2:2 12-bit signals using limited, ultralight ICT compression.
- Supports up to DCI 4K60 4:4:4 8-bit and UHD 4K60 4:2:2 12-bit uncompressed video signals.
- Supports HDR 10, HLG, and Dolby Vision up to DCI 4K30.
High-Bitrate Audio Support
- The Evolution II Decoder supports multichannel, high-bitrate audio.
- Supports audio formats like Dolby Atmos and DTS-X for IMAX Enhanced soundtracks and more.

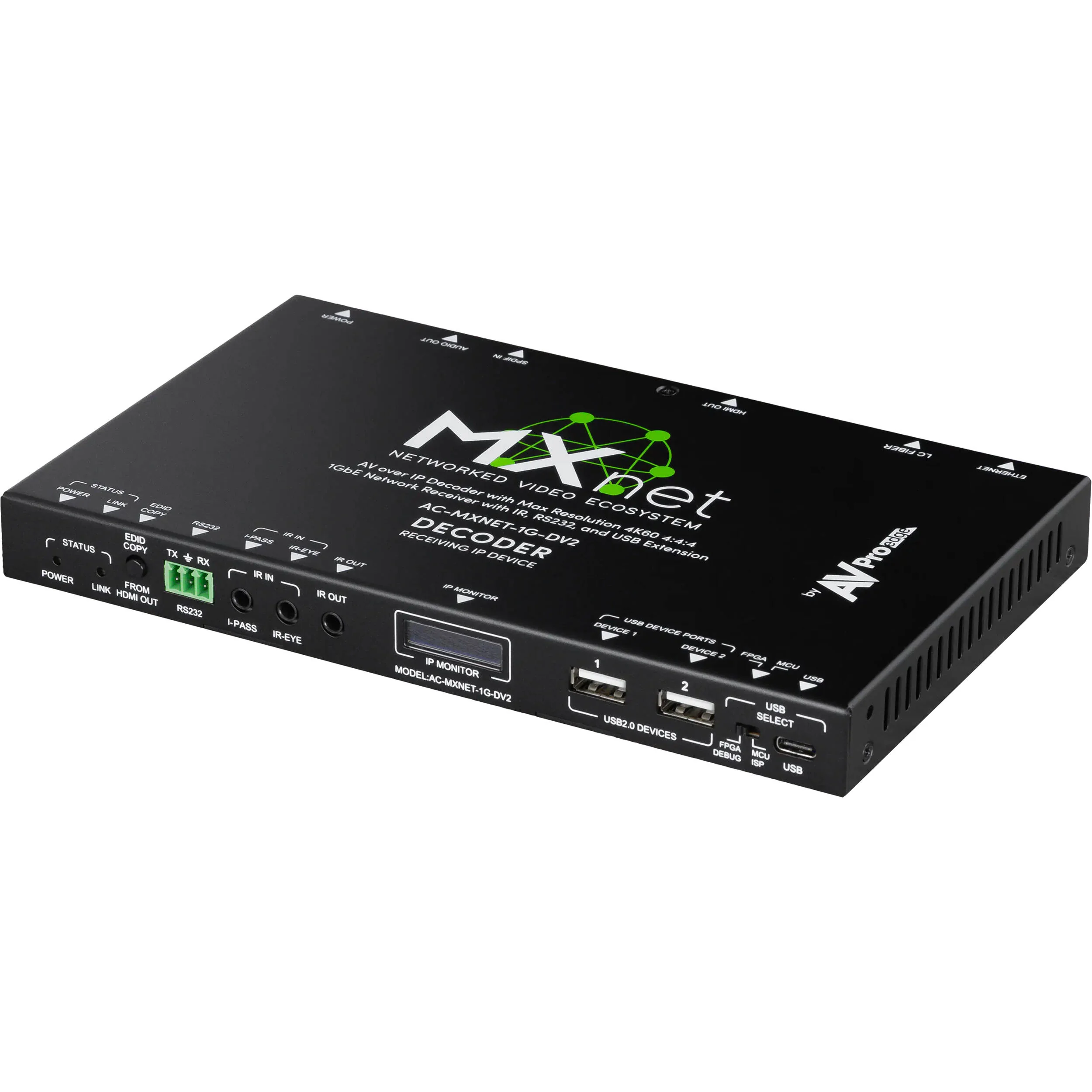

OLED Window
- The front-panel OLED screen displays critical information, making setup and troubleshooting easier.
- The data window displays the IP address and the MAC address or can be modified to display up to 12-character custom names.
NetGear Support
- Install the AVPro Edge Profile for seamless compatibility with NetGear switchers.
UPC: 810108230243
In the Box
- AVPro Edge MXNet 1G Evolution II Decoder
- Power Supply
- Limited 10-Year Manufacturer Warranty
Table of Contents
- Description
- AVPro Edge ASIC
- JPEG 2000
- Up to UHD 4K60 Support
- High-Bitrate Audio Support
- OLED Window
- NetGear Support
AVPro Edge AC-MXNET-1G-DV2 Specs
Inputs / Outputs
| Video Inputs |
1 x RJ45 (DVI) Female
1 x LC Fiber (DVI) Female |
| Audio Inputs |
No
|
| Video Outputs |
1 x HDMI (2.0b) Female
|
| Audio Outputs |
1 x 1/8" / 3.5 mm TRS Stereo Female
|
| Other I/O |
1 x LC Fiber Input/Output
2 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output 1 x Block 3-Pin RS-232 2 x USB-A 2.0 1 x USB-C |
| Expansion Slots |
No
|
Format Support
| Input Video Format |
Fiber / RJ45 (8-Bit 4:4:4 RGB, YCC)
DCI 4K at 60 fps Fiber / RJ45 (10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC) UHD 4K at 24/30/50/60 fps Fiber / RJ45 (10/12/16-Bit) 1080p at 50/60 fps 720p at 50/60 fps |
| Output Video Format |
Fiber / HDMI / RJ45 (8-Bit 4:4:4 RGB, YCC)
DCI 4K at 60 fps Fiber / HDMI / RJ45 (10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC) UHD 4K 24/30/50/60 fps Fiber / HDMI / RJ45 (10/12/16-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC) 1080p at 50/60 fps 720p at 50/60 fps |
| Output Audio Format |
Analog
|
| Embedded Audio |
HDMI/LAN (RJ45)
|
Standards
| EDID Support |
Manual Control
|
| HDR Compatibility |
HDR10, Hybrid Log Gamma
|
| DTS Compatibility |
DTS, DTS-ES, DTS-HD High Resolution
|
| Dolby Compatibility |
Dolby Digital, Dolby Digital Plus
|
Hardware
| Tally Light |
Yes
|
| Wireless |
No
|
Power
| Power I/O |
1 x Barrel (12 VDC at 2 A) Output
|
| PoE Support |
PoE 802.3af
|
| Power Consumption |
9.5 W
|
Environmental
| Operating Temperature |
23 to 125°F / -5 to 51°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
5 to 90% (Non-Condensing)
|
General
| Certifications |
CE, FCC, UL
|
| Dimensions |
7.9 x 4.7 x 0.8" / 200 x 120 x 20 mm
|
| Weight |
1.2 lb / 550 g
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
