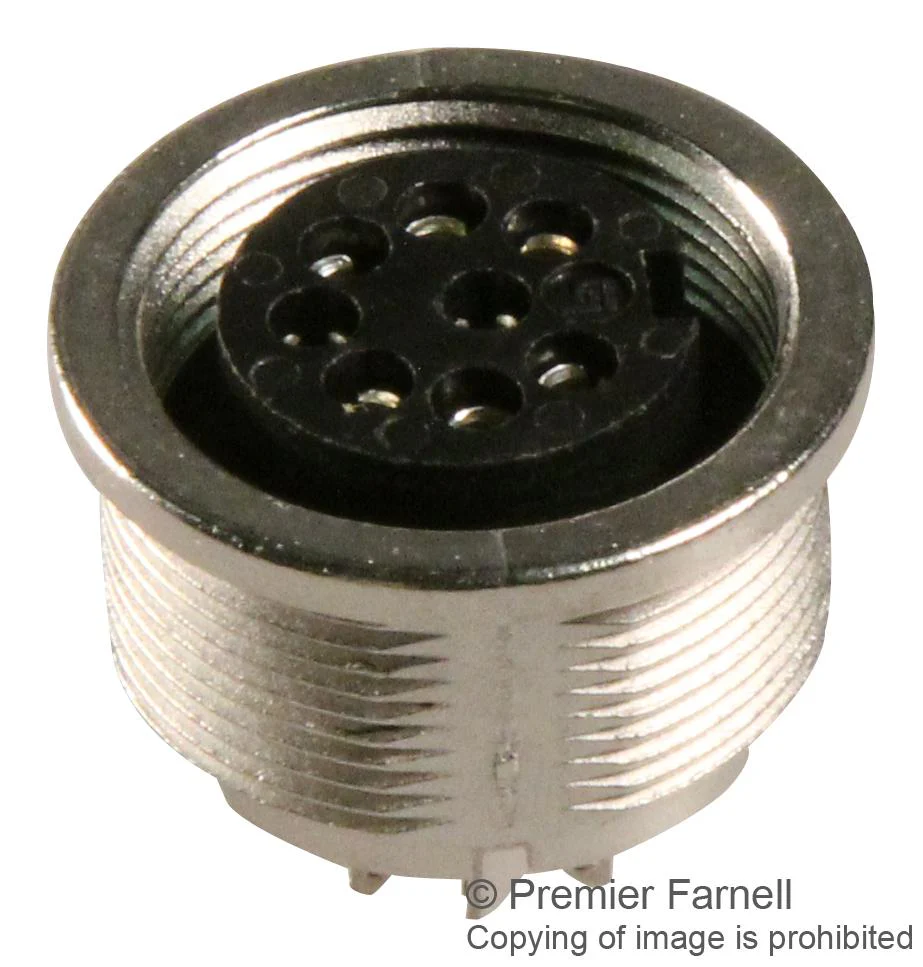

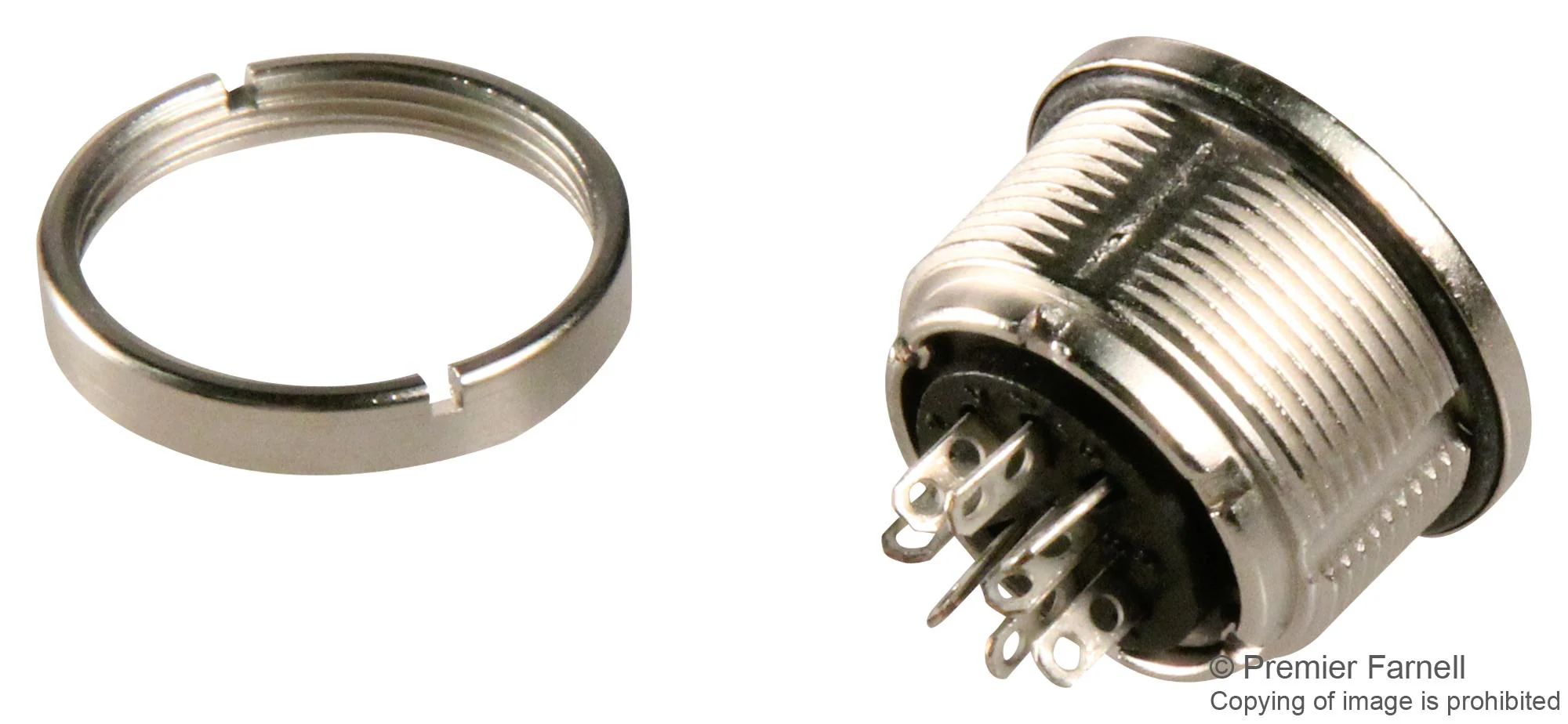

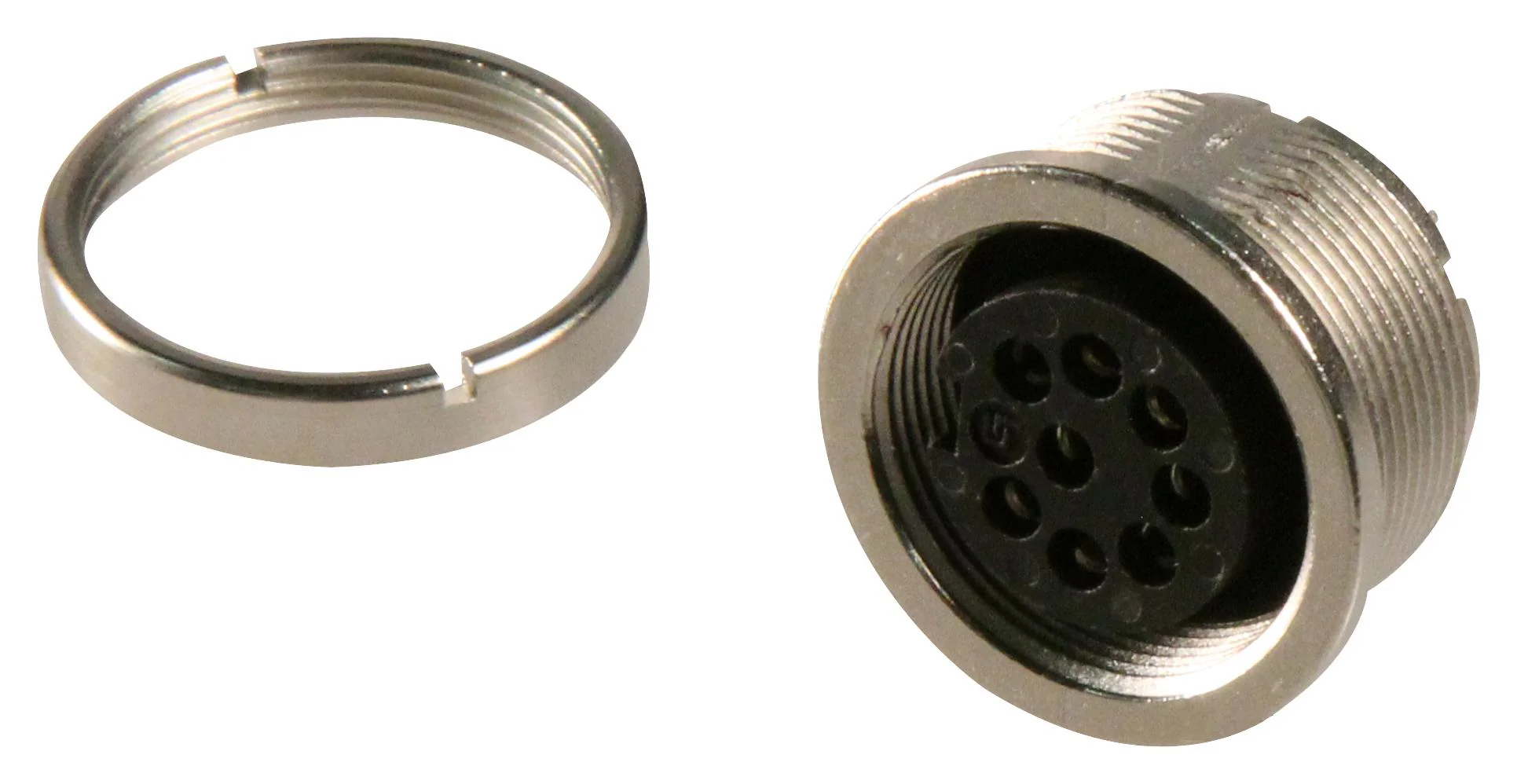

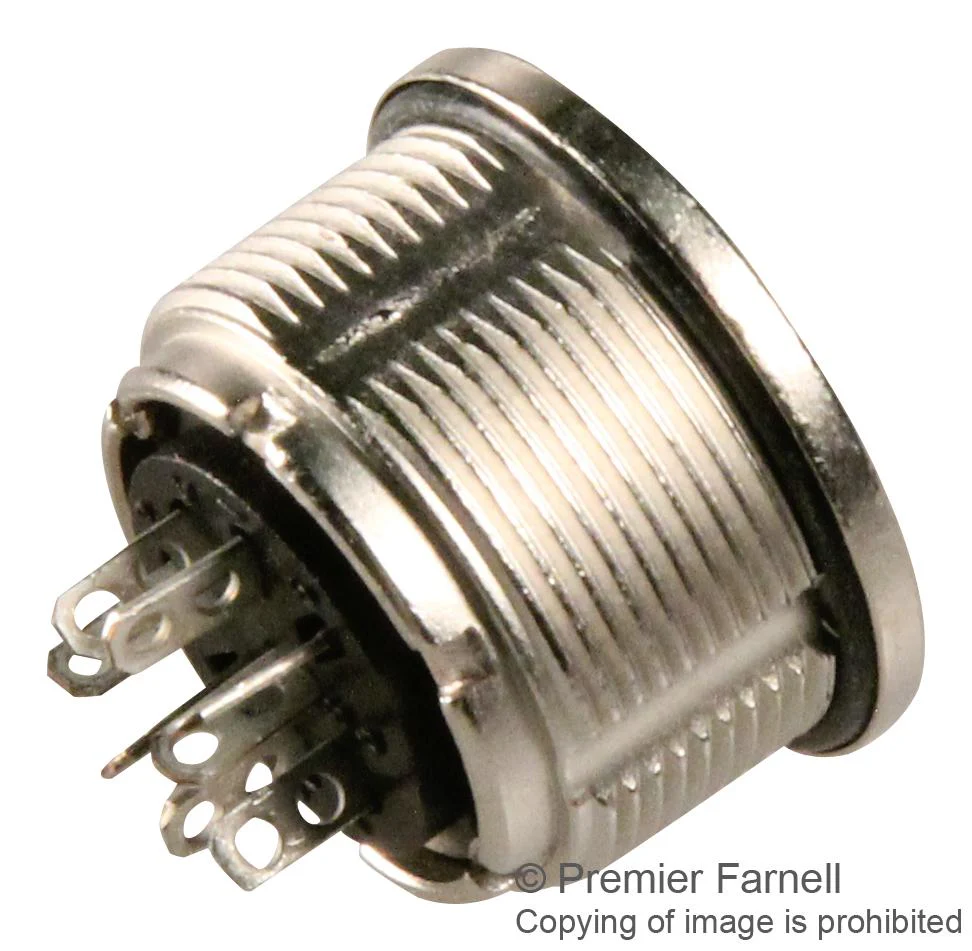

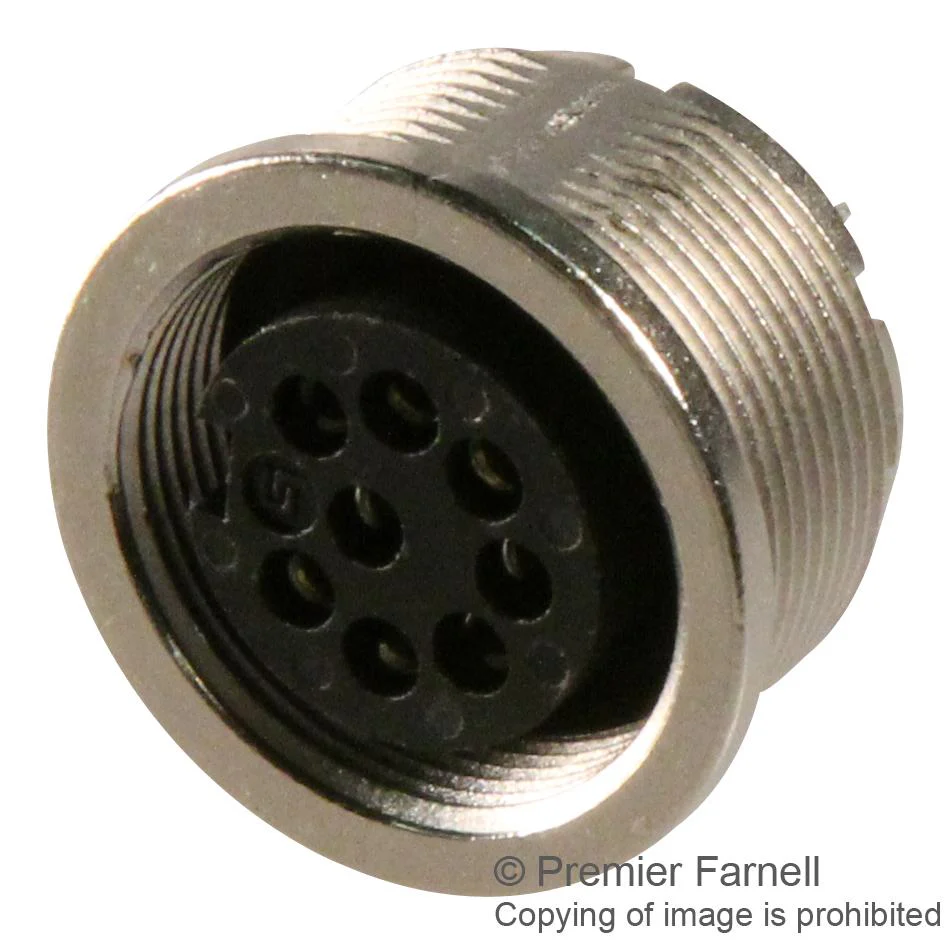

Binder 09 0174 00 08 09 08 Circular Connector 723 Series Panel Mount Receptacle 8 Contacts Solder Socket Brass Body

The 09 0174 00 08 is a 8-contact 60V/5A shielded straight subminiature female Circular Connector with silver-plated bronze contacts, PBT (UL 94 V-0) contact body, nickel-plated zinc die-cast housing. The 723 series receptacle with M16 screw locking system, solder termination, front mounting. It accepts 20AWG (0.75mm²) wire. It provides excellent EMI shielding via a shielding ring or cable clamp and internal strain relief.

• 500V Rated impulse voltage
• <=5mR Volume resistivity
• >500 mating cycles Mechanical operation
• IP67 Protection rating

Applications

Industrial

Other details

Brand	BINDER
Part Number	09 0174 00 08
Quantity	Each
Technical Data Sheet EN
