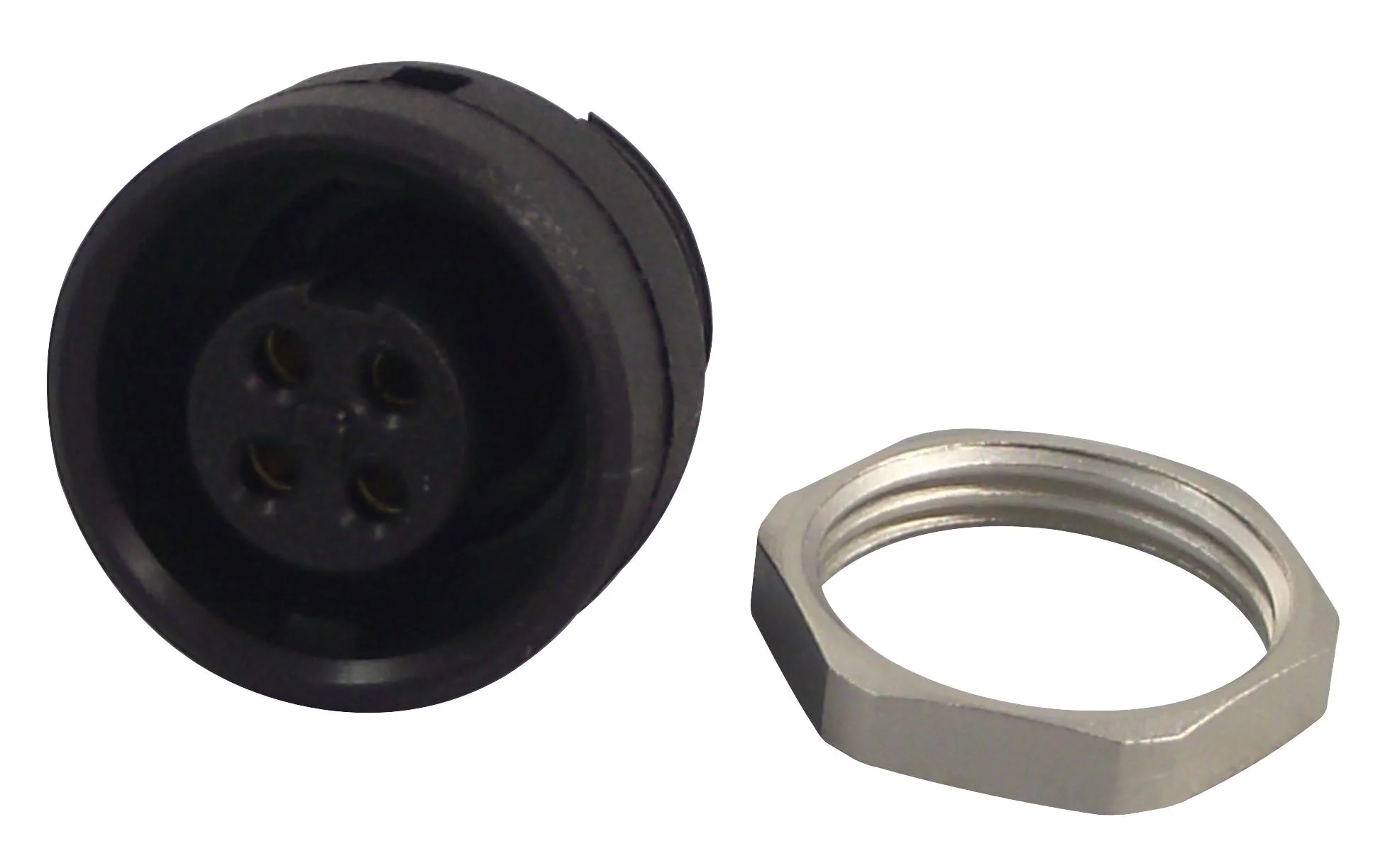

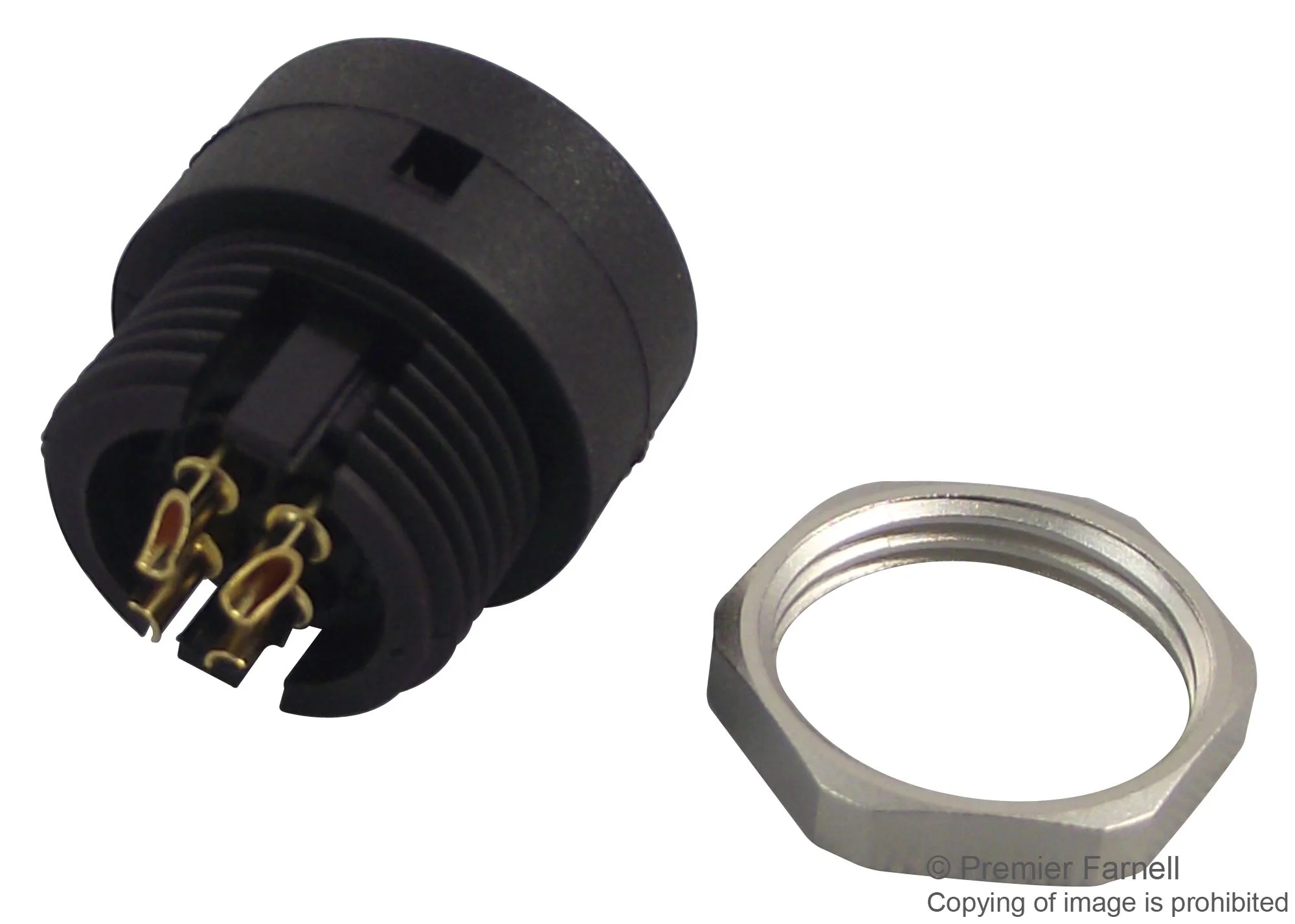

Binder 09 0982 00 04 09 04 Circular Connector 710 Series Panel Mount Receptacle 4 Contacts Solder Socket

The 09 0982 00 04 is a 4-contact 125V/3A unshielded straight subminiature female Circular Connector with gold-plated bronze contacts, PA (UL94V-0) contact body, PA (UL94 HB) housing. The 710 series receptacle with solder termination, front mounting style. It accepts 24AWG (0.25mm²) wire. The reliable and secure bayonet locking system is easy to operate and can withstand high vibrations. Housing outer diameter is only 12mm. It has a strain relief for added strength.

• 1500V Rated impulse voltage
• <=3mR Volume resistivity
• >500 mating cycles Mechanical operation
• IP40 Protection rating

Applications

Portable Devices, Consumer Electronics, Medical, Industrial

Other details

Brand	BINDER
Part Number	09 0982 00 04
Quantity	Each
Technical Data Sheet EN
Drawing EN
