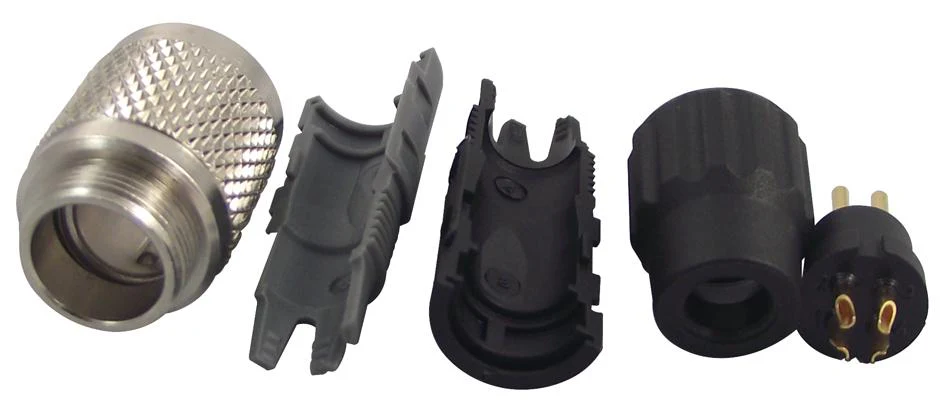

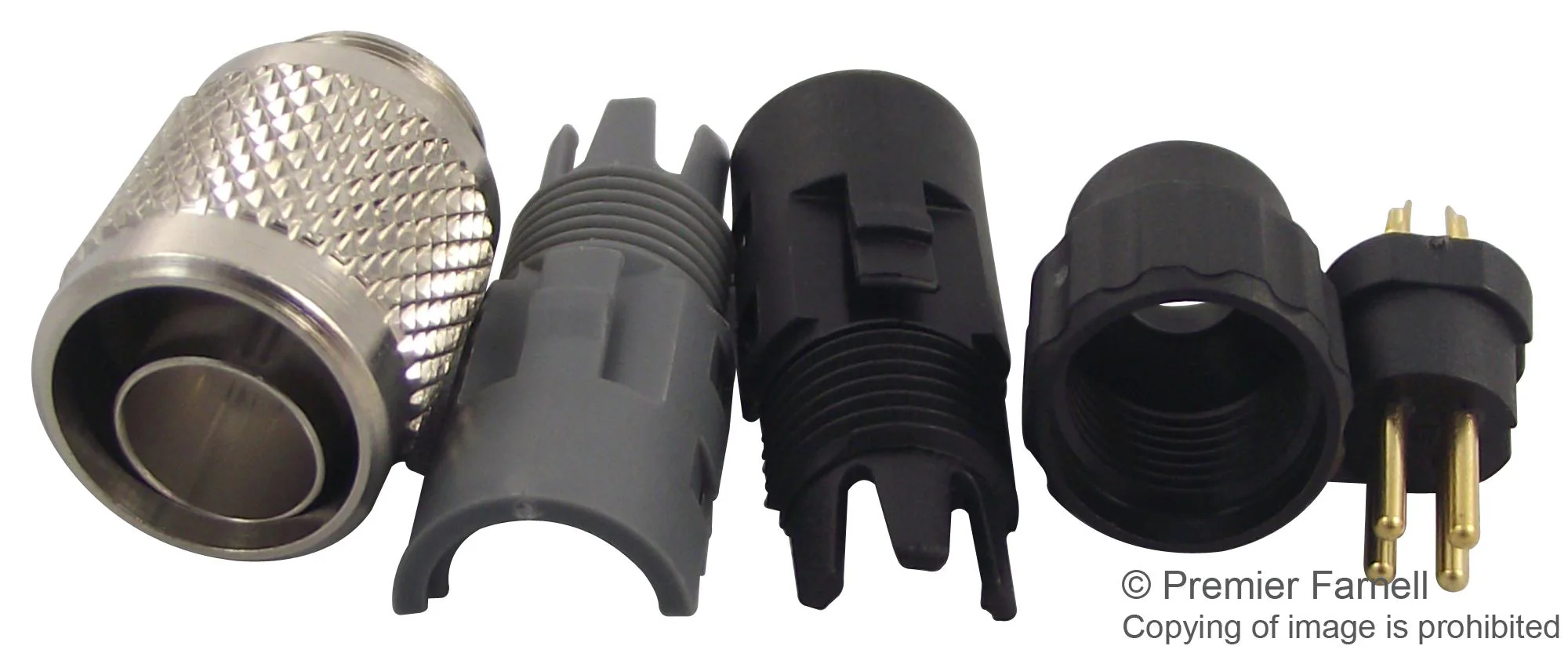

Binder 99 0079 100 04 Circular Connector 711 Series Cable Mount Plug 4 Contacts Solder Pin Nylon (Polyamide) Body

The 99 0079 100 04 is a 4-contact 125V/3A unshielded straight subminiature male Circular Connector with gold-plated brass contacts, PA (UL94V-0) contact body and PA (UL94VH-B) housing. The 711 series plug with M9 screw locking system, solder termination, cable mounting style. It accepts 24AWG (0.25mm²) wire, 3 to 4mm cable outlet. The housing has an integrated strain relief for added strength.

• 1500V Rated impulse voltage
• <=3mR Volume resistivity
• >500 mating cycles Mechanical operation
• IP40 Protection rating

Applications

Industrial

Other details

Brand	BINDER
Part Number	99 0079 100 04
Quantity	Each
Technical Data Sheet EN
