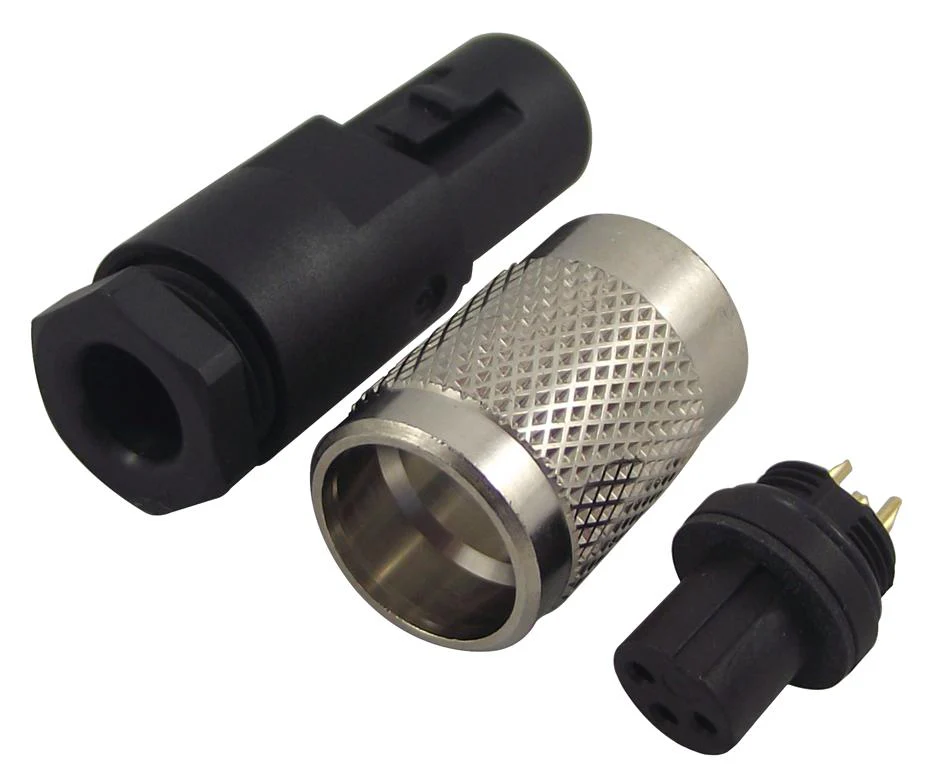

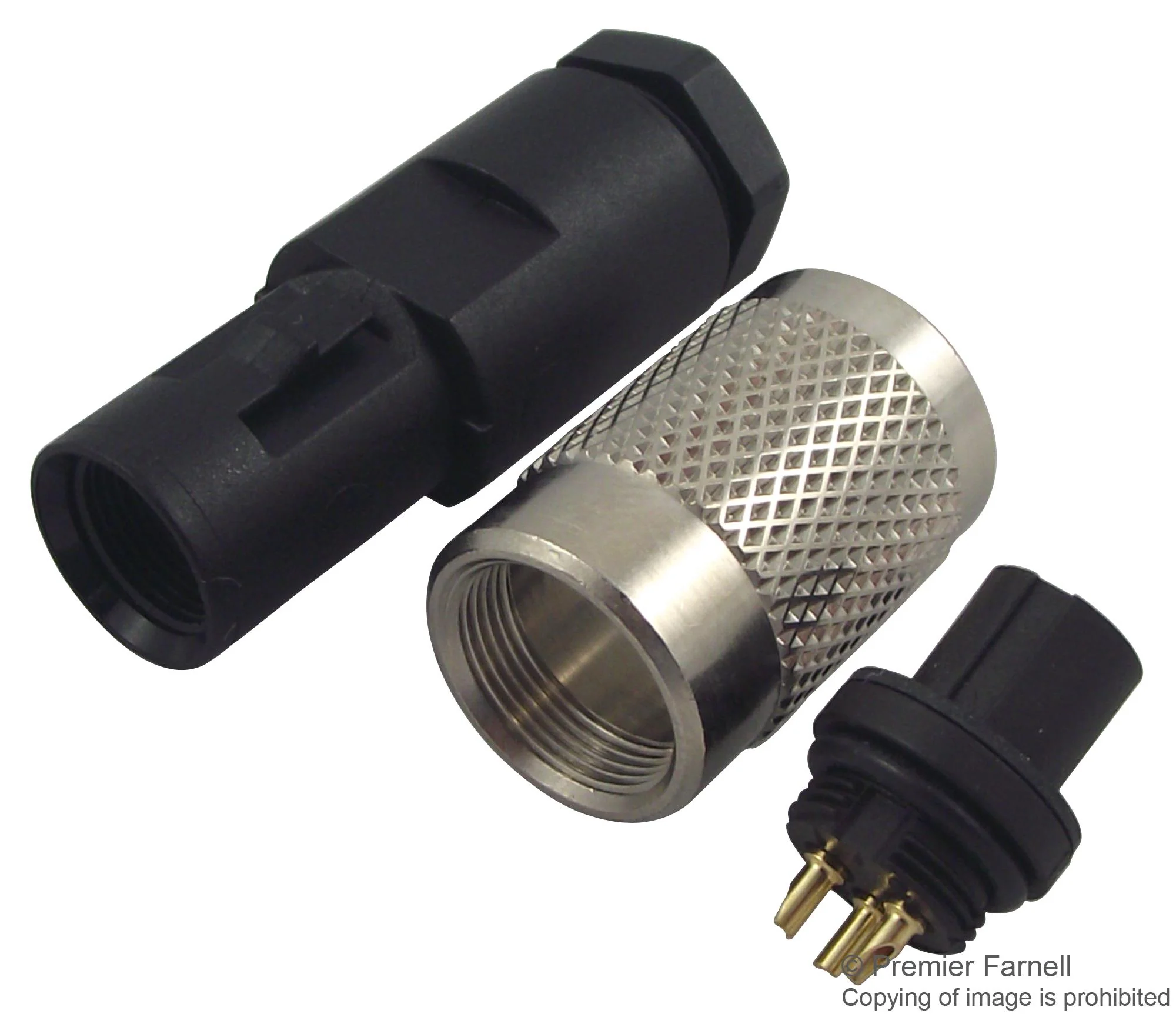

Binder 99 0406 00 03 Circular Connector 712 Series Cable Mount Receptacle 3 Contacts Solder Socket

The 99 0406 00 03 is a 3-contact 125V/4A unshielded straight subminiature female Circular Connector with gold-plated bronze contacts, PA (UL94V-0) contact body and PA (UL94V-0) housing. The 712 series plug with M9 screw locking system, solder termination, cable mounting style. It accepts 24AWG (0.25mm²) wire, 3 to 4mm cable outlet.

• 1500V Rated impulse voltage
• <=3mR Volume resistivity
• >500 mating cycles Mechanical operation
• IP67 Protection rating

Applications

Industrial

Other details

Brand	BINDER
Part Number	99 0406 00 03
Quantity	Each
Technical Data Sheet EN
Drawing EN
