Blonder Tongue AMCM-860DS HE 12 Series Modular Agile Stereo Audio/Video Modulator
Blonder Tongue AMCM-860DS Overview

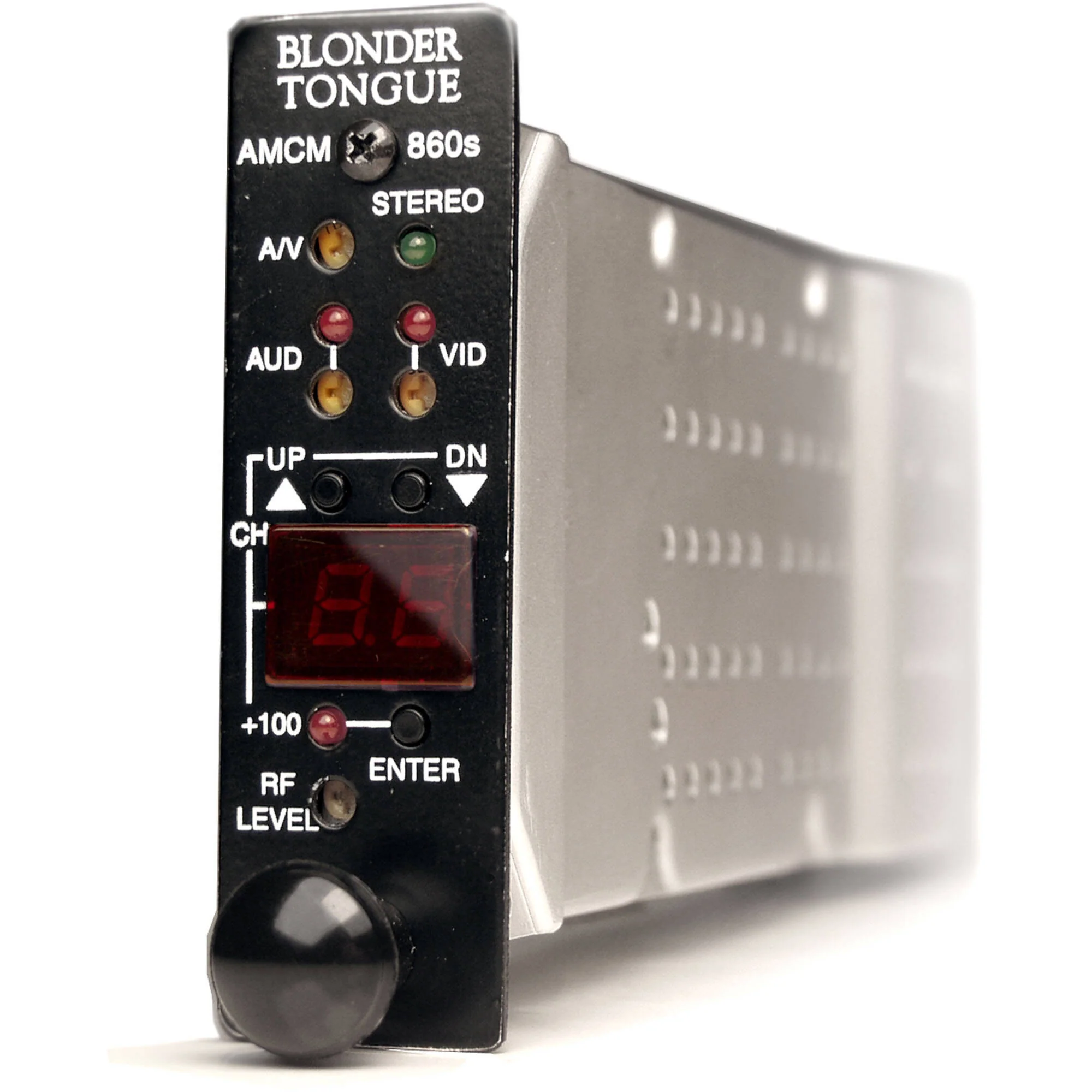

The AMCM Series Agile Micro Channel Modulator from Blonder Tongue is a 2 RU analog A/V module that installs in the separately available MIRC-4D, MIRC-12V, or MIPS-12D rack chassis. It forms part of an RF modulation system for analog CATV applications, and supports an output frequency range of 54 to 860 MHz, NTSC channels 2 to 135. This model features stereo audio input.
Key Features
Audio Auto Gain Control (AGC) prohibits commercials that accompany broadcast programs from having modulation levels substantially higher than the broadcast program; and having an average maximum loudness substantially higher than that of the broadcast program
Audio Auto Gain Control (AGC) provides consistent audio levels among all broadcast programs on different channels and among different programs within the same channel
This model accepts stereo audio input, the separately available AMCM-860D only inputs mono audio
Modular design allows for deployment of 12 channels in a single 2 RU rackmount chassis
Utilizes SAW filters for improved performance
Die-cast chassis for RFI immunity
In the Box
- Blonder Tongue AMCM-860DS HE 12 Series Modular Agile Stereo Audio/Video Modulator
- Limited 1-Year Manufacturer Warranty
Blonder Tongue AMCM-860DS Specs
General
| Compatibility |
Blonder Tongue MIRC-4D Rack Chassis / MIRC-12V Rack Chassis / MIPS-12D Rack Chassis
|
| Interface |
RF Connector: 1 x F-Type Female
Impedance: 75 Ohm Return Loss: 24 dB Input Level: 1.0 V Peak-to-Peak, 87.5% Depth of Modulation Frequency Response: 1.0 dB Peak-to-valley - fv to fv+4.2 MHz Video-to-RMS Hum Ratio: 65 dB peak-to-peak Signal-to-Noise Ratio: 62 dB - Weighted at 4 MHz Bandwidth Differential Gain: 2.0% Differential Phase: 1.0° - 87.5% Depth of Modulation Chrominance / Luminance Delay: Per FFC Requirements |
| Audio |
Stereo Audio Connector: RCA
Input Impedance: Greater than 10 k?, Unbalanced Input Sensitivity: 0.5 to 4.0V Peak-to-peak (AGC range with pilot tone) for 55 kHz Peak Deviation Frequency Response: ± 0.75 dB (50 Hz to 12 kHz) Separation: 20 dB at 50 Hz to 10 kHz |
| Output |
Connector: F-Type Female
Impedance: 75 Ohm Return Loss: 12 dB Frequency Range: 54 to 860 MHz (NTSC CATV Channels 2 to 135) Power Level: +45 dBmV Power Level Range: 10 dB, Continuously Adjustable Carrier-to-Noise (In Channel): 63 dB Broadband Noise: -75 dBc (at +45 dBmV Output Level, 4 MHz Bandwidth) Spurious Outputs: -60 dBc Aural/Visual Carrier Ratio: -11 to -19 dB Continuously Adjustable 4.5 MHz Aural Inter-Carrier Frequency Tolerance: ±150 Hz; 77 °F (25 °C) Visual Carrier Frequency Tolerance Standard Channels: ±10 kHz; 32 to 122 °F (0 to 50 °C) FCC Aeronautical Channels: ±5 kHz; 32 to 122 °F (0 to 50 °C) |
| Alarm |
Channel Number and Mode: 2-Digit Red LED Display
+100 channel: Red LED Video Over-Modulation: Red LED Audio Over-Modulation: Red LED Stereo: Green LED |
| Mount |
Fits 2 RU Rackmount Size Chassis
|
Environmental
| Operating Temperature |
32 to 122°F / 0 to 50°C
|
| Operating Humidity |
0 to 95%
|
| Storage Temperature |
-13 to 158°F / -25 to 70°C
|
| Storage Humidity |
0 to 95%
|
Physical
| Dimensions |
7.8 x 3.5 x 1" / 198 x 89 x 25 mm
|
| Weight |
12.7 oz / 360 g
|
