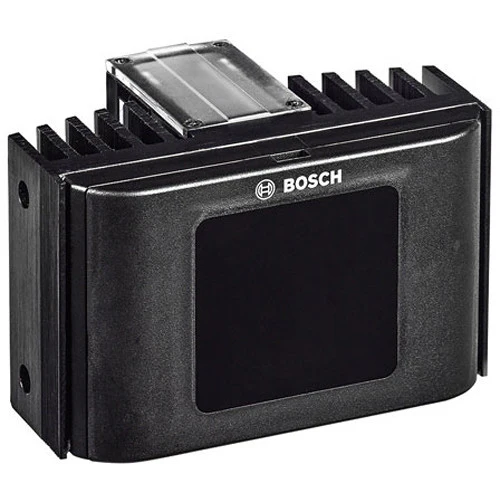

Bosch IR Illuminator 5000 SR (850nm)
HomeStore

Bosch IR Illuminator 5000 SR (850nm)

Bosch IR Illuminator 5000 SR (850nm)

The IR Illuminator 5000 SR from Bosch operates on 850nm wavelength and is suitable for short-range indoor and outdoor surveillance applications. IR illumination improves night-time imaging, and reduces noise and bit rates. The illuminator comes with a set of interchangeable diffuser lenses which allow you to select beam patterns as per your requirement. The self-cleaning window reduces maintenance requirements. Specifically designed for energy-efficient operation, the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply (not included) for quick installations.

  • Surface-mount high-power LEDs
  • Improved thermal management
  • Pressure equalization valve prevents thermal expansion and pressure cycling
  • Integrated adjustable photocell
  • Adjustable IR intensity
  • Interchangeable beam pattern diffusers match beam to camera
  • Telemetry input and photocell output for external switching
  • Self-cleaning lens coating technology
  • Easy access to power and photo cell adjustment facilitates quick installation
UPC: 800549815413
In the Box
Bosch IR Illuminator 5000 SR (850nm)
  • Set of Interchangeable Diffuser Lenses
  • Limited 3-Year Warranty
Optical
Wavelength 850 nm
IR Adjustable IR intensity (10% to 100%)
Day/Night Switching Photocell, sensitivity adjustable (20 to 70 lux)
Beam Angle 10, 20, 30, 60, 80, and 95�
Operating Distance 510' (156 m) @ 10�
348' (106 m) @ 20�
255' (78 m) @ 30�
162' (49 m) @ 60�
116' (35 m) @ 80�
81' (25 m) @ 95�
Actual illumination distance achieved is dependent on camera and lens characteristics
Horizontal Field-of-View 89' (27 m) @ 10�
123' (37 m) @ 20�
137' (42 m) @ 30�
187' (57 m) @ 60�
195' (59 m) @ 80�
177' (54 m) @ 95�
Certifications
Standards CE-EMC:
EN 61547 (Lighting-Immunity)
EN 55015 (Lighting-Emission)
EN 62493( Lighting EMF)
EN 50130-4 (Alarm EMC)

Safety:
CE-LVD
EN-60598-1 (Luminaires-General)
EN-60598-2-1 (Luminaires)

LED:
EN 62471 Risk group 2 (LED safety)

Environmental:
IEC / EN 60529 IP66
IEC / EN 62262 IK09
EN50130-5 Class IV (Alarm-environmental)
EN 50581 RoHS

USA cULus:
UL 2108 Low Voltage Lighting Systems
UL 8750 Light Emitting Diode (LED) equipment for use in lighting systems
CSA C22.2 No. 250.0-08 Luminaires
FCC, Class B

AUS:
RCM AS / NZS CISPR 22 Class B
Environmental
Operating Temperature -58 to 122�F (-50 to 50�C)
Protection IP66
Power
Supply 12 to 32 VDC or 24 VAC �10%
Consumption 13 W
Mechanical
Housing Robust anodized aluminum extrusion
Front Window Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology
Mount Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
Cable Length 9' (3 m)
Dimensions 4.33 x 2.68 x 2.99" (11 x 6.8 x 7.6 cm)
Bracket: 4.33 x 4.92 x 1.38" (11 x 12.5 x 3.5 cm)
Weight 1.6 lb (0.8 kg)
Bracket: 0.44 lb (0.2 kg)
Packaging Info
Package Weight 3.8 lb
Box Dimensions (LxWxH) 9.0 x 8.1 x 6.5"
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
