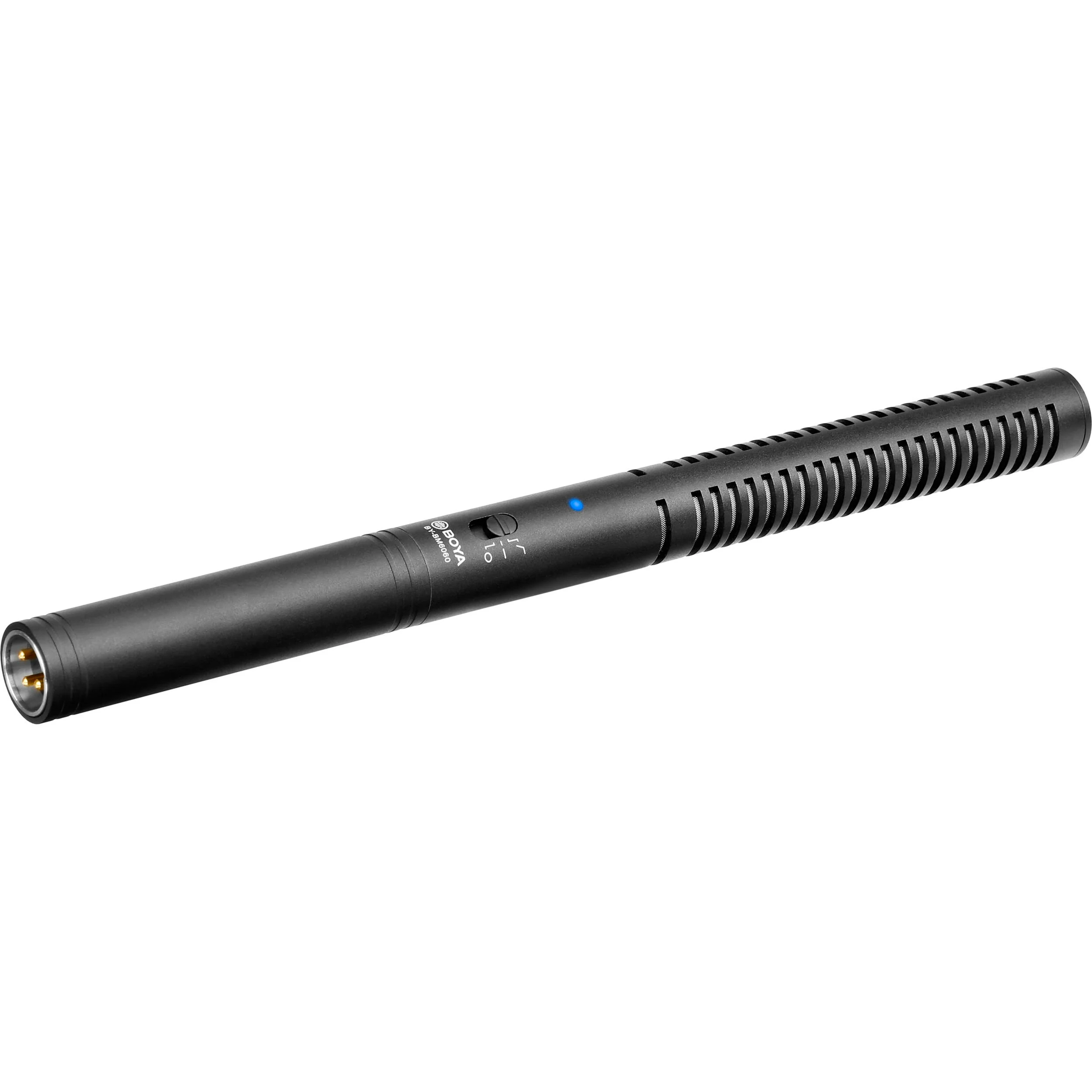

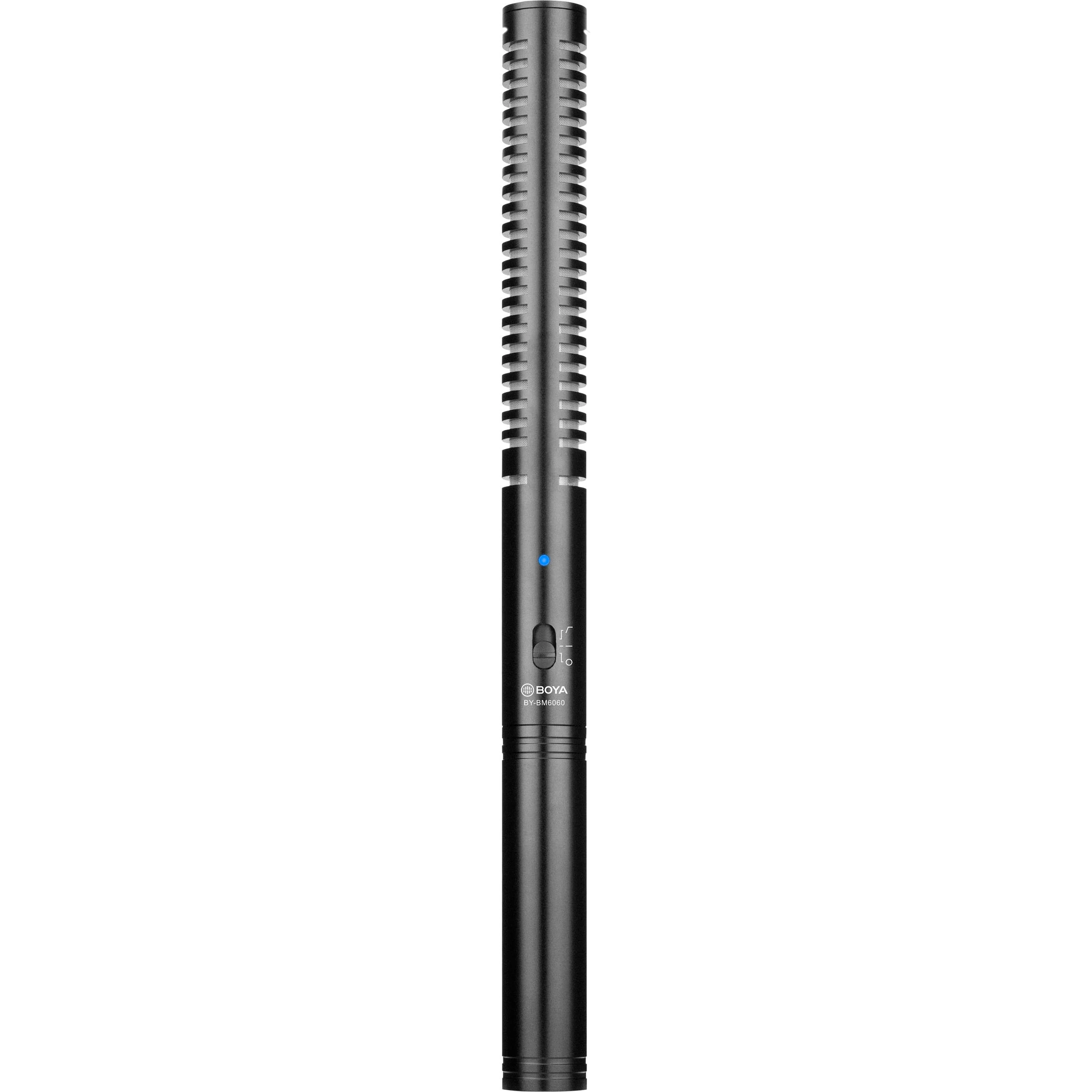

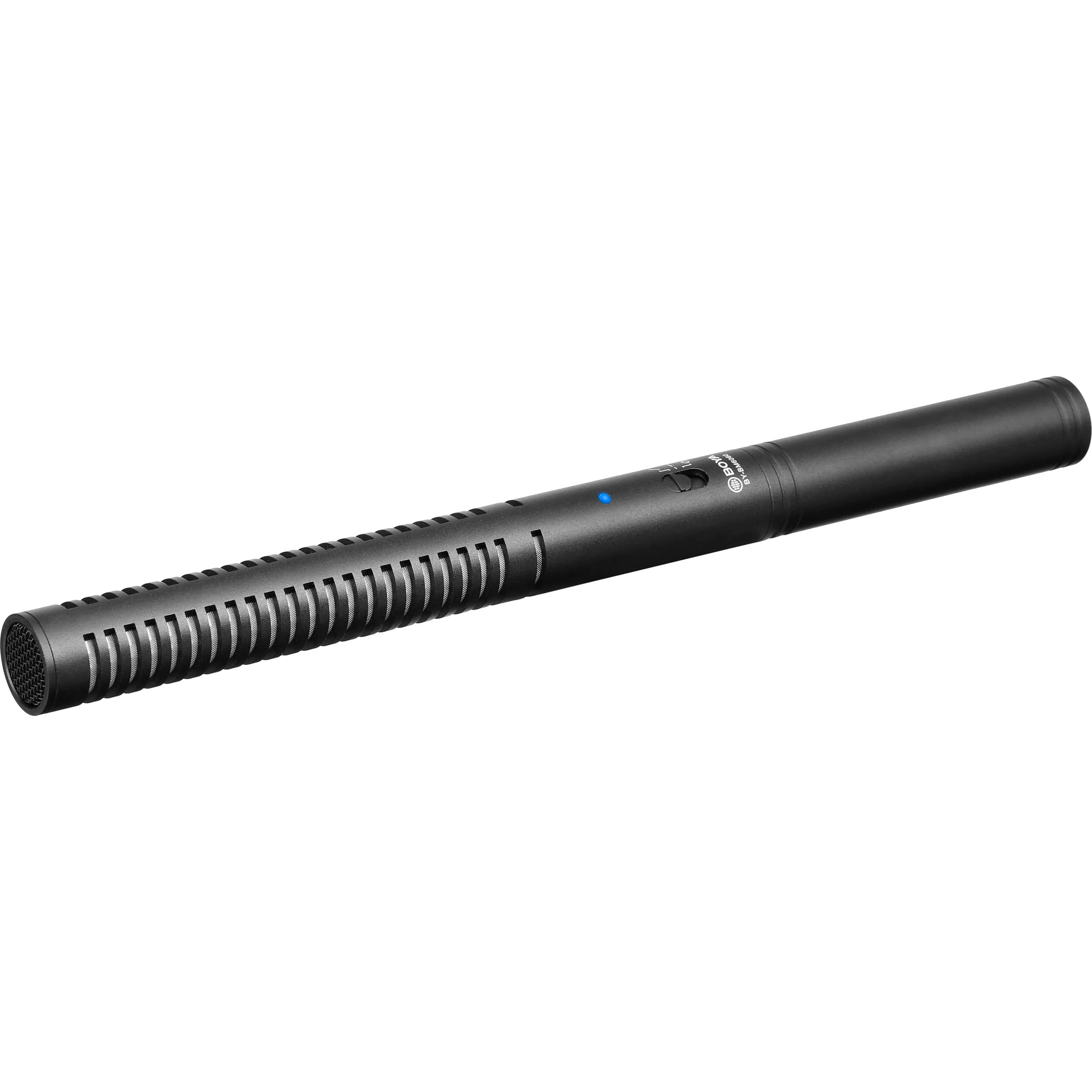

Bundled with a furry windshield, a foam windscreen, and a vibration-reducing shockmount for clean audio with minimal extraneous noise, the BOYA BY-BM6060 shotgun microphone offers an affordable solution for videographers, indie filmmakers, and boom operators who need a flexible, full-size shotgun mic on a tight budget.
The supercardioid polar pattern delivers focused pickup in front of the mic and the switchable 150 Hz high-pass filter attenuates rumble and low-frequency handling noise. The mic's low-noise circuitry and wide 60 Hz to 20 kHz frequency response allow quality signal capture for speech, ambient sound, and sound effects. Wind noise can be effectively reduced using the supplied windshield and windscreen.
To ensure reliable operation with a variety of devices such as cameras, mixer adapters, and portable audio recorders, the BY-BM6060 microphone runs on a single AA battery or 12 to 48 VDC phantom power. It utilizes a balanced XLR output for straightforward connectivity.
Sturdy and Lightweight
Built with an aluminum-alloy housing, the BY-BM6060 offers ruggedness while remaining lightweight, a welcome combination for comfortable use on boompoles.
Supercardioid Polar Pattern
The BY-BM6060's supercardioid polar pattern delivers focused responsiveness in front of the mic, moderate rejection at the rear, and enhanced attenuation at the sides, making it well suited for recording subjects outdoors or in acoustically treated rooms.
Full-Range Frequency Reproduction
The wide 60 Hz to 20 kHz frequency response of the microphone allows it to accurately capture speech, ambient sounds, and more. The switchable high-pass filter attenuates low frequencies below 150 Hz to help you control difficult bass issues such as rumble and traffic noise.

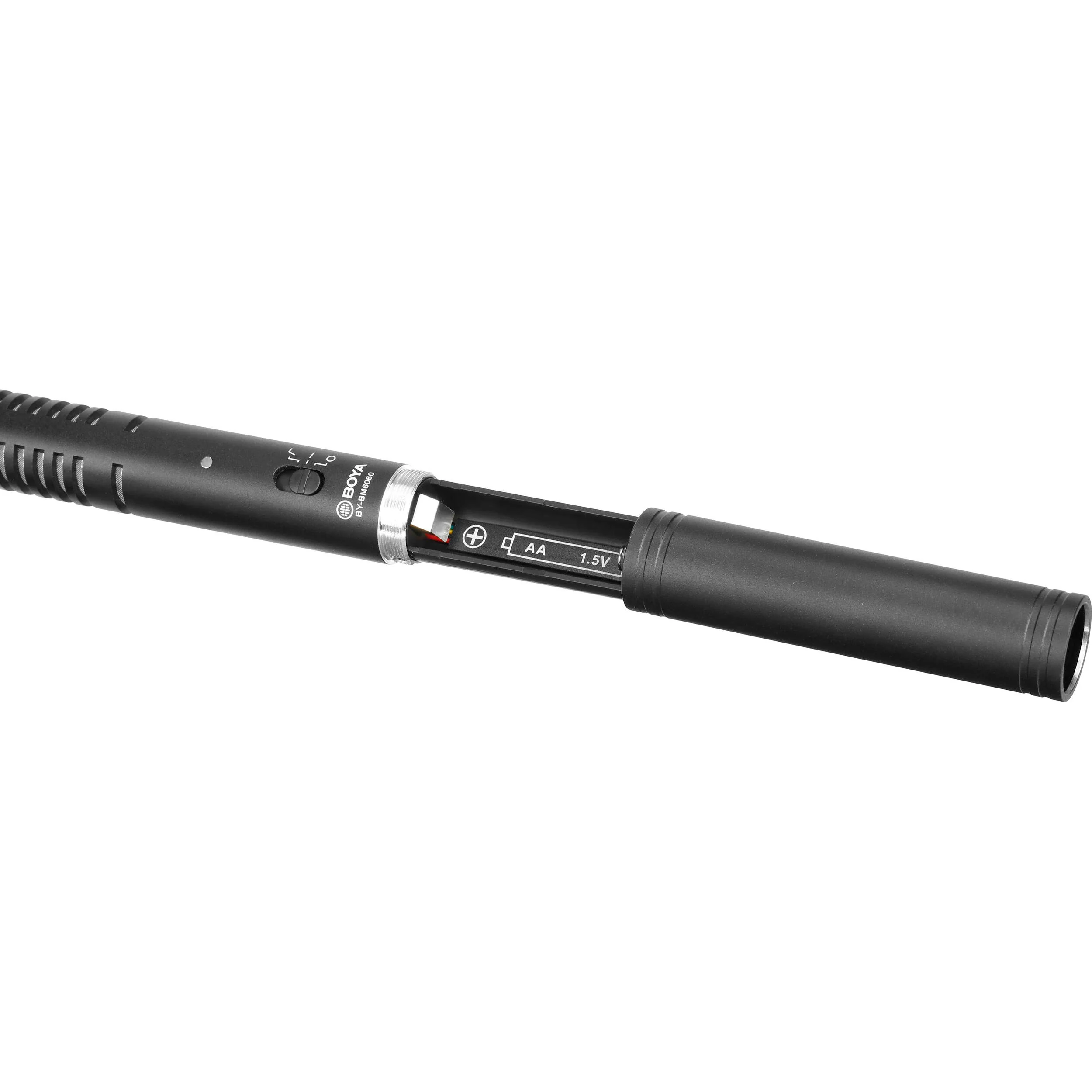

Battery or Phantom Powered
Able to be run on a single AA battery or 12 to 48 VDC phantom power, the BY-BM6060 can be used with DSLRs, mirrorless cameras, professional camcorders, field recorders, and handheld audio recorders. The XLR 3-pin output provides a balanced, high-quality connection point.

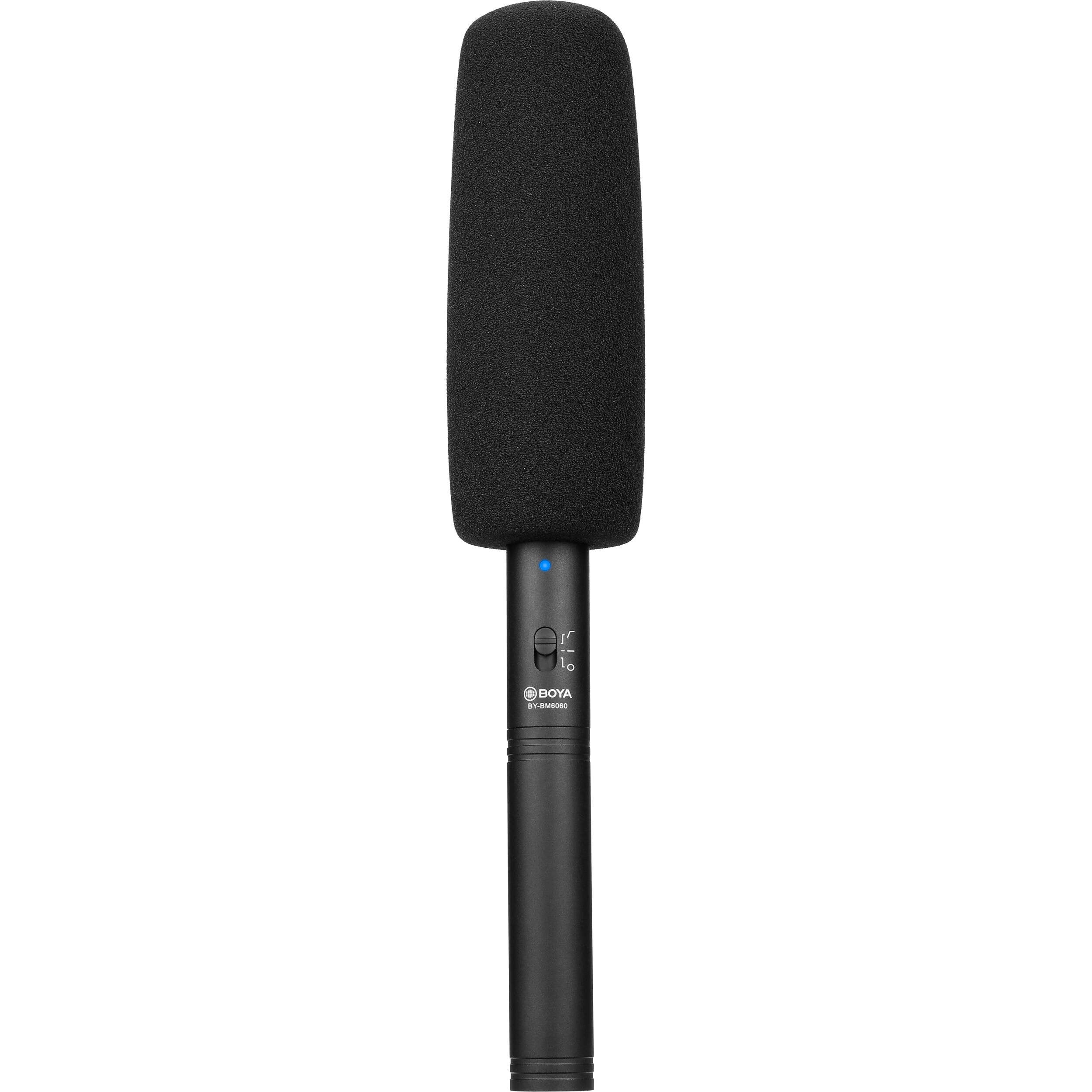

Wind Protection
Use the included foam windscreen to control noise from light breezes or indoor turbulence from fans. Switch to the supplied furry windshield for enhanced wind noise reduction when recording outdoors.
Shockmount Inhibits Handling Noise
The BY-BM6060 comes with a shockmount that decouples the mic from your camera, boompole, or stand, thereby inhibiting vibrations and handling noise.

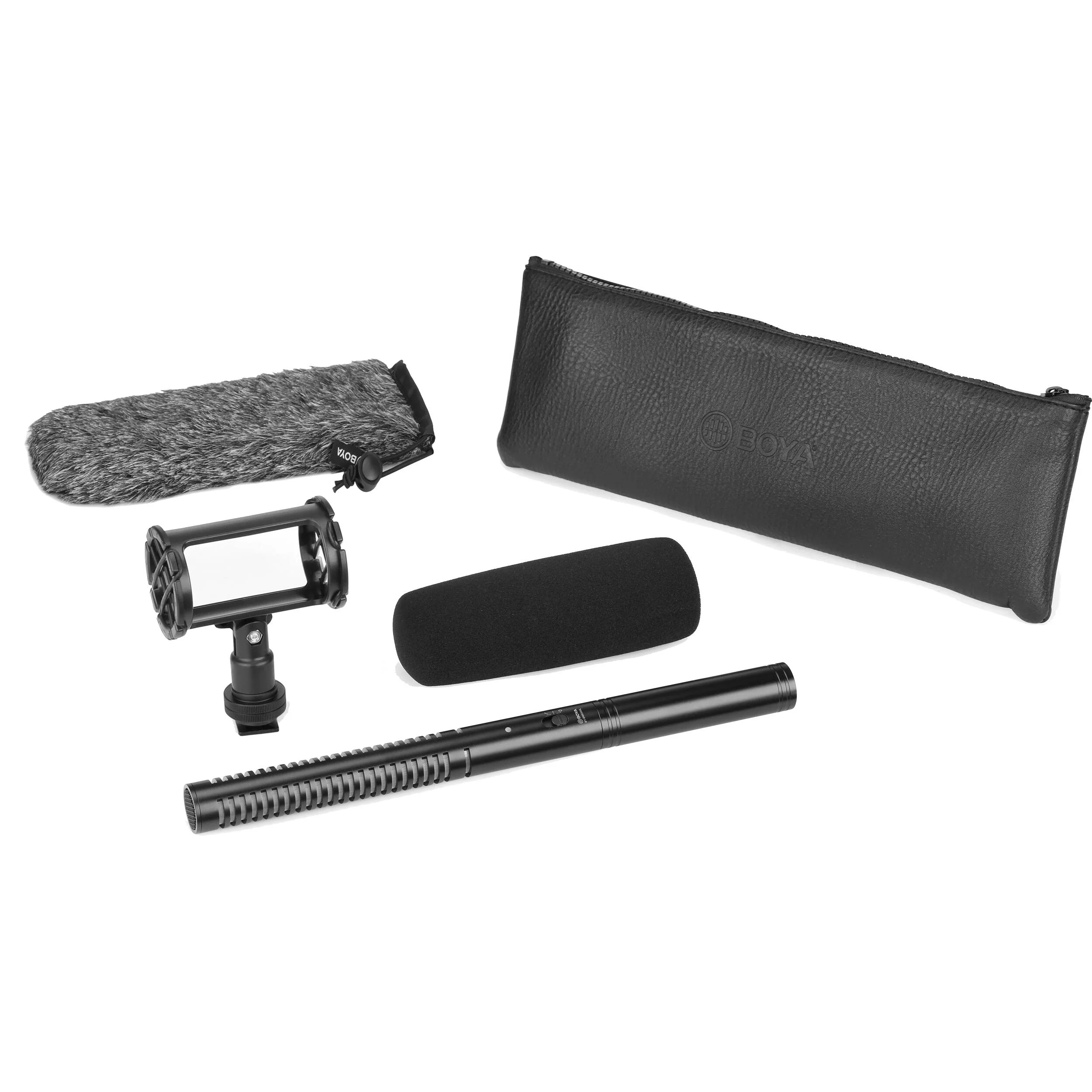

In the Box
- BOYA BY-BM6060 Shotgun Microphone
- Shockmount
- Foam Windscreen
- Furry Windshield
- Zipper Bag
- Limited 1-Year Warranty
Table of Contents
- Description
- Sturdy and Lightweight
- Supercardioid Polar Pattern
- Full-Range Frequency Reproduction
- Battery or Phantom Powered
- Wind Protection
- Shockmount Inhibits Handling Noise
BOYA BY-BM6060 Specs
Microphone
| Form Factor |
Stand/Boom Mount |
| Sound Field |
Mono |
| Operating Principle |
Pressure Gradient |
| Capsule |
1 x Condenser |
| Polar Pattern |
Supercardioid |
| Orientation |
End Address |
| Circuitry |
Solid-State |
| Pad |
None |
| High-Pass Filter |
150 Hz |
| Tone Adjustment |
None |
| Indicators |
1 x Blue Single LED (Power) |
| On-Board Controls |
High-Pass Filter, On/Off |
| Windscreen |
Foam, Windsock/Windjammer (Included) |
Performance
| Frequency Range |
60 Hz to 20 kHz |
| Impedance |
200 Ohms |
| Sensitivity |
-36 dBV/Pa at 1 kHz |
| Signal-to-Noise Ratio |
80 dB |
Connectivity
| Output Connectors (Analog) |
1 x XLR 3-Pin Male (on Mic) |
| Headphone Connector |
None |
Power
| Operating Voltage |
12 to 48 V (Phantom Power)
1.5 V (Battery Power) |
| Battery Type |
1 x AA |
Physical
| Mounting |
Shockmount (Included) |
| Construction Material |
Aluminum |
| Dimensions |
ø: 0.87 x L: 11.02" / ø: 22 x L: 280 mm |
| Weight |
4.6 oz / 130 g |
Packaging Info
| Package Weight |
1.35 lb |
| Box Dimensions (LxWxH) |
13.5 x 5 x 3" |
