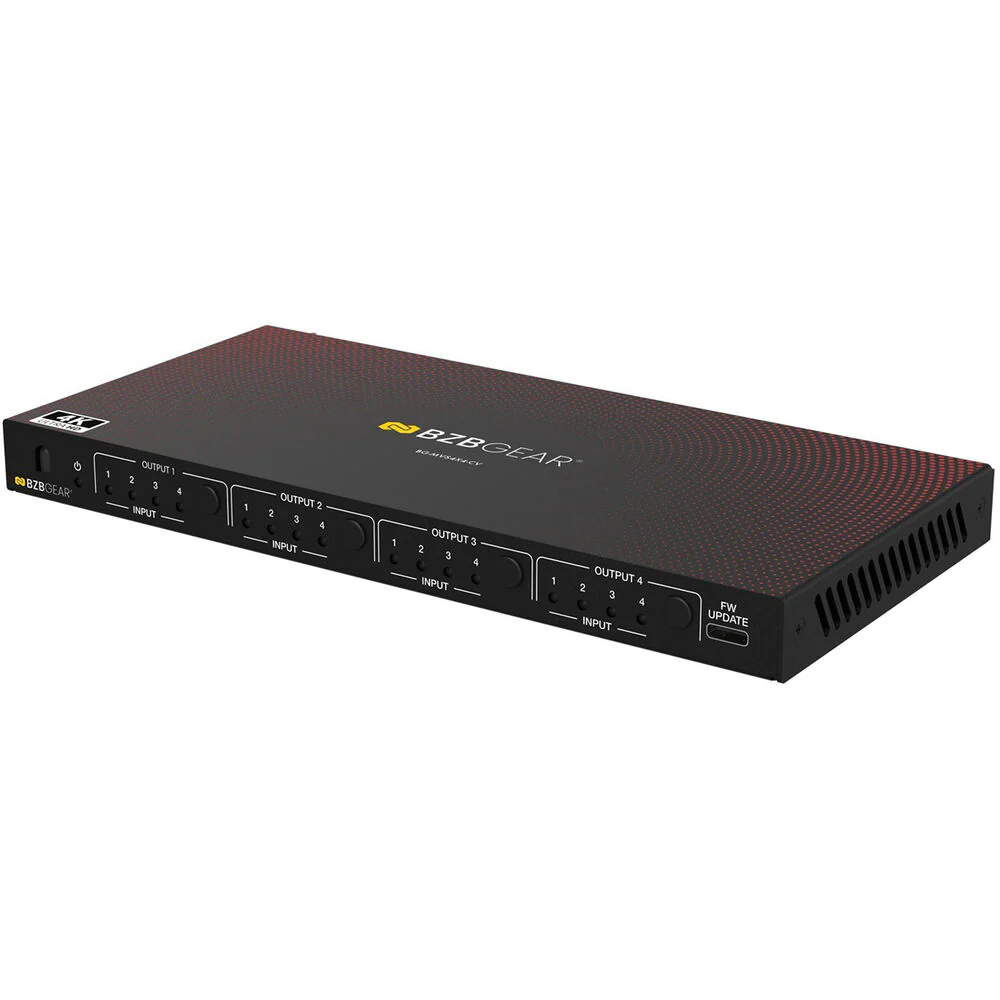

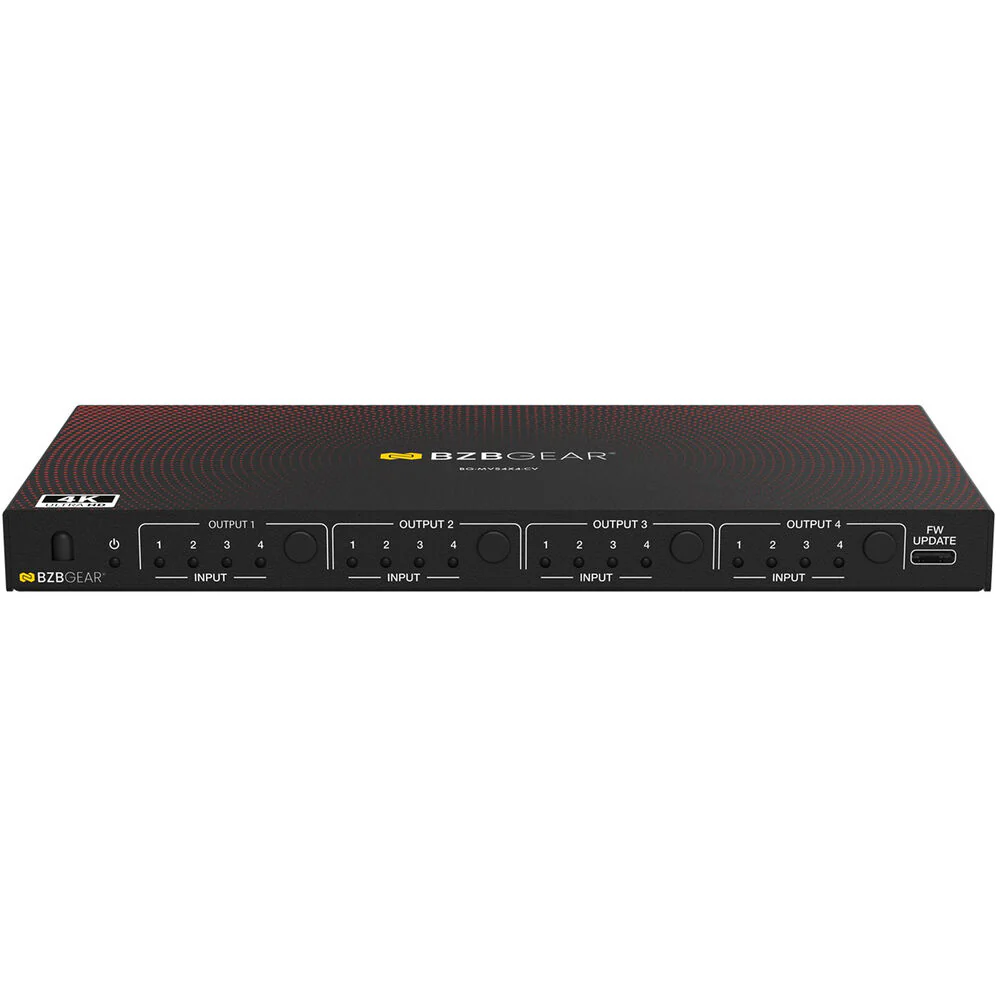

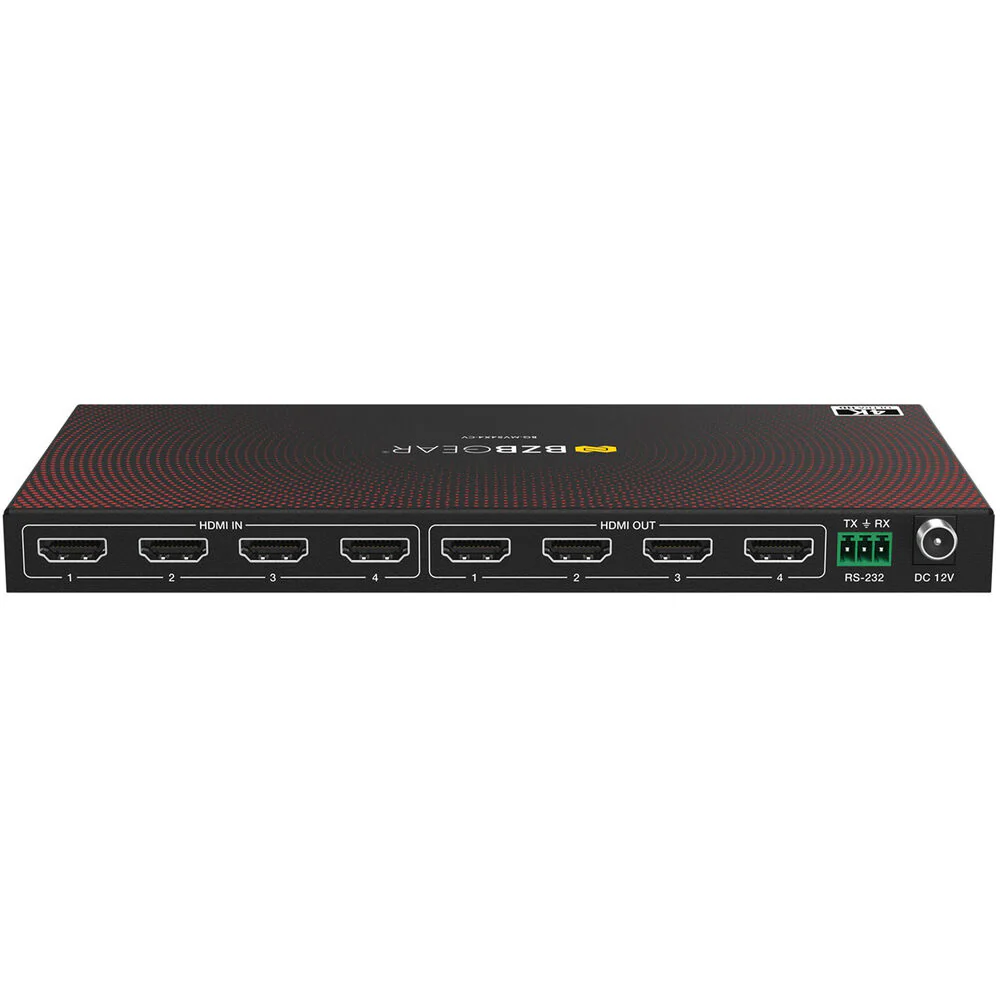

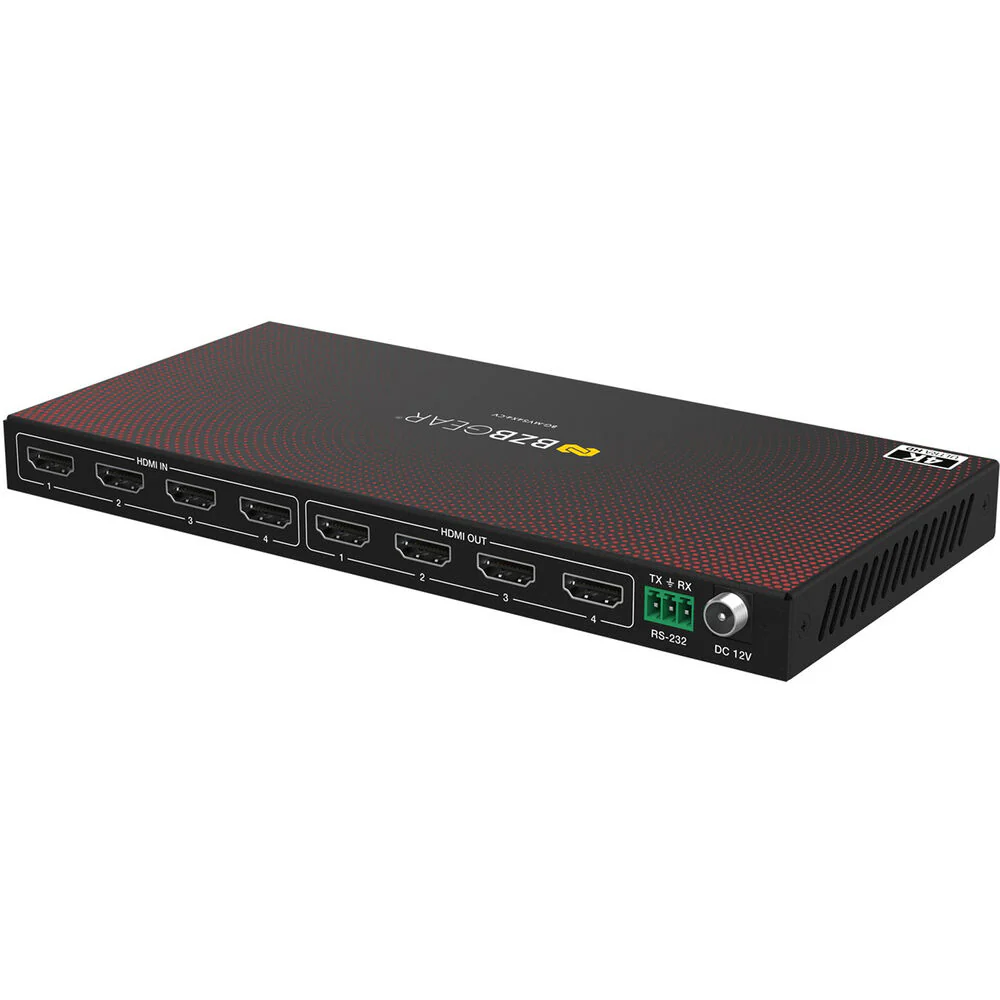

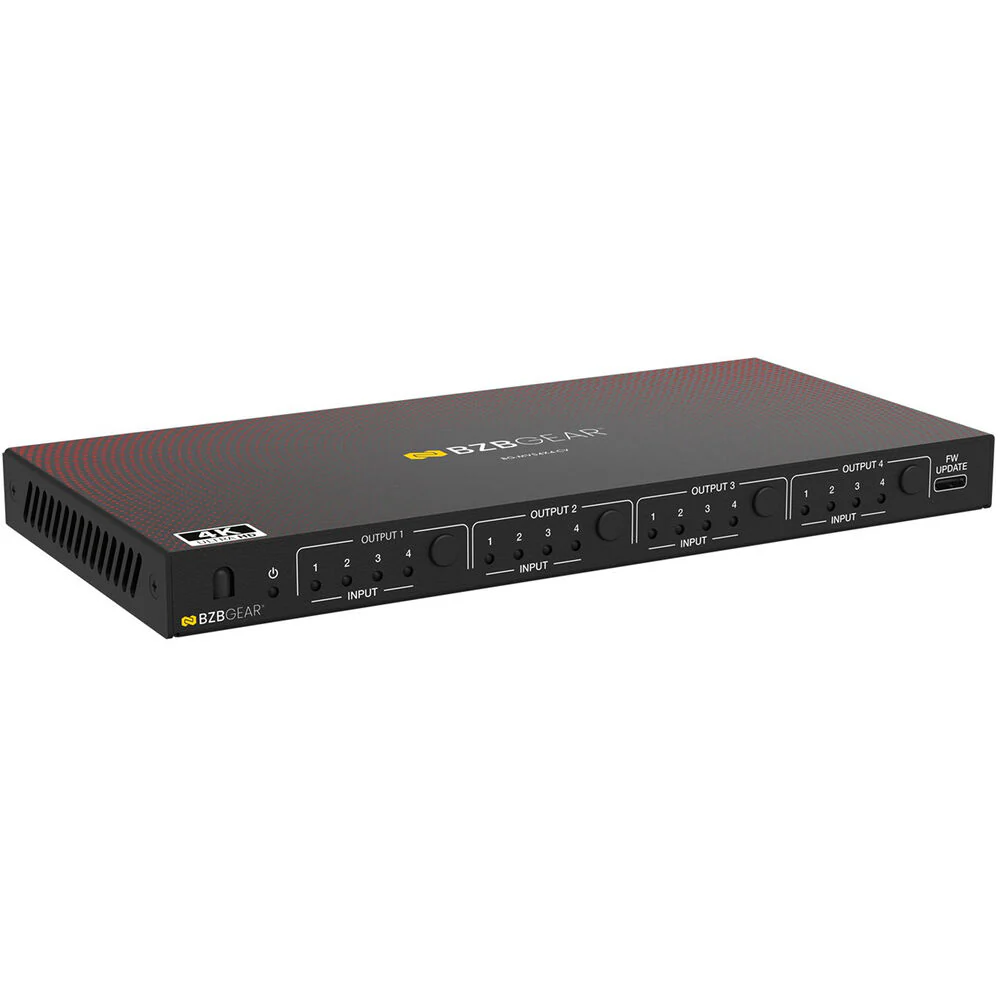

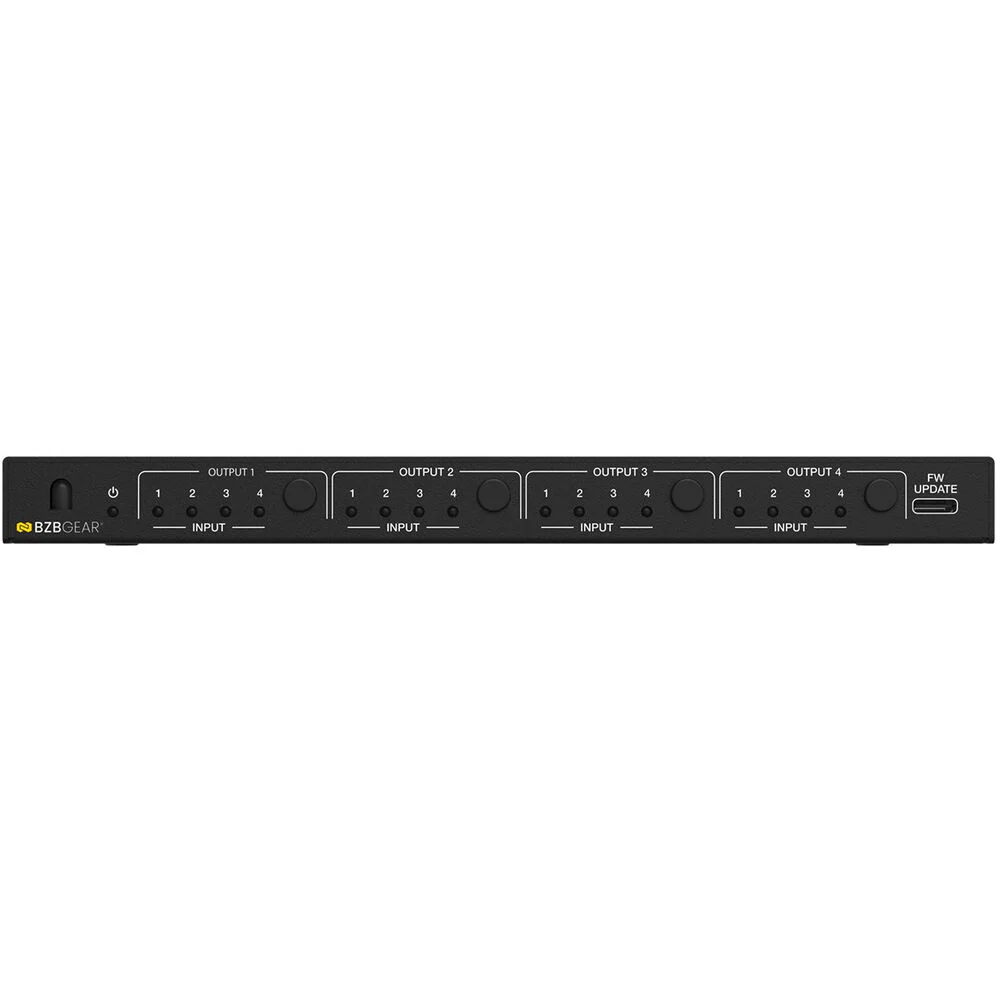

BZBGEAR 4x4 UHD 4K HDMI Seamless Matrix Switcher/Video Wall Processor
BZBGEAR MVS4X4-CV Overview
This 4x4 UHD 4K HDMI Seamless Matrix Switcher/Video Wall Processor from BZBGEAR is a compact and versatile all-in-one device that integrates seamless matrix switching with a video wall processor with multiple video wall modes, including 2x2, 4x1, or 1x4 by either displaying the same or different sources over multiple screens. Equipped with four HDMI inputs and four HDMI outputs, the unit handles input resolutions up to UHD 4K30 4:4:4 and output resolutions up to DCI/UHD 4K30 4:4:4, as well as upscaling and downscaling.
Additional Details
- Output resolutions can be upscaled or downscaled to 1080p, 720p, 1920 x 1200, or 4K30
- 4x4 Matrix mode provides seamless switching of any input to any output
- Video Wall mode supports configurations such as 2x2, 4x1, 1x4, and more
- Seamless switching provides instant transitions with no delay or image loss
- Compatible with LPCM, Dolby Digital (DD), Dolby Digital Plus (DD+), and DTS
- Manage via front panel buttons, IR remote, or RS-232 commands
- Fully compliant with HDCP 1.4 for secure content transmission
- Handles high video bandwidth up to 10.2 Gb/s
- Advanced Video Wall Features include image mirroring for flexible display setups
- Supports HDMI input resolutions up to DCI/UHD 4K30
UPC: 850050134909
Items Included
- BZBGEAR 4x4 UHD 4K HDMI Seamless Matrix Switcher/Video Wall Processor
- IR Remote
- Wideband IR Receiver Cable
- 12 VDC, 1A Power Adapter
- 3.5mm to 3-Pin Terminal Connector
- 2 x Mounting Ear
- 4 x Machine Screw
- Limited 5-Year Manufacturer Warranty
Additional Resources
BZBGEAR MVS4X4-CV Specs
Processing
| Switching Type |
IR Remote, Pushbutton, Software
|
| Processing Resolution |
UHD 4K at 30
|
| Color Processing |
8-Bit, 10-Bit, 12-Bit 4:4:4 RGB
8-Bit, 10-Bit, 12-Bit 4:4:4 YCbCr 8-Bit, 10-Bit, 12-Bit 4:2:2 YCbCr 8-Bit, 10-Bit, 12-Bit 4:2:0 YCbCr |
Input
| Video Inputs |
4x HDMI (1.4b) Female
|
| Input Video Format |
HDMI
UHD 4K up to 30 fps |
| Embedded Audio Input |
HDMI
|
Output
| Video Outputs |
4x HDMI (2.0) Female
|
| Output Video Format |
HDMI
DCI 4K up to 30 fps UHD 4K up to 30 fps 1080p at 50/60 fps WUXGA (1920 x 1200) at 60 fps UXGA (1600 x 1200) at 60 fps HD+ (1600 x 900) at 60 fps WXGA+ (1440 x 900) at 60 fps 1360 x 768 at 60 fps SXGA (1280 x 1024) at 60 fps 720p at 50/60 fps XGA (1024 x 768) at 50/60 fps |
| Embedded Audio Output |
HDMI
|
Connectivity
| Other I/O |
1x Block 3-Pin RS-232 Input/Output
|
| Digital Audio Decoding |
LPCM, Dolby Digital / AC3, DTS
|
| HDCP Support |
Yes: Version 1.4/2.2
|
Hardware
| Wireless |
No
|
Power
| Power I/O |
1x Barrel (12 VDC at 1 A) Input
|
| Power Consumption |
Device: 100 to 240 VAC (3.6 W)
|
General
| Operating Conditions |
32 to 104?F / 0 to 40?C at 20 to 80% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C at 10 to 90% Humidity
|
| Dimensions |
8.7 x 4.1 x 0.7" / 220 x 105 x 19 mm
|
| Weight |
1.1 lb / 508 g
|
Packaging Info
| Package Weight |
1.955 lb
|
| Box Dimensions (LxWxH) |
12 x 9.9 x 2.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$869.29
