BZBGear Live Streaming 4K PTZ Camera with Tally Lights & 25x Optical Zoom (White)
BZBGear BG-ADAMO-4K 25x Overview
BZBGEAR BG-ADAMO-4K 4K UHD 12G-SDI/HDMI2.0/USB 2.0/USB 3.0/IP PTZ Camera Exclusive Preview!
BZBGEAR BG-ADAMO 4K UHD HDMI 2.0/12G-SDI/USB 2.0/USB 3.0/NDI PTZ CAMERA with Tally Lights
By Photo's
Jennifer Hahn
Capture high-resolution UHD 4K imagery in your conference room, event space, or house of worship with the white Live Streaming 4K PTZ Camera with Tally Lights & 25x Optical Zoom from BZBGear. This camera features a 1/1.8" Sony 4K CMOS sensor, a 25x optical zoom, accurate autofocus, and simultaneous output via HDMI, 12G-SDI, USB 3.0, USB 2.0, and IP streaming with SRT support. You can embed analog audio into your video using the 3.5mm audio input.
You can record the camera's capture up to 4K resolution onto an optional microSD card up to 1TB. The camera features LED tally lights to indicate the camera is on or idle. The camera supports PoE (Power-over-Ethernet) so it can be controlled, powered, and can stream over one connector, and it also supports RS-232 and RS-422 serial control.
Key Features
25x optical zoom lens
4K60 resolutions provide fluid motion, clear image, and accurate colors
Auto focusing algorithms resulting in quick, accurate, and stable focus
Web interface control via the IP address; camera preview access
IR remote control
Supports IP and serial control protocols (VISCA IP, ONVIF / Pelco-P/D, VISCA)
Free BG-PTZ-Control app/program for macOS and Windows
Supports RTSP, RTMP, RTMPS, ONVIF, and GB/T28181
12G-SDI, HDMI, USB 2.0/3.0, LAN / Power-over-Ethernet
H.264/H.265 video compression formats provide excellent image quality
3.5mm input for embedding audio into your live stream
Compatible with live streaming software and online platforms such as vMix, Wirecast, Echo360, Zoom, Skype, Meet, GoToMeeting, YouTube, Facebook, Linkedin, Instagram, Twitter, Twitch, and more
UPC: 850033687323
In the Box
- BZBGear Live Streaming 4K PTZ Camera with Tally Lights & 25x Optical Zoom (White)
- IR Remote Control
- Power Adapter
BZBGear BG-ADAMO-4K 25x Specs
Imaging
| Sensor Type | 1/1.8"-Type CMOS Sensor |
| Sensor Resolution | Effective: 8.51 Megapixel |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
Exposure Control
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/10000 to 1/25 Second |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.05 Lux |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
Lens
| Focal Length | 7.1 to 171.9mm |
| Optical Zoom Ratio | 25x |
| Field of View | Horizontal: 59.2 to 2.5° Vertical: 34.6 to 1.4° |
| Maximum Aperture | f/1.61 to 5.19 |
Video Capture
| External Recording Modes | SDI/BNC / HDMI 3840 x 2160 at 25/29.97/50/59.94 fps 1920 x 1080p at 25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps USB 3840 x 2160 at 29.97 fps 1920 x 1080p at 29.97 fps 1280 x 720 at 29.97 fps 1024 x 576 at 29.97 fps 960 x 540 at 29.97 fps 800 x 448 at 29.97 fps 640 x 480p at 29.97 fps 640 x 360 at 29.97 fps 320 x 176 at 29.97 fps 432 x 240 at 29.97 fps |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264, H.265, MJPEG, ONVIF, RTMP, RTSP, SRT 3840 x 2160 1920 x 1080 1280 x 720 1024 x 768 1024 x 576 800 x 600 720 x 576 720 x 480 704 x 576 640 x 480 640 x 360 352 x 288 320 x 240 |
Control
| Presets | 255 via IP, RS-232, VISCA 10 via IR |
| Move Speed | Pan: 0.1 to 120°/sec Tilt: 0.1 to 80°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°) |
| Tally Light | Yes |
| Supported Control Protocols | IP Pelco-D Pelco-P RS-232 RS-422 VISCA |

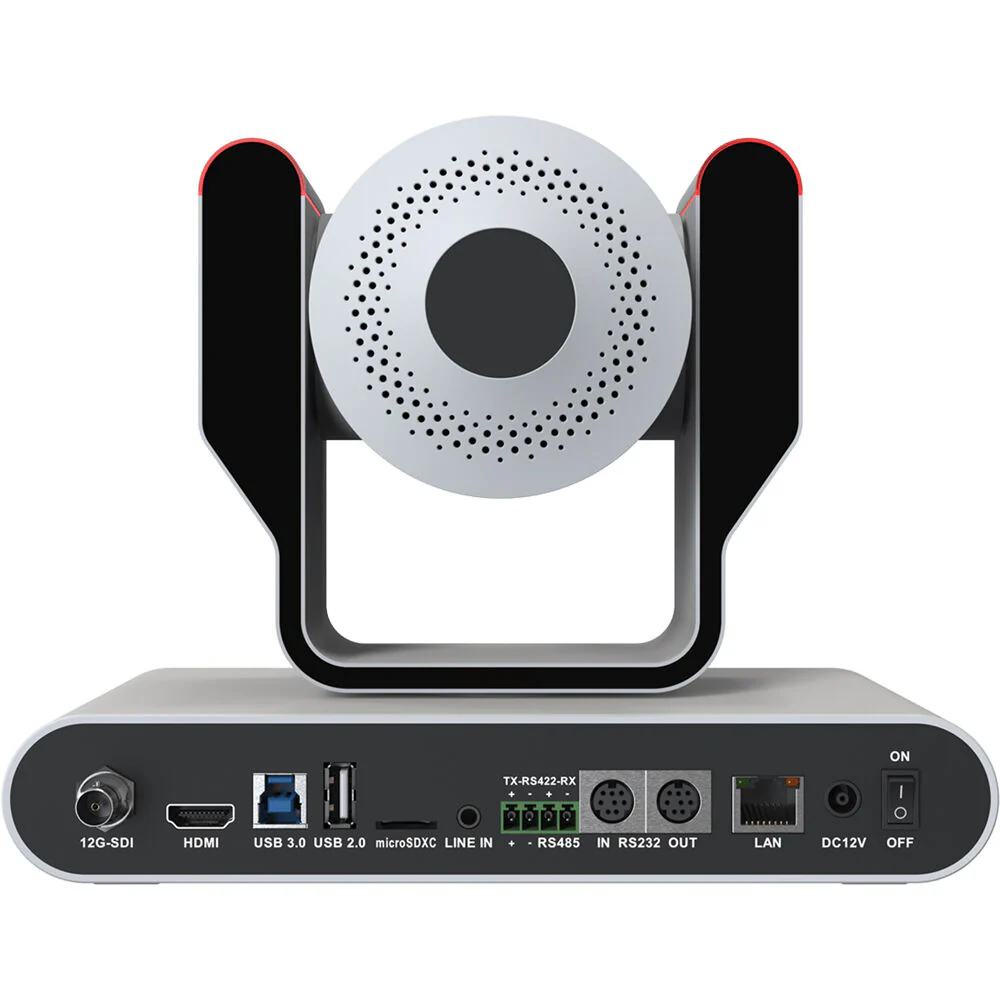

Interface
| Media/Memory Card Slot | Single Slot: microSDXC Only |
| Video I/O | 1 x USB-B 3.0 / 3.1/3.2 Gen 1 Output 1 x USB-A 2.0 Output 1 x HDMI Output 1 x BNC (12G-SDI) Output 1 x RJ45 Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1 x Block (RS-422, RS-485) Input 1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output |
Power
| PoE Support | PoE 802.3af |
| Power I/O | 1 x Barrel (12VDC at 2.5 A) Input |
| Power Consumption | Power Supply: 110 to 220 VAC at 1.5 A (12 W) |
Environmental
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 95% |
General
| OS Compatibility | macOS 11 or Later Windows *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Mobile App Compatible | Yes: iOS Only App Name: BZBGEAR Cameras Control Functionality: Adjust Settings, Remote Control, View Live Feed *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Dimensions (W x H x D) | 8.7 x 7 x 5.9" / 220 x 177.5 x 150.2 mm |
| Weight | 4 lb / 1.8 kg |
BZBGear BG-ADAMO-4K 25x Reviews
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
