CAD WX25 Digital Wireless Guitar and Instrument System (2.4 GHz)
CAD WX25 Overview
The CAD Audio WX25 gives musicians an easy, reliable way to go wireless without sacrificing tone or mobility. This compact digital wireless guitar system operates in the 2.4 GHz band, offering license-free performance worldwide. With 24-bit / 48 kHz uncompressed digital audio and a range of up to 120 feet in Performance mode, the WX25 is engineered for clarity and freedom on stage.

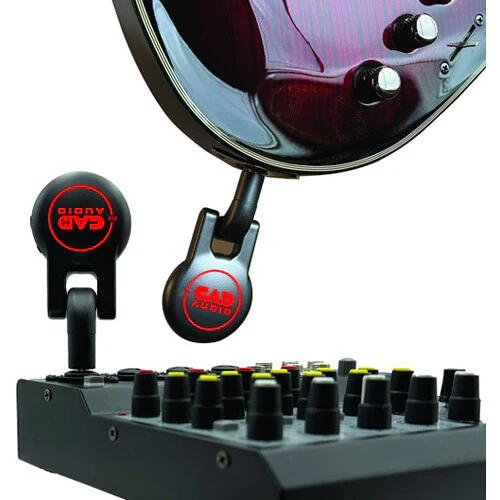

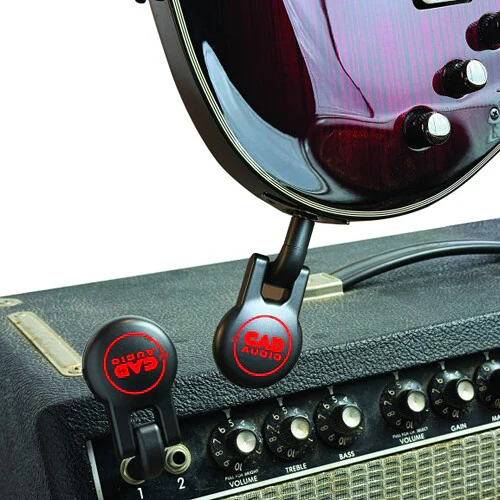

Designed without bulky bodypacks or cables, the WX25 plugs directly into your instrument making mid-show instrument swaps fast and hassle-free. The receiver plugs into the 1/4" input on your mixer, amp, or audio interface, for a simple plug-and-play setup. Built-in rechargeable batteries offer up to 4 hours of runtime in full-performance mode, or up to 11 hours in ECO mode?perfect for rehearsals, long sessions, or small-stage gigs.
- 2.4 GHz operation for license-free use worldwide
- 24-bit/48 kHz uncompressed digital audio
- Up to 120' range in Performance mode
- ECO mode: up to 11 hr battery life at 50'
- Compatible with guitars and other instruments
- 280? rotating plug fits most instrument types
- No bodypack?compact plug-and-play design
- Built-in rechargeable batteries
Items Included

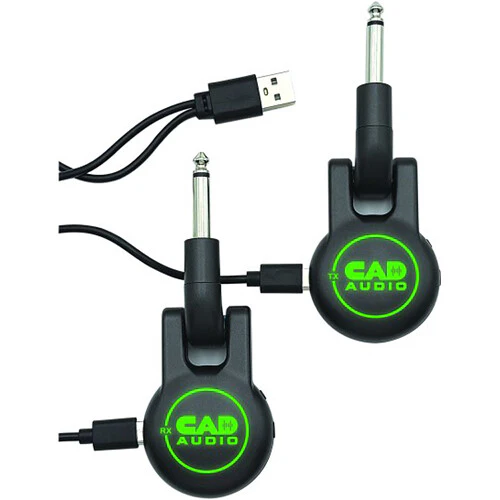

- CAD WX25 Digital Wireless Guitar and Instrument System (2.4 GHz)
- Transmitter
- Receiver
- USB-C Charging Cable
- Limited 2-Year Manufacturer Warranty
Not Included
-
ChargersEssential
Additional Resources
No additional resources available
CAD WX25 Specs
| Wireless Technology |
Digital 2.4 GHz
|
| Diversity |
Non-Diversity
|
| Max Operating Range |
120' / 36.6 m
|
| Receiver Type |
1x Plug-In (1/4" TS)
|
| Number of Audio Channels |
1
|
| Included Transmitters |
1x Plug-In 1/4"
|
| Microphone Type |
No Microphone Included
|
| Included Charging Case |
No
|
| Wireless Technology |
Digital 2.4 GHz
|
| Diversity |
Non-Diversity
|
| RF Frequency Band |
2.4 to 2.483 MHz
|
| Max Operating Range |
120' / 36.6 m
|
| Dynamic Range |
105 dBA
|
| Latency |
12 ms
|
| Encryption |
No
|
| Built-In Recorder |
No
|
| Timecode Support |
No
|
| Mobile App Compatible |
No
|
| Receiver Type |
1x Plug-In (1/4" TS)
|
| Mounting Options |
1/4" TS Plug-In (with Included Hardware)
|
| Antenna |
1x Internal
|
| Number of Audio Channels |
1
|
| Audio I/O |
1x 1/4" TS Male Instrument Output
|
| Network I/O |
No
|
| USB/Lightning Connectivity |
No
|
| Frequency Response |
30 Hz to 20 kHz
|
| Display |
No
|
| Power Requirements |
Battery
|
| Included Transmitters |
1x Plug-In 1/4"
|
| Antenna |
Internal
|
| Input Level |
Instrument
|
| Audio I/O |
1x 1/4" TS Male Input
|
| Bias/Plug-In & Phantom Power |
No Bias/Plug-In Power
No Phantom Support |
| USB I/O |
1x USB-C (Charging)
|
| Muting |
Off/On Switch
|
| Auto-Level/Gain |
No
|
| Frequency Response |
30 Hz to 20 kHz
|
| Sync Method |
2.4 GHz QPSK
|
| Display |
No
|
| Microphone Type |
No Microphone Included
|
| Receiver Battery Type |
1x Built-In Rechargeable
|
| Receiver Battery Life |
11 Hours
|
| Transmitter Battery Type |
1x Built-In Rechargeable
|
| Transmitter Battery Life |
11 Hour
|
| Included Charging Case |
No
|
| AC/DC Power Adapter |
No
|
| Environmental Resistance |
No
|
| Package Weight |
0.385 lb
|
| Box Dimensions (LxWxH) |
6.4 x 3.4 x 1.6"
|
