CAMVATE Battery Backboard Cheese Plate with 15mm Rod Clamp for Gold Mount Plate
CAMVATE C2194 Overview

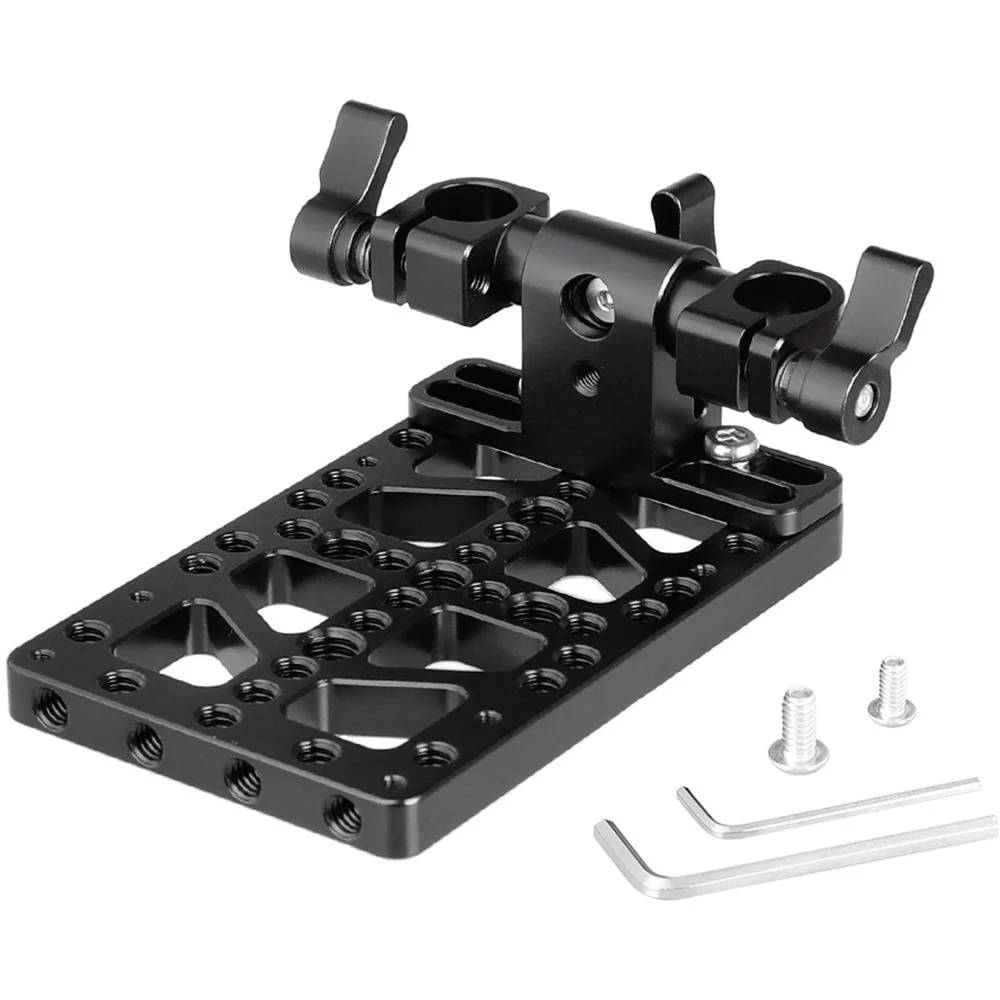

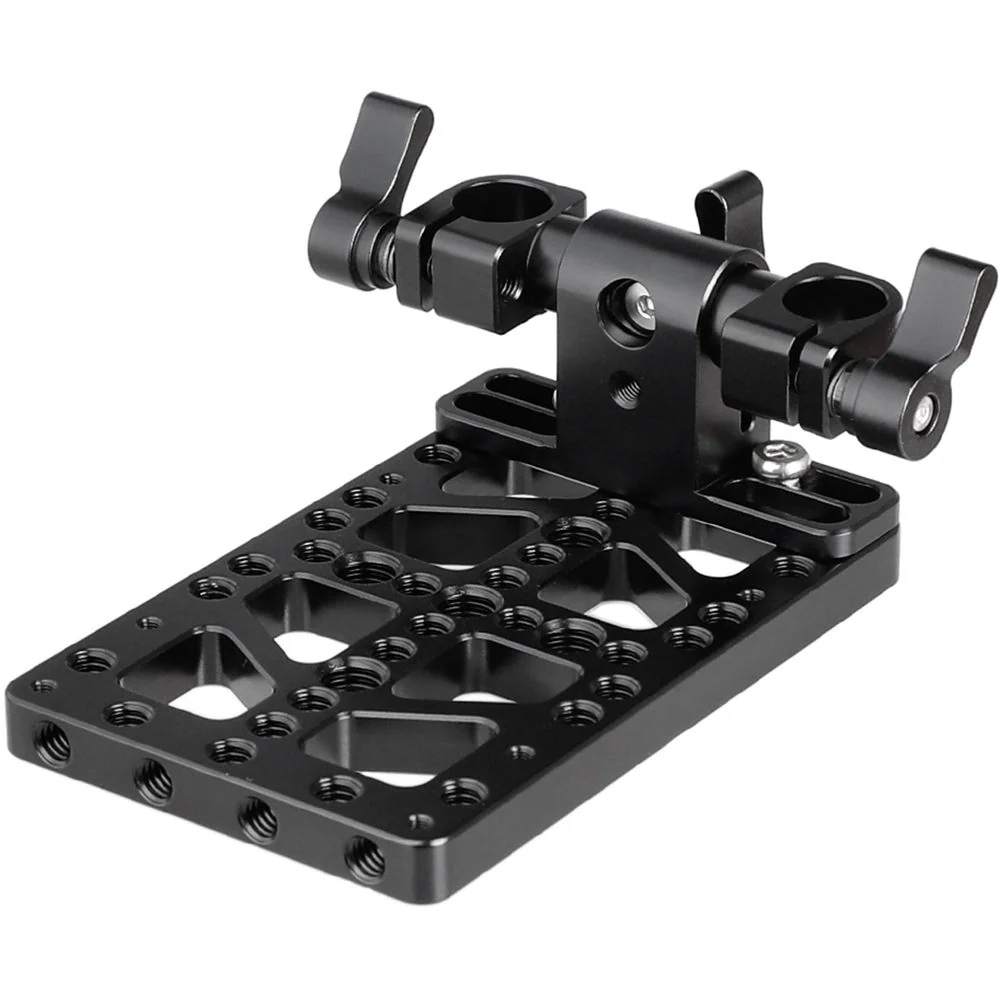

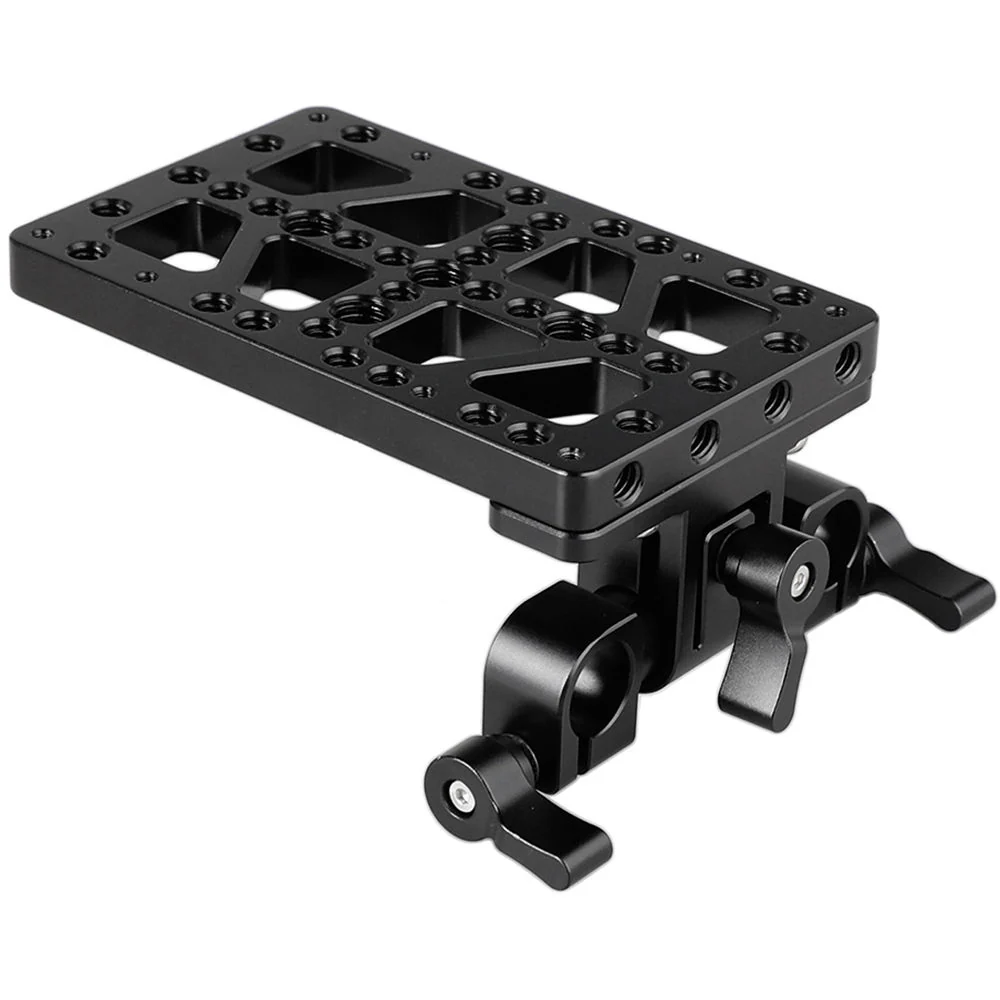

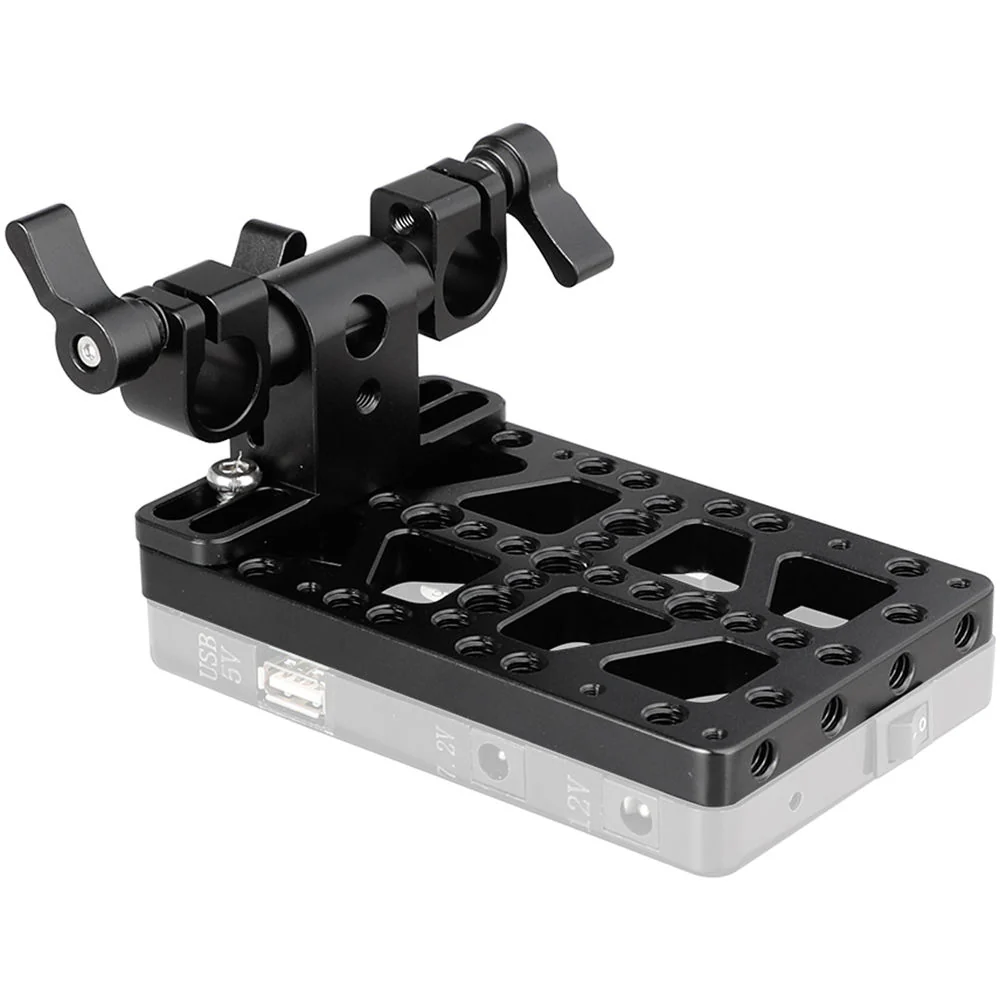

The CAMVATE Battery Backboard Cheese Plate with 15mm Rod Clamp for Gold Mount Plate is a combination of a cheese plate and a 15mm swiveling rod clamp. The cheese plate features numerous 1/4"-20 and 3/8"-16 through-holes, as well as M3 threaded through-holes for mounting a variety of accessories, although the plate's hole pattern is designed to work with Gold mount battery plates. Four 1/4"-20 threaded holes along the two short edges allow for mounting additional accessories. The cheese plate is heavily relieved of metal to increase its rigidity and reduce weight.

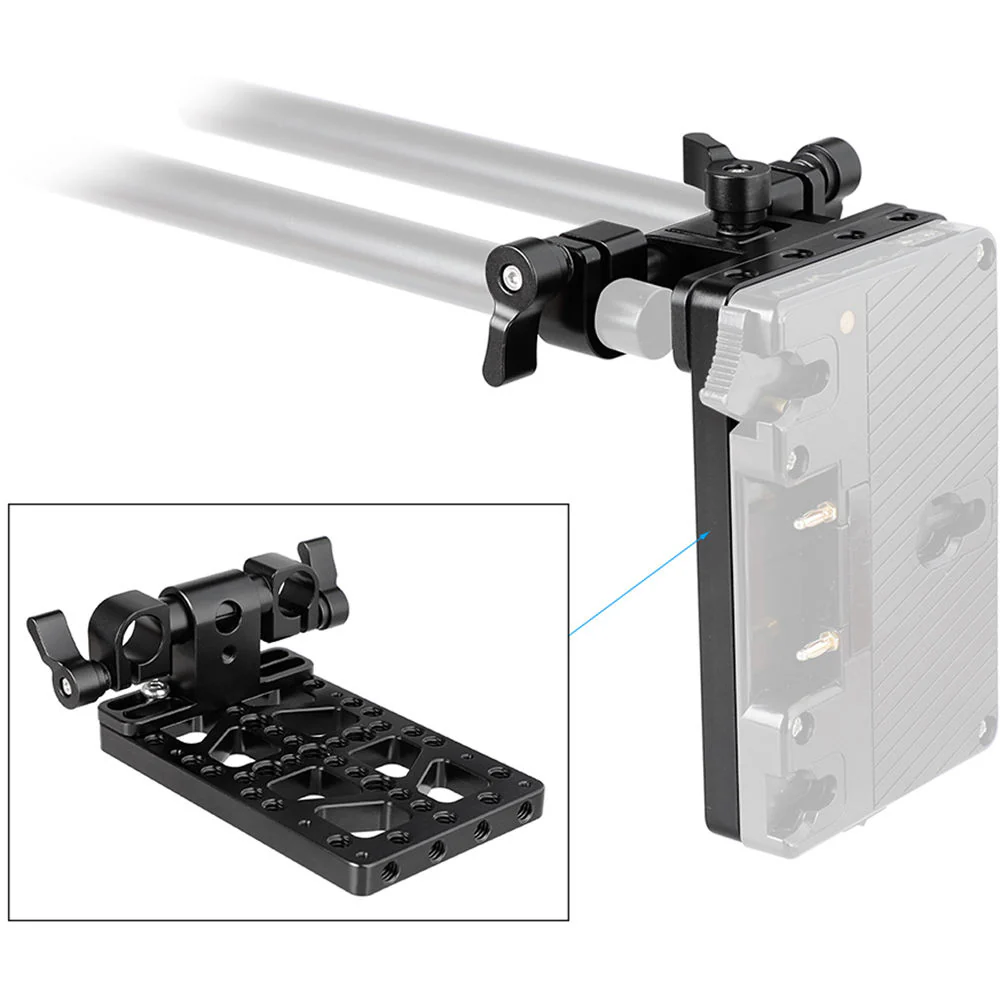

The included 15mm LWS rod clamp features spring-loaded locking levers and a swivel mechanism that allows you to orient the cheese plate. The clamp features four mounting slots that allow you to adjust the position of the plate and mounting screws. The swivel also features a spring-loaded locking lever that allows you to set the angle of the cheese plate in relation to the clamp.
In the Box
- CAMVATE Battery Backboard Cheese Plate with 15mm Rod Clamp for Gold Mount Plate
- Allen Key
- Limited 3-Year Warranty
CAMVATE C2194 Specs
| Material of Construction | Anodized Aluminum Alloy |
| Mounting | Cheese Plate 32 x 1/4"-20 Threaded Holes 8 x 1/4"-20 Threaded Holes (4 x On Each end) 3 x 3/8"-16 Threaded Holes 4 x M3 Threaded Holes Rod Clamp 15mm LWS Clamps 4 x Screw Slots |

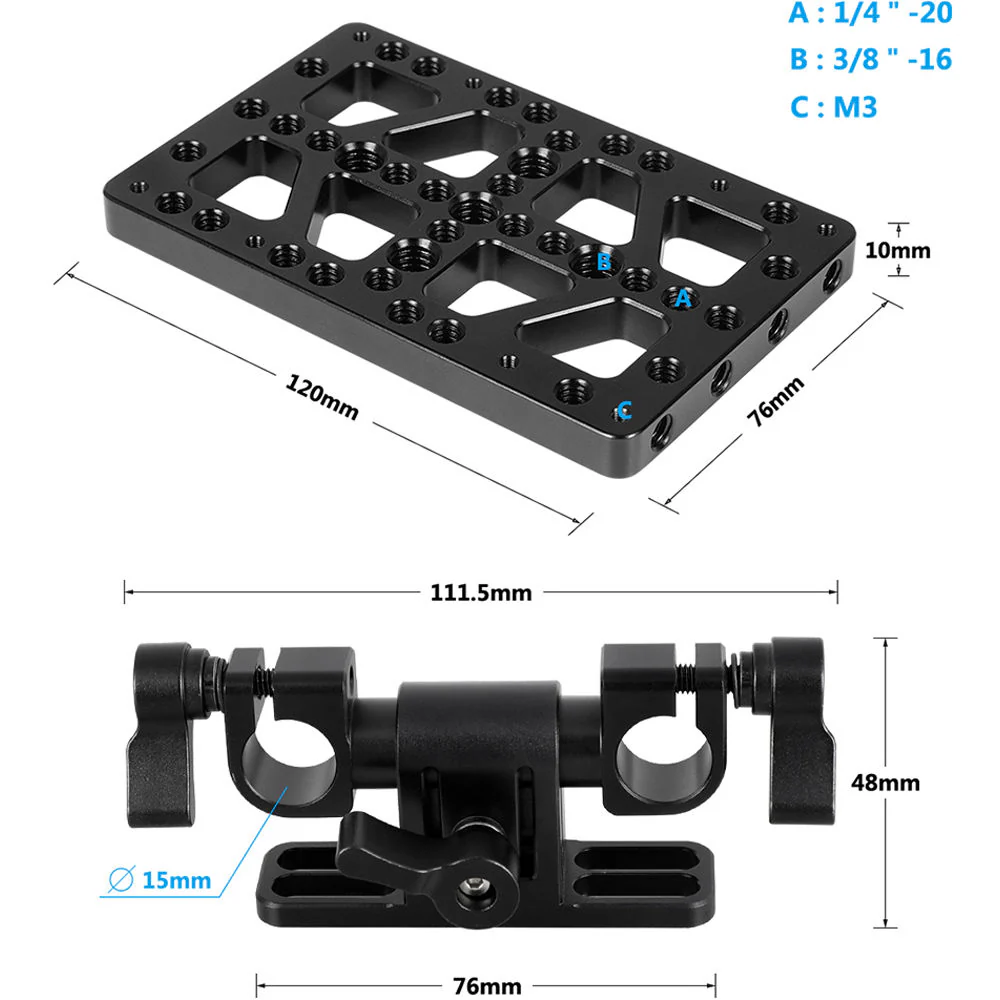

| Dimensions | Cheese Plate 4.72 x 2.99 x 0.39" / 12 x 7.6 x 1 cm Rod Clamp 4.53 x 1.89" / 11.5 x 4.8 cm |
| Weight | Cheese Plate + Rod Clamp: 8.99 oz / 254.9 g |
| Package Weight | 0.7 lb |
| Box Dimensions (LxWxH) | 8.6 x 4.5 x 2.3" |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
