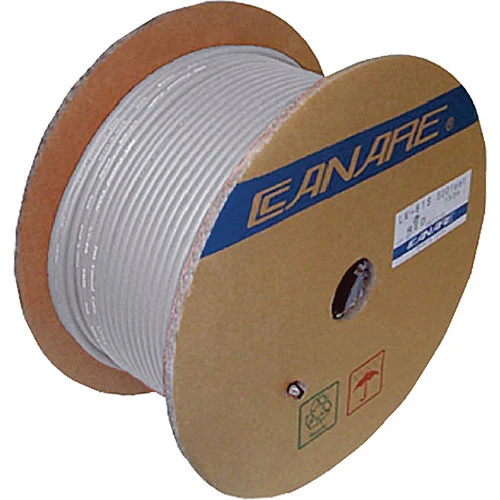

Canare L-4E6S Star Quad Microphone Cable (656', White)
HomeStore

Canare L-4E6S Star Quad Microphone Cable (656', White)

Canare L-4E6S Star Quad Microphone Cable (656', White)

  • Spool of Cable 656' in Length
  • Standard Diameter, 21 AWG
  • Fits All XLR-Type Audio Connectors
  • Rejects EMI and RFI Interference
  • Cross Linked PE Insulation
  • For Use with Handheld Mics & PA Systems

Colored in a White matte jacket, Canare 's L-4E6S provides 656' of standard diameter, 21 AWG cable to fit within in all kinds of XLR-type audio connection points. It's designed to be utilized with PA systems and handheld applications, and features 40 separate strands in each conductor to eliminate breakage, making the cable quite flexible.

Braided copper shield
Flexible in extremely cold weather
Cross linked PE insulation
Reduced handling noise
Rejects EMI and RFI
White matte color jacket
In the Box
Canare L-4E6S Star Quad Microphone Cable (656', White)
  • 1-Year Warranty
Applications Microphones, portable applications, audio rack wiring, PA systems, and audio patch cords
Outer Diameter 0.2" / 6 mm, nominal
PVC Jacket Thickness 0.04" / 1.1 mm, nominal
Number of Conductors 4 (2 blue and 2 white)
Insulation Type: IPE
Thickness: 0.6" / 15.7 mm
Dielectric Strength: 500 VAC/minute
Insulation Resistance: 1,000 MOhms per 3' / 0.9 m
Conductor AWG (AC): 24 (40/3.15 quantity/mm)
Cross Sectional Area: 310 mm 2
AWG (Quad): 21

Effective AWG of combined twin conductors
Pitch Twist Quad 0.8" / 20 mm
Shield Coverage >95% TAC Braid
Conductor D.C.R. <29.9 Ohms/1,000' / <9.8 Ohms/100 m
Shield D.C.R <9.1 Ohms /1,000' / <3 Ohms/100 m
Nominal Capacitance Between Twin Blue & White Conductors: 46 pF/ft / 150 pF/m
Between Conductors & Shield: 57 pF/ft / 185 pF/m
Nominal Impedance 44 Ohms
Nominal Attenuation 0.9 V/1,000' / 0.3 V/100 m
Group Delay Time 1.80 ns/ft / 5.9 ns/m
Brittle Point -56�F / -49�C
Length 656' / 200 m
Weight 24 lb / 11 kg
Packaging Info
Package Weight 23.55 lb
Box Dimensions (LxWxH) 11.5 x 11.1 x 9.0"
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
