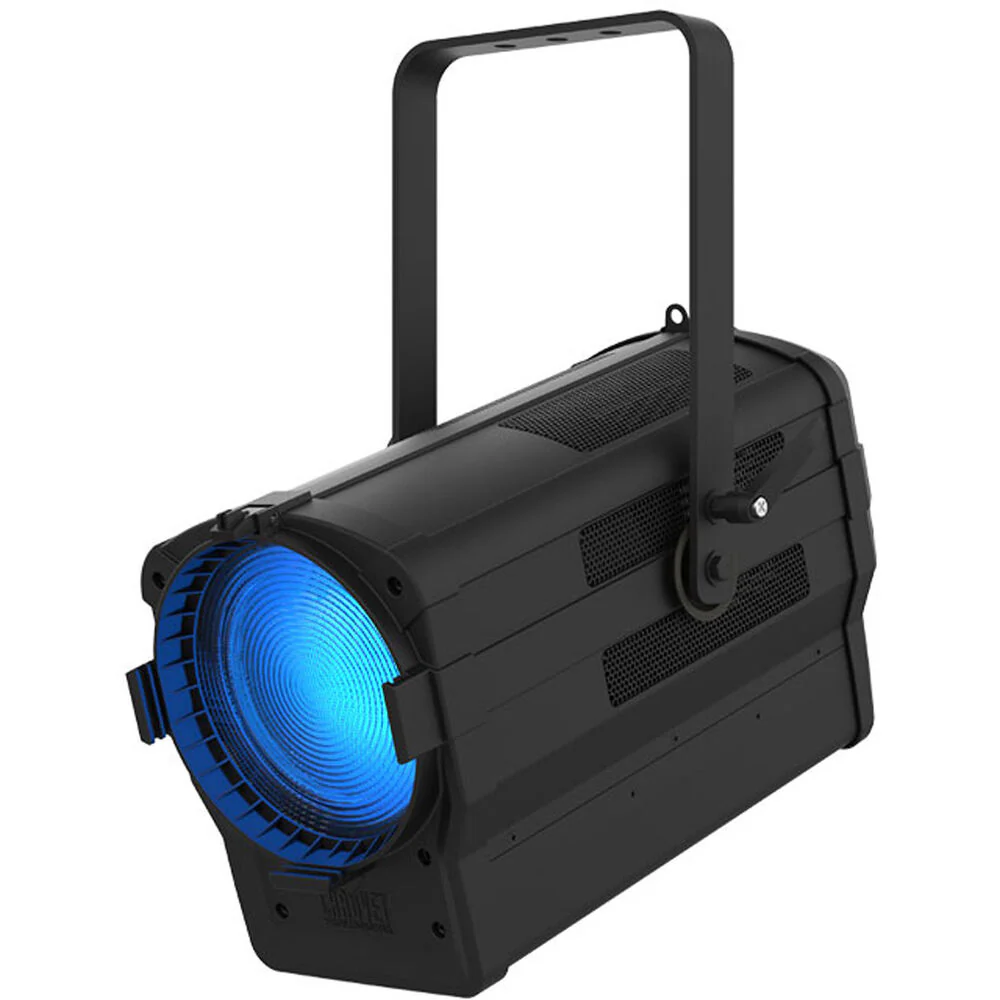

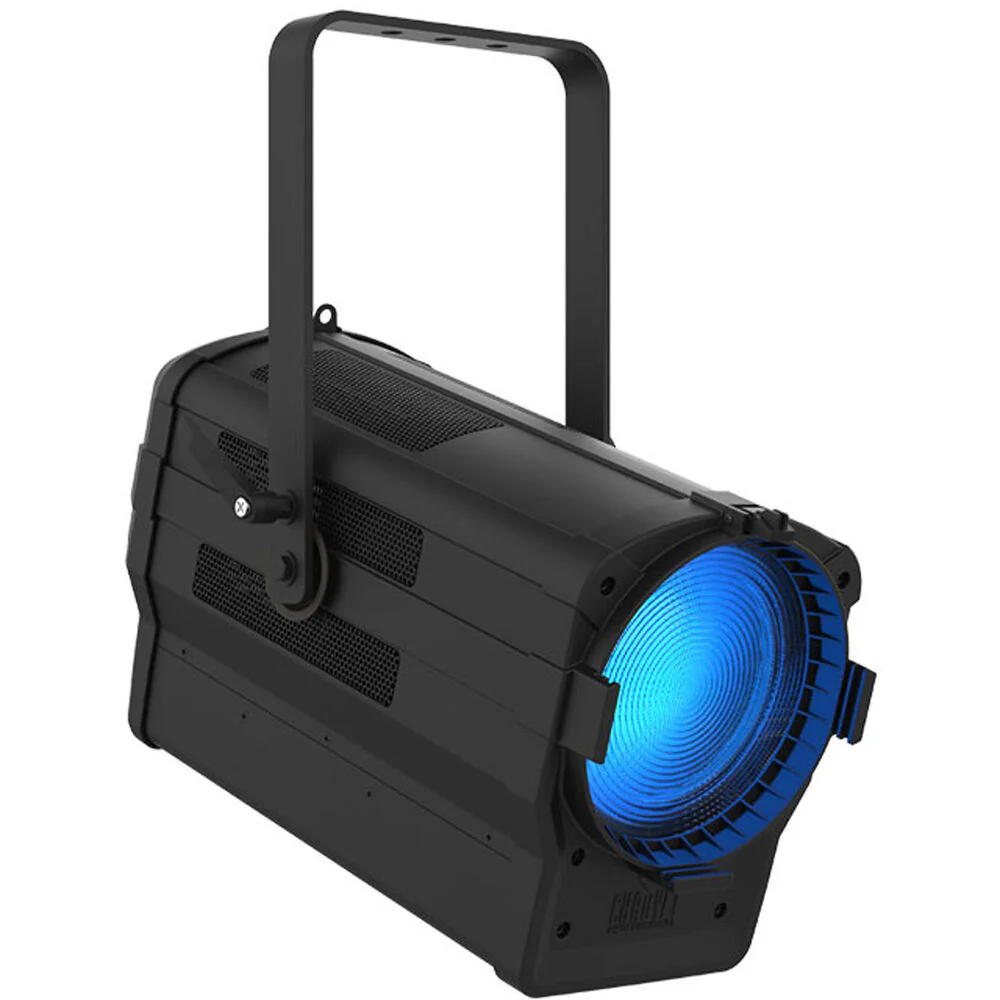

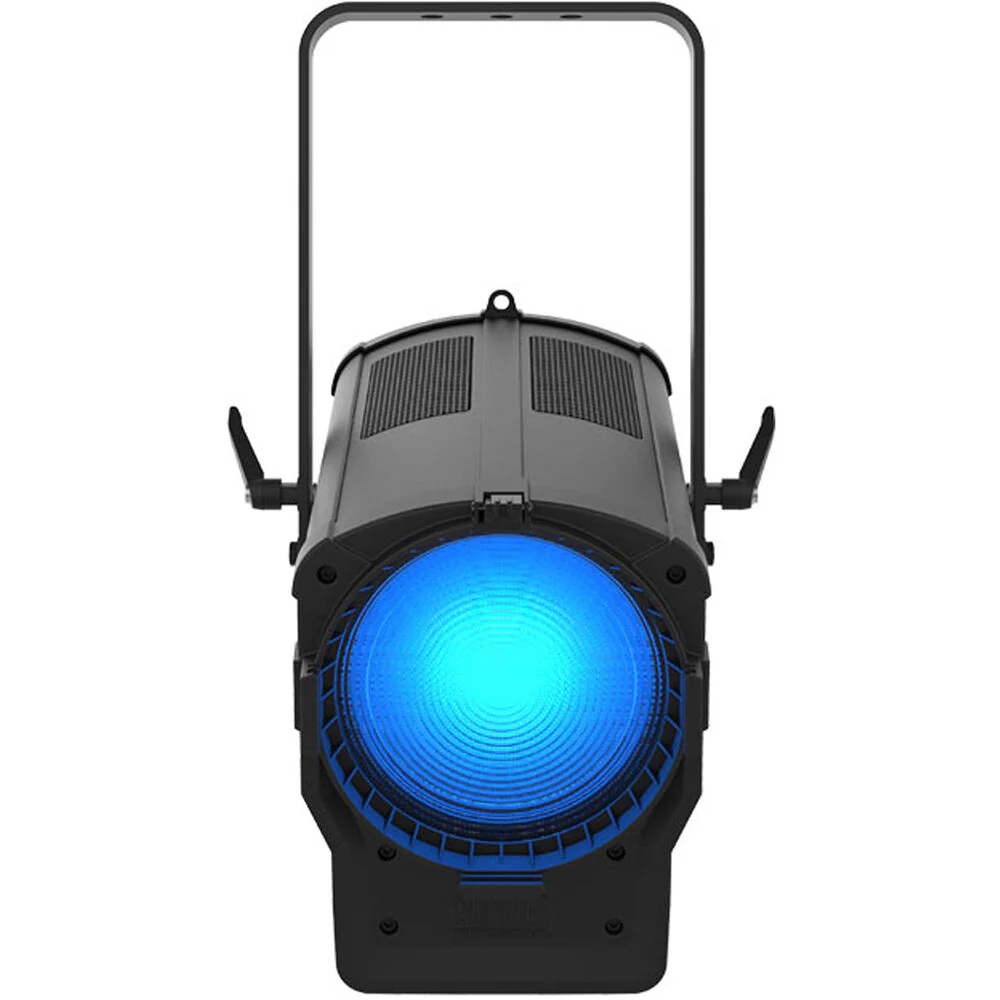

CHAUVET Professional Ovation F-915FC-2 RGBAL Fresnel-Style LED with Motorized Zoom
CHAUVET Professional F-915FC Overview
Create immersive washes across your stage with the Ovation F-915FC-2 RGBAL Fresnel-Style LED with Motorized Zoom from CHAUVET PROFESSIONAL. Featuring a RGBA-Lime LED system and full color mixing, this Fresnel-style fixture projects a bright, soft field of light in tones ranging from subtle pastels to punchy saturates, or in nearly any temperature of white. A motorized zoom offers a range of 17 to 85? that allows you to shape the beam and add light where it is needed. The light's output level, zoom, and virtual color wheel can be controlled either via DMX or using the onboard dials. It also provides color temperature presets from 2800 to 6500K and high CRI. The light source includes 18 red, 18 green, 16 blue, 16 amber, and 21 lime for a total of 89 LEDs, which blend for a wide palette of color mixing options.
The Ovation F-915FC-2 features smooth 16-bit dimming, as well as RDM and PWM for easy setup. Other features include: four dimming modes, DMX and RDM control, DMX channels 1, 3, 5, 7, 11, 13, 14 or 17, 8 personalities, built-in automated programs, and both 3- and 5-pin XLR DMX connectors. The Ovation F-915FC-2 ships with a TRUE1-style power cable and a 7.5" gel frame holder.
Items Included
- CHAUVET Professional Ovation F-915FC-2 RGBAL Fresnel-Style LED with Motorized Zoom
- Gel Frame Holder (7.5")

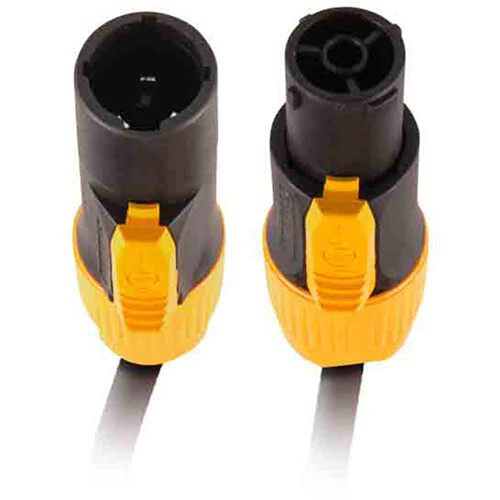

- Seetronic Powerkon IP65 Power Cord
- Limited 2-Year Manufacturer Warranty
Additional Resources
CHAUVET Professional F-915FC Specs
| Fixture Type |
Fresnel
|
| Light Source |
89x Color LED - 3 W / 1.13 A
|
| Colors |
Amber, Blue, Green, Lime, Red
|
| Beam Angle |
17 to 54?
|
| Control Protocols |
DMX512, RDM
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 304 W / 2.57 A
208 VAC, 60 Hz: 293 W / 1.49 A 230 VAC, 50 Hz: 293 W / 1.35 A |
| Mounting |
Single Yoke Only
|
| Fixture Type |
Fresnel
|
| Light Source |
89x Color LED - 3 W / 1.13 A
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Amber, Blue, Green, Lime, Red
|
| Photometrics |
30?:
183 fc / 1980 Lux at 16.4' / 5 m 85?: 40 fc / 433 Lux at 16.4' / 5 m |
| Color Temperature |
2800 to 6500K
|
| Lumen Output |
6661 Lumens
|
| Beam Angle |
17 to 54?
|
| Field Angle |
30 to 85?
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Manual
|
| Zoom Adjustment |
Motorized, 17 to 85?
|
| Dimming |
16-Bit Electronic, 0 to 100%
|
| Operating Modes |
DMX, Standalone
|
| Strobe Rate |
0 to 27 Hz
|
| Gobos |
No
|
| Control Protocols |
DMX512, RDM
|
| DMX Channel Modes |
8 Mode(s):
1 / 3 / 5 / 7 / 11 / 13 / 14 / 17-Channel |
| Display / Controls |
LED / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| Wireless |
No
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated Cord Length: 5' / 1.5 m |
| Fuse |
T 3.15 A 250 V
|
| Power / Current Consumption |
120 VAC, 60 Hz: 304 W / 2.57 A
208 VAC, 60 Hz: 293 W / 1.49 A 230 VAC, 50 Hz: 293 W / 1.35 A |
| Power Linking |
4 Units at 120 VAC
8 Units at 208 VAC 8 Units at 230 VAC |
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Operating Conditions |
Up to 113?F / 45?C
|
| Mounting |
Single Yoke Only
|
| Included Accessories |
1x Power Cable
1x Gel Frame |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Convection
|
| Certifications |
CE, FCC, MET
|
| Dimensions |
22.41 x 12.59 x 10.82" / 56.92 x 31.98 x 27.48 cm
|
| Weight |
19 lb / 8.6 kg
|
| Package Weight |
25.455 lb
|
| Box Dimensions (LxWxH) |
23 x 15.6 x 14.6"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
