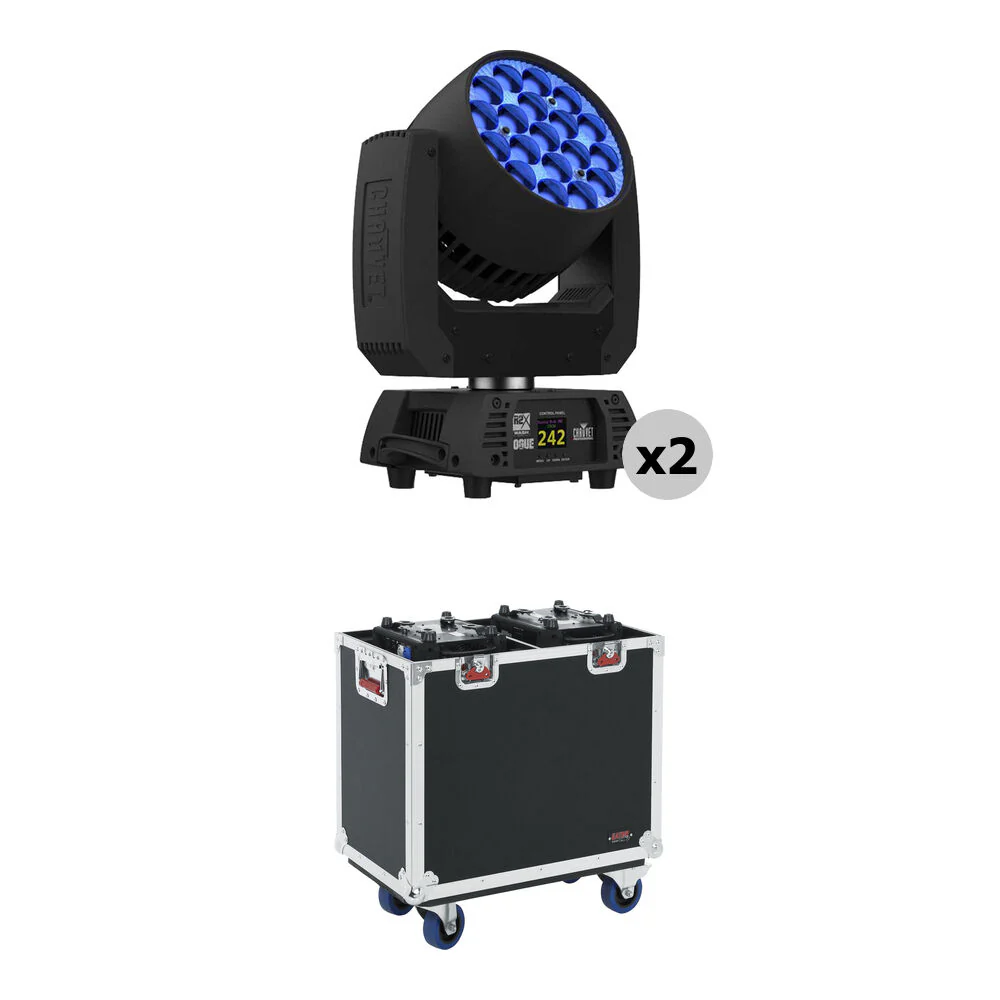

CHAUVET Professional Rogue R2X Wash RGBW Moving Head Kit with Road Case (2-Pack)
From Manufacturer

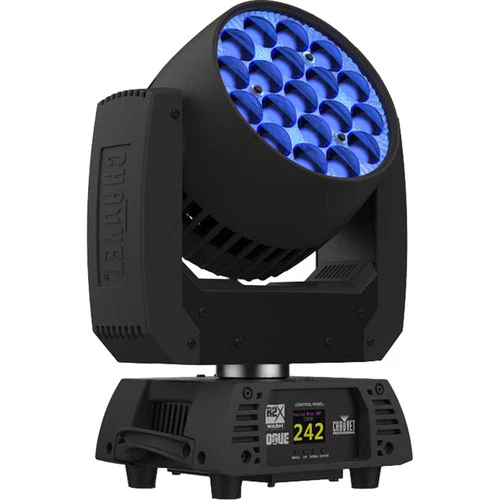

Add powerful color wash fixtures to your lighting setup with this Kit which combines a pair of CHAUVET Professional Rogue R2X Wash Lights with a professional flight case to provide protection from on-the-road wear and tear.
Lighting designers in need of a moving wash workhorse with intense output should consider the CHAUVET Professional Rogue R2X Wash, a moving head wash fixture well suited for theatrical productions and live events. Powered by its 19 quad-color (RGBW) 25W LEDs, the R2X can be used for to create a broad spectrum of color washes and effects including motorized zoom, which offers a beam angle of 8 to 30? and a zoom angle of 12 to 49?.
Other notable features include five zones of LED control for pixel mapping, smooth color mixing, simple and complex DMX channel profiles, and powerCON in and out, allowing for multiple units to be daisy-chained. The Rogue R2X ships with an Omega bracket and a powerCON power cord.
- Fully featured RGBW LED yoke wash fixture with LED zone control and zoom
- 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
- 19 RGBW LEDs, 25 W each
- 3- and 5-pin DMX input/output connections
- 5 zones of LED control for pixel mapping
- Unique lens design for excellent color blending
- Fast, smooth pan and tilt movement
- RDM-enabled for remote addressing and trouble shooting
- Selectable LED maximum output to match legacy Rogue R2 Washes
- 6 distinct dimming modes for advanced control
- Omega mounting bracket fits all Rogue and Maverick fixtures
- Easy to read OLED display with simple, effective menu options
- Simple and complex DMX channel profiles for programming versatility

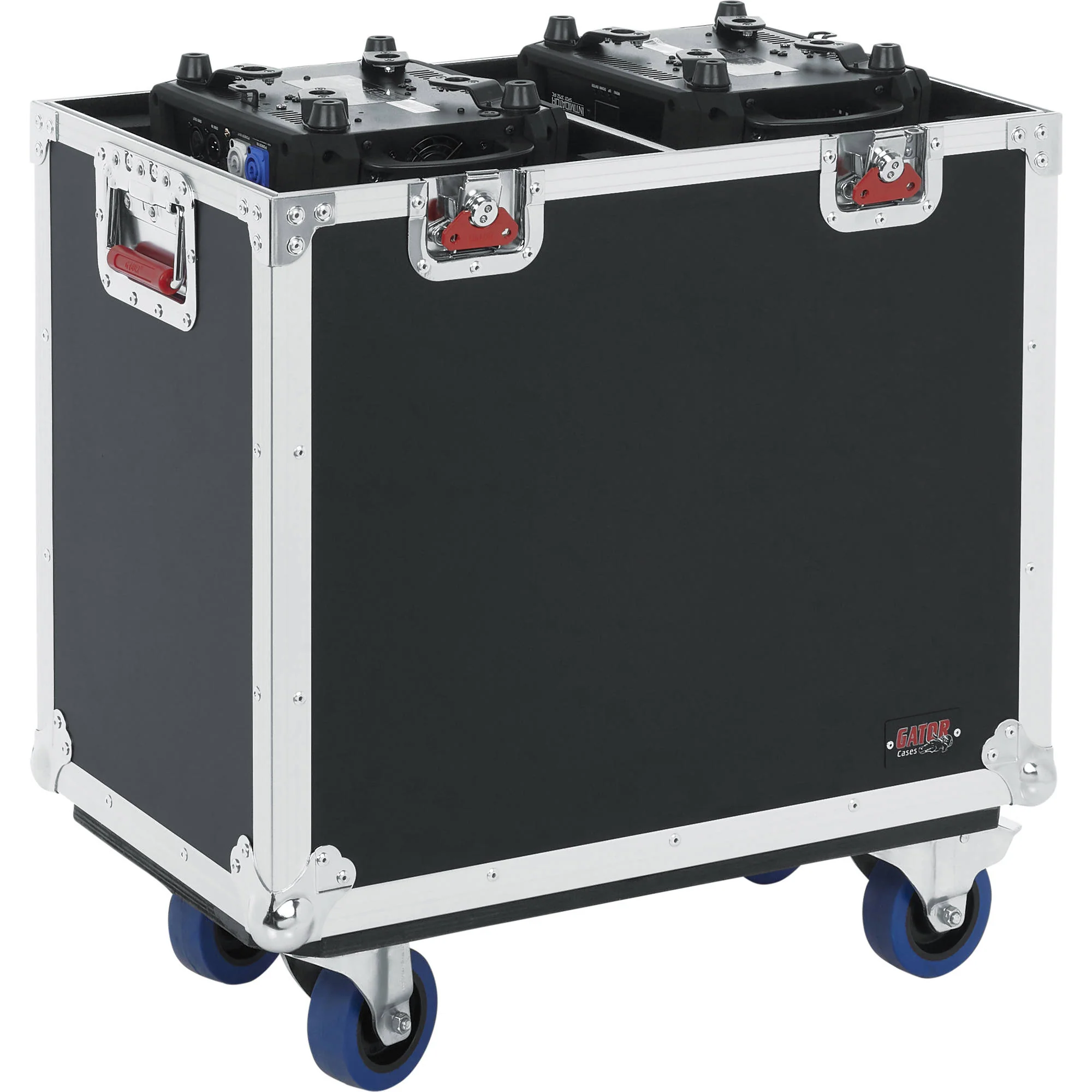

Store, transport, and protect up to two 350-style moving head lights in this black G-Tour Flight Case from Gator Cases. The interior features two foam-padded, fabric-lined compartments. Users will appreciate the durable 3/8" plywood construction, the metal ball ends and trim, and the removable lid with latches (two locking). Two-person carries are made easier with the recessed spring-loaded handles located on each side. Roll the case on the large swivel casters (two locking).
Items Included
- 2 x CHAUVET Professional Rogue R2X Wash Color Wash Moving Head (RGBW)
- Neutrik powerCON Power Cord
- 2 x Omega Bracket with Mounting Hardware
- Limited 2-Year Manufacturer Warranty
- Gator G-Tour Flight Case for Two 350-Style Moving Head Lights (Black)
- Limited Lifetime Manufacturer Warranty
Additional Resources
CHAUVET Professional Rogue R2X Wash Color Wash Moving Head (RGBW)
| Fixture Type |
Moving Head
|
| Light Source |
19x Color LED - 25 W / 1.5 A
|
| Colors |
Blue, Green, Red, White
|
| Pixel Configuration |
5x Zone
|
| Beam Angle |
8 to 30?
|
| Control Protocols |
DMX512, RDM
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 346 W / 2.8 A
208 VAC, 60 Hz: 337 W / 1.6 A 230 VAC, 50 Hz: 342 W / 1.4 A |
| Mounting |
Omega Bracket
|
| Fixture Type |
Moving Head
|
| Light Source |
19x Color LED - 25 W / 1.5 A
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Blue, Green, Red, White
|
| Pixel Configuration |
5x Zone
|
| Photometrics |
12?:
929 fc / 10,000 Lux at 16.4' / 5 m 49?: 78 fc / 840 Lux at 16.4' / 5 m |
| Color Temperature |
2800 to 10,000K
|
| Lumen Output |
10,300 Lumens (Source)
7300 Lumens (Output) |
| Beam Angle |
8 to 30?
|
| Field Angle |
12 to 49?
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Zoom Adjustment |
Motorized, 7 to 64?
|
| Dimming |
Electronic with 4 Dimmer Modes
|
| Operating Modes |
Automatic, DMX, Standalone
|
| Macros / Programs |
24x Color Macro
16x Movement Macro 24x Auto-Program |
| Effects |
Strobe
|
| Strobe Rate |
0 to 20 Hz
|
| Gobos |
No
|
| Tilt Ranges |
230? / 180? / 90?
|
| Pan Ranges |
540? / 360? / 180?
|
| Pan/Tilt Inversion |
Yes
|
| Control Protocols |
DMX512, RDM
|
| DMX Channel Modes |
6 Mode(s):
15 / 17 / 22 / 33 / 54 / 56-Channel |
| Display / Controls |
LCD / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: powerCON
Output: powerCON Plug Type: NEMA 5-15 Cord Length: 5' / 1.5 m |
| Fuse |
No
|
| Power / Current Consumption |
120 VAC, 60 Hz: 346 W / 2.8 A
208 VAC, 60 Hz: 337 W / 1.6 A 230 VAC, 50 Hz: 342 W / 1.4 A |
| Power Linking |
4 Units at 120 VAC
8 Units at 208 VAC 9 Units at 230 VAC |
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Mounting |
Omega Bracket
|
| Included Accessories |
1x Power Cable
|
| Exterior Color |
Black
|
| Certifications |
CE, MET
|
| Dimensions |
8.6 x 12.1 x 15.7" / 21.8 x 30.6 x 39.8 cm
|
| Weight |
22.8 lb / 10.3 kg
|
| Package Weight |
26.865 lb
|
| Box Dimensions (LxWxH) |
19.1 x 14.6 x 10.8"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
