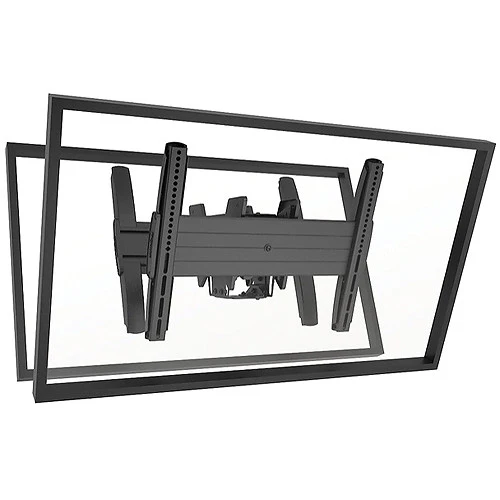

Chief Fusion Series MCB1U Back-to-Back Flat Panel Ceiling Mount (Landscape, Black)
- Fits 32 to 60" Displays
- Supports Displays Up to 125 lb Each
- For Use with Select Chief Ceiling Plates
- Tilts -20 to 5Ā°
- VESA 200 x 100 to 400 x 400 Compatible
The black Chief Fusion-Series MCB1U Back-to-Back Flat Panel Ceiling Mount can hold two 32 to 60" displays weighing up to 125 lb each. Designed for use with select Chief ceiling plates and extension columns, both sold separately, this mount will provide -20 to 5Ā° tilt for your displays and is VESA 200 x 100 to 400 x 400 compatible.
Note: Extension column and ceiling plate are required and sold separately. The MCB1U mount is designed to be mounted to a 1.5" NPT or NPSM following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness steel or aluminum-ASTM B221) threaded extension column (sold separately), or a UL Listed Chief CPA Series extension column (sold separately).
- Centris technology provides a continuous range of fingertip tilt from -20 to 5Ā°
- Four set locking points at 0, 5, 10, and 15Ā° eliminate guess work when adjusting multiple screens
- Simple on/off column connection for ease of installation and service
- Tool-free screen engagement to secure displays with padlock security that is sold separately
- Compatible with 1.5" NPT and Chief pin-connection CPA ceiling plates and columns
- Stacking capability with CPA columns provides multiple configuration options
- Features a black finish
Chief MCB1U specs
| Orientation | Landscape |
| Compatibility | Screen Size: 32.0 to 60.0" (81.3 to 152.4 cm) Ceiling Plates: CPA330, CPA365, CPA395, CMA330, CMA345, and CMA395 |
| Weight Capacity | 125.0 lb (56.7 kg) per display |
| Mounting Pattern (W x H) | 200 x 100 to 460 x 400 mm |
| Dimensions (W x D x H) | 29.5 x 17.0 x 11.0" (74.9 x 43.2 x 27.9 cm) |
| Weight | 31.0 lb (14.1 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 32.25 lb |
| Box Dimensions (LxWxH) | 29.5 x 16.0 x 10.1" |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
