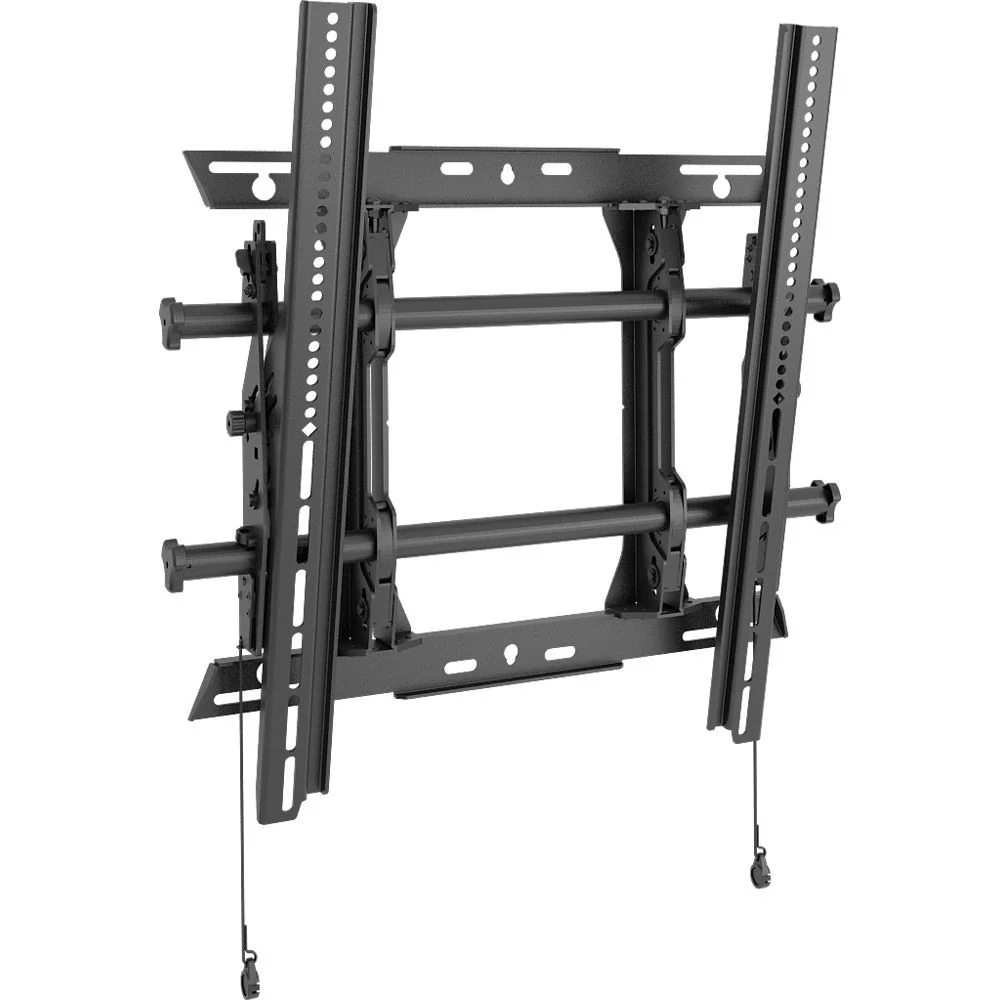

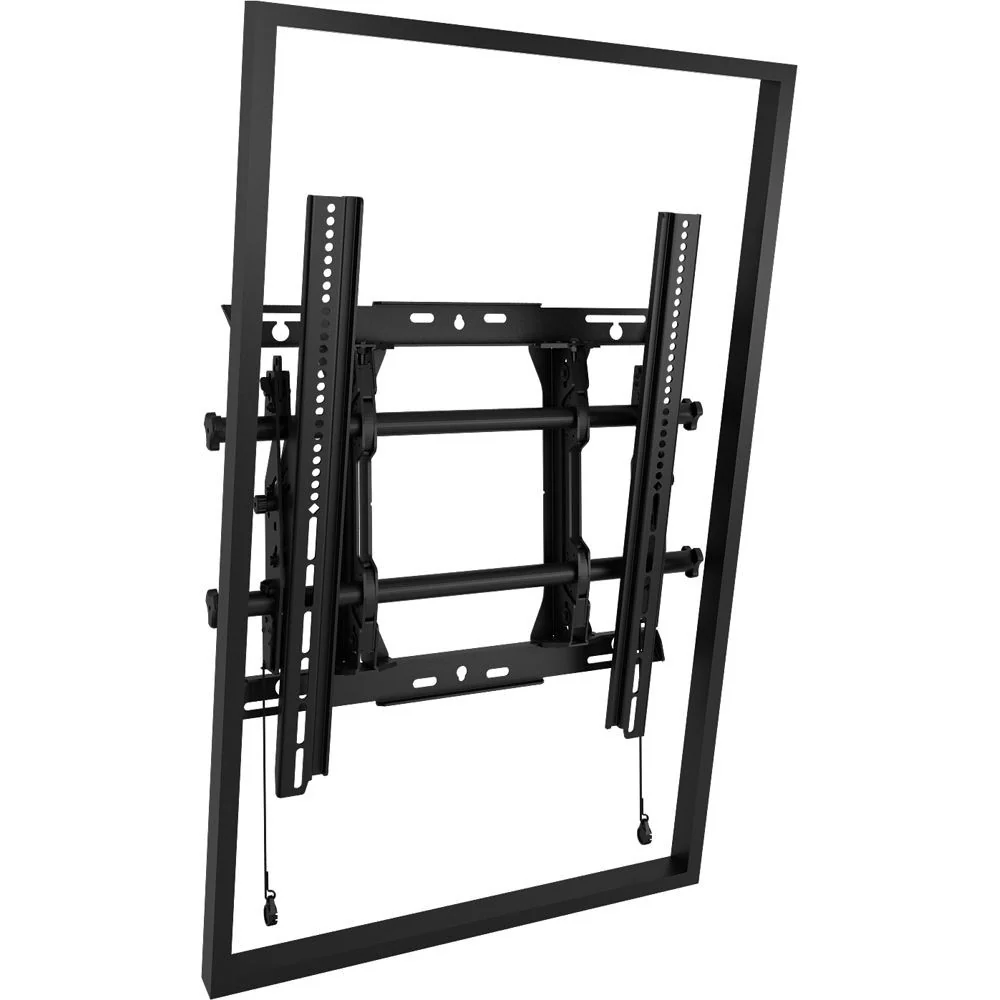

Chief MTMP1U Fusion Series Tilting Portrait Wall Mount for 32 to 47" Displays
- For 32 to 47" Displays Up to 200 lb
- -12 to 2� Tilt
- 10.4" Post-Installation Lateral Shift
- 1" Post-Installation Height Adjustment
- Post-Installation Level Adjustment
- Kickstand for Easy Cable Access
The Chief MTMP1U Fusion Series Tilting Portrait Wall Mount will support TV and monitor screens 32 to 47" and up to 200 lb in a dual-stud installation or 125 lb in a single-stud installation. It will allow you to tilt your screen -12 to 2�. The mount offers the option of post-installation lateral shift up to 10.4", 1" height, and level adjustment. It features a built-in cable stand for easy access under the screen. The MTMP1U has ClickConnect, which provides an audible click when the screen is safely engaged with the mount.
- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- ControlZone leveling for post-installation fine tuning of height and leveling
- Centerless Shift provides up to 10.4" of post-installation lateral shift for near limitless centering
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Set screws keep the mount rigid, stable, and secure throughout the life of the installation
- A full line of accessories can be installed with the mount, and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Included nesting spacers can be stacked to achieve virtually any depth from display to wall
- Quick-store cords use magnets to easily store and access pull cords
- Integrated padlock shackle for adding a lock, up to 5/16" in diameter
- Easy-to-open box with less waste to throw away
UPC: 841872163895
In the Box
Chief MTMP1U Fusion Series Tilting Portrait Wall Mount for 32 to 47" Displays
- Assembly Hardware
- Mounting Hardware
- Limited 10-Year Warranty
| Mount Type | Tilt |
| Depth From Mounting Source | 3.2" (8.1 cm) |
| Screen Size Range | 32.0 to 47.0" (81.3 to 119.4 cm) Maximum Screen Depth: 6.0" (15.2 cm) |
| Adjustments | 10.4" (26.4 cm) lateral shift -12 to 5� tilt 1.0" (2.5 cm) post-installation height adjustment Post-installation leveling |
| Universal Mounting Pattern (W x H) | 100 x 100 to 570 x 600 mm |
| Construction | Not specified by manufacturer |
| Security | Padlock shackle for lock diameter ≤5/16" (7.9 mm) |
| Orientation | Portrait |
| Wall Stud Compatibility | Single Stud and 16.0" (40.6 cm) |
| Weight Capacity | Dual Stud: 200.0 lb (90.9 kg) Single Stud: 125.0 lb (56.8 kg) |
| Certifications | UL Listed |
| Dimensions (H x W x D) | 24.50 x 20.88 x 3.20" (62.20 x 53.00 x 8.10 cm) |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 26.3 lb |
| Box Dimensions (LxWxH) | 27.5 x 26.5 x 3.0" |
