City Theatrical 900 MHz/2.4 GHz Multiverse Studio Receiver (North America Use)
City Theatrical Multiverse Studio Receiver Overview

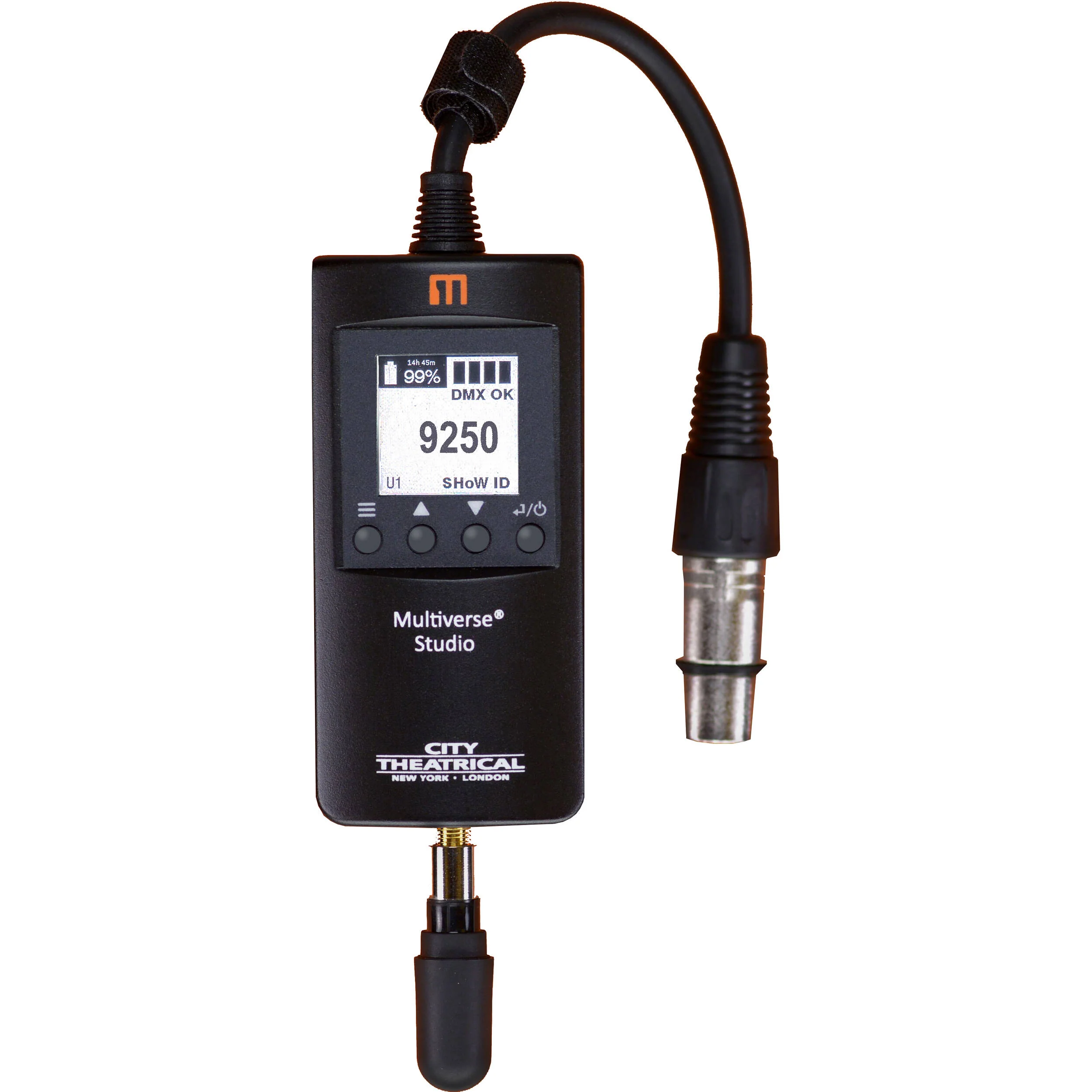

Part of the City Theatrical's Multiverse system, this 900 MHz/2.4 GHz Multiverse Studio Receiver is a wireless DMX512 receiver designed for North America use only. The Multiverse Studio Receiver allows for a single universe selection via Multiverse SHoW ID. This unit is compatible with the DMX512 and RDM protocols, featuring a 5-pin XLR for DMX out and a USB-C interface for power input. The Multiverse Studio Receiver has a built-in rechargeable battery for up to 20 hours of runtime. Four buttons with a backlit LCD screen offer easy onboard operation, providing convenient visual feedback, including the remaining battery level. The DMX corded connector allows the Multiverse Studio Receiver and an external antenna to hang from the lighting fixture for data fidelity. City Theatrical includes the power supply and a cable for your convenience. The device's IP61-rated construction makes it resistant to water splashes.
- 900 MHz/2.4 GHz radio frequency
- 2400 to 2480 MHz or 902 to 928 MHz frequency range
- mDMX/mRDM for optimized data broadcast (Multiverse SHoW IDs only)
- SHoW key security to avoid system interferences (Multiverse SHoW IDs only)
- Forward error correction to detect issues with wireless data transmission (Multiverse SHoW IDs only)
- Low 4 ms latency
- Adaptive spread spectrum frequency hopping masks off channels with interference
- Adjustable output power
- User selectable SHoW IDs
- 307 SHoW IDs
- Compatible with other Multiverse and SHoW DMX Neo products
- RDM proxy and responder functionality
- Selectable timeout and brightness level
- FCC and IC compliant
- Compact and lightweight design
- Contactless charging with the optional Studio or Add-On kits
Items Included
- City Theatrical 900 MHz/2.4 GHz Multiverse Studio Receiver (North America Use)
- Power Supply
- Cable
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
City Theatrical Multiverse Studio Receiver Specs
| Inputs/Outputs |
1x XLR 5-Pin (DMX) Female Output
1x USB-C (Power) Input |
| Channels |
512
|
| Wireless |
900 MHz Radio/RF / 2.4 GHz Radio/RF
|
| Power Source |
Built-In Rechargeable Battery, USB Power
|
| Protocol |
DMX512, RDM
|
| Inputs/Outputs |
1x XLR 5-Pin (DMX) Female Output
1x USB-C (Power) Input |
| Channels |
512
|
| Dimming |
Optional
|
| Cooling System |
No
|
| Latency |
4 ms
|
| Sensitivity |
-95 dBm
|
| Wireless |
900 MHz Radio/RF / 2.4 GHz Radio/RF
|
| Frequency |
2400 to 2480 MHz
902 to 928 MHz |
| Antenna Gain |
3.8 dBi
1.8 dBi |
| Power Source |
Built-In Rechargeable Battery, USB Power
|
| Input Power |
5 VDC
100 to 240 VAC, 50 / 60 Hz |
| Runtime |
20 Hours
|
| Recharge Time |
2.5 to 3.5 Hour
|
| Battery Chemistry |
Lithium-Ion
|
| Protocol |
DMX512, RDM
|
| Operating Conditions |
-4 to 122?F / -20 to 50?C
|
| Certifications |
FCC, IC
|
| Environmental Resistance |
Dust/Water-Resistant (IP61)
|
| Material of Construction |
Plastic
|
| Dimensions |
5.5 x 1.8 x 1.0" / 14.0 x 4.6 x 2.5 cm (Including Antenna)
|
| Package Weight |
0.735 lb
|
| Box Dimensions (LxWxH) |
9.3 x 4.9 x 2.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
