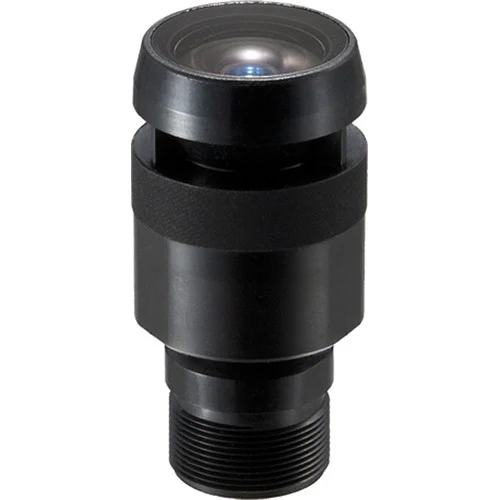

computar E5228KRW M12 Mount 5.2mm 4K IR Board Lens
computar E5228KRW Overview
The E5228KRW M12 Mount 5.2mm 4K IR Board Lens from computar is designed for cameras over 8MP with 1/1.8" format sensors. The lens has a 78.6° horizontal field of view and is IR corrected.
Compatible with cameras over 8MP
True day/night
Stereo Graphic projection
IR corrected
UPC: 781904053094
In the Box
- computar E5228KRW M12 Mount 5.2mm 4K IR Board Lens
- Limited 3-Year Manufacturer Warranty
computar E5228KRW Specs
| Imager Size |
1/1.8"
|
| Mount Type |
M12 P=0.5 mm
|
| Focal Length |
5.2mm
|
| Back Focal Length |
7.0mm
|
| Image Format |
Maximum 7.1 x 5.4 mm (Ø8.9 mm)
|
| Aperture |
f/2.8
|
| Maximum Aperture Ratio |
1:2.8
|
| Effective Lens Aperture |
Front: Ø13.4 mm
Rear: Ø 7.7 mm |
| Field of View |
1/1.8"
Diagonal: 100.4° Horizontal: 78.6° Vertical: 58.2° 1/2" Diagonal: 89° Horizontal: 70.1° Vertical: 52° 1/1.9" (17:9) 7.6 x 4mm Diagonal: 96° Horizontal: 83.9° Vertical: 43.1° 1/3" Diagonal: 65.5° Horizontal: 52° Vertical: 38.8° 1/2.3" (16:9) 6.4 x 3.6mm Diagonal: 79.5° Horizontal: 69.8° Vertical: 36.3° |
| Dimensions |
0.6 x 1.36" (17 x 34.6 mm)
|
| Weight |
0.3 oz (9 g)
|
Packaging Info
| Package Weight |
0.25 lb
|
| Box Dimensions (LxWxH) |
0.7 x 0.5 x 0.4"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
