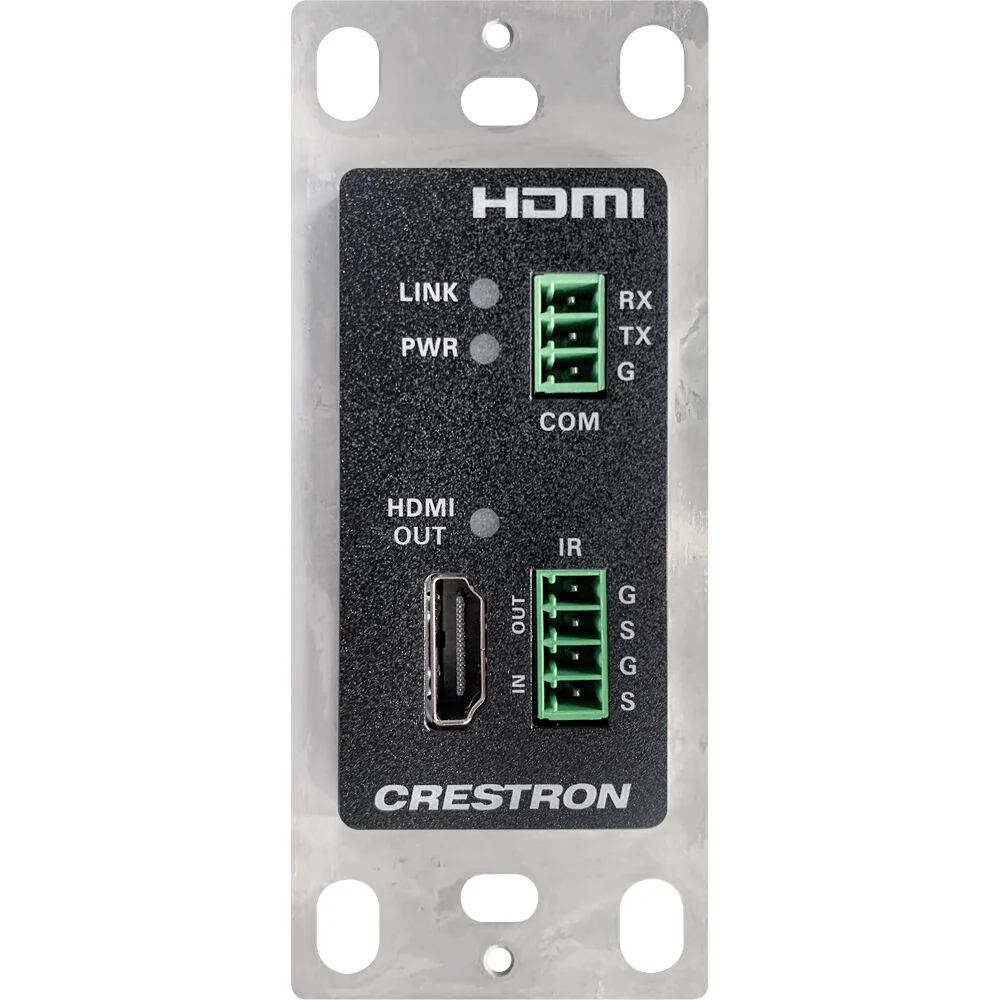

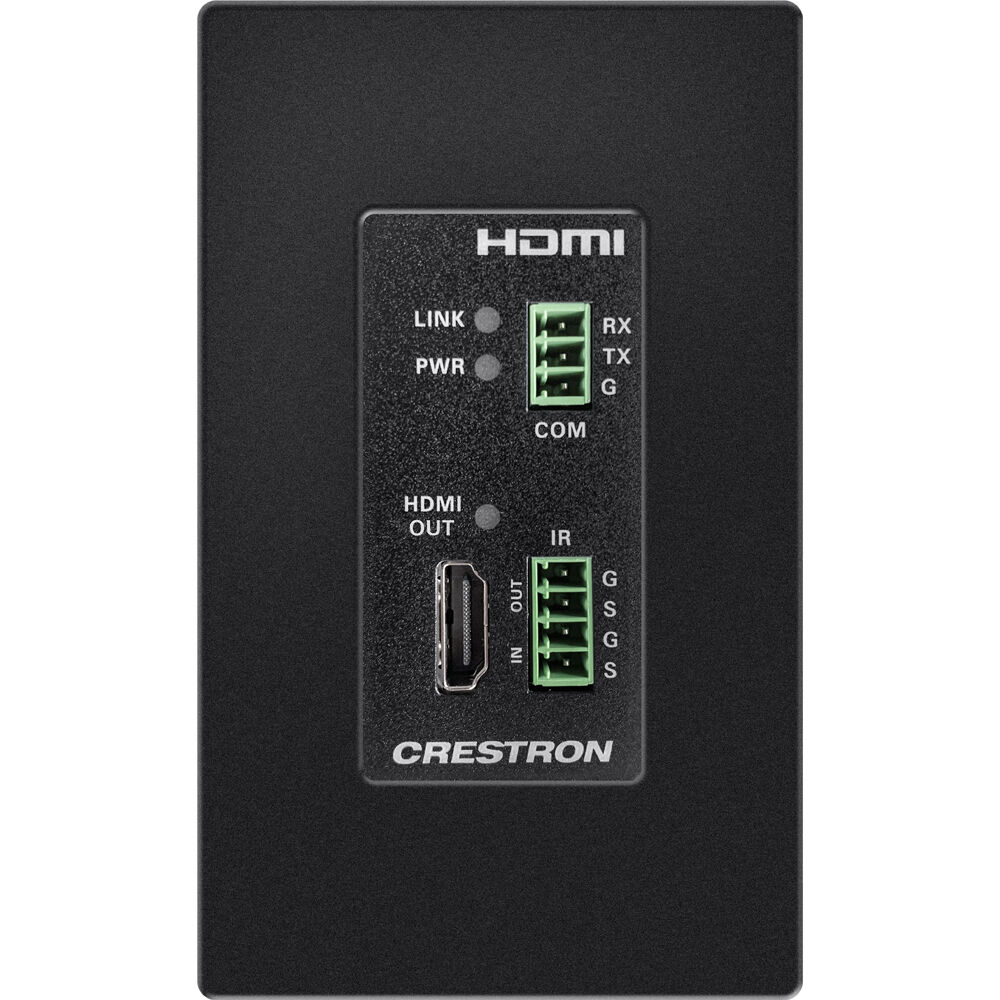

Crestron DM Essentials 4K60 Wall Plate Receiver for Signal Extension
Crestron DM Essentials 4K60 Wall Plate Receiv... Overview
Create point-to-point video signal extension with this Crestron DM Essentials 4K60 Wall Plate Receiver. The receiver is designed to interoperate with a DMPS Essentials switcher or DM Essentials transmitter for the transmission of HDMI, RS-232, and IR video signals up to 4K60 resolution with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision formats are also supported.
To connect the receiver to a compatible switcher or transmitter, a separately available Cat 5e or higher twisted-pair cable is required, carrying 4K footage up to 130' and 2K or 1080p footage up to 230'. Mounting directly onto a 1-gang electrical wall box, this receiver keeps wires out of sight while receiving signals and power from a connected surface-mountable transmitter or switcher.
- Point-to-point video signal extension of HDMI, RS-232, and IR signals over a Cat 5e or higher cable
- Up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160) at 60 fps with 4:4:4 color sampling
- HDR10, HDR10+, and Dolby Vision video formats
- Transmission distance up to 130' for UHD and 4K signals or up to 230' for 1080p, WUXGA, and 2K signals
- Interoperability with a DM Essentials transmitter or DMPS Essentials switcher
- Configure and control with the DMPS Essentials switcher
- Compliance with HDCP 2.3 for security
- CEC (Consumer Electronics Control) pass-through capability
- Bidirectional RS-232 and IR pass-through capability
- EDID pass-through capability for data transfer directly to display
Items Included
- Crestron DM Essentials 4K60 Wall Plate Receiver for Signal Extension
- Limited 3-Year Manufacturer Warranty
Additional Resources
