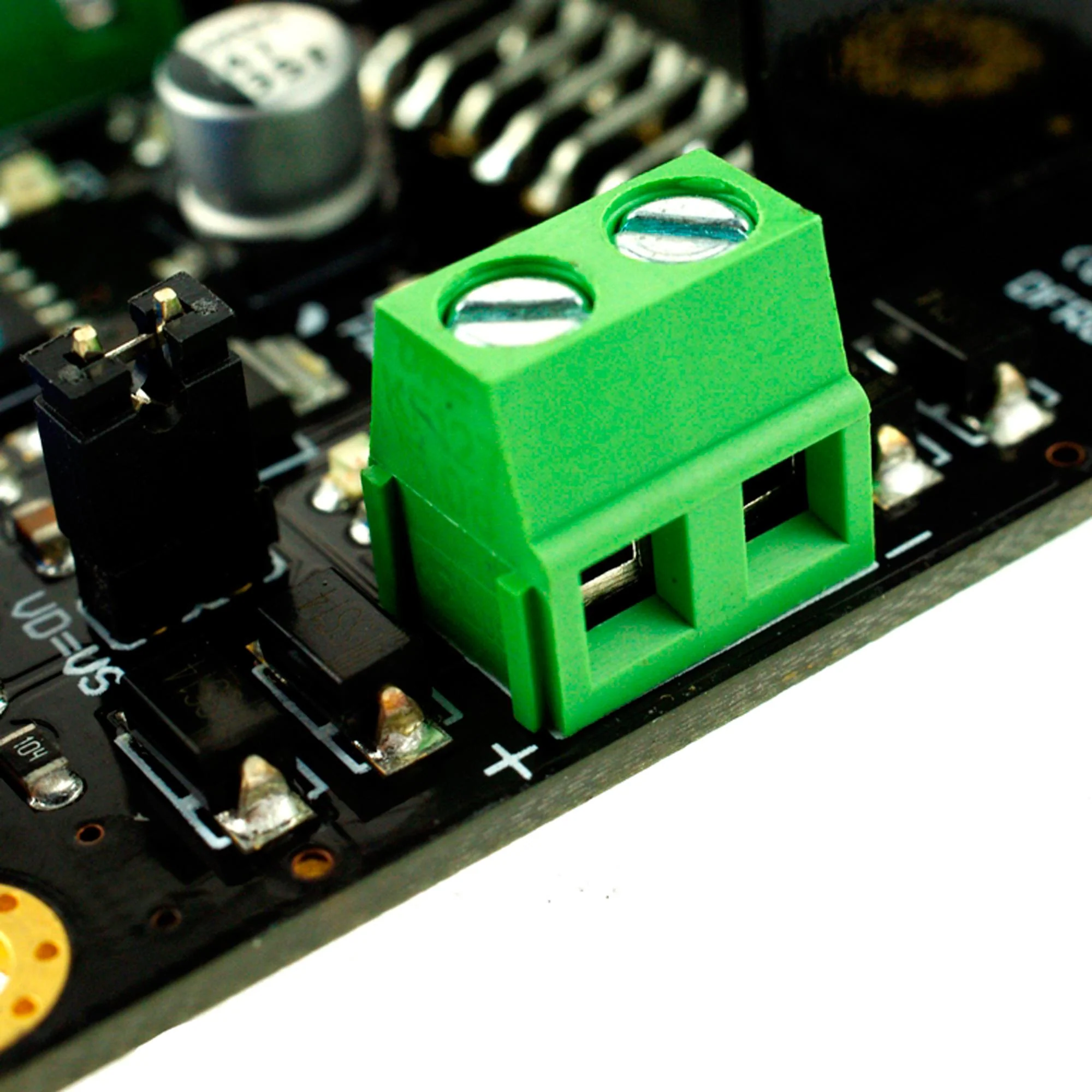

Dfrobot DRI0002 DRI0002 DC Motor Controller MDV 2x2A for Arduino Board
MDV 2x2A DC motor controller uses LGS's outstanding high power motor driver chip, the L298N. This chip allows for direct drive of two bi-directional DC motors and incorporates high-speed short diodes for protection. Drive current up to 2A per motor output. The driver uses a broad-brush design to reduce wire resistance. This breakout module with standard screw holes will help on applications and devices with flat spaces, so you don't need to use the Arduino stacked up shield.
- Increased heat-sink dissipation
- Logic part of the input voltage is 6 to 12V
- Driven part of the input voltage is 4.8 to 46V
- Logical part of the work current Iss is 36mA
- Operating temperature range from -25°C to +130°C
- Maximum power dissipation of 25W (T = 75°C)
- Control signal input level (high level: 2.3V = Vin = Vss, low:-0.3V = Vin = 1.5V)
- Dual high power H-bridge driver
- Module size is 47mm (1.85inch)� 53mm (2.1inch), module weight is about 29g
Product details
| Accessory Type | MDV 2x2A DC Motor Controller |
| For Use With | Arduino Board |
| Product Range | - |
Other details
| Brand | DFROBOT |
| Part Number | DRI0002 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Product Page EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
$8.23
Original: $27.44
-70%Dfrobot DRI0002 DRI0002 DC Motor Controller MDV 2x2A for Arduino Board—
$27.44
$8.23More Images
