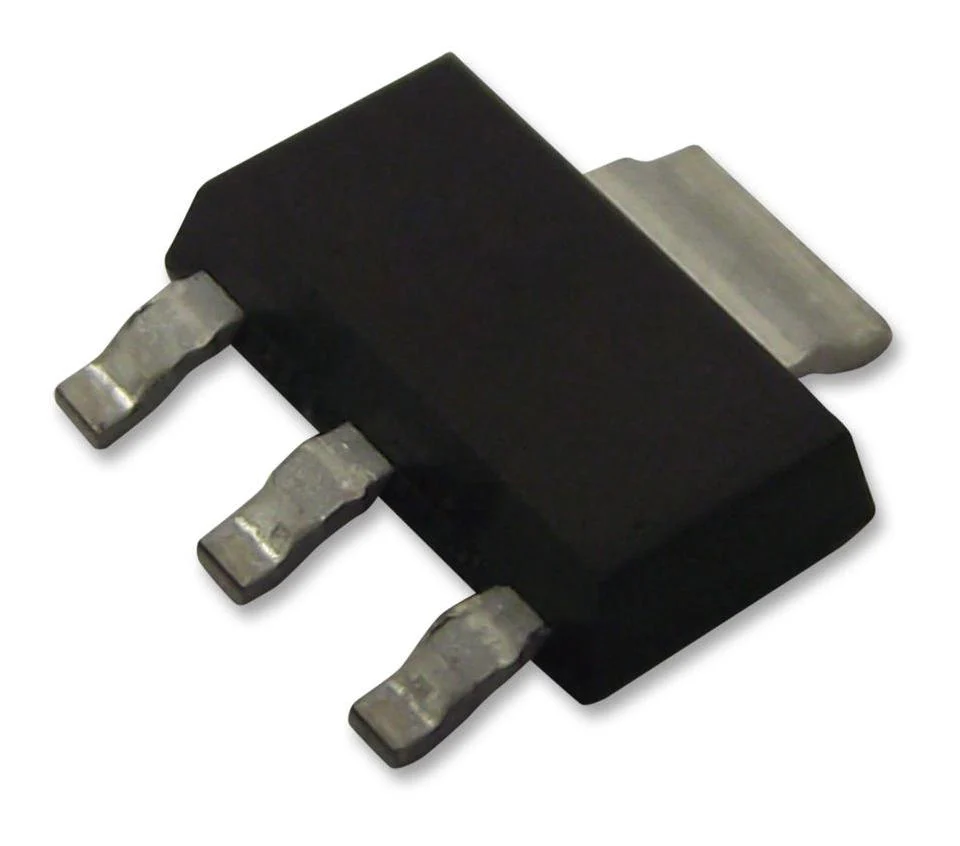

Diodes INC. ZXMP7A17G ZXMP7A17G Power Mosfet P Channel 70 V 3.7 A 0.16 ohm SOT-223 Surface Mount

The ZXMP7A17G is a P-channel enhancement-mode MOSFET with moulded plastic case and solderable matte tin finish annealed over copper lead-frame terminals as per MIL-STD-202 standard. It is designed to minimize the ON-state resistance and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

• Fast switching speed
• Low ON-resistance
• 100% Unclamped inductive switch (UIS) test in production
• Halogen-free, Green device
• UL94V-0 Flame-rated moulded plastic case
• Moisture sensitivity level 1 as per J-STD-020

Applications

Power Management, Motor Drive & Control, Aerospace, Defence, Military

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	DIODES INC.
Part Number	ZXMP7A17G
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
