DVDO 8K HDMI 2.1 Audio Extractor with eARC for Soundbars

DVDO 8K HDMI 2.1 Audio Extractor with eARC for Soundbars

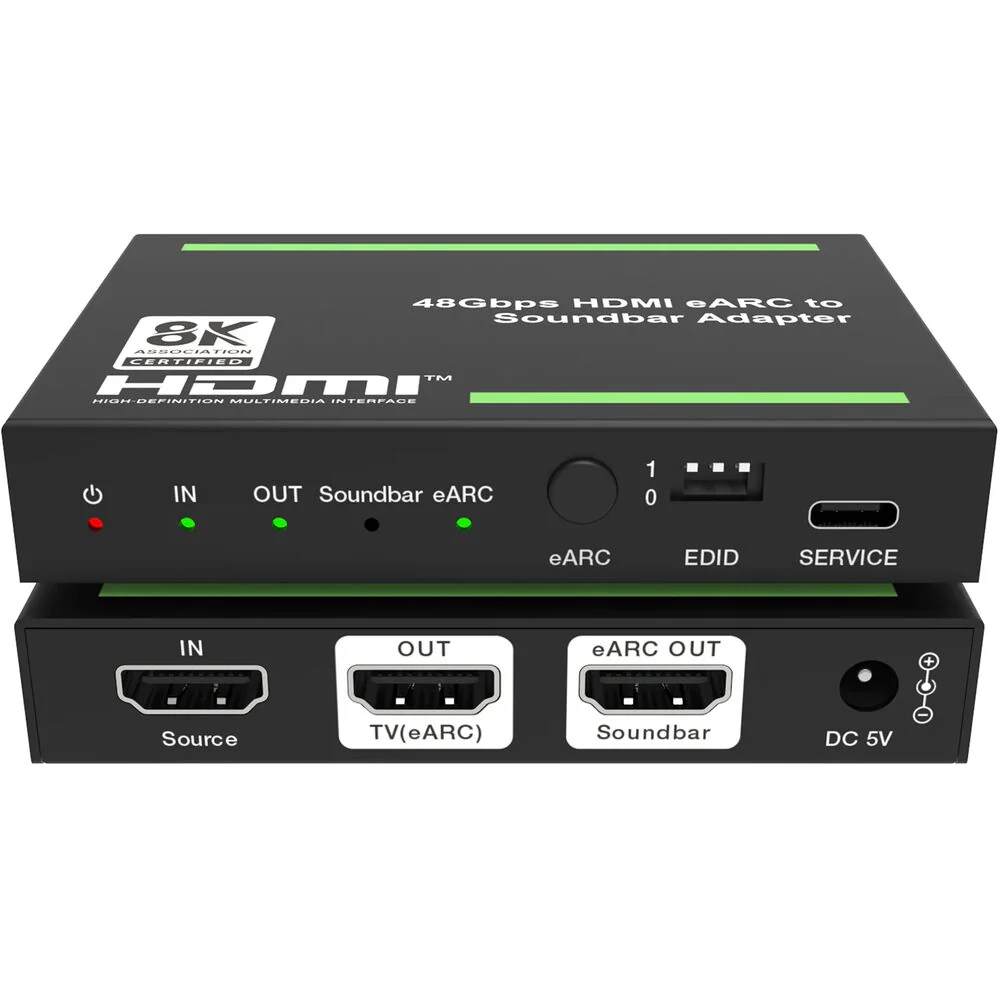

DVDO AUDIOE-3 Overview

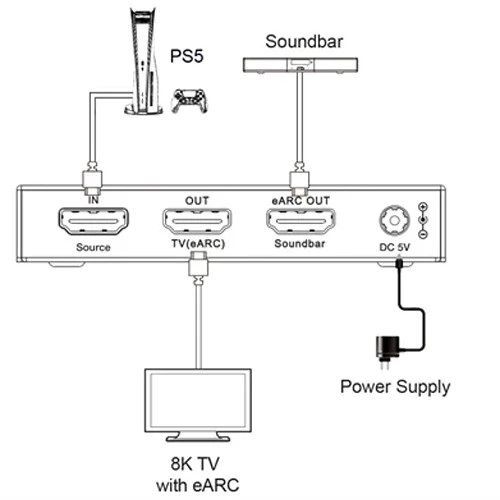

This 8K HDMI 2.1 Audio Extractor from DVDO is an HDMI eARC audio-to-soundbar adapter designed to extract audio from an HDMI source or TV with ARC/eARC capabilities and output it to an AV receiver or amplifier. It supports data rates up to 48Gb/s, meeting HDMI 2.1 and HDCP 2.3 standards. Compatible with UHD 8K60 signals, it offers features like EDID management, cable equalization, and CEC control between the TV, source, and amplifier. This adapter is an ideal solution for HDMI setups where audio needs to be sent from modern TVs to older soundbars that lack eARC support.

Features at a Glance
  • HDMI 2.1 and HDCP 2.3 compliant
  • Video resolutions up to 8K60 4:2:0 12-bit, 4K120 4:4:4 12-bit
  • 48Gb/s FRL and 18Gb/s TMDS video bandwidth as specified in HDMI 2.1
  • VRR, ALLM, QMS, QFT, SBTM as specified in HDMI 2.1
  • HDR, HDR 10, HDR 10+, Dolby Vision, and HLG passthrough
  • LPCM 7.1, Dolby TrueHD, Atmos, and DTS-HD Master, DTS:X audio passthrough
  • HDMI input audio or TV ARC/eARC audio de-embedded to HDMI audio output
  • Support for CEC control from TV to the source and soundbar
  • Support CEC volume control from TV to the any sound system
  • Advanced EDID management
  • Compact design for easy and flexible installation
UPC: 880802002019

Items Included

  • DVDO 8K HDMI 2.1 Audio Extractor with eARC for Soundbars
  • 5 VDC, 1A Multinational Power Supply
  • Limited 1-Year Manufacturer Warranty

Additional Resources

    DVDO AUDIOE-3 Specs

    Inputs/Outputs
    Video I/O
    1x HDMI 2.1 Input
    1x HDMI Output ( eARC )
    1x HDMI Output ( Audio )
    Other I/O
    1 x USB-C (Service/Update Port)
    Power
    Power Source
    AC Adapter with Power Brick (Included)
    AC Input Power
    100 to 240 VAC, 50 / 60 Hz
    DC Input Power
    5 VDC at 1 A
    Power Consumption
    4.13 W
    Physical
    Color
    Black
    Material of Construction
    Metal
    Certifications
    CE, FCC, UL
    Operating Conditions
    32 to 104Ā°F / 0 to 40Ā°CĀ at 20 to 90% Humidity
    Storage Conditions
    -4 to 140Ā°F / -20 to 60Ā°CĀ at 20 to 90% Humidity
    Dimensions
    3.7 x 2.7 x 0.7" / 95 x 68 x 18Ā mm
    Weight
    6.3Ā oz / 178Ā g
    Packaging Info
    Package Weight
    0.885 lb
    Box Dimensions (LxWxH)
    6.2 x 4.9 x 2.6"

    All product and company names are trademarksā„¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
