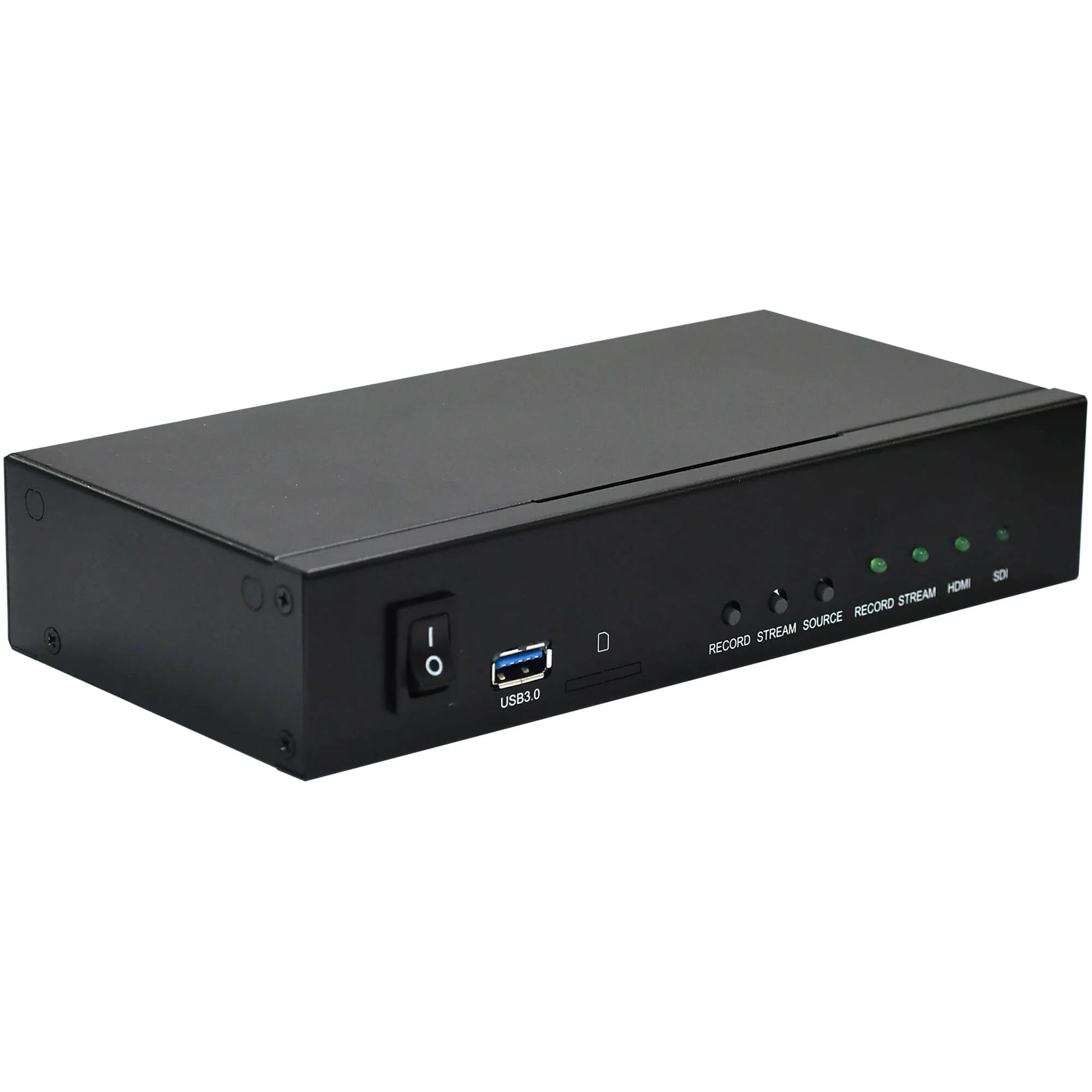

DVDO Full-HD Single-Channel HDMI/SDI Streamer Recorder with NDI|HX License

Share and record your content using the Full-HD Single-Channel HDMI/SDI Streamer Recorder with NDI|HX License from DVDO. This compact unit features H.264, H.265, and AVC encoding and decoding with support for up to 1080p60 input and UHD 4K output. It has a USB-A 3.0 port for capturing video and supports RTSP, ONVIF, UDP, and HLS protocols with NDI-HX.

• Input and output video using the HDMI and 3G-SDI input and loop output ports.
• Dual HDMI outputs for preview and program viewing.
• Embed and de-embed audio using the separate 3.5mm ports.

This streamer recorder is compatible with popular live streaming platforms like Facebook Live, YouTube, and more.

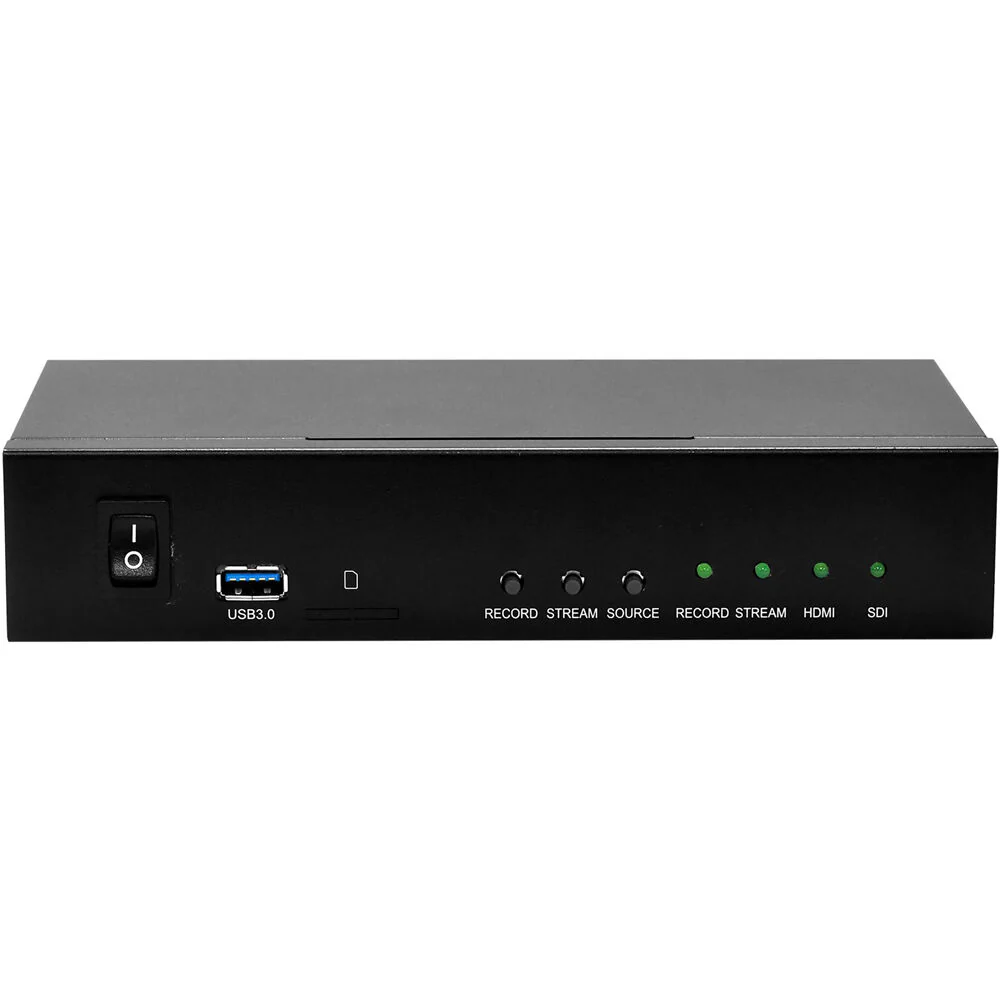

• Control using the front-panel buttons or keyboard and mouse using the USB 2.0 ports on the back panel.
• System configuration and IP control via a web interface.

DVDO STREAMREC-NDI-1 Specs

IP Video	H.264/H.265: 3840 x 2160 at 24p, 25p, 30p, 50p, 60p Decoding H.264/H.265: 1920 x 1080 at 24p, 25p, 30p, 50p, 60p Encoding, Decoding 1280 x 1024 at 60p Encoding, Decoding 1280 x 960 at 60p Encoding, Decoding 1280 x 720 at 50p, 60p Encoding, Decoding 1024 x 768 at 60p Encoding, Decoding 800 x 600 at 60p Encoding, Decoding 720 x 576 at 50p Encoding 720 x 480 at 50i, 60i, 60p Encoding 640 x 480 at 60p Encoding, Decoding
IP Audio	AAC: Encoding
Simultaneous Streams	2 Streams

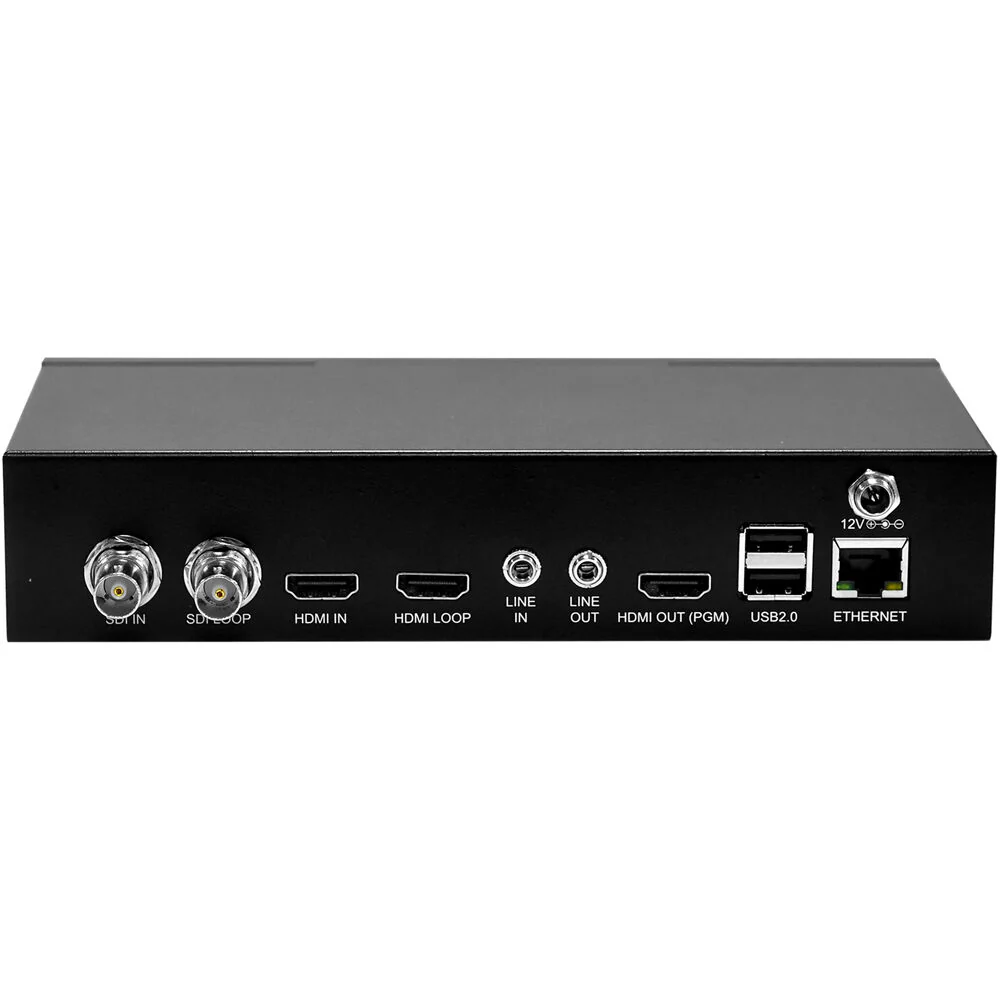

Video I/O	1x HDMI (HDMI 2.0) Input 1x BNC (3G-SDI) Input 1x HDMI (HDMI 2.0) Output 1x HDMI (HDMI 2.0) Loop Output 1x BNC (3G-SDI) Loop Output 1x USB-A (USB Video) Output
Embedded Audio	SDI: 2-Channel HDMI: 2-Channel NDI: 2-Channel
Recording Media	1x USB-A 3.0 / 3.1/3.2 Gen 1
Power Consumption	Power Supply: 100 to 240 VAC (60 W)
Display	Yes

IP Video	H.264/H.265: 3840 x 2160 at 24p, 25p, 30p, 50p, 60p Decoding H.264/H.265: 1920 x 1080 at 24p, 25p, 30p, 50p, 60p Encoding, Decoding 1280 x 1024 at 60p Encoding, Decoding 1280 x 960 at 60p Encoding, Decoding 1280 x 720 at 50p, 60p Encoding, Decoding 1024 x 768 at 60p Encoding, Decoding 800 x 600 at 60p Encoding, Decoding 720 x 576 at 50p Encoding 720 x 480 at 50i, 60i, 60p Encoding 640 x 480 at 60p Encoding, Decoding
IP Audio	AAC: Encoding
Transport Protocols	HLS, NDI/HX, ONVIF, RTMP, RTMPS, RTP, RTSP, TCP, UDP
Simultaneous Streams	2 Streams

Wi-Fi	No
Bluetooth	No
Cellular Support	No

Video I/O	1x HDMI (HDMI 2.0) Input 1x BNC (3G-SDI) Input 1x HDMI (HDMI 2.0) Output 1x HDMI (HDMI 2.0) Loop Output 1x BNC (3G-SDI) Loop Output 1x USB-A (USB Video) Output
Audio I/O	1x 1/8" / 3.5 mm TRS Stereo Analog Input 1x 1/8" / 3.5 mm TRS Stereo Analog Output
Other I/O	1x RJ45 Gigabit Ethernet Input/Output 2x USB-A 2.0 Input/Output
Embedded Audio	SDI: 2-Channel HDMI: 2-Channel NDI: 2-Channel

Recording Media

1x USB-A 3.0 / 3.1/3.2 Gen 1

Power I/O	1x Proprietary (12 VDC) Input
Power Consumption	Power Supply: 100 to 240 VAC (60 W)

Operating Conditions	32 to 72°F / 0 to 40°C at 10 to 90% Humidity
Storage Conditions	-40 to 140°F / -40 to 60°C
Display	Yes
Dimensions	8 x 4.7 x 1.6" / 203 x 120 x 40.5 mm (Including Connectors)
