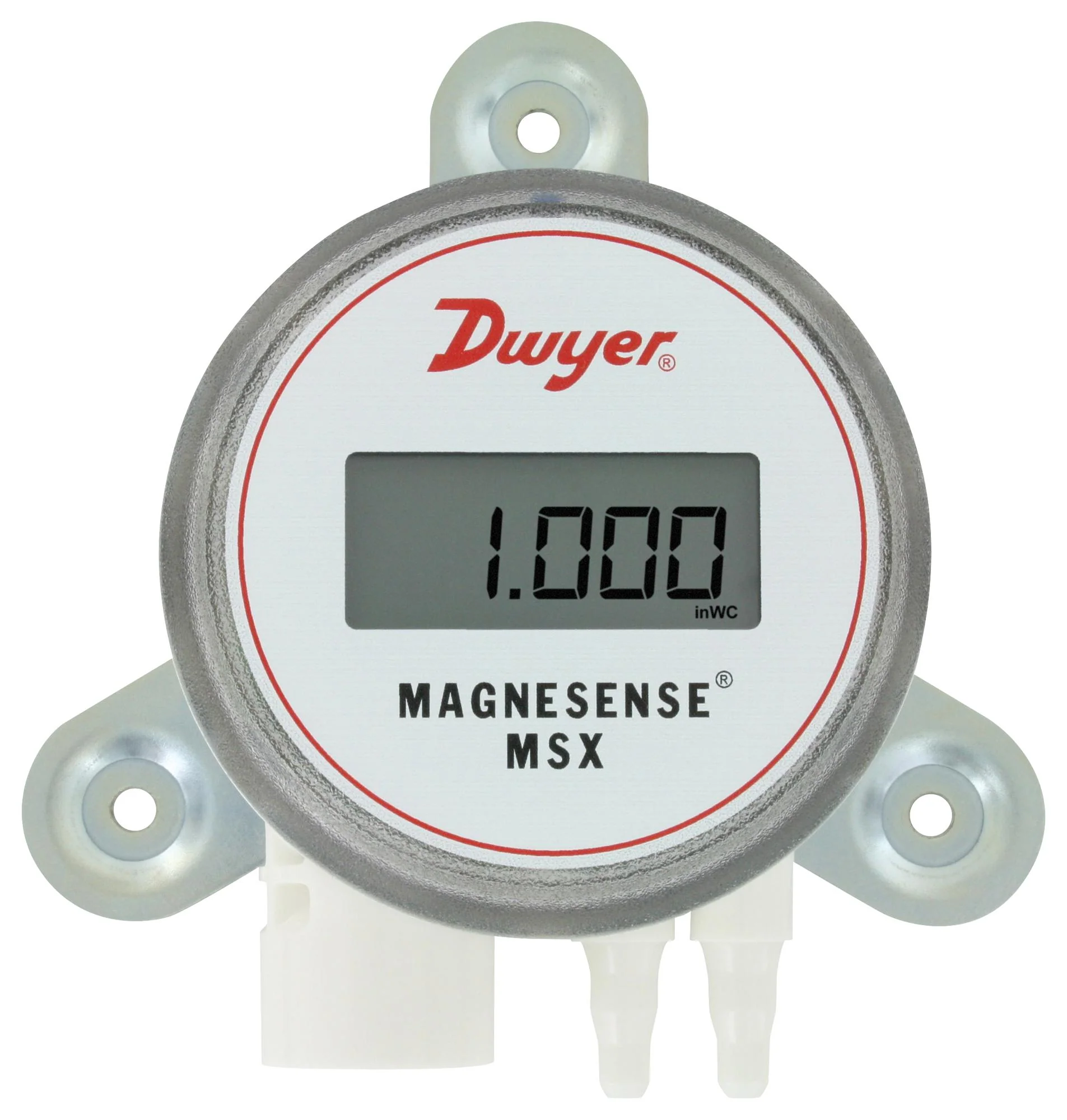

DWYER MSX-W13-IN-LCD Pressure Transmitter, LCD Display, Differential, 0 Inch-H2O, 28 Inch-H2O, Terminal Block
DWYER MSX-W13-IN-LCD Pressure Transmitter, LCD Display, Differential, 0 Inch-H2O, 28 Inch-H2O, Terminal Block
Product Overview
MSX-W13-IN-LCD is a series MSX MagnesenseĀ® differential pressure transmitter combines the stability and versatility of the original Series MS2 MagnesenseĀ® II transmitter for use in building control applications. The MSX simplifies the ordering process to deliver the desired configuration, which reduces product setup time. The MSX transmitter can provide a linear pressure output or a linear velocity output with the square root extraction from the transmitter. Additional parameters have been included to expand the square root capability for calculating flow. Dual voltage and milliamp output signals can be used to provide both control and equipment output signal verification. Typical applications including filter monitoring in air handler units, building pressure in pharmaceutical /semiconductor clean rooms, duct static pressure in commercial buildings and air velocity/flow in VAV system.
- Wall mount, unidirectional
- Rotatable 180Ā° LCD display
- Range 28" water column
- Quick and easy wiring via the optional toolless terminal block
- Add safety to variety of applications with UL94 V-0 and plenum ratings
- Output signals of 4-20mA (2-wire), 0-10V or 0-5V selectable (3-wire)
- Response time is instantaneous (default) or 3s (selectable)
- Zero and span adjustments: digital push-button
- 1/2? NPS thread electrical entry
Product details
Other details
| Brand | DWYER |
| Part Number | MSX-W13-IN-LCD |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
