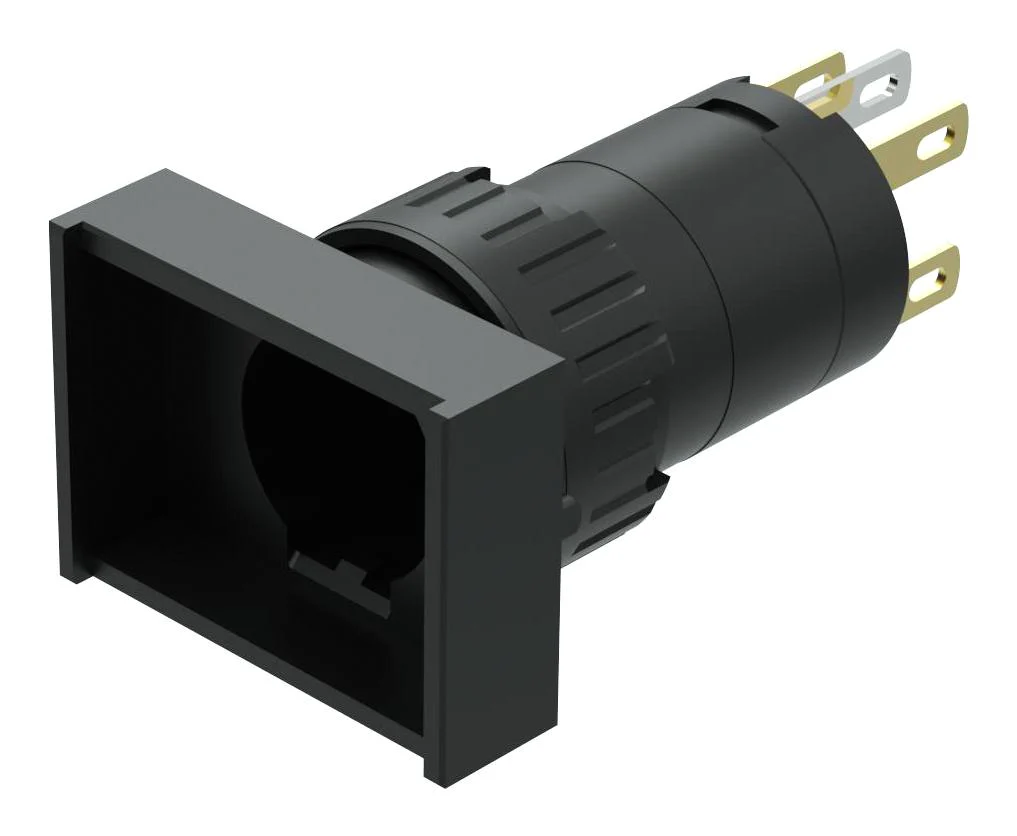

EAO 31-261.022 Pushbutton Switch, 31 Series, 16.2 mm, SPST-NO, SPST-NC, Maintained, Rectangular Raised
EAO 31-261.022 Pushbutton Switch, 31 Series, 16.2 mm, SPST-NO, SPST-NC, Maintained, Rectangular Raised
31-261.022 is a 31 series Illuminated pushbutton actuator. It is especially suited for applications in the segments are machinery and automation and panel building. It is approved by CB (IEC 61058-1), CSA, DNV, ENEC (EN 61058-1), UL approbations.
- Raised design, rectangular front shape
- Black front bezel colour, plastic front bezel material
- Illuminative lens, IP40 front IP protection type
- Solder 2.8 x 0.5mm connection terminal
- Black housing colour, plastic housing material, snap-action switching element system
- 1 NC + 1 NO contacts, 5A switching current
- 250VAC switching voltage
- Operating force range from 2N to 5.5N
- Service temperature range from -25Ā°C to +55Ā°C
- Front dimension is 18mm x 24mm
Product details
| Product Range: 31 Series |
| Panel Cutout Diameter: 16.2mm |
| Contact Configuration: SPST-NO, SPST-NC |
| Switch Operation: Maintained |
| Pushbutton Actuator Style: Rectangular Raised |
| Actuator / Cap Colour: - |
| Contact Current AC Max: 5A |
| Contact Voltage VAC: 250V |
| Contact Current DC Max: 5A |
| Contact Voltage VDC: 250V |
| IP Rating: IP40 |
| Switch Mounting: Panel Mount |
| Switch Terminals: Solder Lug, Plug In |
| Illumination Colour: - |
| Panel Cutout (H x W): - |
Other details
| Brand | EAO |
| Part Number | 31-261.022 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
