Elation Professional KL Fresnel 8 FC
Elation Professional KL Fresnel 8 Overview

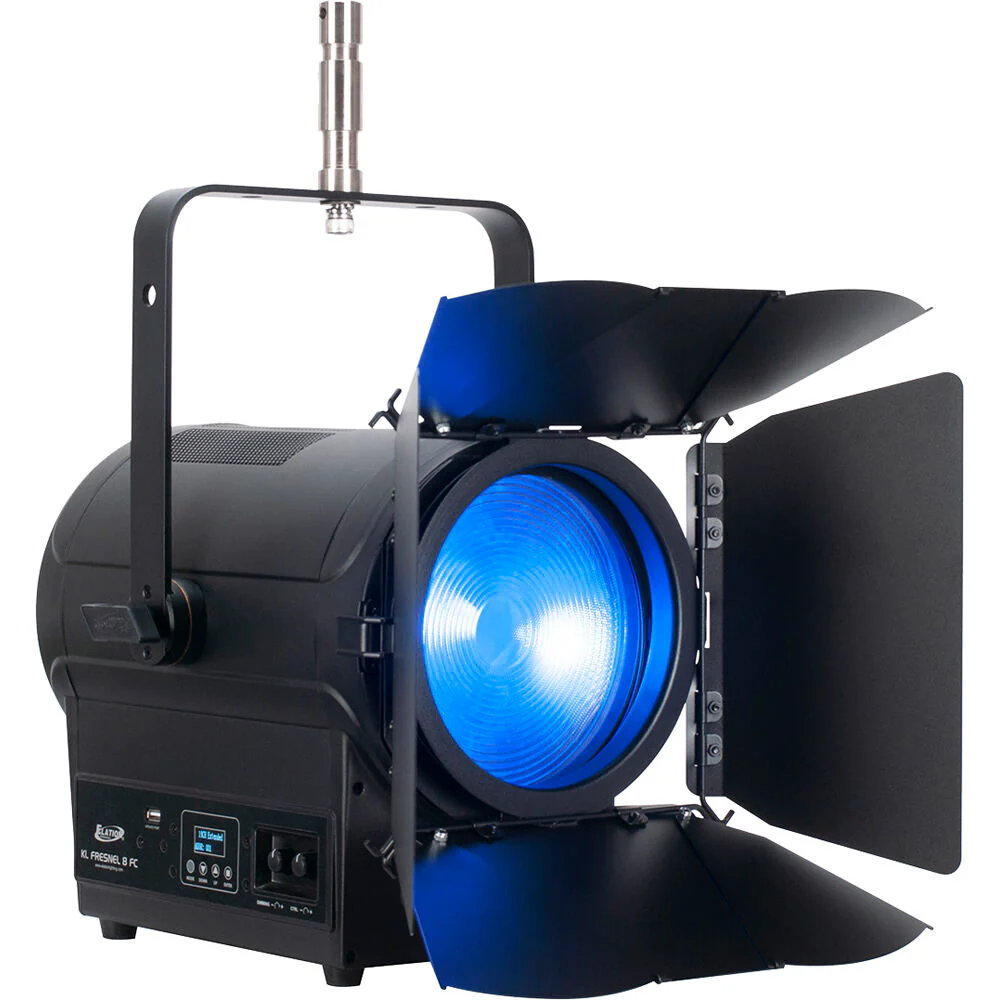

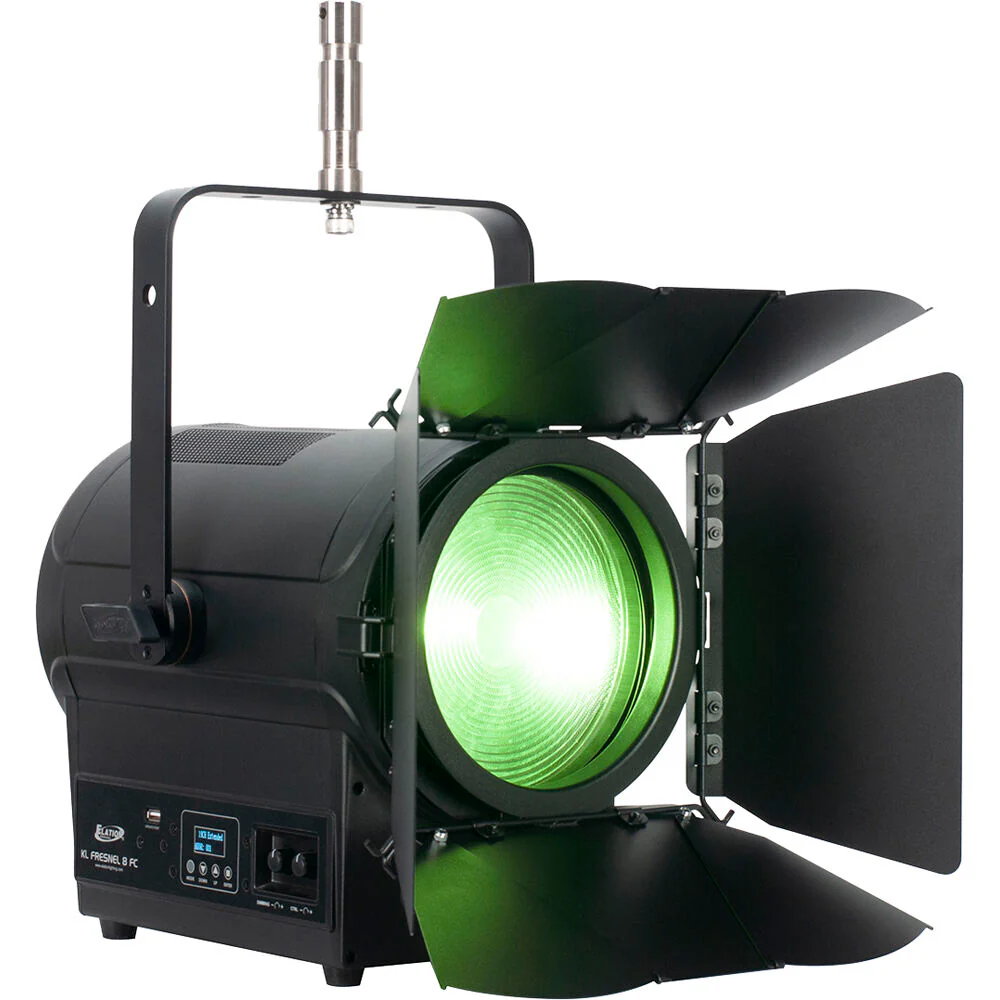

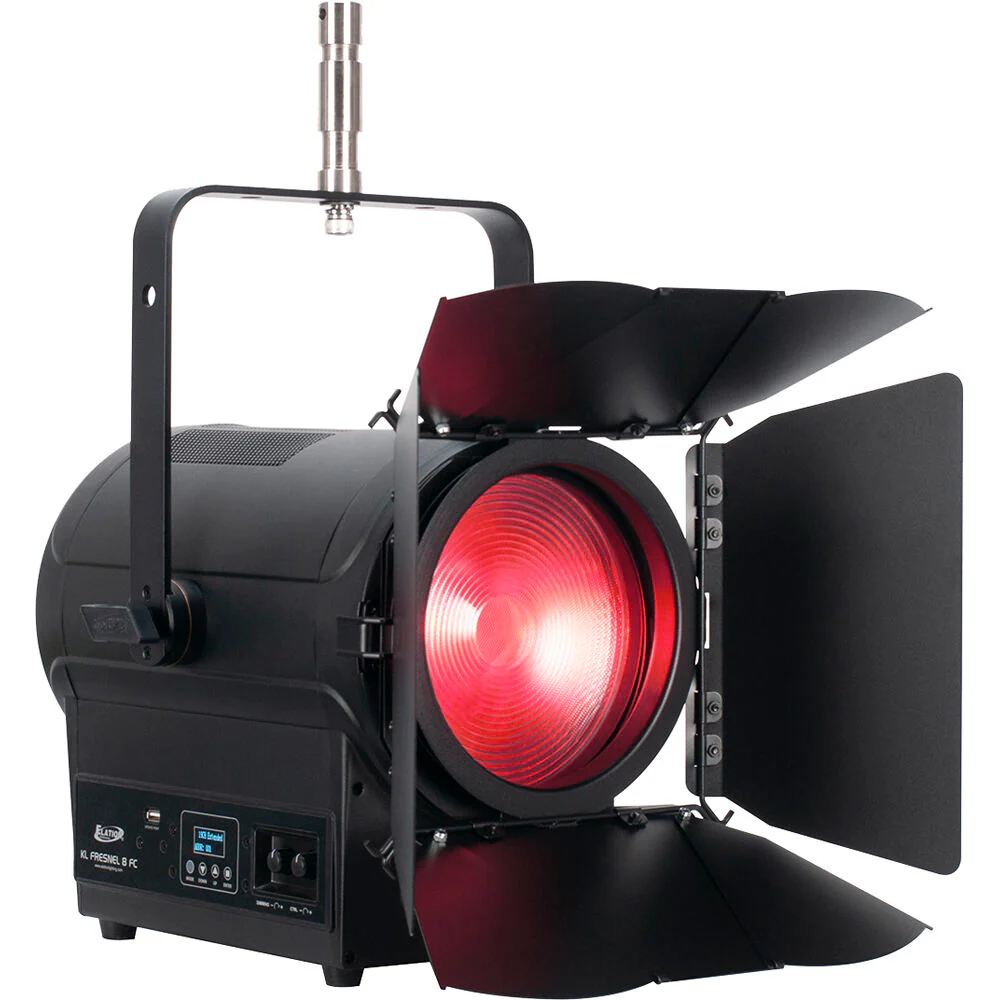

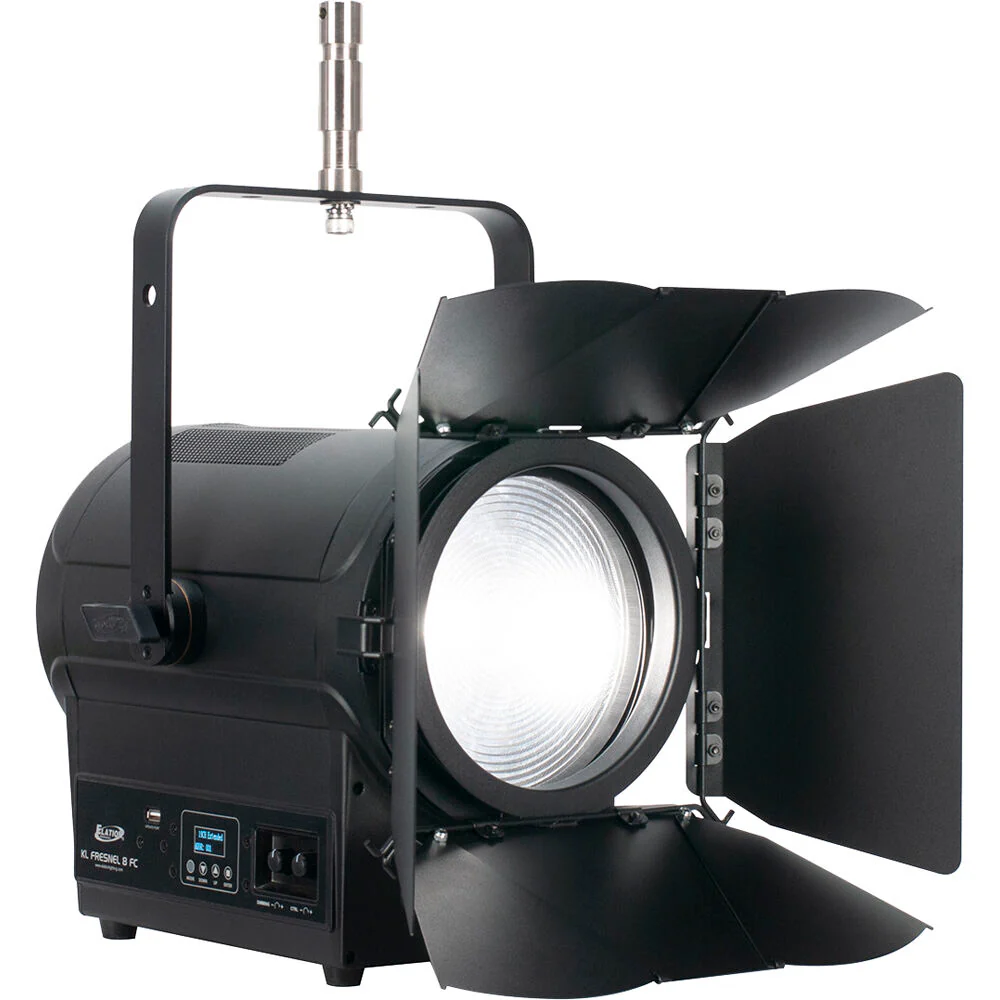

Providing high output, precise color temperature control, high-fidelity color rendering, and even wash coverage, the KL Fresnel 8 FC from Elation Professional is a full-color spectrum LED fixture optimized for the tunable white light requirements of professional film and television sets. An optimal key and fill light source, it features a highly efficient 5-in-1 LED engine that can deliver 18,000 field lumens in a range from 10 to 50 degrees with a fully motorized zoom.
Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units. The KL Fresnel 8 FC can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access using the included encoders and display, providing instant control of zoom, intensity, color temperature, green shift, and other important settings. The display and encoders are conveniently positioned at the bottom side of the fixture to ensure unobstructed access while mounted on a stand
- Full-color spectrum LED fixture with a color temperature ranging from 2400K to 8500K and a CRI rating of 94.5
- Fresnel lens allows for spot-to-flood beam angle adjustment from 10 to 50°
- Smooth 16-bit dimming from 0 to 100%, can be configured for different fade in and fade out curves
- Flicker-free operation makes this light ideal for shooting video
- DMX control possible with optional board, offers in/out slots for both 3-pin and 5-pin XLR cables
- In/out powerCON ports and USB slot for software updates
- Adjustable yoke with three slots for simplified mounting
- Barndoors and gel frame so you can easily shape your light
In the Box
- Elation Professional KL Fresnel 8 FC
- Gel Frame
- IP65 Locking Power Cable
- Set of Rotating 8-Leaf Barndoors
- Junior Pin
Elation Professional KL Fresnel 8 Specs
| Lumens | 18,000 |
| Photometrics | 28° at 2700K 3165 fc / 34,076 Lux at 3.3' / 1 m* 791 fc / 8519 Lux at 6.6' / 2 m 351 fc / 3786 Lux at 9.8' / 3 m 28° at 5600K 5150 fc / 55,446 Lux at 3.3' / 1 m* 1287 fc / 13,862 Lux at 6.6' / 2 m 572 fc / 6161 Lux at 9.8' / 3 m *Standardized Measurement Supplied by the Manufacturer |
| Color Temperature | 2400 to 8500K |
| Color Accuracy Standard | CRI 94.5 TLCI 94 |
| Expected Lamp Life | 50,000 Hours |
| Max DMX Control Channels | 6 |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Pass-Thru | Yes |
| Power Consumption | 514 W Maximum |
| IP Rating | IP20 |
| Operating Temperature | 5 to 113°F / -15 to 45°C |
| Display | LED |
