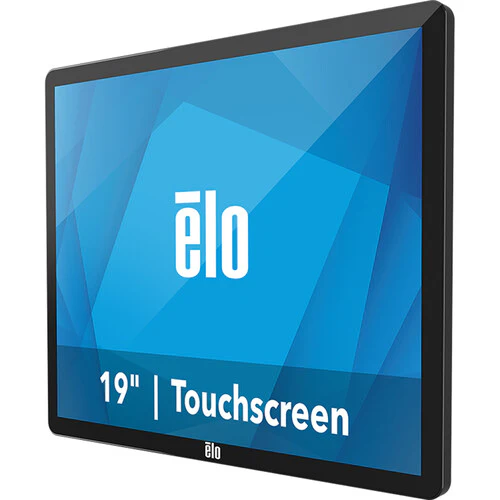

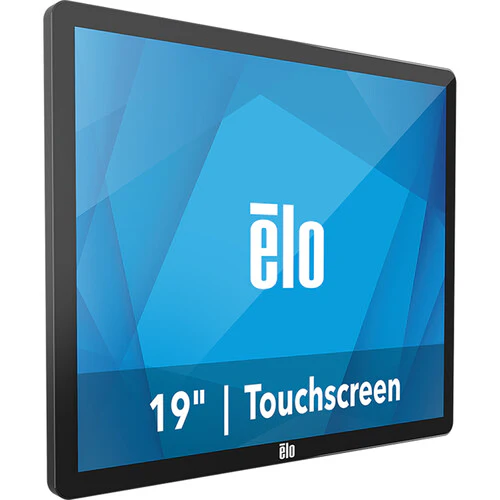

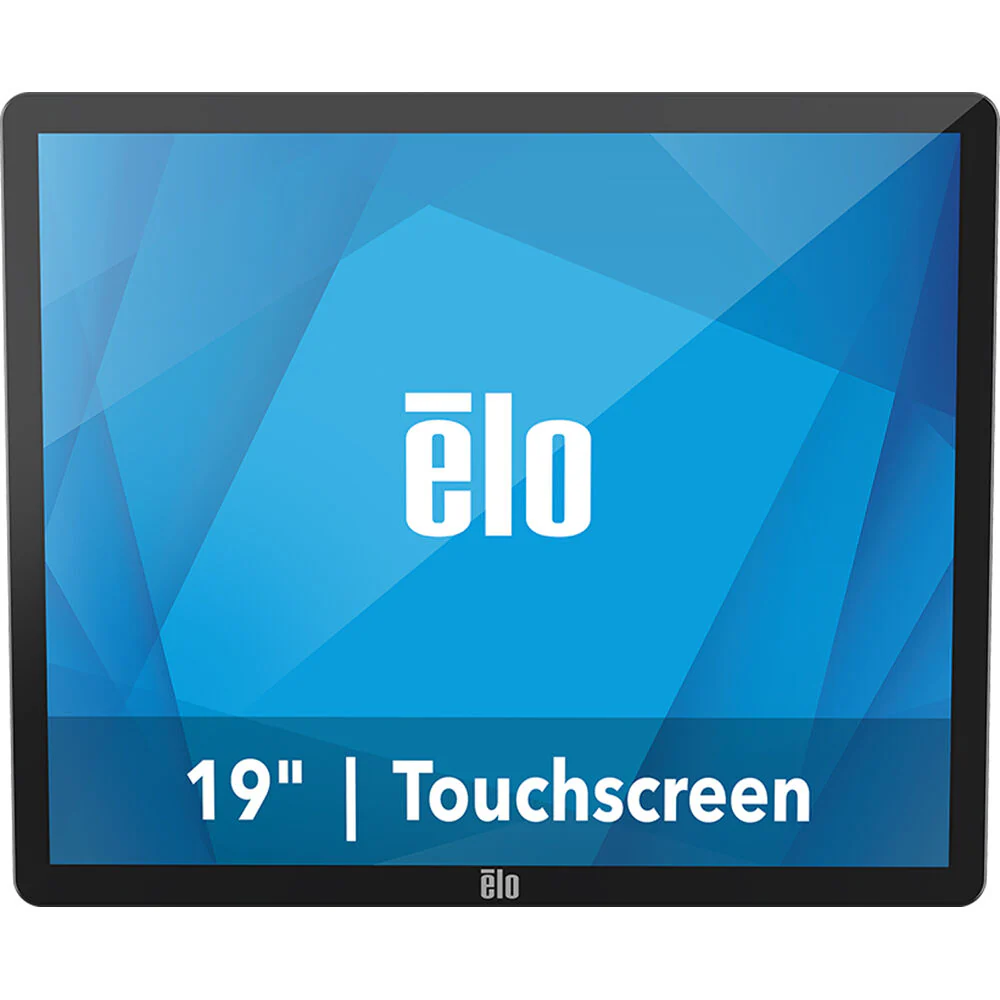

Elo Touch 1902L 19" SVGA Touchscreen Commercial Monitor (No Stand)
Elo Touch 1902L Overview
The Elo Touch 1902L 19" SVGA Touchscreen Commercial Monitor is a compact, 225 nits bright, interactive touch display designed for point of sale, interactive signage, and information kiosk applications. Connect to systems via HDMI or VGA with USB for touch. Additionally, four Elo Edge Connect inputs are available to accommodate upgrades and add-ons like a fingerprint scanner, magnetic stripe reader, barcode scanner, NFC sensor, and more.
Elo Edge Connect
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order, or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution.
Items Included
- Elo Touch 1902L 19" SVGA Touchscreen Commercial Monitor (No Stand)
- Power Cable
- Power Brick
- VGA Cable
- HDMI Cable
- Touch USB Cable
- Audio Cable
- 3 x Cable Tie Wrap
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Elo Touch 1902L Specs
Key Specs
| Display Size |
19"
|
| Native Resolution |
1280 x 1024
|
| Maximum Brightness |
225 nits / cd/m2
|
| Touchscreen Technology |
Projected Capacitive
|
| Inputs |
1x HDMI
1x DE-15/DB-15 (VGA) |
| Outputs |
1x 1/8" / 3.5 mm (Analog Audio)
|
| Wireless |
No
|
| USB I/O |
1x USB-B (Unspecified Version) (Touchscreen Control)
1x USB-A 2.0 4x Micro-USB (Unspecified Version) |
| Ethernet I/O |
No
|
| Built-In Speakers |
Yes, 2x 2 W
|
| Media Card Reader |
No
|
Display
| Display Size |
19"
|
| Panel Type |
TFT LCD
|
| Aspect Ratio |
5:4
|
| Display Orientation |
Landscape
|
| Native Resolution |
1280 x 1024
|
| Maximum Brightness |
225 nits / cd/m2
|
| HDR Support |
No
|
| Contrast Ratio |
1000:1
|
| Response Time |
14 ms
|
| Refresh Rate |
60 Hz
|
| Color Support |
16.7 Million Colors
|
| Viewing Angle (H x V) |
178 x 178°
|
| Screen Area |
14.76 x 11.80" / 374.78 x 299.83 mm
|
| Horizontal Frequency |
30 to 82 kHz
|
| Vertical Frequency |
50 to 75 Hz
|
| Pixels Per Inch (ppi) |
86 ppi
|
Surface
| Touchscreen Technology |
Projected Capacitive
|
| Multi-Touch Points |
10
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
1x HDMI
1x DE-15/DB-15 (VGA) |
| Outputs |
1x 1/8" / 3.5 mm (Analog Audio)
|
| HDCP Support |
Yes
|
| Wireless |
No
|
| NFC |
No
|
| USB I/O |
1x USB-B (Unspecified Version) (Touchscreen Control)
1x USB-A 2.0 4x Micro-USB (Unspecified Version) |
| Ethernet I/O |
No
|
| Ambient Light Sensor |
No
|
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
Yes, 2x 2 W
|
| Speaker Configuration |
2-Channel
|
Hardware
| OS Compatibility |
Windows
|
| Media Card Reader |
No
|
| Built-In Mic |
No
|
Supported File Formats
| Supported Languages |
English
French German Italian Japanese Simplified Chinese Spanish Traditional Chinese |
Electrical
| Power Consumption |
Typical: < 15.0 W
Standby: < 1.0 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
External
|
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 10 to 95% Humidity
|
| Certifications |
cUL, IC, CE, UKCA, BSMI, FCC, UL, VCCI, CB, RCM, EAC, BIS, RoHS, WEEE, REACH
|
| Mounting-Hole Pattern |
100 x 100 mm
|
| Lighting Lifespan |
50000 Hours
|
| Environmental Resistance |
Water-Resistant (IPX1)
|
| Impact Resistance |
Impact-Resistant (IK06)
|
| Lock Slot |
No
|
| Dimensions |
16.9 x 14 x 1.6" / 429.6 x 354.6 x 41.6 mm
|
| Weight |
9.5 lb / 4.3 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
