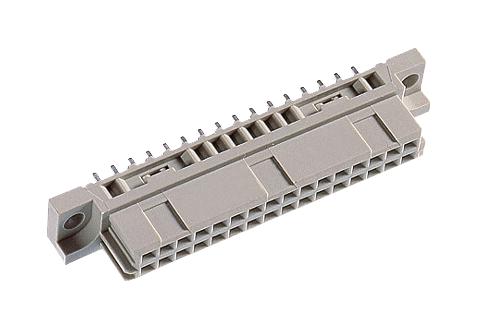

EPT 102-90065 102-90065 DIN 41612 Connector 32 Contacts Receptacle 2.54 mm 2 Row a + b New
- DIN 41612 female straight, type B/2, 32 contact receptacle with 32 contacts
- IEC 60603-2 (DIN 41612) specification
- Performance level 2
- Solder termination technology and 16.85mm board-to-board distance
- Insulator material is PBT glass filled UL 94 V-0
- Copper alloy contact material
- Durability of 400 mating cycles
- 1.5A operational current and 1000V test voltage
- Operating temperature range from -55ĆĀ°C to +125ĆĀ°C
- UL file E130314 approval
Other details
| Brand | EPT |
| Part Number | 102-90065 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
