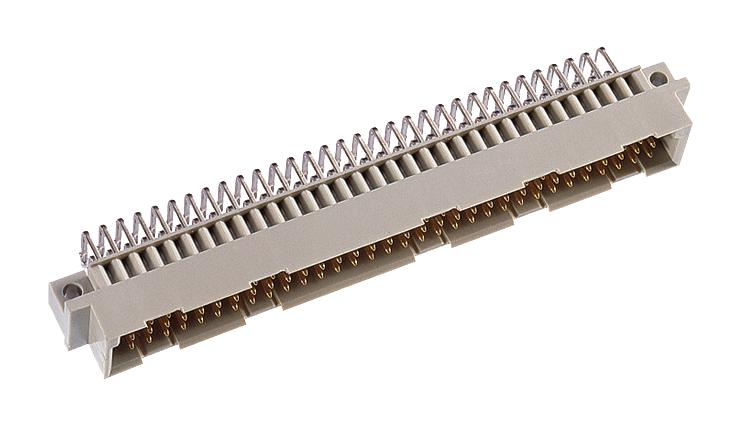

EPT 103-40014 DIN 41612 Connector, R/A, 32 Contacts, Plug, 2.54 mm, 3 Row, a + b + c
- DIN 41612 male 90Ā°, type C plug with 32 contacts
- IEC 60603-2 (DIN 41612) specification
- Performance level 2
- Solder termination technology and 3mm termination length
- Insulator material is PBT glass filled UL 94 V-0
- Copper alloy contact material
- Durability of 400 mating cycles
- 1.5A operational current and 1000V test voltage
- Operating temperature range from -55Ā°C to +125Ā°C
- UL file E130314 approval
Product details
| Product Range: - |
| No. of Contacts: 32Contacts |
| Gender: Plug (View Associated Connectors) |
| Pitch Spacing: 2.54mm |
| No. of Rows: 3 Row |
| Rows Loaded: a + b + c |
| Contact Plating: - |
| Contact Material: Copper Alloy |
| No. of Mating Cycles: 400 |
Other details
| Brand | EPT |
| Part Number | 103-40014 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
