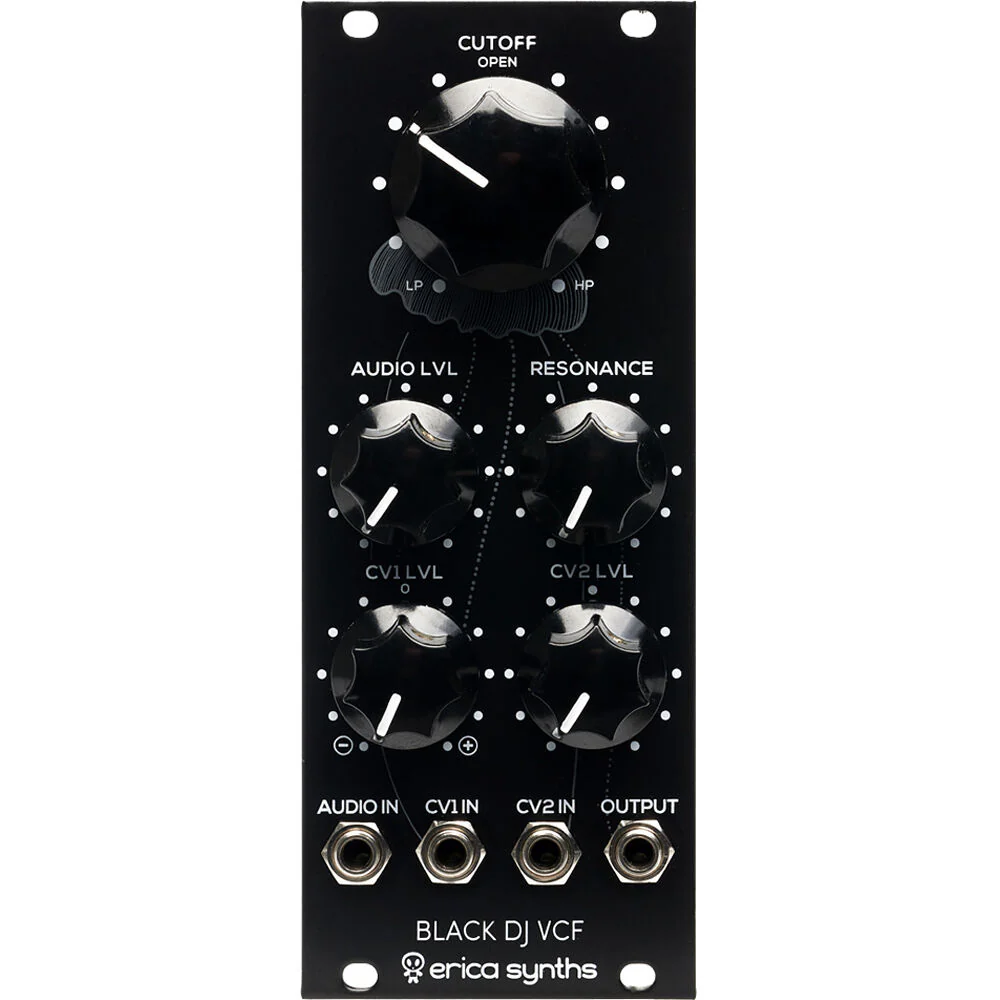

Erica Synths Black DJ VCF Eurorack Module (10 HP)
Erica Synths BLACK DJ VCF Overview
Modular synthesizer enthusiasts in search of a DJ-style filter will be impressed with the erica synths Black DJ VCF, a fully analog Eurorack module that consists of two VCFs, highpass and lowpass in series, with the filter management is done by complex CV routing. Turning the cutoff counterclockwise will engage the low-pass filter, while turning the knob clockwise engages the high-pass filter. When the cutoff knob is at 12:00, the filter is open.
Two CV inputs and two attenuverters control the filter cutoff. This module provides hands-on control over the sound during performance, as well as unconventional timbre modulations that are hard to achieve with conventional state variable filters. The module includes a power ribbon cable and a set of mounting screws.
- Fully analog DJ-style voltage-controlled filter (VCF)
- Bipolar cutoff knob offers control over LPF and HPF
- CCW engages low-pass filter
- CW engages high-pass filter
- Manual resonance control
- Two Cutoff CV inputs and two attenuverters
- Protection against overvoltage
- Power consumption: +55mA / -58mA
- Module depth: 1.4" / 35mm
In the Box
- Erica Synths Black DJ VCF Eurorack Module (10 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Erica Synths BLACK DJ VCF Specs
| Sound Generation |
Analog
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
1 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Input (Eurorack Compatible)
1 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output (Eurorack Compatible) |
| MIDI I/O |
No
|
| CV/Gate I/O |
2 x 1/8" / 3.5 mm TS Filter CV Input
|
| Patch Points |
No
|
| Eurorack Current Consumption |
55 mA on +12 V Rail
58 mA on -12 V Rail |
| Horizontal Pitch |
10 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Analog
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
| Number of Song Presets |
No
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
No
|
| Performance Functions |
No
|
| Built-In Speaker |
No
|
| Oscillators |
No
|
| Mixer |
No
|
| Amplifiers |
No
|
| Envelopes |
No
|
| Filters |
Number of Filters: 1 per Patch
Characteristic: Analog Type: Low-Pass, High-Pass (HPF/LPF) |
| LFOs |
No
|
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
1 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Input (Eurorack Compatible)
1 x 1/8" / 3.5 mm TS Unbalanced Mono Instrument Output (Eurorack Compatible) |
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
2 x 1/8" / 3.5 mm TS Filter CV Input
|
| Control Voltage Level |
±10 V
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB |
No
|
| Media/Memory Card Slot |
No
|
| Bluetooth |
No
|
| Maximum Input Level |
10 V p-p
|
| Included Software |
No
|
| Mobile App Compatible |
No
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
55 mA on +12 V Rail
58 mA on -12 V Rail |
| Color |
Black
|
| Horizontal Pitch |
10 HP
|
| Included Accessories |
No
|
| Package Weight |
0.39 lb
|
| Box Dimensions (LxWxH) |
7.8 x 4.7 x 2.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
