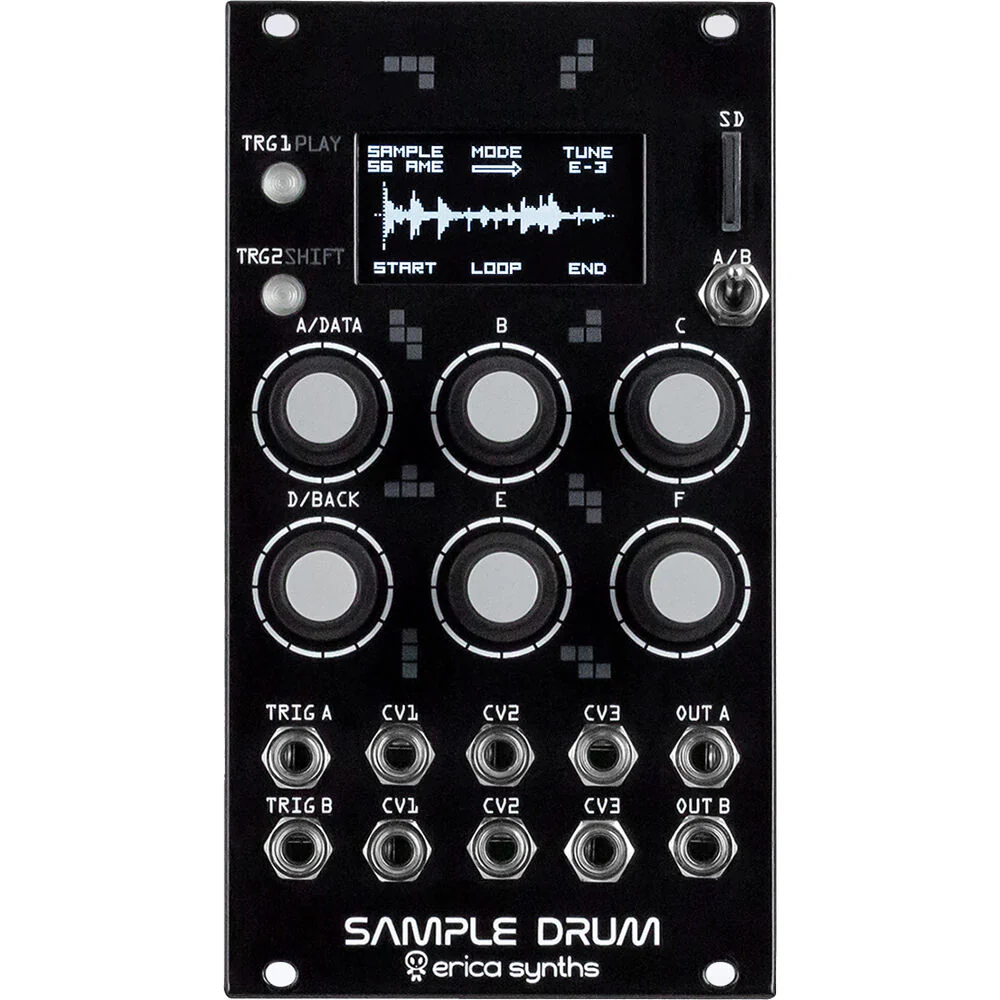

Erica Synths Sample Drum Eurorack Module (14 HP)
Erica Synths Sample Drum Overview
Modular synthesizer enthusiasts looking for Eurorack sampler will be impressed with the erica synths Sample Drum, a digital sampler module with a straightforward intuitive interface with fantastic functionality and sound quality. The module is composed of two identical parts that allow you to play back, record, and slice up samples of loops directly in your modular system.
Sample Drum offers a wide range of features including several play modes, tuning functions (1V/oct pitch tracking), virtual VCAs + AHD envelopes, and real-time effects. There are 3 assignable CV inputs per channel, which allow you to inject a lot of expression during performances. The sample engine provides 32MB of RAM for a total of 5-minutes of sampling time (16-bit, 48 kHz, mono). The Sample Drum includes a 16GB SD card packed with free factory sample presets, as well as a ribbon power cable and mounting screws.
- Two simultaneous sample players
- Sample playback with fast trigger response
- Manual and automatic sample slicing
- 1V/Oct tracking
- 3 assignable and configurable CV inputs per channel
- Various effects for real time sample processing
- Sample recording
- 32MB RAM for 5-minutes of mono recording (48 kHz, 16-bit)
- Sample slicing based on linear time or transients
- FX: Delay, Reverb, LPF, HPF, Bitcrush, Fold, Drive
- Amplitude envelopes per channel
- Live Performance mode
- Cue point loading from WAV files
- Preset memory
- User-friendly interface
- Module Depth: 1.2" / 30mm
- 16GB SD card with factory preset samples included
In the Box
- Erica Synths Sample Drum Eurorack Module (14 HP)
- Ribbon Power Cable
- Set of Mounting Screws
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Eurorack Cases (Not Included)
Erica Synths Sample Drum Specs
| Sound Generation |
Digital
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Output (1 Stereo Pair, Eurorack Compatible)
|
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS Trigger Input
6x 1/8" / 3.5 mm TS CV Input |
| Patch Points |
No
|
| Eurorack Current Consumption |
65 mA on +12 V Rail
2 mA on -12 V Rail |
| Horizontal Pitch |
14 HP
|
| Item Type |
Eurorack Module
|
| Sound Generation |
Digital
|
| Keyboard |
No
|
| Expression Controls |
No
|
| Number of Pads |
No
|
| Display |
No
|
| Maximum Polyphony |
Not Specified by Manufacturer
|
| Built-In Effects |
No
|
| Built-In Speaker |
No
|
| Oscillators |
2x Fixed (Sample)
|
| Mixer |
No
|
| Amplifiers |
1x DCA per Voice
|
| Envelopes |
1x Amp Envelope Generator per Voice: Attack, Hold, Decay
|
| Filters |
Number of Filters: 1 per Voice
Characteristic: Digital Type: Low-Pass, High-Pass |
| Sequencer |
No
|
| Arpeggiator |
No
|
| Audio I/O |
2x 1/8" / 3.5 mm TS Unbalanced Mono Output (1 Stereo Pair, Eurorack Compatible)
|
| Pedal Support |
No
|
| MIDI I/O |
No
|
| CV/Gate I/O |
2x 1/8" / 3.5 mm TS Trigger Input
6x 1/8" / 3.5 mm TS CV Input |
| Control Voltage Level |
CV In: ±5 V (Maximum)
|
| Patch Points |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| USB I/O |
No
|
| Media/Memory Card Slot |
Single Slot: SD/SDHC [16 GB Maximum]
|
| Maximum Output Level |
1/8" / 3.5 mm Analog Outputs:
+10 V p-p |
| Included Software |
No
|
| Mobile App Compatible |
No
|
| Power Requirements |
Eurorack Power
|
| Eurorack Current Consumption |
65 mA on +12 V Rail
2 mA on -12 V Rail |
| Color |
Black
|
| Horizontal Pitch |
14 HP
|
| Included Accessories |
No
|
| Package Weight |
0.565 lb
|
| Box Dimensions (LxWxH) |
7.75 x 4.15 x 2.55"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
