Galaxy Audio AS-950-2N Wireless In-Ear Twin Pack Monitor System (N: 518 to 542 MHz)
Galaxy Audio AS-950-2N Overview
- 1 Description
- 2 AS-950T Transmitter
- 3 AS-950R Receiver
- 4 EB4 Earbuds
The AS-950-2BN Wireless In-Ear Twin Pack Monitor System from Galaxy Audio includes an AS 950T wireless transmitter, two AS-950R wireless bodypack receivers, two pairs of EB4 earbuds, antenna, power supply, and a rackmount kit (one coupler with two coupler screws, four rack screws). This system can be used to send one stereo mix to two individuals in a band or duo for monitoring applications.
The wireless transmitter features stereo XLR-1/4" combo inputs, L/R level display with channel up and down select, and headphones output with volume control. The receiver is equipped with two 50mW outputs with an RF and stereo indicator. The Galaxy Audio AS-950 also offers 16 selectable UHF frequencies.
In addition, the EB4 earbuds feature titanium drivers, extended bass response, and aluminum alloy construction. An unlimited number of receivers may be added at any time (sold separately).

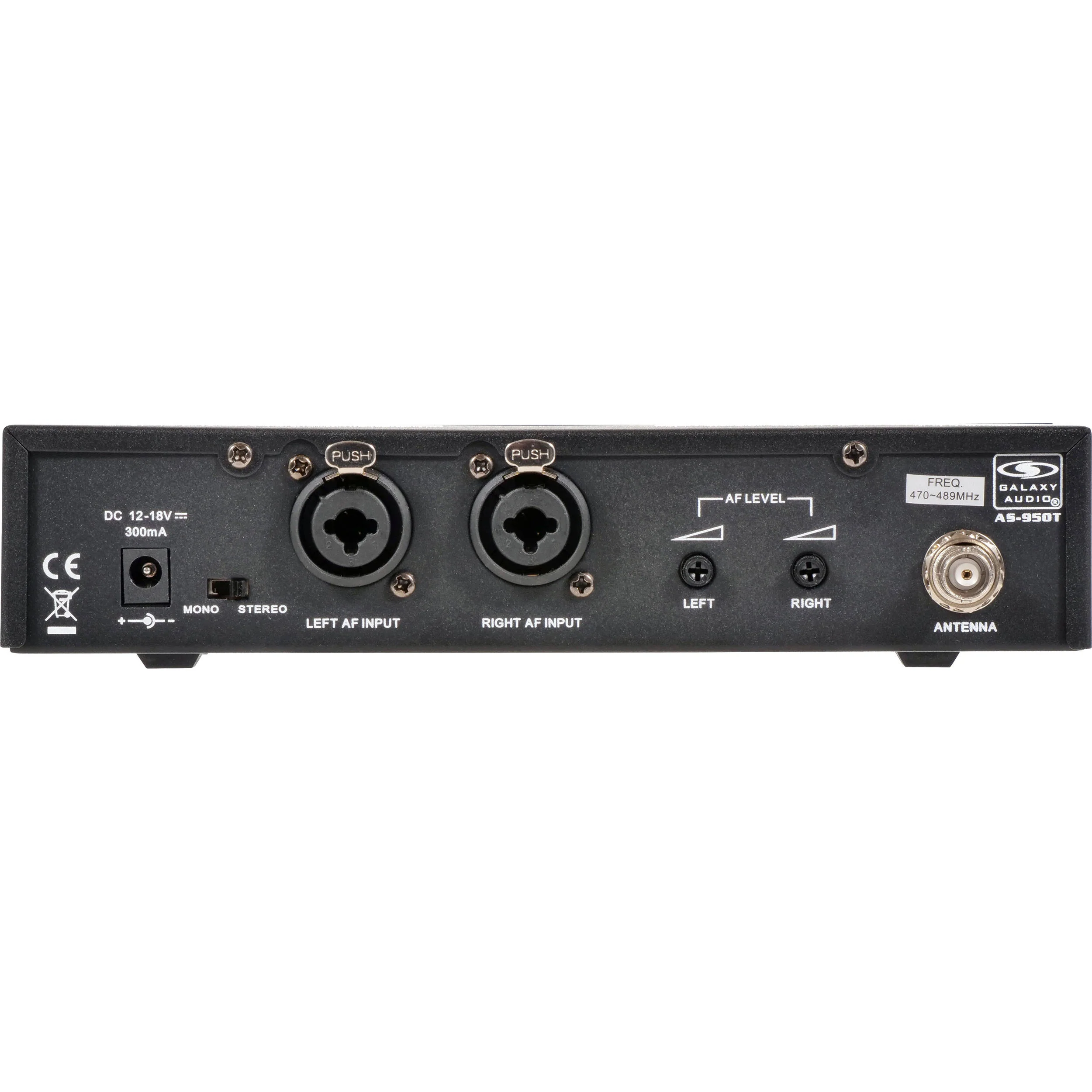

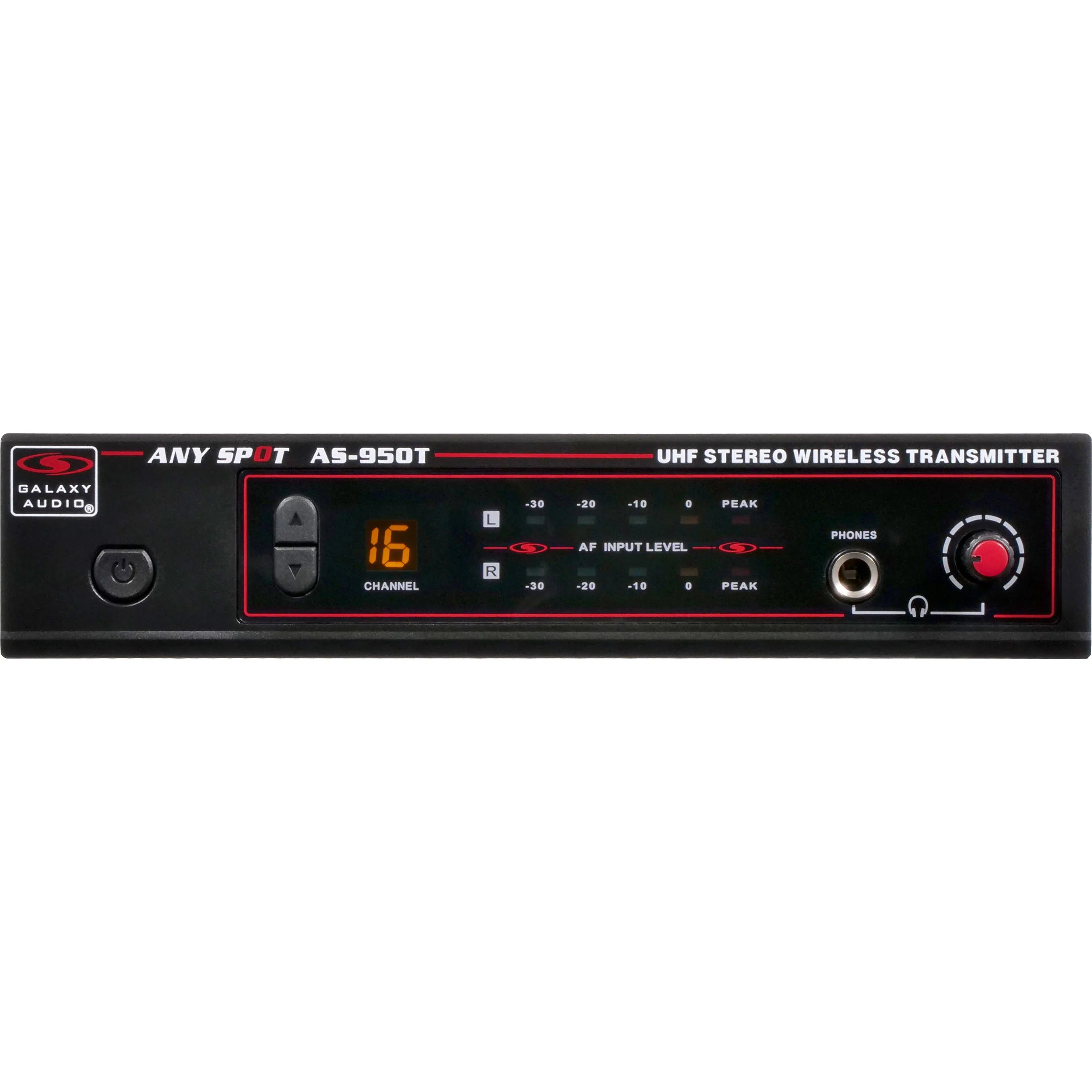

AS-950T Transmitter
- 16 selectable UHF frequencies
- AF L/R indicator
- Transmits in stereo or mono
- Channel LCD display
- Up/down channel select
- XLR-1/4" combo input
- RF output 10mW
- Detachable 1/2 Wave BNC antenna included

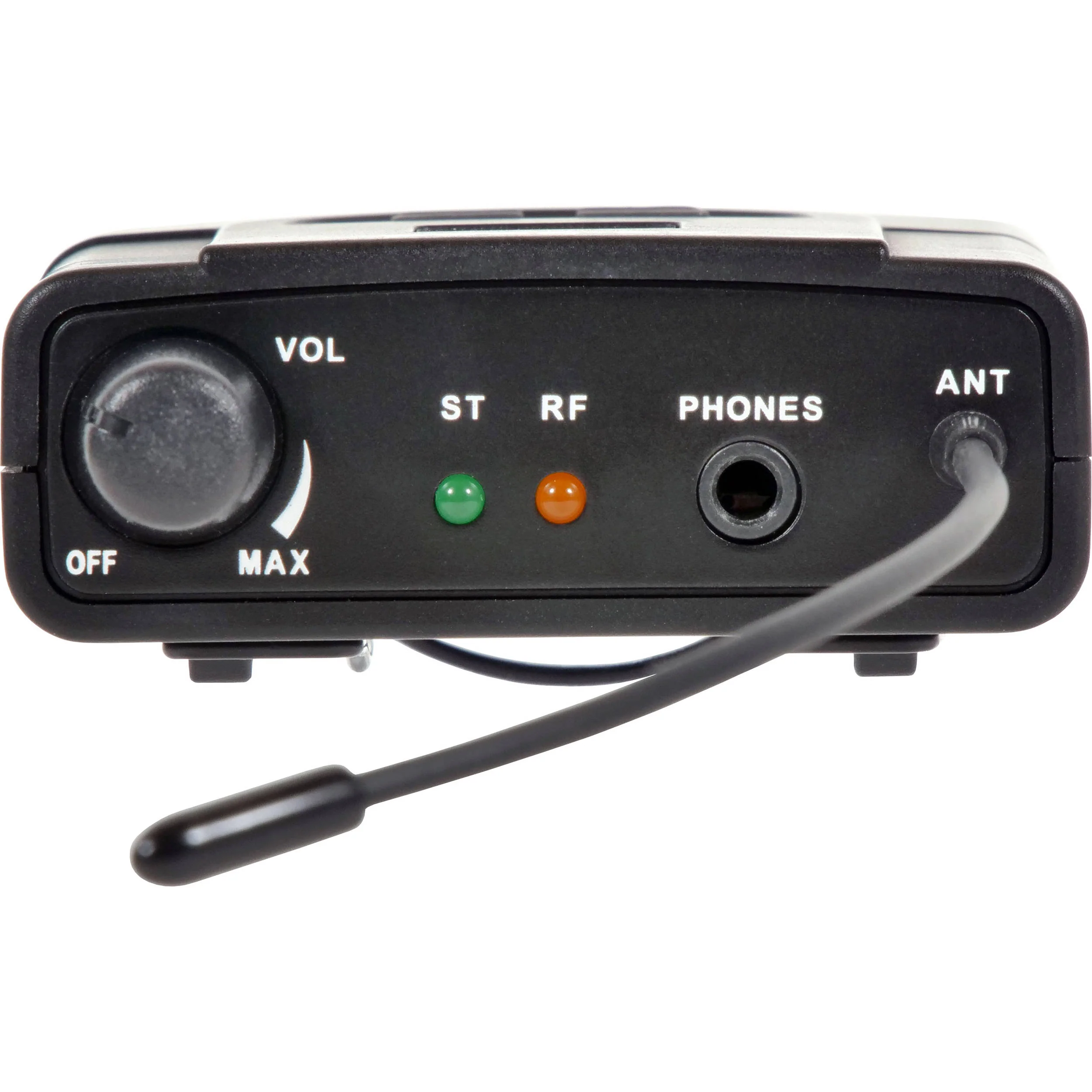

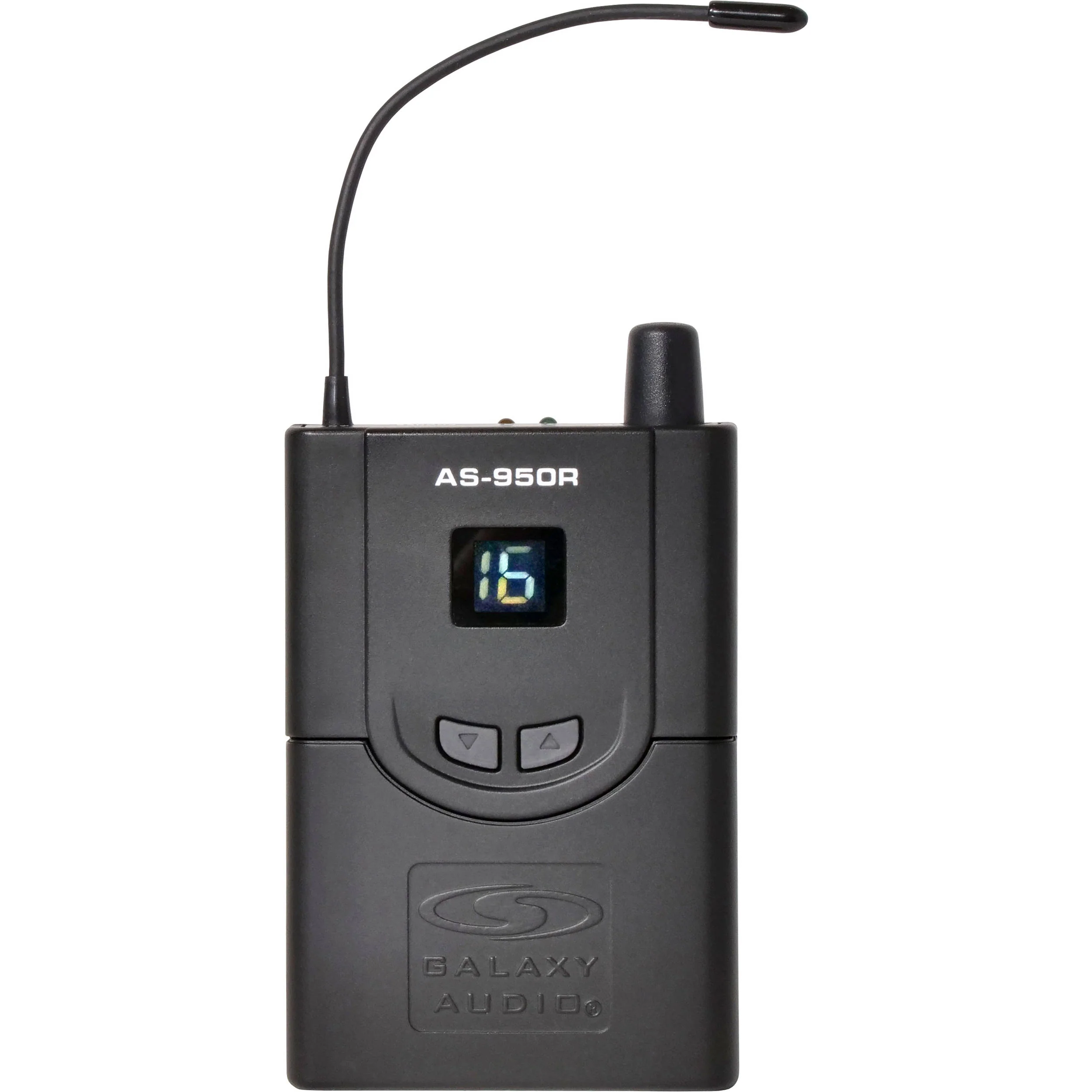

AS-950R Receiver
- Built-in limiter
- 50mW x 2 earphone out with volume control
- Channel LCD display
- Up/down channel select
- Operates on two AA batteries (alkaline or rechargeable)
- Lightweight 3.35 oz
EB4 Earbuds
- Stereo personal monitoring earbuds
- Single titanium drivers
- High-fidelity sound with extended bass
- Light and comfortable
- Aluminum alloy construction
- Durable cable
In the Box
- Galaxy Audio AS-950-2N Wireless In-Ear Twin Pack Monitor System (N: 518 to 542 MHz)
- AS-950T Wireless Transmitter
- 2 x Galaxy Audio EB4 Single-Driver In-Ear Stereo Monitor Headphones
- 2 x AS-950R Wireless Bodypack Receivers
- Detachable Antenna
- Power Supply
- Single/Dual Rack Kit
- Limited 3-Year Warranty
- Description
- AS-950T Transmitter
- AS-950R Receiver
- EB4 Earbuds
Galaxy Audio AS-950-2N Specs
| Band | UHF |
| Frequency Range | N: 518 to 542 MHz |
| Frequencies Supported | 16 |
| Transmitter Output | 10 mW |
| Operating Range | 200' / 61 m |
| Audio Frequency Response | Ā±3 dB 50 Hz to 15 kHz |
| Total Harmonic Distortion | <1% @ 1 kHz |
| Signal to Noise | >80 dBA |
| Maximum Deviation Range | ±/40 kHz |
| Dynamic Range | >90 dB A-Weighted |
| Operating Temperature | 14 to 122Ā°F / -10 to 50Ā°C |
| Rack Unit Space | EIA Standard 1/2 RU |
| Modulation Mode | FM Stereo Modulation |
| RF Output | 10 mW |
| Maximum Audio Input Level | + 6 dBV |
| Gain Adjustment Range | 40 dB |
| Controls | Headphone Volume, Channel Up/Down, and Power Button |
| Indicators | LCD Display, Input Level |
| Audio Input | 2 x XLR/1/4" Line Level Combo Jacks |
| XLR Inputs | Impedance Balanced Pin 1: Ground (Cable Shield) Pin 2: Audio + Pin 3: No Audio |
| Antenna | Detachable 1/2 Wave BNC Antenna |
| Power Requirement | 12 to 18 BDC at 300 mA, Supplied by External Power Supply |
| Dimensions (H x W x D) | 1.73 x 8.34 x 3.77" / 4.39 x 21.18 x 9.58 cm |
| Weight | 19.75 oz / 559.90 g |
| Audio Output Level | 2 x Earphone Out with Volume Control (50 mW) |
| Sensitivity | -94 dBm for 30 dB |
| Stereo Separation | 40 dB (at 1 kHz) |
| Output Connector | 1/8" / 3.5 mm Stereo Mini-Jack Earphone Connector |
| Controls | Volume, Channel Up/Down |
| Indicators | LCD Display, Stereo LED, RF LED |
| Power Requirements | 2 x AA Size Alkaline or Rechargeable Batteries |
| Battery Life | About 12 Hours (Alkaline) |
| Dimensions (H x W x D) | 3.54 x 2.51 x 0.90" / 8.99 x 6.38 x 2.29 cm |
| Weight | 3.35 oz / 94.97 g |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
