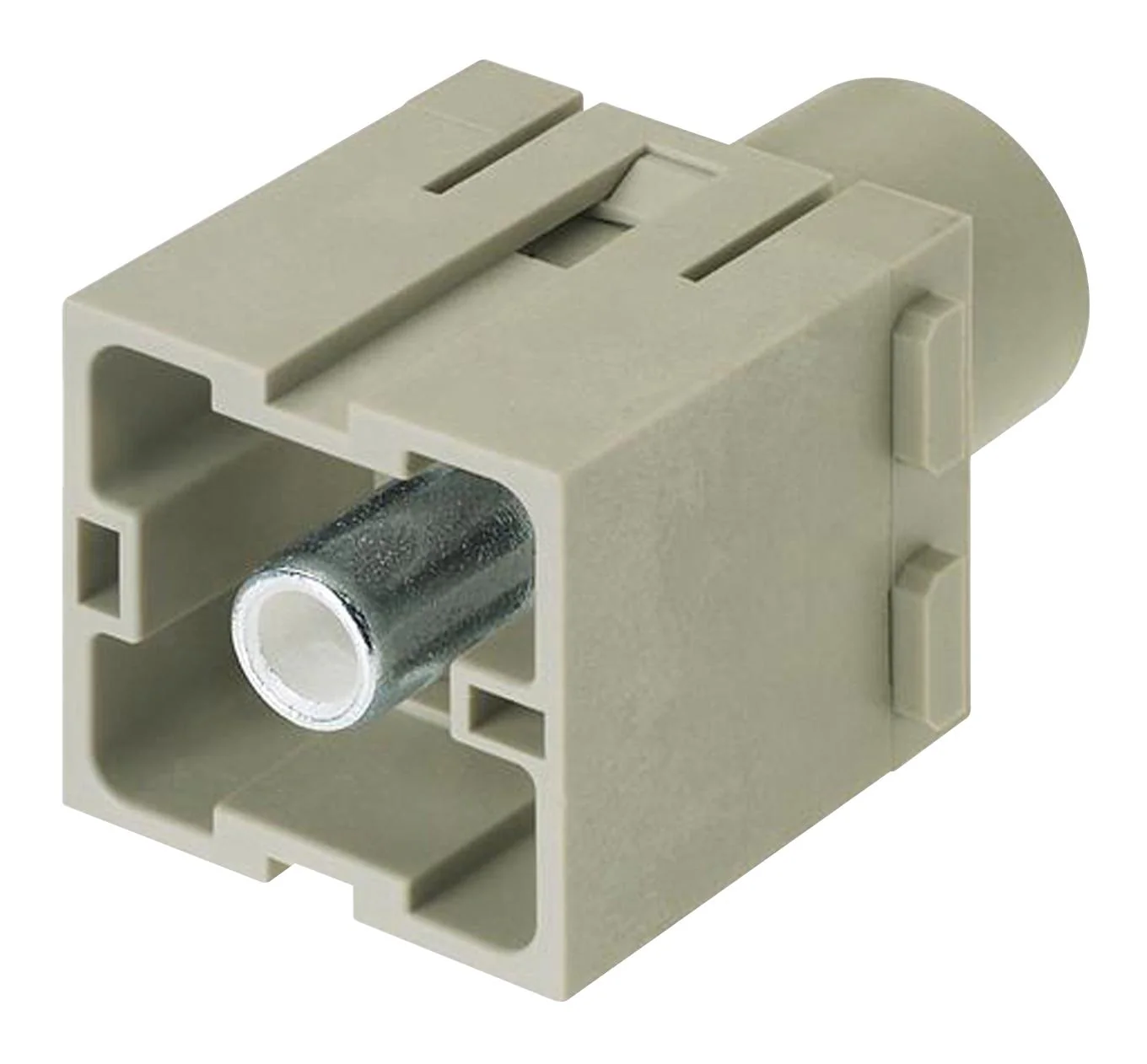

HARTING 09140012663 Heavy Duty Connector, Han-Modular, Insert, 1 Contact, Plug, Screw Pin
The 09140012663 from Harting is a Han-ModularĀ® male module.
- HanĀ® 200 A module type
- Single contact, axial screw termination
- 25 to 40mmĀ² conductor cross-section
- Voltage rating is 1000V, current rating is 200A
- Contact resistance is <= 0.2mohm
- Limiting temperature range from -40Ā°C to +125Ā°C
- Stripping length is 16mm
- Mating cycles is >= 500
- Tightening torque is 8Nm
- RAL 7032 (pebble grey) polycarbonate insert, silver plated copper alloy contacts
Product details
| Product Range: Han-Modular |
| Heavy Duty Connector Type: Insert |
| No. of Contacts: 1 Contact |
| Rectangular Shell Size: - |
| Gender: Plug (View Associated Connectors) |
| Heavy Duty Contact Type: Screw Pin |
| Current Rating: 200A |
Other details
| Brand | HARTING |
| Part Number | 09140012663 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarksā¢ or registeredĀ® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
$19.37
Original: $64.58
